Panel Description; I Panel Description - Icom IC-A4 Instruction Manual

2

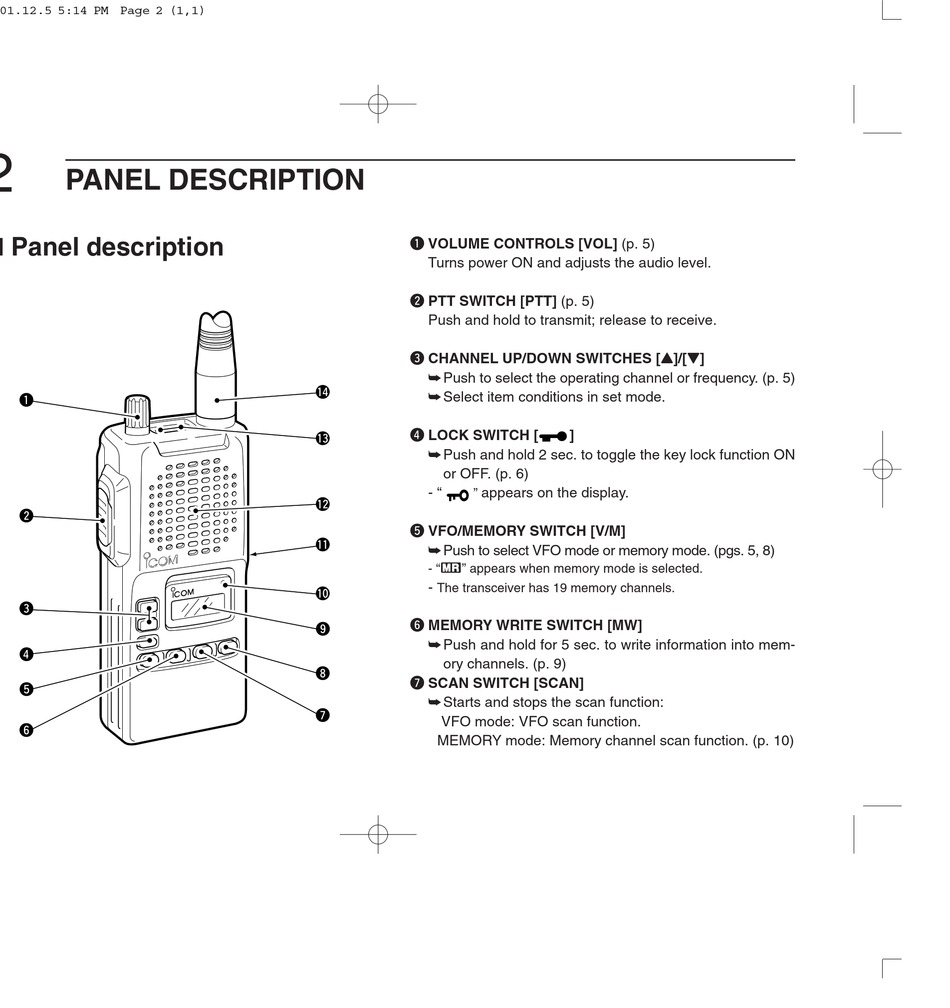

PANEL DESCRIPTION

I Panel description

q
w
e
r
t
y
2
q VOLUME CONTROLS [VOL] (p. 5)
Turns power ON and adjusts the audio level.
w PTT SWITCH [PTT] (p. 5)
Push and hold to transmit; release to receive.
e CHANNEL UP/DOWN SWITCHES [Y]/[Z]
➥ Push to select the operating channel or frequency. (p. 5)
!4
➥ Select item conditions in set mode.
r LOCK SWITCH [
!3
➥ Push and hold 2 sec. to toggle the key lock function ON
or OFF. (p. 6)
- " appears on the display.
"
!2
t VFO/MEMORY SWITCH [V/M]
!1
➥ Push to select VFO mode or memory mode. (pgs. 5, 8)
- "X" appears when memory mode is selected.
-
The transceiver has 19 memory channels.
!0
y MEMORY WRITE SWITCH [MW]
o
➥ Push and hold for 5 sec. to write information into mem-
ory channels. (p. 9)
i
u SCAN SWITCH [SCAN]
➥ Starts and stops the scan function:
u
VFO mode: VFO scan function.
MEMORY mode: Memory channel scan function. (p. 10)
]
