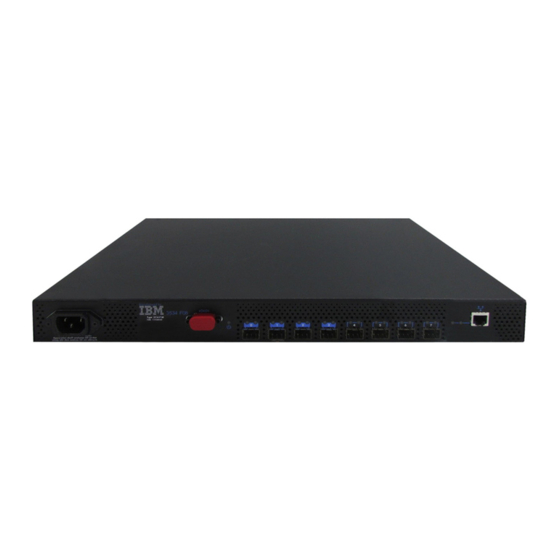

- Page 1 IBM TotalStorage SAN Switch 3534 Model F08 Installation and User’s Guide Read Before Using This product contains software that is licensed under written license agreements. Your use of such software is subject to the license agreements under which they are provided.
- Page 3 IBM TotalStorage SAN Switch 3534 Model F08 Installation and User’s Guide GC26-7559-00...
- Page 4 First Edition (May 2003) This edition replaces GC26-7454-01 and SY27-7631-01. © Copyright International Business Machines Corporation 2002, 2003. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
-
Page 5: Table Of Contents
Optionally licensed features....9 Switch initialization ..... . . 10 Routing. - Page 6 Appendix A. Product specifications ....33 Switch components ..... . . 33 Facility specifications.
- Page 7 Support for FC-IP ..... . . 42 Appendix C. Safety certifications and regulatory compliance ..43 Safety .
- Page 8 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 9: Figures
12. Back panel LED ....... 28 13. IBM SFP ........31 14. - Page 10 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 11: Tables
Tables 1. Brocade and IBM product and model number matrix ....xviii 2. Management interfaces compatible with the 3534 Model F08 3. Parts supplied with the rack mount kit ..... . . 17 4. - Page 12 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 13: Safety And Environmental Notices
An Attention notice warns you of conditions or procedures that can cause damage to machines, equipment, or programs. For translations of danger and caution notices, see IBM TotalStorage SAN Fibre Channel Switch 3534 Model F08 Translated Safety Notices, GC26-7459. The notices are listed in numeric order based on their IDs, which are displayed in parentheses at the end of each notice. -
Page 14: Checking The Safety Labels
2. Verify that the small form-factor pluggable device (SFP) label shown in Figure 2 and Figure 3 on page xiii is installed on the 3534 Model F08. Figure 2. SFP label (front view) IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide SJ000337 SJ000317... -
Page 15: Checking Ac Grounding
Registered Trademark of conditions: (1) this device may not cause harmful interference, and (2) this device must International Business Machines accept any interference received, including interference that may cause undesired operation. Corporation IBM Canada Ltd. ® Registered User 100 – 240 47 6 3 –... -
Page 16: Environmental Notices And Statements
Because IBM does not test any equipment for compatibility with fire suppression systems, IBM does not make compatibility claims of any kind nor does IBM provide recommendations on fire suppression systems. -
Page 17: Product Disposal
IBM provides a product take-back program that ensures proper handling of the product. Contact your IBM representative for more information. Product disposal This unit might contain batteries. Remove and discard these batteries, or recycle them, according to local regulations. Safety and environmental notices... - Page 18 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 19: About This Document
3534 Model F08 in a storage area network (SAN) fabric. It is also intended for network administrators and system administrators whose responsibilities include administration and management of a SAN. Throughout this document, the term switch applies to any IBM 3534 switch, unless the reference is to a specific model. Additional information... -
Page 20: Web Sites
When you use any of the Brocade documents, you will notice that the model numbers reflect the original Brocade switches. Table 1 provides a product matrix for you to use to correlate the Brocade model numbers to the IBM product and model numbers. -
Page 21: Getting Software Updates
Fill out the Readers’ Comments form (RCF) at the back of this document and return it by mail or fax (1-800-426-6209) or give it to an IBM representative. If the RCF has been removed, you can address your comments to:... - Page 22 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 23: Chapter 1. Introduction
One power-cable extender v One rack-mount kit, which you can use if you are installing the switch in a rack. See Table 3 on page 17 for a list of the parts included in the kit. v One documentation CD-ROM... -
Page 24: System Components
One copy of this book, the IBM TotalStorage SAN Switch 3534 Model F08 Installation and User’s Guide See Appendix A, “Product specifications”, on page 33 for the 3534 Model F08 specifications. System components This section describes the front and back panels of the 3534 Model F08. -
Page 25: Hardware Components
The SFP media. SFP media interfaces support SWL and LWL. CPU subsystem An Intel 80960VH CPU is used for management functions and switch initialization. The CPU runs the Fabric OS and is responsible for switch initialization, configuration, and management. Switching functionality is provided by the ASIC. - Page 26 The local bus, a 32-bit multiplexed burst bus, provides the interface between the system memory and the I/O. Because the integrated EDO memory controller on the IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
- Page 27 The PLCC32 socket supports 3.3 V Boot Flash memory up to 512 KB. As with the 2019 series of switches and the 3534 1RU switch, the 3534 Model F08 is based on a central memory architecture. In this scheme, a set of buffers in the central memory is assigned to each port to be used for receipt of frames.
-
Page 28: Ports
The CMI interface for the ASIC is connected inside the ASIC. Each chip time slices its output port to each possible destination chip in the switch. If it has a message to send to a particular destination during the corresponding time slot, the chip uses the time slot to send the message. -
Page 29: Enclosure
You use this connector to configure the internet protocol (IP) address and to recover the factory default settings of the switch should Flash memory contents be lost. The serial port connection should not be used to perform normal administration or maintenance functions. -
Page 30: Power Supply
Firmware that initializes and manages the switch hardware v Diagnostics that perform component self-testing algorithms for fault isolation during the manufacturing process and in your installation IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Value Correctly wired and earth-grounded... -
Page 31: Features And Functions
SNMP agent Additionally, host-based software includes the drivers, utilities, and applications that use the switch. Obtain these components from your system vendor or Fibre Channel component supplier. For more information, see the Brocade Fabric OS Procedures Guide and the Brocade Fabric OS Reference. -
Page 32: Switch Initialization
8. The routing table is constructed. After the addresses are assigned, the unicast routing tables are constructed. 9. Normal node port or node loop port (Nx_port) operation is enabled. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 33: Routing
SNMPv1 manager v Command-line utilities to access and command the agent v MIB-II system group, interface group, and SNMP group v Fabric-element MIB v IBM-specific MIBs v Standard generic traps v IBM-specific traps Diagnostics The 3534 Model F08 supports a set of POSTs, as well as tests that you can run by using Telnet commands. -
Page 34: Hardware Support
– Routing Fibre Channel shortest path first (FSPF) v Basic services – Simple name service – State change notification – WWN zoning (typically referred to as soft zoning or name server zoning) IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 35: Host Bus Adapter Interoperability
QuickLoop zones v QuickLoop Fabric assist mode v Port, protocol, or LUN zoning IBM is not aware of any areas of noncompliance with any ratified standards at this time. Host bus adapter interoperability For a list of host bus adapters (HBAs) that have been tested and approved for use with the 3534 Model F08, go to the following Web site: www.storage.ibm.com/ibmsan/products/2109/san_switch_solu.html... -
Page 36: How To Manage The 3534 Model F08
Brocade Fabric Watch User’s Guide v Brocade ISL Trunking User’s Guide v Brocade MIB Reference v Building and Scaling Brocade SAN Fabrics: Design and Best Practices Guide IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide In-band Out-of-band... -
Page 37: Chapter 2. Installing And Configuring The 3534 Model F08
Ensure the volume of air flow available to the switch is at least 300 cubic feet per minute, and that the front and rear air vents are not blocked. -
Page 38: Installing The 3534 Model F08 As A Stand-Alone Unit
Press the rubber feet firmly into place. 4. Return the switch to its normal upright position. Place it on a sturdy flat surface. 5. When you are ready to supply power to the switch, connect the power cable to the 3534 Model F08 power supply and to a power outlet. -
Page 39: Items Required
1. Mount the moving slide and the lock mounting ears to the switch. 2. Mount the fixed portion of the slide in the rack. 3. Insert the switch and move a portion of the slide into the fixed portion on the rack. -
Page 40: Moving Slide
Item Note: Because this rack mount kit is distributed with various switches, you might end up with extra parts that are not needed for the installation of your switch into your rack assembly. 2. Separate the inner and outer slides. - Page 41 Offset holes for 9306 Netfinity racks Figure 8. Mounting the moving portion of the slide and the mounting brackets to the switch a. Position the left rack mount bracket at the left front corner of the switch chassis, so that the two holes in the bracket align with the two threaded holes in the switch chassis.
-
Page 42: Mounting The Fixed Portion Of The Rail And The Locking Ears To The Rack
7. Install the switch in the rack. a. Position the switch in front of the rack. Insert it into the rack by sliding the inner slides on the switch into the outer slides on the rack. See Figure 10 on page 21. -
Page 43: Configuring, Connecting, And Accessing The 3534 Model F08
Figure 10. Inserting slides into the rack rails b. Verify the alignment of the slides by sliding the switch in and out of the rack. Any difficulty moving the switch indicates lateral stress or misalignment. If this occurs, adjust the slide positions until the movement is smooth. -
Page 44: Items Required
A 3534 Model F08 that is installed and connected to a power source v A workstation that has a terminal emulator application (such as HyperTerminal) v A serial cable that is provided with the switch, for connecting the switch to the workstation... -
Page 45: Connecting And Accessing The Switch
Note: You can now access the switch remotely, using Telnet or Web Tools. 4. Log on to the switch using Telnet. The default administrative logon is admin, and the default password is password. 5. Modify the domain IDs if desired. - Page 46 For more information about this and other commands, see the Brocade Fabric OS Reference. Note: Back up the configuration after any initial changes and periodically IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide at the prompt for that condition. requirements. For information about these requirements, see the Brocade ISL Trunking User’s Guide.
-
Page 47: Chapter 3. Operating The 3534 Model F08
To turn on the 3534 Model F08, plug it into a power outlet. The power supply does not have an ac switch. To turn the switch off, unplug it from the power outlet. Note: Unplugging the switch triggers a system reset. When the switch is plugged in, all devices are returned to the initial state and the switch runs a POST. -
Page 48: Front Panel Leds
Table 5. Front panel LED patterns during normal operation Name of LED Location of LED Switch Status To the right of the serial port IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Port Status LED (8) Switch Status LED Color of LED... - Page 49 No action is required. No action is required. No action is required. Reset the port from a management station. Reset the switch from a management station. Reset the port from a management station. No action is required. No action is required.
-
Page 50: Leds On The Back Panel
A POST completes in 4.5 minutes. A slightly longer version of the memory test is performed after cold starts. A cold start occurs after a complete power cycle, when IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Switch Status LED... -
Page 51: Running Diagnostic Tests
If the prompt does not display, press the Enter key. If the prompt still does not display, contact IBM. If errors are detected during a POST, error messages are written to the system error log. - Page 52 For information about the specific diagnostic tests and how to run them, see the Brocade Diagnostic and System Error Message Reference. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 53: Chapter 4. Replacing An Sfp
This chapter contains the procedures to replace a small form-factor pluggable (SFP) device. Note: Simple network management protocol (SNMP) traps are generated when you remove and install an SFP. You do not need to unplug the switch to replace an SFP. Figure 13 shows an IBM SFP. -
Page 54: Installing An Sfp
Note: The SFP is keyed so that it can only be correctly inserted into the port. If the module does not slide in easily, try turning it over. Do not force the module. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 55: Appendix A. Product Specifications
A 1U chassis, designed to be mounted in a 48.26 cm (19 in.) rack, with forced-air cooling that flows from the fan side of the switch to the cable side. You can also install the switch as a stand-alone unit. -
Page 56: General Specifications
Aggregate switch input/output (I/O) bandwidth Frame buffers Port-to-port latency Data transmission range IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Description The 3534 Model F08 supports multiple F_port and FL_port connections, and one E_port connection. An operating 3534 Model F08 that conforms... -
Page 57: Performance Specifications
8-port switch. The maximum latency for Class 2, Class 3 and Class F frames from input F_port to output F_port within a single switch is less than 2 microseconds when the destination port is free. Cut-through routing: transmission can begin as the frame arrives. -
Page 58: Environmental Specifications
Maximum system power consumption Input voltage Input line frequency Harmonic distortion BTU rating Inrush current IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Switch state Acceptable range Operating 10° - 40°C (50° - 104°F) Nonoperating 10° - 50°C (50° - 126°F) -
Page 59: Memory Specifications
Note: For dust and electrostatic discharge (ESD) protection, keep the cover on the serial port whenever it is not in use. You can use the serial port to connect to a terminal to set the switch IP address without connecting to the fabric. You can also use it to reinitialize the switch defaults, which restores the factory configuration and returns the switch passwords to a known state. -
Page 60: Regulatory Specifications
Greece, Ireland, Italy, Luxembourg, Netherlands, Portugal, Spain, Sweden, United Kingdom) IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Signal Description Logic ground Clear to send Safety specification CSA 22.2 No. 60950 Third Ed. UL 60950 Third Ed., Info. Tech. Equip. - Page 61 Table 14. Regulatory specifications (continued) Country or Safety specification region Australia and New Zealand EMC specification AS/NZS 3548:1995 Class A (radio interference) Appendix A. Product specifications...
- Page 62 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 63: Appendix B. Standards And Protocol Compliance
Appendix B. Standards and protocol compliance IBM is committed to providing products that comply with industry standards and protocols. Standards The 3534 Model F08 is compliant with the following standards: Fibre Channel ANSI Specifications – FC-PH, version 4.3 (Fibre Channel Physical) –... -
Page 64: In-Order Delivery
The 3534 Model F08 supports the FCP-2Rev4 standard. Support for FC-IP Fabric OS supports FC-IP (as defined by IETF), including the address resolution protocol (ARP) service for IP nodes that are connected to the switch. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 65: Appendix C. Safety Certifications And Regulatory Compliance
Appendix C. Safety certifications and regulatory compliance The 3534 Model F08 switch complies with all the safety and regulatory standards listed in this chapter. Safety The 3534 Model F08 switch is certified to : v UL1950/CSA950 binational v IEC950/EN 60950 (Nemko & TUV; CE) Additionally, the following Product Safety/Country or Region Testing/Certifications has been completed. -
Page 66: Immunity
EN 61000-4-3, Severity Level 3 for RF Fields v EN 61000-4-4, Severity Level 3 for EFT/Burst v EN 61000-4-5, Severity Level 3 for Surge Voltage v EN 61000 4-11, Power, Sag, Dip, and Variations IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 67: Appendix D. Blank Planning Worksheets
Users defined - access level SNMP information: System description System contacts System location Event trap level 0 - 5 Enable authentication traps RW community string RO community string Trap recipients IP address License keys © Copyright IBM Corp. 2002, 2003 Description... -
Page 68: Port Configuration Worksheet
Port configuration worksheet Table 16. Port configuration worksheet Port Device number name IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Device port Cable Port length type Notes Cable number... -
Page 69: Zone Definition Worksheet
Zone definition worksheet Table 17. Zone definition worksheet Zone member type Zone member Zone configuration Comments name (switch, port, WWN) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Appendix D. Blank planning worksheets... -
Page 70: Zone Configuration Worksheet
Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) Port (ID, P) IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide Zone Zone configuration member name Connects to... -
Page 71: Appendix E. Power Cables
South Africa Switzerland Thailand United Kingdom Uruguay Table 20. PDU cable shipped with the 3534 Model F08 Country or region Figure 14. Power cable for Australia © Copyright IBM Corp. 2002, 2003 Feature code Part number 9831 13F9940 9800 6952300 9986... -
Page 72: Power Cable For Canada And The United States
Figure 15. Power cable for Canada and the United States Figure 16. Power cable for Chicago Figure 17. Power cable for China IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 73: Power Cable For Israel
Figure 18. Power cable for Denmark Figure 19. Power cable for France Figure 20. Power cable for Israel Appendix E. Power cables... -
Page 74: Power Cable For Italy
Figure 21. Power cable for Italy Figure 22. Power cable for South Africa Figure 23. Power cable for Switzerland IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 75: Power Cable For United Kingdom
Figure 24. Power cable for Thailand Figure 25. Power cable for United Kingdom Figure 26. Power cable for Uruguay Appendix E. Power cables... - Page 76 Figure 27. PDU cable that is shipped with the 3534 Model F08 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 77: Notices
Web sites. The materials at those Web sites are not part of the materials for this IBM product and use of those Web sites is at your own risk. IBM may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. -
Page 78: Trademarks
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. IBM is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment. -
Page 79: Chinese Class A Compliance Statement
IBM cannot accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the fitting of non-IBM option cards. This product has been tested and found to comply with the limits for class A Information Technology Equipment according to European Standard EN 55022. -
Page 80: Germany Compliance Statement
Um die Einhaltung des EMVG sicherzustellen, sind die Geraete wie in den Handbuechern angegeben zu installieren und zu betreiben. Japanese Voluntary Control Council for Interference (VCCI) class 1 statement IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide... -
Page 81: Korean Government Ministry Of Communication (Moc) Statement
Korean Government Ministry of Communication (MOC) statement Please note that this device has been approved for business purposes with regard to electromagnetic interference. If you find that this is not suitable for your use, you may exchange it for one with a non-business use. Taiwan class A compliance statement VS07171L Notices... - Page 82 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 83: Glossary
Glossary This glossary provides definitions for the fibre-channel and switch terminology that the IBM 3534 Model F08 uses. This glossary includes selected terms and definitions from: v Information Technology Vocabulary by Subcommittee 1, Joint Technical Committee 1, of the International Organization for... - Page 84 Application-specific integrated circuit (ASIC) technology on which the 3534 Model F08 is based. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide British thermal unit (BTU). A measurement of heat produced in one hour. broadcast. (1) The simultaneous transmission of the same data to all nodes connected to a network.
- Page 85 A unique identifier for the switch in a fabric. The domain_ID is usually automatically assigned by the switch, but can also be assigned manually. The value of domain_ID can be a value between 1- 239. DRAM. See dynamic random access memory.
- Page 86 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide fabric port (F_port). A port that is part of a Fibre Channel fabric. An F_port on a Fibre Channel fabric connects to a node’s node port (N_port).
- Page 87 99 percent of the time. High availability is typically identified by the number of nines in that percentage. For example, a switch that is rated at five nines would be capable of operating 99.999 percent of the time without failure.
- Page 88 ID or nonidentical parameters such as E_D_TOVs. See also expansion port. IU. See information unit. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide K28.5. A special 10-bit character used to indicate the beginning of a transmission word that performs Fibre channel control and signaling functions.
- Page 89 looplet. A set of devices connected in a loop to a port that is a member of another loop. loop master timeout value (LM_TOV). The minimum time that the loop master waits for a loop initialization sequence to return. loop port (L_port). A port used to connect a node to a Fibre Channel Arbitrated Loop (FC-AL).
- Page 90 A Fibre Channel Arbitrated Loop (FC-AL) with an attachment to a fabric. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide public NL_port. A node loop port (NL_port) that logs into the fabric, can function within either a public or a private loop, and can communicate with either private or public NL_ports.
- Page 91 The arbitrary name assigned to a switch. switch port. A port on a switch. Switch ports can be expansion ports (E_ports), fabric ports (F_ports), or fabric loop ports (FL_ports). SWL. See short wavelength.
- Page 92 (FL_port). A port is defined as a U_port when it is not connected or has not yet assumed a specific function in the fabric. IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide U_port. See universal port. upper-layer protocol (ULP). A protocol used on a Fibre Channel network at or above the FC-4 level.
- Page 93 simplify the entry of port numbers and WWNs. For example, “host” could be used as an alias for a WWN of 110:00:00:60:69:00:00:8a. zone configuration. A set of zones designated as belonging to the same zone configuration. When a zone configuration is in effect, all valid zones in that configuration are also in effect.
- Page 94 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
-
Page 95: Index
2 LEDs 2, 28 battery caution notice xiv Brocade documents xvii, 14 IBM product and model number matrix xviii bus operations 4 cables, power 49 caution notices battery xiv customer setup xi, 16 example xi... - Page 96 2 LEDs 2, 25 functions, service 11 general specifications of the switch 34 Germany compliance statement 58 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide getting help xviii software updates xix hardware components 3...
- Page 97 25, 27 switch 25, 26, 28 line-to-line connection danger notice 15 lithium battery caution notice xiv machine checks, external xi management interfaces compatible with the switch 14 managing the switch 14 memory specifications 37 new features 9 notices battery caution xiv...
- Page 98 38 serial port 37 software 8 speed LEDs Ethernet 25 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide speed LEDs (continued) port 25, 27 speed negotiation, auto-sensing 9 stand-alone unit, installing the switch as 16 standards compliance 41...
- Page 99 47 system components 2 fire suppression xiv tables, routing 11 Taiwan class A compliance statement 59 take-back program, IBM products xiv temperature, ambient air 15 terminators for optical ports xiv trademarks 56 translations of safety notices xi trunking 9...
- Page 100 IBM TotalStorage SAN Switch: 3534 Model F08 Installation and User’s Guide...
- Page 101 Please tell us how we can improve this book: Thank you for your responses. May we contact you? When you send comments to IBM, you grant IBM a nonexclusive right to use or distribute your comments in any way it believes appropriate without incurring any obligation to you.
- Page 102 Readers’ Comments — We’d Like to Hear from You GC26-7559-00 Fold and Tape _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO.
