Summary of Contents for Pycom WiPy 3.0
-
Page 1: Table Of Contents
Table of Contents About Preface Pycom Products 1. Getting Started 1.0 Introduction 1.1 Hardware Setup 1.1.1 LoPy 2.2.1 1.1.2 LoPy4 2.2.2 1.1.1 SiPy 2.2.3 1.1.1 GPy 2.2.4 1.1.1 FiPy 2.2.5 1.1.1 WiPy 2.2.6 1.2 Software 1.2.1 Drivers 2.3.1 1.2.2 Updating Firmware 2.3.2 1.2.3 Pymakr 2.3.3 1.3 Programming the modules 1.3.1 Introduction to MicroPython 2.4.1 1.3.2 MicroPython Examples 2.4.2 1.3.3 Your first Pymakr project 2.4.3 1.3.4 REPL 2.4.4 1.3.4.1 Serial USB 2.4.4.1 1.3.4.2 Telnet 2.4.4.2 1.3.5 FTP 2.4.5... - Page 2 2.5.3.1 1.4.3.2 Objenious 2.5.3.2 2. Pymakr Plugin 2.1 Installation 2.1.1 Atom 3.1.1 2.1.2 Visual Studio Code 3.1.2 2.2 Tools/Features 2.3 Settings 3. Pysense & Pytrack 3.1 Introduction 3.2 Installing Software 3.2.1 Updating Firmware 4.2.1 3.2.2 Installing Drivers - Windows 7 4.2.2 3.2.3 Installing Libraries 4.2.3 3.3 API Reference 3.3.1 Pytrack 4.3.1 3.3.2 Pysense 4.3.2 3.3.3 Sleep 4.3.3 4. Tutorials & Examples 4.1 Introduction 4.2 All Pycom Device Examples 4.2.1 REPL 5.2.1 4.2.2 WLAN 5.2.2 4.2.3 Bluetooth 5.2.3 4.2.4 HTTPS 5.2.4 4.2.5 MQTT 5.2.5...
- Page 3 4.2.14 Modbus 5.2.14 4.2.15 OTA update 5.2.15 4.2.16 RMT 5.2.16 4.3 LoRa Examples 4.3.1 LoRa-MAC (Raw LoRa) 5.3.1 4.3.2 LoRaWAN with OTAA 5.3.2 4.3.3 LoRaWAN with ABP 5.3.3 4.3.4 LoRa-MAC Nano-Gateway 5.3.4 4.3.5 LoPy to LoPy 5.3.5 4.3.6 LoRaWAN Nano-Gateway 5.3.6 4.3.7 RN2483 to LoPy 5.3.7 4.4 Sigfox Examples 4.4.1 Register Device 5.4.1 4.4.2 Disengage Sequence Number 5.4.2 4.5 LTE Examples 4.5.1 CAT-M1 5.5.1 4.5.2 NB-IoT 5.5.2 4.5.3 Module IMEI 5.5.3 4.5.3 Modem Firmware Update 5.5.4 4.6 Pytrack Examples 4.7 Pysense Examples 5. Firmware & API Reference 5.1 Introduction 5.2 Pycom Modules...
- Page 4 6.2.1.13 5.2.2 network 6.2.2 5.2.2.1 WLAN 6.2.2.1 5.2.2.2 Server 6.2.2.2 5.2.2.3 Bluetooth 6.2.2.3 5.2.2.3.1 GATT 6.2.2.3.1 5.2.2.3.2 GATTCConnection 6.2.2.3.2 5.2.2.3.3 GATTCService 6.2.2.3.3 5.2.2.3.4 GATTCCharacteristic 6.2.2.3.4 5.2.2.3.5 GATTSService 6.2.2.3.5 5.2.2.3.6 GATTSCharacteristic 6.2.2.3.6 5.2.2.4 LoRa 6.2.2.4 5.2.2.5 Sigfox 6.2.2.5 5.2.2.6 LTE 6.2.2.6 5.2.3 AES 6.2.3 5.2.4 pycom 6.2.4 5.3 MicroPython Modules 5.3.1 micropython 6.3.1 5.3.2 uctypes 6.3.2 5.3.3 sys 6.3.3 5.3.4 uos 6.3.4...
- Page 5 5.3.5 array 6.3.5 5.3.6 cmath 6.3.6 5.3.7 math 6.3.7 5.3.8 gc 6.3.8 5.3.9 ubinascii 6.3.9 5.3.10 ujson 6.3.10 5.3.11 ure 6.3.11 5.3.12 usocket 6.3.12 5.3.13 select 6.3.13 5.3.14 utime 6.3.14 5.3.15 uhashlib 6.3.15 5.3.16 ussl 6.3.16 5.3.17 ucrypto 6.3.17 5.3.18 ustruct 6.3.18 5.3.19 _thread 6.3.19 5.3.20 Builtin 6.3.20 6. Product Info 6.0 Introduction 6.1 Development Modules 6.1.1 WiPy 2.0 7.2.1 6.1.2 WiPy 3.0 7.2.2 6.1.3 LoPy 7.2.3 6.1.4 LoPy 4 7.2.4...
- Page 6 6.2.5 L01 OEM Baseboard Reference 7.3.5 6.2.6 Universal OEM Baseboard Reference 7.3.6 6.3 Expansion Boards and Shields 6.3.1 Expansion Board 3.0 7.4.1 6.3.2 Pytrack 7.4.2 6.3.3 Pysense 7.4.3 6.3.4 Pyscan 7.4.4 6.3.5 Expansion Board 2.0 7.4.5 6.3.6 Deep Sleep Shield 7.4.6 6.3.6.1 Deep Sleep API 7.4.6.1 6.4 Notes 7. Datasheets 7.1 Development Modules 7.1.1 WiPy 2.0 8.1.1 7.1.2 WiPy 3.0 8.1.2 7.1.3 LoPy 8.1.3 7.1.4 LoPy 4 8.1.4 7.1.5 SiPy 8.1.5 7.1.6 GPy 8.1.6 7.1.7 FiPy 8.1.7 7.2 OEM Modules 7.2.1 W01 8.2.1 7.2.2 L01 8.2.2 7.2.3 L04 8.2.3...
- Page 7 8. Pybytes 8.1 Introduction 8.2 Getting Started 8.3 Add a device to Pybytes 8.3.1 Connect to Pybytes: Quick Add 9.3.1 8.3.2 Connect to Pybytes: Flash Pybytes library manually 9.3.2 8.4 Visualise data from your device 9. Documentation Notes 9.1 Introduction 10.1 9.2 Syntax 10.2 9.3 REPL vs Scripts 10.3 10. Advanced Topics 10.1 Firmware Downgrade 11.1 10.2 CLI Updater 11.2 10.3 SecureBoot and Encryption 11.3 11. License 11.1 License 12.1...
-
Page 8: Preface
Preface Pycom Documentation Welcome to the Pycom documentation site. The documentation is split into 5 sections; we recommend reading through all the sections to familiarise yourself with the various tools and features available to you to help you develop on your Pycom module. To get started, read through the Getting Started Guide then feel free to jump straight into the tutorials and examples in Tutorials & Examples to begin building your projects. Products Getting Started Tutorials... - Page 9 Preface Product Info API Documentation Pybytes...
-
Page 10: Pycom Products
Pycom Products Pycom Products Below you will find tables of all Pycom products. These tables illustrate the functionality of our various products, their compatibility with each other, as well as what accessories are required to utilise certain functionality. Development Boards... - Page 11 Pycom Products LTE CAT-M1 Module WiFi Bluetooth LoRa Sigfox NB-IoT ✔ ✔ WiPy 3.0 ✔ ✔ ✔ SiPy ✔ ✔ ✔ ✔ ✔ ✔ LoPy ✔ ✔ ✔ ✔ LoPy4 ✔ ✔ ✔ ✔ ✔ FiPy Antennas External WiFi/BT LoRa & Sigfox LTE-M Antenna Kit Antenna Kit Antenna Kit...
- Page 12 Pycom Products Board Pysense Pytrack Pyscan ✔ PyCase ✔ IP67 Case for Expansion Board ✔ ✔ ✔ IP67 Case for Pysense/Pytrack/Pyscan ✔ ✔ ✔ ✔ IP67 Case (universal) ✔ ✔ ✔ ✔ LiPo Battery (user-supplied) ✔ ✔ ✔ ✔ Micro USB Cable Required (user-supplied)
- Page 13 Pycom Products Pyscan Modules ✔ OLED Barcode 2MP Camera Module Reader Fingerprint IR Image Scanner Sensor OEM Modules...
- Page 14 Pycom Products OEM Module L01/W01 Reference Board Universal Reference Board ✔ ✔ ✔ ✔ ✔ ✔...
-
Page 15: Getting Started
1.0 Introduction Getting Started So, you've decided to order a Pycom development module. Firstly we would like to congratulate you in making an excellent decision. If you haven't yet placed your order we highly recommend you check out the products page before you place your order to ensure you know which accessories you might require. Step 1: Setting up the hardware In the first part of this getting started guide, we will take you through setting up your device. Firstly we will cover how to connect the module to your computer either via USB or WiFi. Secondly we will explain how to connect various accessories such as antennas or SIM cards to your module. Step 2: Setting up your computer Now that your module is successfully connected, you will need to install some software on your computer to interface with it. The second part of this guide will guide you through installing drivers; performing firmware updates for your module/accessories to ensure you have the most stable and feature packed version; and how to setup the software use to program the device. -
Page 16: Introduction
1.0 Introduction Step 3: Using your module Now that you have a connected module and all the required software installed it is time to begin programming your device. This part of the guide will get you started with a basic example and point you in the right direction for getting your device connected to your chosen network. Step 4: Connecting to a network Now that you familiar with programming your device you will no doubt be keen to get it connected to one of the advertised wireless networks. This usually requires some registration. This step will detail how to get registered and connected to various wireless networks. You can navigate through this guide using the arrow buttons on the left and right of the screen (or at the bottom if you are using mobile). -
Page 17: Hardware Setup
1.1 Hardware Setup Setting up the hardware This chapter of the documentation will show you how to connect you Pycom module. For each device there are detailed instructions on how to connect your module to one of our base boards, a USB UART adapter or WiFi as well as what antennas you might need to connect. Please select your module below to be taken to the appropriate guide. - Page 18 1.1 Hardware Setup...
- Page 19 1.1 Hardware Setup...
-
Page 20: Lopy
1.1.1 LoPy LoPy Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the LoPy module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. Look for the reset button on the module (located at a corner of the board, next to the LED). - Page 21 1.1.1 LoPy Locate the USB connector on the expansion board. Insert the LoPy module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the LoPy module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 22 1.1.1 LoPy Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your LoPy. You will need to supply to the pin. Note: Do not feed directly to the supply pin, 3.5v 5.5v Vin 3.3v 3.3v this will damage the regulator. The connect the and of your USB UART to the and of the LoPy RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the LoPy into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler. Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection.
- Page 23 1.1.1 LoPy In order to access the LoPy via WiFi you only need to provide on the 3.5v 5.5v pin of the LoPy: Vin By default, when the LoPy boots, it will create a WiFi access point with the following credentials: SSID: lopy-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the LoPy. For both of these the login details are: username: micro password: python Antennas LoRa If you intend on using the LoRa connectivity of the LoPy you must connect a LoRa antenna to your LoPy before trying to use LoRa otherwise you risk damaging the device.
- Page 24 1.1.1 LoPy The LoPy only supports LoRa on the 868MHz or 915MHz bands. It does not support 433MHz. For this you will require a LoPy4. Firstly you will need to connect the U.FL to SMA pig tail to the LoPy using the U.FL connector on the same side of the LoPy as the LED. If you are using a pycase, you will next need to put the SMA connector through the antenna hole, ensuring you align the flat edge correctly, and screw down the connector using the provided nut. Finally you will need to screw on the antenna to the SMA connector. WiFi/Bluetooth (optional) All Pycom modules, including the LoPy, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the LoPy in such a way that the WiFi signal is...
- Page 25 1.1.1 LoPy blocked. Switching between the antennas is done via software, instructions for this can be found here. Deep Sleep current issue The LoPy, SiPy, and WiPy 2.0 experience an issue where the modules maintain a high current consumption in deep sleep mode. This issue has been resolved in all newer products. The cause for this issue is the DC to DC switch mode converter remains in a high performance mode even when the device is in deep sleep. The flash memory chip also does not power down. A more detailed explanation can be found here.
-
Page 26: Lopy4
1.1.2 LoPy4 LoPy4 Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the LoPy4 module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. Look for the reset button on the module (located at a corner of the board, next to the LED). - Page 27 1.1.2 LoPy4 Locate the USB connector on the expansion board. Insert the LoPy4 module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the LoPy4 module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 28 1.1.2 LoPy4 Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your LoPy4. You will need to supply to the pin. Note: Do not feed directly to the supply pin, 3.5v 5.5v Vin 3.3v 3.3v this will damage the regulator. The connect the and of your USB UART to the and of the LoPy4 RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the LoPy4 into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler.
- Page 29 1.1.2 LoPy4 Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection. In order to access the LoPy4 via WiFi you only need to provide on the 3.5v 5.5v pin of the LoPy4: Vin By default, when the LoPy4 boots, it will create a WiFi access point with the following credentials: SSID: lopy4-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the LoPy4. For both of these the login details are: username: micro password: python Antennas LoRa/Sigfox If you intend on using the LoRa/Sigfox connectivity of the LoPy4 you must connect a LoRa/Sigfox antenna to your LoPy4 before trying to use LoRa/Sigfox otherwise you risk damaging the device.
- Page 30 1.1.2 LoPy4 Firstly you will need to connect the U.FL to SMA pig tail to the LoPy4 using one of the two the U.FL connectors on the same side of the LoPy4 as the LED. The one on the left hand side is for 433MHz (LoRa only), the one of the right hand side is for 868MHz/915MHz (LoRa & Sigfox). Note: This is different from the LoPy. If you are using a pycase, you will next need to put the SMA connector through the antenna hole, ensuring you align the flat edge correctly, and screw down the connector using the provided nut. Finally you will need to screw on the antenna to the SMA connector. WiFi/Bluetooth (optional)
- Page 31 1.1.2 LoPy4 All Pycom modules, including the LoPy4, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the LoPy4 in such a way that the WiFi signal is blocked. Switching between the antennas is done via software, instructions for this can be found here.
-
Page 32: Sipy
1.1.1 SiPy SiPy Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the SiPy module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. Look for the reset button on the module (located at a corner of the board, next to the LED). - Page 33 1.1.1 SiPy Locate the USB connector on the expansion board. Insert the SiPy module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the SiPy module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 34 1.1.1 SiPy Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your SiPy. You will need to supply 3.5v 5.5v to the pin. Note: Do not feed directly to the supply pin, this will Vin 3.3v 3.3v damage the regulator. The connect the and of your USB UART to the and of the SiPy RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the SiPy into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler. Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection.
- Page 35 1.1.1 SiPy In order to access the SiPy via WiFi you only need to provide on the 3.5v 5.5v pin of the SiPy: Vin By default, when the SiPy boots, it will create a WiFi access point with the following credentials: SSID: sipy-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the SiPy. For both of these the login details are: username: micro password: python Antennas Sigfox If you intend on using the Sigfox connectivity of the SiPy you must connect a Sigfox antenna to your SiPy before trying to use Sigfox otherwise you risk damaging the device. Firstly you will need to connect the U.FL to SMA pig tail to the SiPy using the U.FL...
- Page 36 1.1.1 SiPy connector on the same side of the SiPy as the LED. If you are using a pycase, you will next need to put the SMA connector through the antenna hole, ensuring you align the flat edge correctly, and screw down the connector using the provided nut. Finally you will need to screw on the antenna to the SMA connector. WiFi/Bluetooth (optional) All Pycom modules, including the SiPy, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the SiPy in such a way that the WiFi signal is blocked. Switching between the antennas is done via software, instructions for this can be found here.
- Page 37 1.1.1 SiPy Deep Sleep current issue The LoPy, SiPy, and WiPy 2.0 experience an issue where the modules maintain a high current consumption in deep sleep mode. This issue has been resolved in all newer products. The cause for this issue is the DC to DC switch mode converter remains in a high performance mode even when the device is in deep sleep. The flash memory chip also does not power down. A more detailed explanation can be found here.
-
Page 38: Gpy
1.1.1 GPy Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the GPy module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. Look for the reset button on the module (located at a corner of the board, next to the LED). - Page 39 1.1.1 GPy Locate the USB connector on the expansion board. Insert the GPy module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the GPy module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 40 1.1.1 GPy Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your GPy. You will need to supply 3.5v 5.5v to the pin. Note: Do not feed directly to the supply pin, this will Vin 3.3v 3.3v damage the regulator. The connect the and of your USB UART to the and of the GPy RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the GPy into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler.
- Page 41 1.1.1 GPy Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection. In order to access the GPy via WiFi you only need to provide on the 3.5v 5.5v pin of the GPy: Vin By default, when the GPy boots, it will create a WiFi access point with the following credentials: SSID: gpy-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the GPy. For both of these the login details are: username: micro password: python Antennas LTE Cat-M1/NB-IoT If you intend on using the LTE CAT-M1 or NB-IoT connectivity of the GPy you must connect a LTE CAT-M1/NB-IoT antenna to your GPy before trying to use LTE Cat-M1 or NB-IoT otherwise you risk damaging the device.
- Page 42 1.1.1 GPy You will need to connect the antenna to the GPy using the U.FL connector on the same side of the GPy as the LED. WiFi/Bluetooth (optional) All Pycom modules, including the GPy, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the GPy in such a way that the WiFi signal is blocked. Switching between the antennas is done via software, instructions for this can be found here.
- Page 43 1.1.1 GPy SIM card If you intend on using the LTE CAT-M1 or NB-IoT connectivity of the GPy you will need to insert a SIM card into your GPy. It should be noted that the GPy does not support regular LTE connectivity and you may require a special SIM. It is best to contact your local cellular providers for more information on acquiring a LTE CAT-M1/NB-IoT enabled nano SIM.
-
Page 44: Fipy
1.1.1 FiPy FiPy Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi When using the expansion board with a FiPy, you will need to remove the CTS and RTS jumpers as these interfere with communication with the cellular modem. Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the FiPy module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. - Page 45 1.1.1 FiPy When using the expansion board with a FiPy, you will need to remove the CTS and RTS jumpers as these interfere with communication with the cellular modem. Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the FiPy module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the FiPy module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 46 1.1.1 FiPy Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your FiPy. You will need to supply 3.5v 5.5v to the pin. Note: Do not feed directly to the supply pin, this will Vin 3.3v 3.3v damage the regulator. The connect the and of your USB UART to the and of the FiPy RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the FiPy into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler. Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection. In order to access the FiPy via WiFi you only need to provide on the 3.5v 5.5v...
- Page 47 1.1.1 FiPy pin of the FiPy: Vin By default, when the FiPy boots, it will create a WiFi access point with the following credentials: SSID: fipy-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the FiPy. For both of these the login details are: username: micro password: python Antennas LoRa/Sigfox If you intend on using the LoRa/Sigfox connectivity of the FiPy you must connect a LoRa/Sigfox antenna to your FiPy before trying to use LoRa/Sigfox otherwise you risk damaging the device.
- Page 48 1.1.1 FiPy The FiPy only supports LoRa on the 868MHz or 915MHz bands. It does not support 433MHz. For this you will require a LoPy4. Firstly you will need to connect the U.FL to SMA pig tail to the FiPy using the U.FL connector on the same side of the FiPy as the LED. If you are using a pycase, you will next need to put the SMA connector through the antenna hole, ensuring you align the flat edge correctly, and screw down the connector using the provided nut. Finally you will need to screw on the antenna to the SMA connector. LTE Cat-M1/NB-IoT If you intend on using the LTE CAT-M1 or NB-IoT connectivity of the FiPy you must connect a LTE CAT-M1/NB-IoT antenna to your FiPy before trying to use LTE Cat-M1 or NB-IoT otherwise you risk damaging the device.
- Page 49 1.1.1 FiPy You will need to connect the antenna to the FiPy using the U.FL connector on the under side of the FiPy. WiFi/Bluetooth (optional) All Pycom modules, including the FiPy, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the FiPy in such a way that the WiFi signal is blocked. Switching between the antennas is done via software, instructions for this can be found here.
- Page 50 1.1.1 FiPy SIM card If you intend on using the LTE CAT-M1 or NB-IoT connectivity of the FiPy you will need to insert a SIM card into your FiPy. It should be noted that the FiPy does not support regular LTE connectivity and you may require a special SIM. It is best to contact your local cellular providers for more information on acquiring a LTE CAT-M1/NB-IoT enabled nano SIM.
-
Page 51: Wipy
1.1.1 WiPy WiPy Basic connection Exp Board 2.0 Exp Board 3.0 Pysense/Pytrack/Pyscan USB UART Adapter WiFi Look for the reset button on the module (located at a corner of the board, next to the LED). Locate the USB connector on the expansion board. Insert the WiPy module on the the expansion board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to an Expansion Board 3.0, you should update the firmware on the Expansion Board 3.0. Instructions on how to do this can be found here. Look for the reset button on the module (located at a corner of the board, next to the LED). - Page 52 1.1.1 WiPy Locate the USB connector on the expansion board. Insert the WiPy module on the Expansion Board with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible. Before connecting your module to a Pysense/Pytrack/Pyscan board, you should update the firmware on the Pysense/Pytrack/Pyscan. Instructions on how to do this can be found here. Look for the reset button on the WiPy module (located at a corner of the board, next to the LED). Locate the USB connector on the Pysense/Pytrack/Pyscan. Insert the module on the Pysense/Pytrack/Pyscan with the reset button pointing towards the USB connector. It should firmly click into place and the pins should now no longer be visible.
- Page 53 1.1.1 WiPy Once you have completed the above steps successfully you should see the on-board LED blinking blue. This indicates the device is powered up and running. Firstly you will need to connect power to your WiPy. You will need to supply to the pin. Note: Do not feed directly to the supply pin, 3.5v 5.5v Vin 3.3v 3.3v this will damage the regulator. The connect the and of your USB UART to the and of the WiPy RX TX TX RX respectively. Note: Please ensure you have the signal level of the UART adapter set to before connecting it. 3.3v In order to put the WiPy into bootloader mode to update the device firmware you will need to connect to . We recommend you connect a button between the two to P2 GND make this simpler. Note: This method of connection is not recommended for first time users. It is possible to lock yourself out of the device, requiring a USB connection.
- Page 54 1.1.1 WiPy In order to access the WiPy via WiFi you only need to provide on the 3.5v 5.5v pin of the WiPy: Vin By default, when the WiPy boots, it will create a WiFi access point with the following credentials: SSID: wipy-wlan password: www.pycom.io Once connected to this network you will be able to access the telnet and FTP servers running on the WiPy. For both of these the login details are: username: micro password: python Antennas WiFi/Bluetooth (optional) All Pycom modules, including the WiPy, come with a on-board WiFi antenna as well as a U.FL connector for an external antenna. The external antenna is optional and only required if you need better performance or are mounting the WiPy in such a way that the WiFi signal is blocked. Switching between the antennas is done via software, instructions for this can be found here.
- Page 55 1.1.1 WiPy Deep Sleep current issue The LoPy, SiPy, and WiPy 2.0 experience an issue where the modules maintain a high current consumption in deep sleep mode. This issue has been resolved in all newer products. The cause for this issue is the DC to DC switch mode converter remains in a high performance mode even when the device is in deep sleep. The flash memory chip also does not power down. A more detailed explanation can be found here. WiPy 2.0 vs WiPy 3.0 The WiPy 3.0 is an upgraded version of the WiPy 2.0 with the following changes: The FLASH has been upgraded from 4MB to 8MB. The RAM has been upgraded from 512KB to 4MB. The deepsleep current consumption issue has been fixed The antenna select pin has moved to GPIO21 (P12)
-
Page 56: Software
1.2 Software Setting up your computer To get you up and running, Pycom provides a suite of tools to assist with developing and programming your Pycom Devices: 1. Drivers: If you are using Microsoft Windows, you might be required to install drivers for our products to function correctly. 2. Pycom firmware update utility: This tool automates the process of upgrading the firmware of your Pycom device. It is important that you use this tool before you attempt to use your device. Not only to ensure you have the most stable and feature packed firmware, but also to ensure all the functionality of your device is enable. E.g. this tool also activates your two year free sigfox connectivity. 3. Development Environment: Pymakr is a plug-in for Atom and Visual Studio Code developed by Pycom to make development for Pycom modules super easy. It allows you to use your favourite text editor while simplifying the process of uploading code to the device. -
Page 57: Drivers
1.2.1 Drivers Drivers Linux You should not need to install any drivers for our devices to be recognised by Linux. You may how ever need to adjust permissions to make sure you have access to the serial port. On most distributions this can be done by adding your user to the user group. dialout Please check the specific instructions for your linux distribution for how to do this. macOS On macOS you shouldn't need to do anything special to get our device to work. Windows All our products will work out of the box for Windows 8/10/+. If using Windows 7, drivers to support the Pysense/Pytrack/Pyscan/Expansion Board 3.0 boards will need to be installed. Download Please download the driver software from the link below. Pysense/Pytrack/Pyscan/Expansion Board 3.0 Serial Driver Installation First navigate open the Windows start menu and search/navigate to `Device Manager. You should see your Pytrack/Pysense in the dropdown under other devices. - Page 58 1.2.1 Drivers Right click the device and select Update Driver Software Select the option to Browse my computer for driver software.
- Page 59 1.2.1 Drivers Next you will need to navigate to where you downloaded the driver to (e.g. Downloads Folder). Specify the folder in which the drivers are contained. If you haven't extracted the file, .zip please do this before selecting the folder.
- Page 60 1.2.1 Drivers You may receive a warning, suggesting that Windows can't verify the publisher of this driver. Click as this link points to our official driver. Install this driver software anyway If the installation was successful, you should now see a window specifying that the driver was correctly installed.
- Page 61 1.2.1 Drivers To confirm that the installation was correct, navigate back to the and click Device Manager the dropdown for other devices. The warning label should now be gone and Pytrack/Pysense should be installed.
-
Page 62: Updating Firmware
1.2.2 Updating Firmware Firmware Update Tools We strongly recommend you to upgrade your firmware to the latest version as we are constantly making improvements and adding new features to the devices. Here are the download links to the update tool. Please download the appropriate one for your OS and follow the instructions on the screen. Windows macOS (10.11 or Higher) Linux (requires and package) dialog python-serial Previous versions of firmware are available for download here. Updating Device Firmware The basic firmware upgrade procedure can be found below, please follow these steps carefully: Expansion Board 2.0 Pysense/Pytrack/Pyscan/Expansion Board 3.0 1. Disconnect your device from your computer 2. Insert module into the Expansion Board 3. Connect a jumper cable or wire between and G23 GND 4. Reconnect the board via USB to your computer, this puts the device in ‘firmware update mode’. 5. Run the Firmware Upgrade tool... - Page 63 1.2.2 Updating Firmware 6. Remove the to jumper cable/wire G23 GND 7. Reboot the device (button or power off then on), your device is now ready to use If you are having any issues, make sure the TX and RX jumpers are present on your Expansion Board, as the jumpers sometimes come loose in the box during transport. Without these jumpers, the updater will fail. When using a Pysense/Pytrack/Pyscan/Expansion Board 3.0 to update your module you are not required to make a connection between and , the G23 GND Pysense/Pytrack/Pyscan/Expansion Board 3.0 will do this automatically. 1. Before connecting your module to a Pysense/Pytrack board, you should update the firmware on the Pysense/Pytrack. Instructions on how to do this can be found here. 2. Disconnect your device from your computer 3. Insert module into Expansion Board 4. Reconnect the board via USB to your computer 5. Run the Firmware Upgrade tool...
- Page 64 1.2.2 Updating Firmware 6. Disconnect the USB cable from the board and reconnect it, your device is now ready to After you’re done with upgrading, you can use the Pymakr Plugins to upload and run programs in your device.
-
Page 65: Pymakr
1.2.3 Pymakr Pymakr Plugins To make it as easy as possible Pycom has developed a plugin for two popular text editors, called Pymakr. These plugins have been built and are available for the following platforms:... - Page 66 1.2.3 Pymakr...
-
Page 67: Programming The Modules
1.3 Programming the modules Using your module Now that you have connected and updated your pycom module and installed all the required software on your computer, we can begin programming your Pycom module. If this is your first time using a Pycom module we highly recommend you read through the following pages: Introduction to MicroPython: This page will explain what Micropython is and its relation to Python. MicroPython Examples: We also recommend you browse these short MicroPython examples to familiarise yourself with its syntax. This is not meant as a comprehensive guide to MicroPython programming but rather a reference to those who already know programming. If you are new to python, or programming all together, we highly recommend searching the internet for Python tutorials. There are many very good tutorials available for free and the skills you learn will be easily transferable to our platform. Your first Pymakr project: Once you understand what MicroPython is, this guide will take you through setting up your first Pymakr project to blink the on-board RGB LED. This guide will explain the structure of a MicroPython project as well as how to upload it to your module. Once you are familiar with MicroPython and Pymakr, the recommended way of uploading code to your module, you can explore the pages below. These will discuss in greater detail the various mechanisms for running code on your device as well as how to recover it if something goes wrong. REPL: The REPL (Read Evaluate Print Loop) is an interactive terminal that allows you to type in and test your code directly on the device, just like interactive python interpreter. It can be accessed via UART or Telnet. This is accessed easiest by using Pymakr but if you wish to use other tools, this page will explain how. FTP: All Pycom modules start up with a WiFi access point enabled, and a simple FTP server running on it. Once connected to the WiFi network, you can use FTP to transfer files over to your device wirelessly. This can be very useful if you do not have physical access to your device. Safe Boot: It is possible that some code you upload to your module will prevent you accessing the REPL or FTP server, preventing you from updating your scripts. This guide will detail how to safe boot your module and how to remove the offending scripts... - Page 68 1.3 Programming the modules from it.
-
Page 69: Introduction To Micropython
1.3.1 Introduction to MicroPython Introduction to MicroPython Our boards work with MicroPython; a Python 3.5 implementation that is optimised to run on micro controllers. This allows for much faster and more simple development process than using C. Booting into MicroPython When booting, two files are executed automatically: first and then . These boot.py main.py are placed in the folder on the board. Any other files or libraries can be placed here /flash as well, and can be included or used from or boot.py main.py The folder structure in looks like the picture below. The files can be managed either /flash using FTP or using the Pymakr Plugin. Tips & Tricks Micropython shares majority of the same syntax as Python 3.5. The intention of this design is to provide compatibility upwards from Micropython to Python 3.5, meaning that code written for Micropython should work in a similar manner in Python 3.5. There are some minor variations and these should taken viewed as implementation differences. - Page 70 1.3.1 Introduction to MicroPython Micropython also has a number of Micropython specific libraries for accessing hardware level features. Specifics relating to those libraries can be found in the Firmware API Reference section of this documentation. Micropython, unlike C/C++ or Arduino, does not use braces {} to indicate blocks of code specified for class and function definitions or flow control. Blocks of code are denoted by line indentation, which is strictly enforced. The number of spaces in the indentation is variable but all statements within a block must be indented the same amount.
-
Page 71: Micropython Examples
1.3.2 MicroPython Examples MicroPython Examples To get you started with Python (MicroPython) syntax, we've provided you with a number of code examples. Variable Assignment As with Python 3.5, variables can be assigned to and referenced. Below is an example of setting a variable equal to a string and then printing it to the console. variable = "Hello World" print(variable) Conditional Statements Conditional statements allow control over which elements of code run depending on specific cases. The example below shows how a temperature sensor might be implemented in code. temperature = 15 target = 10 if temperature > target: print("Too High!") elif temperature < target: print("Too Low!") else: print("Just right!") Loops (For & While loop) Loops are another important feature of any programming language. This allows you to cycle your code and repeat functions/assignments/etc. loops allow you to control how many times a block of code runs for within a range. for x = 0 for y in range(0, 9): x += 1 print(x) - Page 72 1.3.2 MicroPython Examples loops are similar to loops, however they allow you to run a loop until a specific while for conditional is . In this case, the loop checks if is less than each time the true/false x 9 loop passes. x = 0 while x < 9: x += 1 print(x) Functions Functions are blocks of code that are referred to by name. Data can be passed into it to be operated on (i.e. the parameters) and can optionally return data (the return value). All data that is passed to a function is explicitly passed. The function below takes two numbers and adds them together, outputting the result. def add(number1, number2): return number1 + number2 add(1, 2) # expect a result of 3 The next function takes an input name and returns a string containing a welcome phrase. def welcome(name): welcome_phrase = "Hello, " + name + "!" print(welcome_phrase) welcome("Alex") # expect "Hello, Alex!" Data Structures Python has a number of different data structures for storing and manipulating variables. The main difference (regarding data structures) between C and Python is that Python manages memory for you. This means there’s no need to declare the sizes of lists, dictionaries, strings, etc. Lists A data structure that holds an ordered collection (sequence) of items.
- Page 73 1.3.2 MicroPython Examples networks = ['lora', 'sigfox', 'wifi', 'bluetooth', 'lte-m'] print(networks[2]) # expect 'wifi' Dictionaries A dictionary is like an address-book where you can find the address or contact details of a person by knowing only his/her name, i.e. keys (names) are associate with values (details). address_book = {'Alex':'2604 Crosswind Drive','Joe':'1301 Hillview Drive','Chris':'323 6 Goldleaf Lane'} print(address_book['Alex']) # expect '2604 Crosswind Drive' Tuple Similar to lists but are immutable, i.e. you cannot modify tuples after instantiation. pycom_devices = ('wipy', 'lopy', 'sipy', 'gpy', 'fipy') print(pycom_devices[0]) # expect 'wipy' For more Python examples, check out these tutorials. Be aware of the implementation differences between MicroPython and Python 3.5.
-
Page 74: Your First Pymakr Project
1.3.3 Your first Pymakr project Your First Pymakr Project This guide will take you through how to setup your first project with Pymakr and make the on-board RGB LED flash various colours. Creating a project in Pymakr 1. Firstly you will need to create a new, empty, directory on your computer. For this example we will create one called RGB-Blink 2. Next you will need to open either Atom or Visual Studio Code depending on which you setup previously. 3. Once the text editor has loaded you will need to click > , and open the File Open directory you created in step 1 If you are using Atom, it is important to check at this point that Atom has successfully identified the project. The name of the directory you created in step 1 in this case) should be shown in the Pymakr pane like so: RGB-Blink If this is not the case you can press on Windows/Linux or alt-ctrl-r ctrl-alt- on macOS, in order to reload Atom and fix the issue. cmd-l 4. Now that you have a project created, we need to add some files to it. A standard MicroPython project has the following structure: RGB-Blink |-lib | |- some_library.py |-boot.py |-main.py This is the first script that runs on your module when it turns on. This is boot.py often used to connect a module a a WiFi network so that Telnet and FTP can be used without connecting to the WiFi AP created by the module and not cluttering up the file. As a beginner you do not need to use a... - Page 75 For this example, you will just need to create a file. main.py Now that the project structure is setup, you may wish to configure project specific settings for Pymakr e.g. Which serial port to use. On Atom you need to click the button on the ^ Pymakr pane, then click . On Visual Studio Code you need to click the Project Settings button on the bottom of the windows, then click All commands Pymakr > Project Settings This creates a file called inside your project and populates it with default pymakr.conf settings copied over from your global settings. A detailed explanation of these settings can be found here. Controlling the on-board LED Now that you have setup and configured your project, we can move on to programming your module. The first thing we will need to do is import some libraries in order to interact with the on-board LED. The Pycom firmware comes with a large amount of libraries for standard functionality built-in. You can find out more about these in the API documentation. For this example you will need to open the file and add the following code: main.py import pycom import time This will import two libraries, which is responsible for Pycom specific features, such Pycom as the on-board LED and which is a standard library used timing and delays. time You may have noticed that when you power up your Pycom module, the on-board LED blinks blue on a regular basis. This "heartbeat" is used as a way of know that your module has powered up and started correctly. Before we can change the colour of this LED we need to disable this heart beat. Below your imports you will need to add the following: pycom.heartbeat(False)
- Page 76 1.3.3 Your first Pymakr project Now it's time to test your code. On the Pymakr pane/bottom of the window you will see a button. (If you haven't connected to your device yet, you will need to do that first). run When you click the run button, the code in the currently open file will be executed on the device, but it won't copy it to the device. After running this code, you should see that that on- board LED stops blinking blue. Now that we can confirm the device is connected and Pymakr is able to run code on it, we can complete our script to blink the LED like so: import pycom import time pycom.heartbeat(False) while True: pycom.rgbled(0xFF0000) # Red time.sleep(1) pycom.rgbled(0x00FF00) # Green time.sleep(1) pycom.rgbled(0x0000FF) # Blue time.sleep(1) Once you run the above script, it will run forever. You will notice this prevents you from accessing the interactive REPL on the device (You cannot see the prompt). In order to >>> stop the script, click onto the Pymakr terminal, and press on your keyboard. This ctrl-c should stop the script running and return you to the interactive REPL. Uploading to your module In the previous section we got code running on on your Pycom module using the run feature of Pymakr. This is useful for quick testing but has a couple of drawbacks. Firstly the code does not remain on the device permanently. If you reboot the device, it will no longer be running your code. Secondly, it will only work if you are using libraries built into the firmware. If you need any extra libraries, these need to be copied to the device first. This is where the feature comes in. If instead of you click , Pymakr will upload run...
- Page 77 1.3.3 Your first Pymakr project import os os.mkfs('/flash')
-
Page 78: Repl
1.3.4 REPL REPL (Read Evaluate Print Loop) REPL stands for Read Evaluate Print Loop, and is the name given to the interactive MicroPython prompt that is accessible on the Pycom devices. Using the REPL is by far the easiest way to test out Python code and run commands. You can use the REPL in addition to writing scripts in main.py The following pages will explain how to use the REPL with both Serial USB and Telnet connections. The REPL includes the following features: Input history: use arrow up and arrow down to scroll through the history Tab completion: press tab to auto-complete variables or module names Halt any executing code: with Ctrl-C Copy/paste code or output: and Ctrl-C Ctrl-V There are a number of useful shortcuts for interacting with the MicroPython REPL. See below for the key combinations; on a blank line will enter raw REPL mode. This is similar to permanent Ctrl-A paste mode, except that characters are not echoed back. on a blank like goes to normal REPL mode. Ctrl-B cancels any input, or interrupts the currently running code. Ctrl-C on a blank line will do a soft reset. Ctrl-D enters ‘paste mode’ that allows you to copy and paste chunks of text. Exit Ctrl-E this mode using Ctrl-D performs a "safe-boot" of the device that prevents and Ctrl-F boot.py main.py from executing... -
Page 79: Serial Usb
1.3.4.1 Serial USB Serial USB REPL (UART) To use the REPL, a Pycom device must be connected to the host computer with a USB connection either to an Expansion Board or to serial converter (a diagram of how to do this can be found the the getting started page for your module). In order to connect to the REPL over USB serial, there are multiple methods. Detailed below are the explanations of how to do it in MacOS, Linux and Windows. All platforms By far the easiest way to access the USB UART REPL is via the our Pymakr plug-in for Atom and Visual Studio Code. This adds a pane to the bottom of the editors that allows you to directly access the REPL and any output from the device. Detailed instructions on how to setup Pymakr can be found here. macOS and Linux To open a serial USB connection from macOS, any serial tool may be used; in this example, the terminal tool will be used. screen Open a terminal instance and run the following commands: $ screen /dev/tty.usbmodem* 115200 Upon exiting , press . If the keyboard does not support the -key screen CTRL-A CTRL-\ \ (i.e. an obscure combination for like is required), the key combination can \ ALT-SHIFT-7 be remapped for the command: quit create ~/.screenrc add bind to the command q... - Page 80 1.3.4.1 Serial USB Windows A terminal emulator is needed to open the connection from Windows; the easiest option is to download the free program, PuTTY. COM Port To use PuTTY the serial port (COM port) in which the Pycom device is connected, must be located. In Windows, this information can be found from the 'Device Manager' program. 1. Open the Windows start menu and search for 'Device Manager' 2. The COM port for the Pycom device will be listed as 'USB Serial Device' or a similar name 3. Copy/Write down the associated COM port (e.g. COM4 Using Putty 1. With PuTTY open, click on in the left-hand panel Session 2. Next click the radio button on the right and enter the associated COM port (e.g. Serial ) in the box COM4 Serial Line 3. Finally, click the button Open...
-
Page 81: Telnet
1.3.4.2 Telnet Telnet REPL Pycom devices also support a connection via , using the device's on board telnet WiFi/WLAN. Connect to the device's WiFi Access Point (AP) and using the following credentials to connect to the AP. The WiFi will appear upon powering on a Pycom SSID Device for the first time (e.g. ). To re-enable this feature at a later date, please see lopy- network.WLAN. password: www.pycom.io Telnet Server Additionally, to use the MircoPython REPL over telnet, further authentication is required. The default credentials for the telnet server are: username: micro password: python See network.server for info on how to change the default authentication. All platforms By far the easiest way to access the Telnet REPL is via the our Pymakr plug-in for Atom and Visual Studio Code. This adds a pane to the bottom of the editors that allows you to directly access the REPL and any output from the device. Detailed instructions on how to setup Pymakr can be found here. macOS and Linux Once the host machine is connected to the Pycom device's Access Point, a telnet connection may be opened from a terminal instance. $ telnet 192.168.4.1 Upon connection, the telnet program will prompt for the and in the username password section above. Windows... - Page 82 1.3.4.2 Telnet A terminal emulator is needed to open a telnet connection from Windows; the easiest option is to download the free program, PuTTY. 1. With PuTTY open, select telnet as connection type and leave the default port ( 23 2. Next enter the IP address of the Pycom device (e.g. 192.168.4.1 3. Finally click Open When using a Pycom device with a personal, home or office WiFi access point, the telnet connection may still be used. In this instance, the user will need to determine the Pycom device's local IP address and substitute this for , referred to in the 192.168.4.1 earlier sections.
-
Page 83: Ftp
1.3.5 FTP FTP (Local File System) There is a small internal file system accessible with each Pycom device, called /flash This is stored within the external serial flash memory. If a microSD card is also connected and mounted, it will be available as well. When the device starts up, it will always boot from the located in the file system. boot.py /flash The file system is accessible via the native FTP server running on each Pycom device. Open an FTP client and connect to: url: ftp://192.168.4.1 username: micro password: python See network.server for information on how to change the defaults. The recommended clients are: macOS/Linux: default FTP client Windows: Filezilla and FireFTP For example, from a macOS/Linux terminal: $ ftp 192.168.4.1 The FTP server doesn’t support active mode, only passive mode. Therefore, if using the native unix FTP client, immediately after logging in, run the following command: ftp> passive The FTP server only supports one connection at a time. If using other FTP clients, please check their documentation for how to limit the maximum allowed connections to one at a time. FileZilla If using FileZilla, it's important to configure the settings correctly. Do not use the quick connect button. Instead, open the site manager and create a new configuration. Within the tab, ensure that encryption is set to: General Only use plain FTP (insecure) - Page 84 1.3.5 FTP In the tab, limit the max number of connections to one. Other FTP clients Transfer Settings may behave in a similar ways; visit their documentation for more specific information.
-
Page 85: Safe Boot
1.3.6 Safe boot Boot Modes If powering up normally or upon pressing the reset button, a Pycom module will boot into standard mode; the file will be executed first, followed by . It is possible to boot.py main.py alter the boot procedure of the module by tying certain pins or when the module high low boots. Bootloader If you updated your device before using it, you have already put the device into bootloader mode. This is achieved by connecting to while the device boots. If you used a G23 GND Pysense/Pytrack to update, it did this automatically for you. You only need to put your Pycom module into bootloader mode if you are updating its firmware, or are programming your own low level code. This is not required if you are updating your MicroPython code. Safe Boot Some times the code you have written will prevent you gaining access to the REPL or prevent you updating your code. Some example may be: You disabled the WiFi/UART Your code gets stuck before reaching the REPL You set a socket as blocking but never receive any data In order to fix this you can safe boot your module. This will prevent and boot.py main.py from being executed and will drop you straight into the interactive REPL. After reset, if P12 pin is held (i.e. connect it to the output pin), the heartbeat LED will begin high 3V3 flashing orange slowly. If after 3 seconds the pin is still held high, the LED will start blinking... - Page 86 1.3.6 Safe boot If problems occur within the filesystem or you wish to factory reset your module to remove your code, run following code in the REPL: >>> import os >>> os.mkfs('/flash') Be aware, resetting the flash filesystem will delete all files inside the internal device storage (not the SD card) and they cannot be recovered. Reset Pycom devices support both soft and hard resets. A soft reset clears the state of the MicroPython virtual machine but leaves hardware peripherals unaffected. To do a soft reset, press on the REPL or from within a script, run: Ctrl+D >>> import sys >>> sys.exit() A hard reset is the same as performing a power cycle to the device. In order to hard reset the device, press the switch or run: reset >>> import machine >>> machine.reset()
-
Page 87: Device Registration
1.4 Device Registration Registering a Pycom Device Some of our devices require registration before you can utilise specific features such as certain types of networking. Please see the list below for setup guides to ensure that your device is registered and activated on the various platforms required to access all of the available features. Not all Pycom devices require activation; most features work immediately out of the box! -
Page 88: Sigfox
1.4.1 Sigfox Registering with Sigfox To ensure the device has been provisioned with Device ID and PAC number, please update to the latest firmware. In order to send a Sigfox message, the device need to register with the Sigfox Backend. Navigate to https://backend.sigfox.com/activate to find the list of Sigfox enabled development kits. Select to proceed. Pycom Next choose a Sigfox Operator for the country where the device will be activated. Find the specific country and select the operator to continue. - Page 89 1.4.1 Sigfox Now need to enter the device's Device ID and PAC number. The Device ID and PAC number are retrievable through a couple of commands via the REPL. from network import Sigfox import binascii # initalise Sigfox for RCZ1 (You may need a different RCZ Region) sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1) # print Sigfox Device ID print(binascii.hexlify(sigfox.id())) # print Sigfox PAC number print(binascii.hexlify(sigfox.pac())) See for more info about the Sigfox Class and which RCZ region to use. Sigfox...
- Page 90 1.4.1 Sigfox Once the device's Device ID and PAC number have been entered, create an account. Provide the required information including email address and click to continue. An email confirming the creation of a Sigfox Backend account and the successful registration of the device should arrive at the users inbox.
-
Page 91: Cellular
1.4.2 Cellular Cellular registration In order to use your GPy/FiPy on a cellular network you are required to get a SIM card from a local provider. Note: This might differ from a standard SIM you can buy in a store, our devices do not support standard LTE. Currently we are not able to provide any specific details about how to get such a SIM card and how to register it as most deployments are closed trials, each carrier has it’s own rules (for example, whether they require special SIMs or not). We recommend contacting your local cellular providers to check their plans surrounding LTE CAT-M1 and NB-IoT. By contacting them, you will show the carriers that there is local interest in deploying such networks. You can find a map of deployed networks and open labs here. - Page 92 1.4.3 LoRaWAN LoRaWAN Registration Raw LoRa When using raw LoRa, you do not have to register your module in any way. The modules can talk to each other directly. LoRaWAN In order to connect your LoRa capable Pycom module to a LoRaWAN network you will have to register your device with the desired network. We are unable to provide instructions for all LoRaWAN networks but below you will find some generic instructions, along with links to any specific guides we are aware of. Generic instructions Firstly you will need to get your modules , this can be achieved using the Device EUI following code: from network import LoRa import ubinascii lora = LoRa(mode=LoRa.LORAWAN) print(ubinascii.hexlify(lora.mac()).upper().decode('utf-8')) The output will be a hex string like: . Once you have this you will need to 70B3D5499585FCA1 provide it to your LoRaWAN network which will then provide you with the details need to connect via Over-the-Air Activation (OTAA) or Activation by Personalisation (ABP) OTAA If you wish to connect via OTAA (which is the recommended method) the network will provide you with an and . The former identifies what Application EUI Application Key application your device is connecting to, the latter is a shared secret key unique to your device to generate the session keys that prove its identity to the network. Once you have these you can use the LoRaWAN OTAA example code to connect to the network.
- Page 93 1.4.3 LoRaWAN With ABP the encryption keys enabling communication with the network are preconfigured in the device. The network will need to provide you with a Device Address Network Session and . Once you have these you can use the LoRaWAN ABP Key Application Session Key example code to connect to the network. Networks...
-
Page 94: Lorawan
1.4.3 LoRaWAN If you cannot find your favourite LoRaWAN network in the list above, please consider writing a tutorial for how to connect a Pycom module with it and contribute it to this documentation via a GitHub pull request. -
Page 95: The Things Network
1.4.3.2 The Things Network The Things Network In order to use The Things Network (TTN) you should navigate to their website and create/register an account. Enter a username and an email address to verify with their platform. Once an account has been registered, you can register your Pycom module as either a node or a nano-gateway. The steps below will detail how to do this. Create an application In order to register your device to connect to the things network, you must first create an application for these devices to belong to. This way the Network will know where to send the devices data to. - Page 96 1.4.3.2 The Things Network Selecting the tab at the top of the TTN console, will bring up a screen for Applications registering applications. Click register and a new page, similar to the one below, will open. Enter a unique as well as a Description & Handler Registration. Application ID Now the Pycom module nodes can be registered to send data up to the new Application. Register a Device To connect nodes to a things network gateway, devices need to be added to the application. To do this, navigate to the tab on the home page and click the Devices Application button. Register Device In the panel, complete the forms for the and the Register Device Device ID Device EUI The is user specified and is unique to the device in this application. The Device ID Device should be a globally unique identifier for the device. You can run the following on you EUI Pycom module to retrieve its EUI.
- Page 97 1.4.3.2 The Things Network from network import LoRa import ubinascii lora = LoRa() print("DevEUI: %s" % (ubinascii.hexlify(lora.mac()).decode('ascii'))) Once the device has been added, change the between and Activation Method OTAA ABP depending on user preference. This option can be found under the tab. Settings Register a Nano-Gateway You can also setup your Pycom module to act as a gateway with The Things Network. The code required to do this can be found here. Inside the TTN Console, there are two options, and . Select Applications Gateways and then click on . This will allow for the set up and registration Gateways register Gateway of a new nano-gateway. On the Register Gateway page, you will need to set the following settings:...
- Page 98 1.4.3.2 The Things Network These are unique to each gateway, location and country specific frequency. Please verify that correct settings are selected otherwise the gateway will not connect to TTN. You need to tick the "I'm using the legacy packet forwarder" to enable the right settings. This is because the Nano-Gateway uses the 'de facto' standard Semtech UDP protocol. Option Value Protocol Packet Forwarder Gateway EUI User Defined (must match config.py Description User Defined Frequency Plan Select Country (e.g. EU - 868 MHz) Location User Defined Antenna Placement Indoor or Outdoor Most LoRaWAN network servers expect a Gateway ID in the form of a unique 64-bit hexadecimal number (called a EUI-64). The recommended practice is to produce this ID from your board by expanding the WiFi MAC address (a 48-bit number, called MAC-48). You can obtain that by running this code prior to configuration:...
- Page 99 1.4.3.2 The Things Network from network import WLAN import binascii wl = WLAN() binascii.hexlify(wl.mac())[:6] + 'FFFE' + binascii.hexlify(wl.mac())[6:] Once these settings have been applied, click . A Gateway Overview page Register Gateway will appear, with the configuration settings showing. Next click on the and Gateway Settings configure the Router address to match that of the gateway (default: router.eu.thethings.network The should now be configured. Gateway...
-
Page 100: Objenious
1.4.3.2 Objenious Connecting to Objenious LoRaWAN 'Spot' network Identifiers To connect a Pycom LoRa device (LoPy, LoPy4, FiPy) to Objenious you'll need to provision it. This requires three pieces of information Device EUI (DevEUI) Application EUI (AppEUI) Application Key (AppKey) Device EUI This comes from the device itself and can be obtained from lora.mac() To obtain the required hexadecimal representation you can run the following code on your LoPy: from network import LoRa import ubinascii lora = LoRa() print("DevEUI: %s" % (ubinascii.hexlify(lora.mac()).decode('ascii'))) Application EUI and Application Key Application EUI and Key are two LoRaWAN parameters that should ideally by generated by you, if supplying devices to end customers. The Application EUI is a EUI-64 (8 bytes) identifier which should be universally unique - it's usually allocated from a MA-S block purchased from the IEEE Registration Authority. The Application Key should be a randomly generated, secure, 128 bit (16 byte) token. For testing purposes we provide a script which generates a random Application EUI from our assignment and a series of Application Keys: EUI/Key generator for testing (note: the Application EUI produced by this script is not guaranteed to be unique) - Page 101 1.4.3.2 Objenious To use the script make sure you are using Python 3.6 on your computer and run it (on your computer, not on the Pycom board) as: python generate_keys.py 1 The output will be similar to: AppEUI: 70b3d54923e36a89 AppKeys: 78fe712d96f46784a98b574a8cd616fe If you are registering multiple devices you can generate more Applications Keys by changing to your desired number of devices. 1 Provisioning Once you have the three identifiers for your device you need to register them on the Objenius portal. Follow "Importer des capteurs" under "Statuc do Parc" and select "Provisioning Unitaire": Once there give your device a name and enter the DevEUI, AppEUI and AppKey obtained from the steps above:...
- Page 102 1.4.3.2 Objenious...
-
Page 103: Pymakr Plugin
2.1 Installation Pymakr Plugins To make it as easy as possible Pycom has developed a plugin for two popular text editors, called Pymakr. These plugins have been built and are available for the following platforms:... - Page 104 2.1 Installation...
- Page 105 2.1.1 Atom Pymakr Plugin Installation for Atom For beginners, users getting started with MicroPython & Pycom as well as Atom text editor users, we recommend the Pymakr Plugin for Atom. This section will help you get started using the Atom Text Editor & Pymakr Plugin. Please follow these steps to install the Pymakr Plugin: 1. Ensure that you have Atom installed and open. 2. Navigate to the Install page, via Atom > Preferences > Install...
-
Page 106: Atom
2.1.1 Atom 3. Search for and select the official Pycom Pymakr Plugin. Pymakr 4. You should now see and click the Install button. This will download and install the Pymakr Plugin. 5. That’s it! You’ve installed the Pymakr Plugin for Atom. - Page 107 2.1.1 Atom Connecting via Serial USB After installing the Pymakr Plugin, you need to take a few seconds to configure it for first time use. Please follow these steps: 1. Connect your Pycom device to your computer via USB. If you are using an Expansion Board 2.0, and have just finished a firmware upgrade, be sure to remove the wire between GND and G23 and reset your device by pressing the button. Note: you don't need the wire for Expansion Board 3.0 2. Open Atom and ensure that the Pymakr Plugin has correctly installed. 3. Open the Pymakr console by clicking the button, located in the lower right side of ^ the Atom window. 4. Click, followed by . This will copy the serial address of your More Get Serial Ports expansion board to your clipboard.
- Page 108 2.1.1 Atom 5. Navigate to Settings > Global Settings 6. Paste the serial address you copied earlier into the text field Device Address 7. Press connect and the Pymakr console should show three arrows , indicating that >>> you are connected...
- Page 109 2.1.1 Atom These settings can also be applied on a per project basis by clicking then Settings . This will open a JSON file which you can edit to enter your desired Project Settings settings. This process is easiest with either a Pycom Expansion Board or a Pytrack/Pysense as the addresses are automatically selected. For external products such as FTDI USB Serial Cables, the serial address may need to be copied manually. Additionally, the reset button on the device may also need to be pressed before a connection message appears. Connecting via Telnet After installing the Pymakr Plugin, a device may be connected via the telnet interface. Please see the following steps: 1. Ensure that Pycom device is turned on 2. Connect the host computer to the WiFi Access Point named after your board (the SSID will be as follows e.g. , etc.). The password is lopy-wlan-xxxx wipy-wlan-xxxx www.pycom.io 3. Follow the steps as above in the "Connecting via Serial USB" section but enter as the address. 192.168.4.1 4. The default username and password are and , respectively. micro python 5. Click in the Pymakr pane, Pymakr will now connect via telnet. Connect...
- Page 110 2.1.1 Atom...
-
Page 111: Visual Studio Code
2.1.2 Visual Studio Code Pymakr Plugin Installation for Visual Studio Code Pycom also supports Microsoft's Visual Studio Code IDE platform with the Pymakr Plugin. To download Visual Studio Code, navigate to VS Code. You will also need NodeJS installed on your PC. Please download the latest LTS version available from the NodeJS website. Please follow these steps to install the Pymakr VSCode Extension: 1. Ensure that you have VSCode installed and open. 2. Navigate to the Extensions page, using the 5th button in the left navigation 3. Search for and click the install button next to it. Pymakr... - Page 112 2.1.2 Visual Studio Code 4. Within a few minutes, a reload button should appear. Press it to reload VSCode.
- Page 113 2.1.2 Visual Studio Code 5. That’s it! You’ve installed the Pymakr Extension for VSCode...
- Page 114 2.1.2 Visual Studio Code Connecting via Serial USB After installing the Pymakr Plugin, you need to take a few seconds to configure it for first time use. Please follow these steps: 1. Connect your Pycom device to your computer via USB. If you are using an expansion board, and have just finished a firmware upgrade, be sure to Remove the wire between GND and G23 and reset your device by pressing the button. 2. Open Visual Studio Code and ensure that the Pymakr Plugin has correctly installed. 3. Click on the bottom of the Visual Studio Code window All commands 4. In the list that appears, click Pymakr > Extra > List Serial Ports 5. This will list the available serial ports. If Pymakr is able to auto-detect which to use, this will be copied to your clipboard. If not please manually copy the correct serial port. 6. Once again click , then click . This will open a All commands Pymakr > Global Settings JSON file. Paste the serial address you copied earlier into the field and save address the file.
- Page 115 2.1.2 Visual Studio Code 7. Finally close the JSON file, click , then to connect your All commands Pymakr > Connect device. The Pymakr console should show three arrows , indicating that you are >>> connected These settings can also be applied on a per project basis by clicking then All commands . This will open a JSON file which you can edit to enter your Pymakr > Project Settings desired settings for the currently open project. This process is easiest with either a Pycom Expansion Board or a Pytrack/Pysense as the addresses are automatically selected. For external products such as FTDI USB Serial Cables, the serial address may need to be copied manually. Additionally, the reset button on the device may also need to be pressed before a connection message appears. Connecting via Telnet After installing the Pymakr Plugin, a device may be connected via the telnet interface. Please see the following steps: 1. Ensure that Pycom device is turned on 2. Connect the host computer to the WiFi Access Point named after your board (the SSID will be as follows e.g. , etc.). The password is lopy-wlan-xxxx wipy-wlan-xxxx www.pycom.io 3. Follow the steps as above in the "Connecting via Serial USB" section but enter as the address. 192.168.4.1...
- Page 116 2.1.2 Visual Studio Code 4. The default username and password are and , respectively. micro python 5. Finally close the JSON file, click , then , Pymakr will All commands Pymakr > Connect now connect via telnet.
-
Page 117: Tools/Features
2.2 Tools/Features Tools and Features Console (REPL) MicroPython has an interactive code tool known as the REPL (Read Evaluate Print Line). The REPL allows you to run code on your device, line by line. To begin coding, go to the Pymakr Plugin Console and start typing your code. Start by making the LED change colour. import pycom # we need this module to control the LED pycom.heartbeat(False) # disable the blue blinking pycom.rgbled(0x00ff00) # make the LED light up green in colour You can change the colour by adjusting the hex RGB value. pycom.rgbled(0xff0000) # now make the LED light up red in colour The console can be used to run any python code, also functions or loops. Use to output contents of variables to the console for you to read. Returned values print() from functions will also be displayed if they are not caught in a variable. This will not happen for code running from the main or boot files. Here you need to use to output to the print() console. Note that after writing or pasting any indented code like a function or a while loop, the user will have to press enter up to three times to tell MicroPython the code is to be closed (this is standard MicroPython & Python behaviour). Also be aware that code written into the REPL is not saved after the device is powered off/on again. To test code on a device, create a new file or open an existing one, type the desired .py code, save the file and then press the button. This will run the code directly onto the Run Pycom board and output the results of the script to the REPL. - Page 118 2.2 Tools/Features Changes made to files won’t be automatically uploaded to the board upon restarting or exiting the feature, as the Pycom board will not store this code. In order to push Run the code permanently to a device, use the feature. Upload Projects Pymakr Plugin supports user projects, allowing for pre-configured settings such as default serial address/credentials, files to be ignored and folders to sync. pymakr.conf Pymakr Plugin supports local project settings using a file called . This can be pymakr.conf used to store the default serial address of a device, which files to ignore and other settings. An example is shown below: pymakr.conf "address": "/dev/cu.usbserial-AB001234", "username": "micro", "password": "python", "sync_folder": "scripts" Upload The Pymakr Plugins have a feature to sync and upload code to a device. This can be used for both uploading code to a device as well as testing out scripts by running them live on the device. The following steps demonstrate how to use this feature. To start using the feature, ensure that a project folder has been created for the Upload device. For example, if using the from above, this project folder should be pymakr.conf named . This folder should have the following structure: scripts Library files should be placed into the folder, certificates into the folder and so lib cert on. The...
- Page 119 2.2 Tools/Features structure as within the code editor's file directory. More Clicking the button within the Pymakr Plugin allows for some additional features. See More the options below for specific functionality. Get Firmware Version Retrieves the firmware version of the Pycom device connected to the Pymakr Plugin instance. Get WiFi AP SSID Retrieves the default WiFi Access Point SSID of the Pycom device connected to the Pymakr Plugin instance. Get Serial Ports Retrieves the various serial ports that are available to the Pymakr Plugin instance.
-
Page 120: Settings
2.3 Settings Pymakr settings Below you will find a description of the various settings available for Pymakr. address This is the address of the Pycom module you want Pymakr can connect to. This can be either a serial port (e.g on windows or on Linux/macOS) COM1 /dev/cu.usbserial-DQ0054ES or an IP address (Telnet) (e.g. if connected to the AP created by the Pycom 192.168.4.1 module). username If a IP address was provided for the therefore Pymakr is connecting via Telnet, you address will also need to provide a username, the default is micro password If an IP address was provided for the address, Pymakr is connecting via Telnet. You will also need to provide a password, the default is python sync_folder If left blank, all directories inside the project will be synced to the device when the user clicks . If directories are specified, only these directories will be synced, all others will be upload ignored open_on_start If set to , the Pymakr console will open and try to connect when the editor is started, or true a project is opened. safe_boot_on_upload... - Page 121 2.3 Settings If set to , Pymakr will reboot the connected device into safe-mode before uploading. true This is useful if your code uses a lot of RAM causing issues with the upload procedure. This feature is only available on modules running firmware version or higher. 1.17.0.b1 sync_file_types Only files ending with the extensions listed in this setting will be synced to the device when performing an upload. All other files are ignored. By default this is set to include: py, txt, log, json, xml ctrl_c_on_connect If set to , Pymakr will sent the signal to the connected module before true ctrl-c uploading. This should stop the script currently running on the device and improve the reliability of the upload process.
-
Page 122: Introduction
3.1 Introduction Pytrack & Pysense In addition to the Expansion Board, Pycom also offers two additional sensor boards, which are ideal for quickly building a fully functioning IoT solution! Whether the application is environment sensing or asset tracking, these additional boards support a variety of sensors. Pytrack Pytrack is a location enabled version of the Expansion Board, intended for use in GPS applications such as asset tracking or monitoring. Features & Hardware The Pytrack is has a number of features including GPS, 3-Axis Accelerometer and Battery Charger. See the list below for detailed specifics about each sensor, including datasheets. Serial USB 3-Axis Accelerometer (LIS2HH12) Battery Charger (BQ24040 with JST connector) GPS and GLONASS (L76-L) MicroSD Card Reader All of the included sensors are connected to the Pycom device via the I2C interface. These pins are located at P22 (SDA) and P21 (SCL). Pysense... - Page 123 3.1 Introduction Pysense is a sensor packed version of the Expansion Board, intended for use in environment sensing applications such as temperature, humidity monitoring, and light sensing. Features & Hardware The Pysense is packed with a number of sensors and hardware, see the list below for detailed specifics about each sensor, including datasheets. Serial USB 3-Axis Accelerometer (LIS2HH12) Battery Charger (BQ24040 with JST connector) Digital Ambient Light Sensor (LTR-329ALS-01) Humidity and Temperature Sensor (SI7006-A20) Barometric Pressure Sensor with Altimeter (MPL3115A2) MicroSD Card Reader All of the included sensors are connected to the Pycom device via the I2C interface. These pins are located at (SDA) and (SCL). GPI09 GPI08...
-
Page 124: Installing Software
3.2 Installing Software Installing Software As the development for these devices are on going with additional features being added, every week, it is essential to ensure you frequently check for updates on the Pytrack/Pysense. As well as updating the device firmware, it is important to check the GitHub repository for the respective library files as they as also being updated, to include additional features/functionality. -
Page 125: Updating Firmware
3.2.1 Updating Firmware Updating Firmware To update the firmware on the Pysense/Pytrack/Pyscan/Expansion Board v3, please see the following instructions. The firmware of Pysense/Pytrack/Pyscan/Expansion Board v3 can be updated via the USB port using the terminal tool, DFU-util The latest firmware DFU file can be downloaded from the links below: Pytrack DFU Pysense DFU Expansion Board DFU While in the normal, application mode, the Pysense/Pytrack/Pyscan/Expansion Board v3 require a Serial USB CDC driver, in DFU, bootloader mode, the DFU driver is required. Below, the USB Product ID is depicted for each case. DFU bootloader (update Application firmware (normal Board mode) mode) Pytrack 0xF014 0xF013 Pysense 0xF011 0xF012 Pyscan 0xEF37 0xEF38 Expansion Board 0xEF99 0xEF98 Note: USB Vendor ID is always 0x04D8 Installing the DFU-util Tools macOS If using homebrew $ brew install dfu-util If using MacPorts port install libusb dfu-util Linux... - Page 126 3.2.1 Updating Firmware Ubuntu or Debian: $ sudo apt-get install dfu-util Fedora: $ sudo yum install dfu-util Arch: $ sudo pacman -Sy dfu-util Windows DFU-util v0.9 – Tool to upload the firmware to the Pytrack/Pysense Zadig – Installer tool for the Pytrack/Pysense board DFU Firmware To uploaded the latest DFU firmware to the Pytrack/Pysense, first install the DFU drivers to the host computer. Open Zadig and select as the driver. libusbK To install the drivers, the Pytrack/Pysense board must be in DFU-mode: 1. Disconnect the USB cable 2. Hold down the button on the shield 3. Connect the USB cable 4. Keep the button pressed for at least one second 5. Release the button. When the board is connected in DFU-mode, it will be in this state for 7 seconds. 6. Click the button immediately. If the driver was unsuccessful, repeat “Install Driver from step 1. Here the USB ID has to be the DFU-bootloader one ( for Pytrack or 0xF014 0xF011 for Pysense). This is a successful DFU driver installation for Pytrack:...
- Page 127 3.2.1 Updating Firmware Open the command prompt and navigate to the directory where the DFU-util and the firmware was downloaded (must be in same directory). Repeat the procedure to get the board in DFU-mode and run the command below but replace with the firmware X.X.X version and replace Pysense with Pytrack if it is the Pytrack that is to be updated (e.g: pytrack_0.0.8.dfu dfu-util-static.exe -D pysense_X.X.X.dfu If the update was successful, a message,"Done!" should appear in the bottom of the command prompt. Double-check Serial USB (CDC) driver is installed in Application mode: if, by mistake, the driver was installed while the USB ID is the Application mode ( for libusbk 0xF013 Pytrack or for Pysense), then the driver has to be installed for 0xF012 Serial USB (CDC) application mode. This will allow Windows to allocate a COM port, which is required for REPL console.
- Page 128 3.2.1 Updating Firmware Using DFU-util with Pytrack, Pysense and Expansion Board To enter update mode follow these steps: 1. Unplug the device 2. Press the button and keep it held (on the Expansion Board the button) S1 3. Plug in the USB cable to the host computer and wait 1 second before releasing the button 4. After this you will have approximately 7 seconds to run the DFU-util tool MacOS and Linux: $ dfu-util -D pytrack_0.0.8.dfu An output, similar to the one below, will appear upon successful installation:...
- Page 129 3.2.1 Updating Firmware dfu-util 0.9 Copyright 2005-2009 Weston Schmidt, Harald Welte and OpenMoko Inc. Copyright 2010-2016 Tormod Volden and Stefan Schmidt This program is Free Software and has ABSOLUTELY NO WARRANTY Please report bugs to http://sourceforge.net/p/dfu-util/tickets/ Match vendor ID from file: 04d8 Match product ID from file: f014 Opening DFU capable USB device... ID 04d8:f014 Run-time device DFU version 0100 Claiming USB DFU Runtime Interface... Determining device status: state = dfuIDLE, status = 0 dfu-util: WARNING: Runtime device already in DFU state ?!? Claiming USB DFU Interface... Setting Alternate Setting #0 ... Determining device status: state = dfuIDLE, status = 0 dfuIDLE, continuing DFU mode device DFU version 0100 Device returned transfer size 64 Copying data from PC to DFU device Download [=========================] 100% 16384 bytes Download done. state(2) = dfuIDLE, status(0) = No error condition is present Done! Debugging Using command, the Pytrack/Pysense device should be visible in both normal and lsusb bootloader modes. For exemple, a Pytrack board is visible as either: Bus 020 Device 004: ID 04d8:f014 Microchip Technology Inc. Application Specific Device this is bootloader mode ( is USB PID), active just for 7-8 seconds, if the reset f014 button was just pressed before plugging USB connector. Bus 020 Device 005: ID 04d8:f013 Microchip Technology Inc. Pytrack Serial: Pyabcde0 this is normal, application mode ( is USB PID), this means the bootloader f013 verified application partition and it boot-up correctly.
-
Page 130: Installing Drivers - Windows 7
3.2.2 Installing Drivers - Windows 7 Windows 7 Drivers Pytrack and Pysense will work out of the box for Windows 8/10/+, macOS as well as Linux. If using Windows 7, drivers to support the boards will need to be installed. Please follow the instructions below to install the required drivers. Download Please download the driver software from the link below. Pytrack/Pysense/Pyscan/Expansion board 3 Driver Installation First navigate open the Windows start menu and search/navigate to . You Device Manager should see your Pytrack/Pysense in the dropdown under other devices. Right click the device and select Update Driver Software... - Page 131 3.2.2 Installing Drivers - Windows 7 Select the option to Browse my computer for driver software. Next you will need to navigate to where you downloaded the driver to (e.g. Downloads Folder).
- Page 132 3.2.2 Installing Drivers - Windows 7 Specify the folder in which the drivers are contained. If you haven't extracted the file, .zip please do this before selecting the folder. You may receive a warning, suggesting that windows can't verify the publisher of this driver. Click as this link points to our official driver. Install this driver software anyway...
- Page 133 3.2.2 Installing Drivers - Windows 7 If the installation was successful, you should now see a window specifying that the driver was correctly installed. To confirm that the installation was correct, navigate back to the and click Device Manager the dropdown for other devices. The warning label should now be gone and Pytrack/Pysense should be installed.
- Page 134 3.2.2 Installing Drivers - Windows 7...
-
Page 135: Installing Libraries
3.2.3 Installing Libraries Installing Libraries To utilise the sensors on the Pytrack and Pysense, Pycom has written libraries to make reading to/from the various sensors accessible via an API. These libraries reside at the Pycom GitHub repository and the latest versions can be found under the releases page. GitHub Repository Download the repository as a file, navigate to the correct device (Pysense/Pytrack), .zip extract the files and then upload the desired files to the device in the instructions below. Uploading the Libraries to a Device These libraries should be uploaded to a device (LoPy, SiPy, WiPy 2.0, etc.) in the same process as a standard MicroPython library. The various files should be placed into the .py folder on the device. For example, if using the Pysense and the user wishes to enable /lib the only Accelerometer and the Light Sensor, they should place the following files into .py the device's folder: /lib - pysense.py - LIS2HH12.py - LTR329ALS01.py Add as many or as few of the libraries that are required. In addition to the Pysense or Pytrack specific libraries, you also need to upload the file from the folder inside the libraries archive. pycoproc.py _lib/pycoproc_ The Pytrack and Pysense boards behave the same as the Expansion Board. Upload and upload code to Pycom modules via the Pymakr Plugin, in exactly the same Run process. Importing/Using the Libraries Once the libraries are uploaded to the device, they can be used/imported as a typical MicroPython library would be. For example, importing and using the light sensor on the... - Page 136 3.2.3 Installing Libraries from pysense import Pysense from LTR329ALS01 import LTR329ALS01 py = Pysense() lt = LTR329ALS01(py) print(lt.light())
-
Page 137: Api Reference
3.3 API Reference API Reference To simplify usability, APIs for the libraries have been created, abstracting away the low level interactions with the sensors. The next following pages refer to the respective libraries for the Pytrack and Pysense. -
Page 138: Pytrack
3.3.1 Pytrack Pytrack API This chapter describes the various libraries which are designed for the Pytrack board. This includes details about the various methods and classes available for each of the Pytrack’s sensors. 3-Axis Accelerometer (LIS2HH12) Pytrack has a 3-Axis Accelerometer that provides outputs for acceleration as well as roll, pitch and yaw. Constructors class LIS2HH12(pytrack = None, sda = 'P22', scl = 'P21') Creates a object, that will return values for acceleration, roll, pitch and yaw. LIS2HH12 Constructor must be passed a Pytrack or I2C object to successfully construct. Methods LIS2HH12.acceleration() Read the acceleration from the . Returns a tuple with the 3 values of acceleration LIS2HH12 (G). LIS2HH12.roll() Read the current roll from the . Returns a float in degrees in the range -180 to LIS2HH12 180. LIS2HH12.pitch() Read the current pitch from the . Returns a float in degrees in the range -90 to 90. LIS2HH12 Once the board tilts beyond this range the values will repeat. This is due to a lack of yaw measurement, making it not possible to know the exact orientation of the board. GPS with GLONASS (Quectel L76-L GNSS) Pytrack has a GPS (with GLONASS) that provides outputs longitude/latitude, speed and other information about the Pytrack's location. - Page 139 3.3.1 Pytrack Constructors class L76GNSS(pytrack = None, sda = 'P22', scl = 'P21', timeout = None) Creates a object, that will return values for longitude and latitude. Constructor must L76GNSS be passed a Pytrack or I2C object to successfully construct. Set the to a time timeout period (in seconds) for the GPS to search for a lock. If a lock is not found by the time the has expired, the method will return timeout coordinates (None, None) Methods L76GNSS.coordinates(debug = False) Read the longitude and latitude from the . Returns a tuple with the longitude and L76GNSS latitude. With set to the output from the GPS is verbose. debug True Please note that more functionality is being added weekly to these libraries. If a required feature is not available, feel free to contribute with a pull request at the Libraries GitHub repository...
-
Page 140: Pysense
3.3.2 Pysense Pysense API This chapter describes the various libraries which are designed for the Pysense Board. This includes details about the various methods and classes available for each of the Pysense’s sensors. 3-Axis Accelerometer (LIS2HH12) Pysense has a 3-Axis Accelerometer that provides outputs for acceleration as well as roll, pitch and yaw. Constructors class LIS2HH12(pysense = None, sda = 'P22', scl = 'P21') Creates a object, that will return values for acceleration, roll, pitch and yaw. LIS2HH12 Constructor must be passed a Pysense or I2C object to successfully construct. Methods LIS2HH12.acceleration() Read the acceleration from the . Returns a tuple with the 3 values of acceleration LIS2HH12 (G). LIS2HH12.roll() Read the current roll from the . Returns a float in degrees in the range -180 to LIS2HH12 180. LIS2HH12.pitch() Read the current pitch from the . Returns a float in degrees in the range -90 to 90. LIS2HH12 Once the board tilts beyond this range the values will repeat. This is due to a lack of yaw measurement, making it not possible to know the exact orientation of the board. Digital Ambient Light Sensor (LTR-329ALS-01) Pysense has a dual light sensor that provides outputs for external light levels in lux. See the datasheet for more information about the wavelengths of the two sensors. - Page 141 3.3.2 Pysense Constructors class LTR329ALS01(pysense = None, sda = 'P22', scl = 'P21', gain = ALS_GAIN_1X, integration = ALS_INT_100, rate = ALS_RATE_500) Creates a object, that will return values for light in lux. Constructor must be LTR329ALS01 passed a Pysense or I2C object to successfully construct. Methods LTR329ALS01.light() Read the light levels of both sensors. Returns a tuple with two values for light LTR329ALS01 levels in lux. Arguments The following arguments may be passed into the constructor. gain ALS_GAIN_1X, ALS_GAIN_2X, ALS_GAIN_4X, ALS_GAIN_8X, ALS_GAIN_48X, ALS_GAIN_96X integration ALS_INT_50, ALS_INT_100, ALS_INT_150, ALS_INT_200, ALS_INT_250, ALS_INT_300, ALS_INT_350, ALS_INT_400 rate ALS_RATE_50, ALS_RATE_100, ALS_RATE_200, ALS_RATE_500, ALS_RATE_1000, ALS_RATE_2000 Humidity and Temperature Sensor (SI7006A20) Pysense has a Humidity and Temperature sensor that provides values of relative humidity and external temperature. Constructors class SI7006A20(pysense = None, sda = 'P22', scl = 'P21') Creates a object, that will return values for humidity (%) and temperature ('C). SI7006A20 Constructor must be passed a Pysense or I2C object to successfully construct.
- Page 142 3.3.2 Pysense Methods SI7006A20.humidity() Read the relative humidity of the . Returns a float with the percentage relative SI7006A20 humidity. SI7006A20.temperature() Read the external temperature of the . Returns a float with the temperature. SI7006A20 Barometric Pressure Sensor with Altimeter (MPL3115A2) Pysense has a Barometric Pressure sensor that provides readings for pressure, altitude as well as an additional temperature sensor. Constructors class MPL3115A2(pysense = None, sda = 'P22', scl = 'P21', mode = PRESSURE) Creates a object, that will return values for pressure (Pa), altitude (m) and MPL3115A2 temperature ('C). Constructor must be passed a Pysense or I2C object to successfully construct. Methods MPL3115A2.pressure() Read the atmospheric pressure of the . Returns a float with the pressure in (Pa). MPL3115A2 MPL3115A2.altitude() Read the altitude of the . Returns a float with the altitude in (m). MPL3115A2 MPL3115A2.temperature() Read the temperature of the . Returns a float with the temperature in ('C). MPL3115A2 Arguments The following arguments may be passed into the constructor. mode...
- Page 143 3.3.2 Pysense PRESSURE, ALTITUDE Please note that more functionality is being added weekly to these libraries. If a required feature is not available, feel free to contribute with a pull request at the Libraries GitHub repository...
-
Page 144: Sleep
3.3.3 Sleep Sleep and Wakeup for Pytrack/Pysense This chapter describes the various methods for sleep and wakeup which are embedded in Pytrack and Pysense libraries. Both Pytrack and Pysense have the same methods, although the appropriate class, either or , has to be instantiated. pytrack pysense Quick Usage Example The following example is also available at Sleep Wakeup Example Libraries GitHub repository... - Page 145 3.3.3 Sleep #from pytrack import Pytrack from pysense import Pysense from LIS2HH12 import LIS2HH12 import time #py = Pytrack() py = Pysense() # display the reset reason code and the sleep remaining in seconds # possible values of wakeup reason are: # WAKE_REASON_ACCELEROMETER = 1 # WAKE_REASON_PUSH_BUTTON = 2 # WAKE_REASON_TIMER = 4 # WAKE_REASON_INT_PIN = 8 print("Wakeup reason: " + str(py.get_wake_reason())) print("Approximate sleep remaining: " + str(py.get_sleep_remaining()) + " sec") time.sleep(0.5) # enable wakeup source from INT pin py.setup_int_pin_wake_up(False) acc = LIS2HH12() # enable activity and also inactivity interrupts, using the default callback handler py.setup_int_wake_up(True, True) # set the acceleration threshold to 2000mG (2G) and the min duration to 200ms acc.enable_activity_interrupt(2000, 200) # go to sleep for 5 minutes maximum if no accelerometer interrupt happens py.setup_sleep(300) py.go_to_sleep() Methods pytrack.get_sleep_remaining() In the event of a sleep session that was awoken by an asynchronous event (Accelerometer, INT pin or Reset button) the approximate sleep remaining interval (expressed in seconds) can be found out. The user has to manually use to configure the next sleep setup_sleep() interval. pytrack.get_wake_reason() Returns the last wakeup reason. Possible values are:...
- Page 146 3.3.3 Sleep # WAKE_REASON_ACCELEROMETER = 1 # Accelerometer activity/inactivity detection # WAKE_REASON_PUSH_BUTTON = 2 # Pytrack/Pysense reset buttom # WAKE_REASON_TIMER = 4 # Normal timeout of the sleep interval # WAKE_REASON_INT_PIN = 8 # INT pin Note: the can be used if the PIC_RC1 pin (pin#6 on External IO WAKE_REASON_INT_PIN Header) is toggled. As in the above example, this method should be called at the beginning of the script, to find out the reset (wakeup) reason. pytrack.go_to_sleep([gps=True]) Puts the board in sleep mode, for the duration, which has to be set previously with . The optional boolean parameter sets the GPS state pytrack.setup_sleep(timout_sec) during sleep. MicroPython code, which is after this function, is not executed, as wakeup will restart MicroPython. pytrack.setup_int_wake_up(rising, falling]) Enables as wakeup source, the accelerometer INT pin (PIC - RA5). The boolean parameters will indicate rising edge (activity detection) and/or falling edge (inactivity detection) is configured. The accelerometer (class ) has to be also configured for a certain acceleration LIS2HH12 threshold and duration. Code snippet: from pytrack import Pytrack from LIS2HH12 import LIS2HH12 py = Pytrack() acc = LIS2HH12() # enable activity and also inactivity interrupts, using the default callback handler py.setup_int_wake_up(True, True) # set the acceleration threshold to 2000mG (2G) and the min duration to 200ms acc.enable_activity_interrupt(2000, 200) pytrack.setup_int_pin_wake_up([rising_edge = True]) Enables as wakeup source, the INT pic (PIC - RC1, pin#6 on External IO Header). Either rising or falling edge has to be set, by default it's rising edge.
- Page 147 3.3.3 Sleep pytrack.setup_sleep(time_seconds) Sets the sleep interval, specified in seconds. The actual sleep will be started by calling method. go_to_sleep() Please note that more functionality is being added weekly to these libraries. If a required feature is not available, feel free to contribute with a pull request at the Libraries GitHub repository...
-
Page 148: Tutorials & Examples
4.1 Introduction Tutorials and Examples This section contains tutorials and examples for use with Pycom modules and Expansion boards. General Pycom tutorials contains tutorials that may be run on any Pycom device, such as connecting to a WiFi network, Bluetooth, controlling I/O pins etc. Later sections are specific to the LoPy and SiPy devices such as setting up a LoRa node or connecting to the Sigfox network. The final sections are related to examples using the Pytrack and Pysense. Before starting, ensure that any Pycom devices are running the latest firmware; for instructions see Firmware Updates. The source code for these tutorials, along with the required libraries can be found in in the pycom-libraries repository. -
Page 149: All Pycom Device Examples
4.2 All Pycom Device Examples All Pycom Device Examples This section contains generic examples that will work across all Pycom devices and Expansion Boards. -
Page 150: Repl
4.2.1 REPL Using the REPL Prompt Using the Pymakr Plugin, open and connect a device or use serial terminal (PuTTY, screen, picocom, etc). Upon connecting, there should be a blank screen with a flashing cursor. Press Enter and a MicroPython prompt should appear, i.e. . Let’s make sure it is working with >>> the obligatory test: >>> print("Hello LoPy!") Hello LoPy! In the example above, the characters should not be typed. They are there to indicate >>> that the text should be placed after the prompt. Once the text has been entered and pressed , the output should appear on screen, identical to print("Hello LoPy!") Enter the example above. Basic Python commands can be tested out in a similar fashion. If this is not working, try either a hard reset or a soft reset; see below. Here are some other example, utilising the device's hardware features: >>> from machine import Pin >>> led = Pin('G16', mode=Pin.OUT, value=1) >>> led(0) >>> led(1) >>> led.toggle() >>> 1 + 2 >>> 5 / 2 >>> 20 * 'py' 'pypypypypypypypypypypypypypypypypypypypy' Resetting the Device If something goes wrong, the device can be reset with two methods. The first is to press at the MicroPython prompt, which will perform a soft reset. A message, as following, CTRL-D will appear:... - Page 151 4.2.1 REPL >>> PYB: soft reboot MicroPython v1.4.6-146-g1d8b5e5 on 2016-10-21; LoPy with ESP32 Type "help()" for more information. >>> If that still isn’t working a hard reset can be performed (power-off/on) by pressing the RST switch (the small black button next to the RGB LED). Using telnet, this will end the session, disconnecting the program that was used to connect to the Pycom Device.
-
Page 152: Wlan
4.2.2 WLAN WLAN The WLAN is a system feature of all Pycom devices, therefore it is enabled by default. In order to retrieve the current WLAN instance, run: >>> from network import WLAN >>> wlan = WLAN() # we call the constructor without params The current mode ( after power up) may be checked by running: WLAN.AP >>> wlan.mode() When changing the WLAN mode, if following the instructions below, the WLAN connection to the Pycom device will be broken. This means commands will not run interactively over WiFi. There are two ways around this: 1. Put this setup code into the file of the Pycom device so that it gets boot.py executed automatically after reset. 2. Duplicate the REPL on UART. This way commands can be run via Serial USB. Connecting to a Router The WLAN network class always boots in mode; to connect it to an existing WLAN.AP network, the WiFi class must be configured as a station: from network import WLAN wlan = WLAN(mode=WLAN.STA) Now the device may proceed to scan for networks:... - Page 153 4.2.2 WLAN nets = wlan.scan() for net in nets: if net.ssid == 'mywifi': print('Network found!') wlan.connect(net.ssid, auth=(net.sec, 'mywifikey'), timeout=5000) while not wlan.isconnected(): machine.idle() # save power while waiting print('WLAN connection succeeded!') break Assigning a Static IP Address at Boot Up If the users wants their device to connect to a home router upon boot up, using with a fixed IP address, use the following script as /flash/boot.py import machine from network import WLAN wlan = WLAN() # get current object, without changing the mode if machine.reset_cause() != machine.SOFT_RESET: wlan.init(mode=WLAN.STA) # configuration below MUST match your home router settings!! wlan.ifconfig(config=('192.168.178.107', '255.255.255.0', '192.168.178.1', '8.8.8. 8')) if not wlan.isconnected(): # change the line below to match your network ssid, security and password wlan.connect('mywifi', auth=(WLAN.WPA2, 'mywifikey'), timeout=5000) while not wlan.isconnected(): machine.idle() # save power while waiting Notice how we check for the reset cause and the connection status, this is crucial in order to be able to soft reset the LoPy during a telnet session without breaking the connection. Multiple Networks using a Static IP Address The following script holds a list with nets and an optional list of to set a fixed IP wlan_config...
- Page 154 4.2.2 WLAN import os import machine uart = machine.UART(0, 115200) os.dupterm(uart) known_nets = { '<net>': {'pwd': '<password>'}, '<net>': {'pwd': '<password>', 'wlan_config': ('10.0.0.114', '255.255.0.0', '10.0 .0.1', '10.0.0.1')}, # (ip, subnet_mask, gateway, DNS_server) if machine.reset_cause() != machine.SOFT_RESET: from network import WLAN wl = WLAN() wl.mode(WLAN.STA) original_ssid = wl.ssid() original_auth = wl.auth() print("Scanning for known wifi nets") available_nets = wl.scan() nets = frozenset([e.ssid for e in available_nets]) known_nets_names = frozenset([key for key in known_nets]) net_to_use = list(nets & known_nets_names) try: net_to_use = net_to_use[0] net_properties = known_nets[net_to_use] pwd = net_properties['pwd'] sec = [e.sec for e in available_nets if e.ssid == net_to_use][0] if 'wlan_config' in net_properties: wl.ifconfig(config=net_properties['wlan_config']) wl.connect(net_to_use, (sec, pwd), timeout=10000) while not wl.isconnected(): machine.idle() # save power while waiting print("Connected to "+net_to_use+" with IP address:" + wl.ifconfig()[0]) except Exception as e: print("Failed to connect to any known network, going into AP mode") wl.init(mode=WLAN.AP, ssid=original_ssid, auth=original_auth, channel=6, anten na=WLAN.INT_ANT) Connecting to a WPA2-Enterprise network Connecting with EAP-TLS: Before connecting, obtain and copy the public and private keys to the device, e.g. under location . If it is required to validate the server’s public key, an appropriate CA /flash/cert certificate (chain) must also be provided.
- Page 155 4.2.2 WLAN from network import WLAN wlan = WLAN(mode=WLAN.STA) wlan.connect(ssid='mywifi', auth=(WLAN.WPA2_ENT,), identity='myidentity', ca_certs='/f lash/cert/ca.pem', keyfile='/flash/cert/client.key', certfile='/flash/cert/client.crt' Connecting with EAP-PEAP or EAP-TTLS: In case of EAP-PEAP (or EAP-TTLS), the client key and certificate are not necessary, only a username and password pair. If it is required to validate the server’s public key, an appropriate CA certificate (chain) must also be provided. from network import WLAN wlan = WLAN(mode=WLAN.STA) wlan.connect(ssid='mywifi', auth=(WLAN.WPA2_ENT, 'username', 'password'), identity='my identity', ca_certs='/flash/cert/ca.pem')
-
Page 156: Bluetooth
4.2.3 Bluetooth Bluetooth At present, basic BLE functionality is available. More features will be implemented in the near future, such as pairing. This page will be updated in line with these features. Full info on can be found within Bluetooth page of the Firmware API Reference. bluetooth Scan for BLE Devices Scan for all of the advertising devices within range of the scanning device. bluetooth.start_scan(10) # starts scanning and stop after 10 seconds bluetooth.start_scan(-1) # starts scanning indefinitely until bluetooth.stop_scan() i s called Raw Data from a BLE Device A quick usage example that scans and prints the raw data from advertisements. from network import Bluetooth bluetooth = Bluetooth() bluetooth.start_scan(-1) # start scanning with no timeout while True: print(bluetooth.get_adv()) Connect to a BLE Device Connecting to a device that is sending advertisements. - Page 157 4.2.3 Bluetooth from network import Bluetooth import ubinascii bluetooth = Bluetooth() # scan until we can connect to any BLE device around bluetooth.start_scan(-1) adv = None while True: adv = bluetooth.get_adv() if adv: try: bluetooth.connect(adv.mac) except: # start scanning again bluetooth.start_scan(-1) continue break print("Connected to device with addr = {}".format(ubinascii.hexlify(adv.mac))) Connect to a BLE Device and Retrieve Data Connecting to a device named 'Heart Rate' and receiving data from it’s services.
- Page 158 4.2.3 Bluetooth from network import Bluetooth import time bt = Bluetooth() bt.start_scan(-1) while True: adv = bt.get_adv() if adv and bt.resolve_adv_data(adv.data, Bluetooth.ADV_NAME_CMPL) == 'Heart Rate': try: conn = bt.connect(adv.mac) services = conn.services() for service in services: time.sleep(0.050) if type(service.uuid()) == bytes: print('Reading chars from service = {}'.format(service.uuid())) else: print('Reading chars from service = %x' % service.uuid()) chars = service.characteristics() for char in chars: if (char.properties() & Bluetooth.PROP_READ): print('char {} value = {}'.format(char.uuid(), char.read())) conn.disconnect() break except: pass else: time.sleep(0.050) Retrieve the Name & Manufacturer from a BLE Device Using to attempt to retrieve the name and manufacturer data from the resolve_adv_data() advertiser.
- Page 159 4.2.3 Bluetooth import ubinascii from network import Bluetooth bluetooth = Bluetooth() bluetooth.start_scan(20) while bluetooth.isscanning(): adv = bluetooth.get_adv() if adv: # try to get the complete name print(bluetooth.resolve_adv_data(adv.data, Bluetooth.ADV_NAME_CMPL)) mfg_data = bluetooth.resolve_adv_data(adv.data, Bluetooth.ADV_MANUFACTURER_DAT if mfg_data: # try to get the manufacturer data (Apple's iBeacon data is sent here) print(ubinascii.hexlify(mfg_data))
-
Page 160: Https
4.2.4 HTTPS HTTPS Basic connection using ssl.wrap_socket() import socket import ssl s = socket.socket() ss = ssl.wrap_socket(s) ss.connect(socket.getaddrinfo('www.google.com', 443)[0][-1]) Below is an example using certificates with the blynk cloud. Certificate was downloaded from the blynk examples folder and placed in /flash/cert/ the device. import socket import ssl s = socket.socket() ss = ssl.wrap_socket(s, cert_reqs=ssl.CERT_REQUIRED, ca_certs='/flash/cert/ca.pem') ss.connect(socket.getaddrinfo('cloud.blynk.cc', 8441)[0][-1]) For more info, check the module in the API reference. ssl... -
Page 161: Mqtt
4.2.5 MQTT MQTT MQTT is a lightweight messaging protocol that is ideal for sending small packets of data to and from IoT devices via WiFi. The broker used in this example is the IO Adafruit) platform, which is free and allows for tinkering with MQTT. Visit IO Adafruit and create an account. You'll need to get hold of an API Key as well as your credentials. Visit this guide for more information about MQTT and how to use it with Adafruit's Broker. This example will send a message to a topic on the Adafruit MQTT broker and then also subscribe to the same topic, in order to show how to use the subscribe functionality. from mqtt import MQTTClient from network import WLAN import machine import time def sub_cb(topic, msg): print(msg) wlan = WLAN(mode=WLAN.STA) wlan.connect("yourwifinetwork", auth=(WLAN.WPA2, "wifipassword"), timeout=5000) while not wlan.isconnected(): machine.idle() print("Connected to WiFi\n") client = MQTTClient("device_id", "io.adafruit.com",user="your_username", password="you r_api_key", port=1883) client.set_callback(sub_cb) client.connect() client.subscribe(topic="youraccount/feeds/lights") while True: print("Sending ON") client.publish(topic="youraccount/feeds/lights", msg="ON") time.sleep(1) print("Sending OFF") client.publish(topic="youraccount/feeds/lights", msg="OFF") client.check_msg() time.sleep(1) - Page 162 4.2.5 MQTT...
-
Page 163: Aws
4.2.6 AWS Amazon Web Services The AWS IoT platform enables devices to connect to the Amazon cloud and lets applications in the cloud interact with Internet-connected things. Common IoT applications either collect and process telemetry from devices or enable users to control a device remotely. Things report their state by publishing messages, in JSON format, on MQTT topics. For more information see this PDF File. Getting Started with AWS IoT Creating the message broker (Amazon website): Sign in to the AWS Management Console Navigate to the IoT Console by clicking on the AWS IoT link In the left navigation pane, choose Register/Manage Click on the create button, give your device a name and press create Click on the device that has been created On the Details page, in the left navigation pane, choose Security On the Certificates page, choose Create certificate Download all the certificates, then press the Activate and the Attach a Policy buttons. See image Click on the Create New Policy button On the Create Policy page, choose a policy name and the actions to authorise. Go to the certificates page, click on the three dots of your certificate and attach the policy to the certificate as shown in the diagram Setting up the device (Pycom device): Download the latest sample code from the Pycom GitHub Repository. Connect to the device via FTP and put the root CA certificate, the client certificate ) and the private key ( ) in the folder. *.pem.crt *.private.pem.key /flash/cert Update the config file with your WiFi settings, the AWS Host and the certificate paths. Put the and the in the device flash config.py main.py Configuration ( config.py ):... - Page 164 4.2.6 AWS This file contains the WiFi, certificate paths and application specific settings that need to be updated by the user. # WiFi configuration WIFI_SSID = 'my_wifi_ssid' WIFI_PASS = 'my_wifi_password' # AWS general configuration AWS_PORT = 8883 AWS_HOST = 'aws_host_url' AWS_ROOT_CA = '/flash/cert/aws_root.ca' AWS_CLIENT_CERT = '/flash/cert/aws_client.cert' AWS_PRIVATE_KEY = '/flash/cert/aws_private.key' ################## Subscribe / Publish client ################# CLIENT_ID = 'PycomPublishClient' TOPIC = 'PublishTopic' OFFLINE_QUEUE_SIZE = -1 DRAINING_FREQ = 2 CONN_DISCONN_TIMEOUT = 10 MQTT_OPER_TIMEOUT = 5 LAST_WILL_TOPIC = 'PublishTopic' LAST_WILL_MSG = 'To All: Last will message' ####################### Shadow updater ######################## #THING_NAME = "my thing name" #CLIENT_ID = "ShadowUpdater" #CONN_DISCONN_TIMEOUT = 10 #MQTT_OPER_TIMEOUT = 5 ####################### Delta Listener ######################## #THING_NAME = "my thing name" #CLIENT_ID = "DeltaListener" #CONN_DISCONN_TIMEOUT = 10 #MQTT_OPER_TIMEOUT = 5 ####################### Shadow Echo ######################## #THING_NAME = "my thing name" #CLIENT_ID = "ShadowEcho" #CONN_DISCONN_TIMEOUT = 10 #MQTT_OPER_TIMEOUT = 5 Subscibe / Publish ( main.py ) To subscribe to a topic: Go to the AWS Iot page, click on manage and choose your device From the left hand side, choose Activity and then click MQTT client.
- Page 165 4.2.6 AWS Messages should be published as shown in the diagram # user specified callback function def customCallback(client, userdata, message): print("Received a new message: ") print(message.payload) print("from topic: ") print(message.topic) print("--------------\n\n") # configure the MQTT client pycomAwsMQTTClient = AWSIoTMQTTClient(config.CLIENT_ID) pycomAwsMQTTClient.configureEndpoint(config.AWS_HOST, config.AWS_PORT) pycomAwsMQTTClient.configureCredentials(config.AWS_ROOT_CA, config.AWS_PRIVATE_KEY, co nfig.AWS_CLIENT_CERT) pycomAwsMQTTClient.configureOfflinePublishQueueing(config.OFFLINE_QUEUE_SIZE) pycomAwsMQTTClient.configureDrainingFrequency(config.DRAINING_FREQ) pycomAwsMQTTClient.configureConnectDisconnectTimeout(config.CONN_DISCONN_TIMEOUT) pycomAwsMQTTClient.configureMQTTOperationTimeout(config.MQTT_OPER_TIMEOUT) pycomAwsMQTTClient.configureLastWill(config.LAST_WILL_TOPIC, config.LAST_WILL_MSG, 1) #Connect to MQTT Host if pycomAwsMQTTClient.connect(): print('AWS connection succeeded') # Subscribe to topic pycomAwsMQTTClient.subscribe(config.TOPIC, 1, customCallback) time.sleep(2) # Send message to host loopCount = 0 while loopCount < 8: pycomAwsMQTTClient.publish(config.TOPIC, "New Message " + str(loopCount), 1) loopCount += 1 time.sleep(5.0) Shadow updater ( main.py )
- Page 166 4.2.6 AWS # user specified callback functions def customShadowCallback_Update(payload, responseStatus, token): if responseStatus == "timeout": print("Update request " + token + " time out!") if responseStatus == "accepted": payloadDict = json.loads(payload) print("Update request with token: " + token + " accepted!") print("property: " + str(payloadDict["state"]["desired"]["property"])) if responseStatus == "rejected": print("Update request " + token + " rejected!") def customShadowCallback_Delete(payload, responseStatus, token): if responseStatus == "timeout": print("Delete request " + token + " time out!") if responseStatus == "accepted": print("Delete request with token: " + token + " accepted!") if responseStatus == "rejected": print("Delete request " + token + " rejected!") # configure the MQTT client pycomAwsMQTTShadowClient = AWSIoTMQTTShadowClient(config.CLIENT_ID) pycomAwsMQTTShadowClient.configureEndpoint(config.AWS_HOST, config.AWS_PORT) pycomAwsMQTTShadowClient.configureCredentials(config.AWS_ROOT_CA, config.AWS_PRIVATE_K EY, config.AWS_CLIENT_CERT) pycomAwsMQTTShadowClient.configureConnectDisconnectTimeout(config.CONN_DISCONN_TIMEOUT pycomAwsMQTTShadowClient.configureMQTTOperationTimeout(config.MQTT_OPER_TIMEOUT) # Connect to MQTT Host if pycomAwsMQTTShadowClient.connect(): print('AWS connection succeeded') deviceShadowHandler = pycomAwsMQTTShadowClient.createShadowHandlerWithName(config.THIN G_NAME, True) # Delete shadow JSON doc deviceShadowHandler.shadowDelete(customShadowCallback_Delete, 5) # Update shadow in a loop loopCount = 0 while True: JSONPayload = '{"state":{"desired":{"property":' + str(loopCount) + '}}}' deviceShadowHandler.shadowUpdate(JSONPayload, customShadowCallback_Update, 5) loopCount += 1 time.sleep(5) Delta Listener ( main.py )
- Page 167 4.2.6 AWS # Custom Shadow callback def customShadowCallback_Delta(payload, responseStatus, token): payloadDict = json.loads(payload) print("property: " + str(payloadDict["state"]["property"])) print("version: " + str(payloadDict["version"])) # configure the MQTT client pycomAwsMQTTShadowClient = AWSIoTMQTTShadowClient(config.CLIENT_ID) pycomAwsMQTTShadowClient.configureEndpoint(config.AWS_HOST, config.AWS_PORT) pycomAwsMQTTShadowClient.configureCredentials(config.AWS_ROOT_CA, config.AWS_PRIVATE_K EY, config.AWS_CLIENT_CERT) pycomAwsMQTTShadowClient.configureConnectDisconnectTimeout(config.CONN_DISCONN_TIMEOUT pycomAwsMQTTShadowClient.configureMQTTOperationTimeout(config.MQTT_OPER_TIMEOUT) # Connect to MQTT Host if pycomAwsMQTTShadowClient.connect(): print('AWS connection succeeded') deviceShadowHandler = pycomAwsMQTTShadowClient.createShadowHandlerWithName(config.THIN G_NAME, True) # Listen on deltas deviceShadowHandler.shadowRegisterDeltaCallback(customShadowCallback_Delta) # Loop forever while True: time.sleep(1)
-
Page 168: Adc
4.2.7 ADC This example is a simple ADC sample. For more information please see ADC from machine import ADC adc = ADC(0) adc_c = adc.channel(pin='P13') adc_c() adc_c.value() Calibration Currently the ESP32's ADC is not calibrated from the factory. This means it must be calibrated each time you wish to use it. To do this you must firstly measure the internal voltage reference. The following code will connect the 1.1v reference to P22 from machine import ADC adc = ADC() # Output Vref of P22 adc.vref_to_pin('P22') Now that the voltage reference is externally accessible you should measure it with the most accurate voltmeter you have access to. Note down the reading in millivolts, e.g. . To 1120 disconnect the 1.1v reference from please reset your module. You can now calibrate P22 the ADC by telling it the true value of the internal reference. You should then check your calibration by connecting the ADC to a known voltage source. # Set calibration - see note above adc.vref(1100) # Check calibration by reading a known voltage adc_c = adc.channel(pin='P16', attn=ADC.ATTN_11DB) print(adc_c.voltage()) -
Page 169: I2C
4.2.8 I2C The following example receives data from a light sensor using I2C. Sensor used is the BH1750FVI Digital Light Sensor. import time from machine import I2C import bh1750fvi i2c = I2C(0, I2C.MASTER, baudrate=100000) light_sensor = bh1750fvi.BH1750FVI(i2c, addr=i2c.scan()[0]) while(True): data = light_sensor.read() print(data) time.sleep(1) Drivers for the BH1750FVI Place this sample code into a file named . This can then be imported as a bh1750fvi.py library. # Simple driver for the BH1750FVI digital light sensor class BH1750FVI: MEASUREMENT_TIME = const(120) def __init__(self, i2c, addr=0x23, period=150): self.i2c = i2c self.period = period self.addr = addr self.time = 0 self.value = 0 self.i2c.writeto(addr, bytes([0x10])) # start continuos 1 Lux readings every 1 20ms def read(self): self.time += self.period if self.time >= MEASUREMENT_TIME: self.time = 0 data = self.i2c.readfrom(self.addr, 2) self.value = (((data[0] << 8) + data[1]) * 1200) // 1000 return self.value... - Page 170 4.2.8 I2C Light sensor and LoRa This is the same code, with added LoRa connectivity, sending the lux value from the light sensor to another LoRa enabled device. import socket import time import pycom import struct from network import LoRa from machine import I2C import bh1750fvi LORA_PKG_FORMAT = "!BH" LORA_CONFIRM_FORMAT = "!BB" DEVICE_ID = 1 pycom.heartbeat(False) lora = LoRa(mode=LoRa.LORA, tx_iq=True, region=LoRa.EU868) lora_sock = socket.socket(socket.AF_LORA, socket.SOCK_RAW) lora_sock.setblocking(False) i2c = I2C(0, I2C.MASTER, baudrate=100000) light_sensor = bh1750fvi.BH1750FVI(i2c, addr=i2c.scan()[0]) while(True): msg = struct.pack(LORA_PKG_FORMAT, DEVICE_ID, light_sensor.read()) lora_sock.send(msg) pycom.rgbled(0x150000) wait = 5 while (wait > 0): wait = wait - 0.1 time.sleep(0.1) recv_data = lora_sock.recv(64) if (len (recv_data) >= 2): status, device_id = struct.unpack(LORA_CONFIRM_FORMAT, recv_data) if (device_id == DEVICE_ID and status == 200): pycom.rgbled(0x001500) wait = 0 time.sleep(1)
- Page 171 4.2.8 I2C...
-
Page 172: Onewire Driver
4.2.9 Onewire Driver Onewire Driver This tutorial explains how to connect and read data from a DS18x20 temperature sensor. The onewire library is also available at the pycom-libraries GitHub Repository. Basic usage import time from machine import Pin from onewire import DS18X20 from onewire import OneWire # DS18B20 data line connected to pin P10 ow = OneWire(Pin('P10')) temp = DS18X20(ow) while True: print(temp.read_temp_async()) time.sleep(1) temp.start_conversion() time.sleep(1) Library #!/usr/bin/env python3 """ OneWire library for MicroPython """ import time import machine class OneWire: CMD_SEARCHROM = const(0xf0) CMD_READROM = const(0x33) CMD_MATCHROM = const(0x55) CMD_SKIPROM = const(0xcc) def __init__(self, pin): self.pin = pin self.pin.init(pin.OPEN_DRAIN, pin.PULL_UP) def reset(self): """... - Page 173 4.2.9 Onewire Driver Perform the onewire reset function. Returns True if a device asserted a presence pulse, False otherwise. """ sleep_us = time.sleep_us disable_irq = machine.disable_irq enable_irq = machine.enable_irq pin = self.pin pin(0) sleep_us(480) i = disable_irq() pin(1) sleep_us(60) status = not pin() enable_irq(i) sleep_us(420) return status def read_bit(self): sleep_us = time.sleep_us enable_irq = machine.enable_irq pin = self.pin pin(1) # half of the devices don't match CRC without this line i = machine.disable_irq() pin(0) sleep_us(1) pin(1) sleep_us(1) value = pin() enable_irq(i) sleep_us(40) return value def read_byte(self): value = 0 for i in range(8): value |= self.read_bit() << i return value def read_bytes(self, count): buf = bytearray(count) for i in range(count): buf[i] = self.read_byte() return buf def write_bit(self, value): sleep_us = time.sleep_us...
- Page 174 4.2.9 Onewire Driver pin(value) sleep_us(60) pin(1) sleep_us(1) machine.enable_irq(i) def write_byte(self, value): for i in range(8): self.write_bit(value & 1) value >>= 1 def write_bytes(self, buf): for b in buf: self.write_byte(b) def select_rom(self, rom): """ Select a specific device to talk to. Pass in rom as a bytearray (8 bytes). """ self.reset() self.write_byte(CMD_MATCHROM) self.write_bytes(rom) def crc8(self, data): """ Compute CRC """ crc = 0 for i in range(len(data)): byte = data[i] for b in range(8): fb_bit = (crc ^ byte) & 0x01 if fb_bit == 0x01: crc = crc ^ 0x18 crc = (crc >> 1) & 0x7f if fb_bit == 0x01: crc = crc | 0x80 byte = byte >> 1 return crc def scan(self): """ Return a list of ROMs for all attached devices. Each ROM is returned as a bytes object of 8 bytes. """...
- Page 175 4.2.9 Onewire Driver break return devices def _search_rom(self, l_rom, diff): if not self.reset(): return None, 0 self.write_byte(CMD_SEARCHROM) if not l_rom: l_rom = bytearray(8) rom = bytearray(8) next_diff = 0 i = 64 for byte in range(8): r_b = 0 for bit in range(8): b = self.read_bit() if self.read_bit(): if b: # there are no devices or there is an error on the bus return None, 0 else: if not b: # collision, two devices with different bit meaning if diff > i or ((l_rom[byte] & (1 << bit)) and diff != i): b = 1 next_diff = i self.write_bit(b) if b: r_b |= 1 << bit i -= 1 rom[byte] = r_b return rom, next_diff class DS18X20(object): def __init__(self, onewire): self.ow = onewire self.roms = [rom for rom in self.ow.scan() if rom[0] == 0x10 or rom[0] == 0x28 def isbusy(self): """ Checks wether one of the DS18x20 devices on the bus is busy performing a temperature conversion """ return not self.ow.read_bit() def start_conversion(self, rom=None): """...
- Page 176 4.2.9 Onewire Driver ow = self.ow ow.reset() ow.select_rom(rom) ow.write_byte(0x44) # Convert Temp def read_temp_async(self, rom=None): """ Read the temperature of one DS18x20 device if the conversion is complete, otherwise return None. """ if self.isbusy(): return None rom = rom or self.roms[0] ow = self.ow ow.reset() ow.select_rom(rom) ow.write_byte(0xbe) # Read scratch data = ow.read_bytes(9) return self.convert_temp(rom[0], data) def convert_temp(self, rom0, data): """ Convert the raw temperature data into degrees celsius and return as a fixed po int with 2 decimal places. """ temp_lsb = data[0] temp_msb = data[1] if rom0 == 0x10: if temp_msb != 0: # convert negative number temp_read = temp_lsb >> 1 | 0x80 # truncate bit 0 by shifting, fill h igh bit with 1. temp_read = -((~temp_read + 1) & 0xff) # now convert from two's comple ment else: temp_read = temp_lsb >> 1 # truncate bit 0 by shifting count_remain = data[6] count_per_c = data[7] temp = 100 * temp_read - 25 + (count_per_c - count_remain) // count_per_c return temp elif rom0 == 0x28: return (temp_msb << 8 | temp_lsb) * 100 // 16 else: assert False...
-
Page 177: Threading
4.2.10 Threading Threading MicroPython supports spawning threads by the module. The following example _thread demonstrates the use of this module. A thread is simply defined as a function that can receive any number of parameters. Below 3 threads are started, each one perform a print at a different interval. import _thread import time def th_func(delay, id): while True: time.sleep(delay) print('Running thread %d' % id) for i in range(3): _thread.start_new_thread(th_func, (i + 1, i)) Using Locks: import _thread a_lock = _thread.allocate_lock() with a_lock: print("a_lock is locked while this executes") -
Page 178: Rgb Led
4.2.11 RGB LED RGB LED By default the heartbeat LED flashes in blue colour once every 4s to signal that the system is alive. This can be overridden through the module. pycom import pycom pycom.heartbeat(False) pycom.rgbled(0xff00) # turn on the RGB LED in green colour The heartbeat LED is also used to indicate that an error was detected. The following piece of code uses the RGB LED to make a traffic light that runs for 10 cycles. import pycom import time pycom.heartbeat(False) for cycles in range(10): # stop after 10 cycles pycom.rgbled(0x007f00) # green time.sleep(5) pycom.rgbled(0x7f7f00) # yellow time.sleep(1.5) pycom.rgbled(0x7f0000) # red time.sleep(4) Here is the expected result:... - Page 179 4.2.11 RGB LED...
-
Page 180: Timers
4.2.12 Timers Timers Detailed information about this class can be found in Timer Chronometer The Chronometer can be used to measure how much time has elapsed in a block of code. The following example uses a simple stopwatch. from machine import Timer import time chrono = Timer.Chrono() chrono.start() time.sleep(1.25) # simulate the first lap took 1.25 seconds lap = chrono.read() # read elapsed time without stopping time.sleep(1.5) chrono.stop() total = chrono.read() print() print("\nthe racer took %f seconds to finish the race" % total) print(" %f seconds in the first lap" % lap) print(" %f seconds in the last lap" % (total - lap)) Alarm The Alarm can be used to get interrupts at a specific interval. The following code executes a callback every second for 10 seconds. - Page 181 4.2.12 Timers from machine import Timer class Clock: def __init__(self): self.seconds = 0 self.__alarm = Timer.Alarm(self._seconds_handler, 1, periodic=True) def _seconds_handler(self, alarm): self.seconds += 1 print("%02d seconds have passed" % self.seconds) if self.seconds == 10: alarm.callback(None) # stop counting after 10 seconds clock = Clock() There are no restrictions to what can be done in an interrupt. For example, it is possible to even do network requests with an interrupt. However, it is important to keep in mind that interrupts are handled sequentially, so it’s good practice to keep them short. More information can be found in Interrupt Handling...
-
Page 182: Pir Sensor
4.2.13 PIR Sensor PIR Sensor This code reads PIR sensor triggers from this simple PIR sensor and sends an HTTP request for every trigger, in this case to a Domoticz installation. When motion is constantly detected, this PIR sensor keeps the pin high, in which case this code will keep sending HTTP requests every 10 seconds (configurable with the hold_time variable). Main ( main.py ) import time from network import WLAN from machine import Pin from domoticz import Domoticz wl = WLAN(WLAN.STA) d = Domoticz("<ip>", 8080 ,"<hash>") #config hold_time_sec = 10 #flags last_trigger = -10 pir = Pin('G4',mode=Pin.IN, pull=Pin.PULL_UP) # main loop print("Starting main loop") while True: if pir() == 1: if time.time() - last_trigger > hold_time_sec: last_trigger = time.time() print("Presence detected, sending HTTP request") try: return_code = d.setVariable('Presence:LivingRoom','1') print("Request result: "+str(return_code)) except Exception as e: print("Request failed") print(e) else: last_trigger = 0 print("No presence") time.sleep_ms(500) print("Exited main loop") - Page 183 4.2.13 PIR Sensor Boot ( boot.py ) For more WiFi scripts, see the wlan step by step tutorial. import os import machine uart = machine.UART(0, 115200) os.dupterm(uart) known_nets = { 'NetworkID': {'pwd': '<password>', 'wlan_config': ('10.0.0.8', '255.255.0. 0', '10.0.0.1', '10.0.0.1')}, from network import WLAN wl = WLAN() if machine.reset_cause() != machine.SOFT_RESET: wl.mode(WLAN.STA) original_ssid = wl.ssid() original_auth = wl.auth() print("Scanning for known wifi nets") available_nets = wl.scan() nets = frozenset([e.ssid for e in available_nets]) known_nets_names = frozenset([key for key in known_nets]) net_to_use = list(nets & known_nets_names) try: net_to_use = net_to_use[0] net_properties = known_nets[net_to_use] pwd = net_properties['pwd'] sec = [e.sec for e in available_nets if e.ssid == net_to_use][0] if 'wlan_config' in net_properties: wl.ifconfig(config=net_properties['wlan_config']) wl.connect(net_to_use, (sec, pwd), timeout=10000) while not wl.isconnected(): machine.idle() # save power while waiting print("Connected to "+net_to_use+" with IP address:" + wl.ifconfig()[0]) except Exception as e: print("Failed to connect to any known network, going into AP mode") wl.init(mode=WLAN.AP, ssid=original_ssid, auth=original_auth, channel=6, anten na=WLAN.INT_ANT) Domoticz Wrapper ( domoticz.py )
- Page 184 4.2.13 PIR Sensor import socket class Domoticz: def __init__(self, ip, port, basic): self.basic = basic self.ip = ip self.port = port def setLight(self, idx, command): return self.sendRequest("type=command¶m=switchlight&idx="+idx+"&switchcmd=" +command) def setVariable(self, name, value): return self.sendRequest("type=command¶m=updateuservariable&vtype=0&vname=" +name+"&vvalue="+value) def sendRequest(self, path): try: s = socket.socket() s.connect((self.ip,self.port)) s.send(b"GET /json.htm?"+path+" HTTP/1.1\r\nHost: pycom.io\r\nAuthorizatio n: Basic "+self.basic+"\r\n\r\n") status = str(s.readline(), 'utf8') code = status.split(" ")[1] s.close() return code except Exception: print("HTTP request failed") return 0...
-
Page 185: Modbus
Modbus Protocol Modbus is a messaging protocol that defines the packet structure for transferring data between devices in a master/slave architecture. The protocol is independent of the transmission medium and is usually transmitted over TCP (MODBUS TCP) or serial communication (MODBUS RTU). Modbus is intended as a request/reply protocol and delivers services specified by function codes. The function code in the request tells the addressed slave what kind of action to perform. The function codes most commonly supported by devices are listed below. Function Name Function Code Read Coils 0x01 Read Discrete Inputs 0x02 Read Holding Registers 0x03 Read Input Registers 0x04 Write Single Coil 0x05 Write Single Register 0x06 Write Multiple Coils 0x0F Write Multiple Registers 0x10 For more information on the MODBUS RTU see the following PDF File. Information on the MODBUS TCP can be found here. Pycom Modbus Library Python libraries and sample code that support Modbus TCP and Modbus RTU are available at the following GitHub Repository. To use this library, connect to the target Pycom device via ftp and upload the uModbus folder to . A description of the supported function /flash codes is found below. Read Coils This function code requests the status (ON/OFF) of discrete coils on a remote device. The slave device address, the address of the first coil and the number of coils must be specified in the request. The address of the first coil is 0 and a maximum of 2000 contiguous coils can be read. Python sample code is shown below. - Page 186 4.2.14 Modbus slave_addr=0x0A starting_address=0x00 coil_quantity=100 coil_status = modbus_obj.read_coils(slave_addr, starting_address, coil_quantity) print('Coil status: ' + ' '.join('{:d}'.format(x) for x in coil_status)) Read Discrete Inputs This command is used to read the status (ON/OFF) of discrete inputs on a remote device. The slave address, the address of the first input, and the quantity of inputs to be read must be specified. The address of the first input is 0 and a maximum of 2000 continuous inputs can be read. The Python sample code is shown below. slave_addr=0x0A starting_address=0x0 input_quantity=100 input_status = modbus_obj.read_discrete_inputs(slave_addr, starting_address, input_qua ntity) print('Input status: ' + ' '.join('{:d}'.format(x) for x in input_status)) Read Holding Registers This function code is used to read the contents of analogue output holding registers. The slave address, the starting register address, the number of registers to read and the sign of the data must be specified. Register addresses start at 0 and a maximum of 125 continuous registers can be read. slave_addr=0x0A starting_address=0x00 register_quantity=100 signed=True register_value = modbus_obj.read_holding_registers(slave_addr, starting_address, regis ter_quantity, signed) print('Holding register value: ' + ' '.join('{:d}'.format(x) for x in register_value)) Read Input Registers This command is used to read up to 125 continuous input registers on a remote device. The slave address, the starting register address, the number of input registers and the sign of the data must be specified. The address of the first input registers is 0.
- Page 187 4.2.14 Modbus slave_addr=0x0A starting_address=0x00 register_quantity=100 signed=True register_value = modbus_obj.read_input_registers(slave_addr, starting_address, registe r_quantity, signed) print('Input register value: ' + ' '.join('{:d}'.format(x) for x in register_value)) Write Single Coil This function code is used to write the state of a discrete coil on a remote device. A value of means the coil should be set to ON, while a value of means the coil should 0xFF00 0x0000 be set to OFF. The Python sample code to set the coil at address , to an ON state is 0x00 shown below. slave_addr=0x0A output_address=0x00 output_value=0xFF00 return_flag = modbus_obj.write_single_coil(slave_addr, output_address, output_value) output_flag = 'Success' if return_flag else 'Failure' print('Writing single coil status: ' + output_flag) Write Single Register This command is used to write the contents of an analog output holding register on a remote device. The slave address, the register address, the register value, and the signature of the data must be specified. As for all the other commands, the register addresses start from 0. slave_addr=0x0A register_address=0x01 register_value=-32768 signed=True return_flag = modbus_obj.write_single_register(slave_addr, register_address, register_ value, signed) output_flag = 'Success' if return_flag else 'Failure' print('Writing single coil status: ' + output_flag) Write Multiple Coils...
- Page 188 4.2.14 Modbus This function code is used to set a continuous sequence of coils, in a remote device, to either ON or OFF. The slave address, the starting address of the coils and an array with the coil states must be specified. slave_addr=0x0A starting_address=0x00 output_values=[1,1,1,0,0,1,1,1,0,0,1,1,1] return_flag = modbus_obj.write_multiple_coils(slave_addr, starting_address, output_val ues) output_flag = 'Success' if return_flag else 'Failure' print('Writing multiple coil status: ' + output_flag) Write Multiple Registers This command is used to write the contents of a continuous sequence of analogue registers on a remote device. The slave address, the starting register address, the register values, and the signature of the data must be specified. The address of the first register is 0 and a maximum of 125 register values can be written. The Python sample code is shown below. slave_addr=0x0A register_address=0x01 register_values=[2, -4, 6, -256, 1024] signed=True return_flag = modbus_obj.write_multiple_registers(slave_addr, register_address, regist er_values, signed) output_flag = 'Success' if return_flag else 'Failure' print('Writing multiple register status: ' + output_flag)
-
Page 189: Ota Update
4.2.15 OTA update Overview Pycom modules come with the ability to update the devices firmware, while it is still running, we call this an "over the air" (OTA) update. The pycom library provides several functions to achieve this. This example will demonstrate how you could potentially use this functionality to update deployed devices. The full source code of this example can be found here. Method Here we will describe one possible update methodology you could use that is implemented by this example. Imagine you a smart metering company and you wish to roll out an update for your Pycom based smart meter. These meters usually send data back via LoRa. Unfortunately LoRa downlink messages have a very limited size and several hundred if not thousand would be required to upload a complete firmware image. To get around this you can have your devices sending their regular data via LoRa and when they receive a special command via a downlink message, the devices will connect to a WiFi network. It is unfeasible to ask customers to allow your device to connect to their home network so instead this network could be provided by a vehicle. This vehicle will travel around a certain geographic area in which the devices have been sent the special downlink message to initiate the update. The devices will look for the WiFi network being broadcast by the vehicle and connect. The devices will then connect to a server running on this WiFi network. This server (also shown in this example) will generate manifest files that instruct the device on what it should update, and where to get the update data from. Server Code available here. This script runs a HTTP server on port that provisions over the air (OTA) update 8000 manifests in JSON format as well as serving the update content. This script should be run in a directory that contains every version of the end devices code, in the following structure:... - Page 190 | | |- main.py | | |- boot.py | |- sd | |- some_asset.txt | |- asset_that_will_be_removed.wav |- 1.0.1 | |- flash | | |- lib | | | |- lib_a.py | | | |- new_lib.py | | |- main.py | | |- boot.py | |- sd | |- some_asset.txt |- firmware_1.0.0.bin |- firmware_1.0.1.bin The top level directory that contains this script can contain one of two things: Update directory: These should be named with a version number compatible with the python LooseVersion versioning scheme (http://epydoc.sourceforge.net/stdlib/distutils.version.LooseVersion-class.html). They should contain the entire file system of the end device for the corresponding version number. Firmware: These files should be named in the format , where firmare_VERSION.bin VERSION is a a version number compatible with the python LooseVersion versioning scheme (http://epydoc.sourceforge.net/stdlib/distutils.version.LooseVersion-class.html). This file should be in the format of the created by the Pycom firmware build appimg.bin scripts. How to use Once the directory has been setup as described above you simply need to start this script using python3. Once started this script will run a HTTP server on port (this can be 8000 changed by changing the PORT variable). This server will serve all the files in directory as expected along with one additional special file, . This file does not exist on manifest.json...
- Page 191 4.2.15 OTA update the file system but is instead generated when requested and contains the required changes to bring the end device from its current version to the latest available version. You can see an example of this by pointing your web browser at: http://127.0.0.1:8000/manifest.json?current_ver=1.0.0 The field at the end of the URL should be set to the current firmware version of current_ver the end device. The generated manifest will contain lists of which files are new, have changed or need to be deleted along with SHA1 hashes of the files. Below is an example of what such a manifest might look like: "delete": [ "flash/old_file.py", "flash/other_old_file.py" ], "firmware": { "URL": "http://192.168.1.144:8000/firmware_1.0.1b.bin", "hash": "ccc6914a457eb4af8855ec02f6909316526bdd08" }, "new": [ { "URL": "http://192.168.1.144:8000/1.0.1b/flash/lib/new_lib.py", "dst_path": "flash/lib/new_lib.py", "hash": "1095df8213aac2983efd68dba9420c8efc9c7c4a" } ], "update": [ { "URL": "http://192.168.1.144:8000/1.0.1b/flash/changed_file.py", "dst_path": "flash/changed_file.py", "hash": "1095df8213aac2983efd68dba9420c8efc9c7c4a" } ], "version": "1.0.1b" The manifest contains the following fields: : A list of paths to files which are no longer needed delete : The URL and SHA1 hash of the firmware image firmware : the URL, path on end device and SHA1 hash of all new files new : the URL, path on end device and SHA1 hash of all files which existed before update...
- Page 192 4.2.15 OTA update Note: The version number of the files might not be the same as the firmware. The highest available version number, higher than the current client version is used for both firmware and files. This may differ between the two. In order for the URL's to be properly formatted you are required to send a "host" header along with your HTTP get request e.g: GET /manifest.json?current_ver=1.0.0 HTTP/1.0\r\nHost: 192.168.1.144:8000\r\n\r\n Client Library A MicroPyton library for interfacing with the server described above is available here. This library is split into two layers. The top level class implements all the high level OTA functionality such as parsing the JSON file, making back copies of files being updated incase the update fails, etc. The layer of the library is agnostic to your chosen transport method. Below this is the class. This class implements the actual transport WiFiOTA mechanism of how the device fetches the files and update manifest (via WiFi as the class name suggests). The reason for this split is so that the high level functionality can be reused regardless of what transport mechanism you end up using. This could be implemented on top of Bluetooth for example, or the sever changed from HTTP to FTP. Although the above code is functional, it is provided only as an example of how an end user might implement a OTA update mechanism. It is not 100% feature complete e.g. even though it does backup previous versions of files, the roll back procedure is not implemented. This is left of the end user to do. Example Below is am example implementing the methodology previously explained in this tutorial to initiate an OTA update. The example below will only work on a Pycom device with LoRa capabilities. If want to test it out on a device without LoRa functionality then simply comment out any code relating to LoRa. Leaving just the initialisation and they and WiFiOTA ota.connect() ota.update()
- Page 193 4.2.15 OTA update from network import LoRa, WLAN import socket import time from OTA import WiFiOTA from time import sleep import pycom import ubinascii from config import WIFI_SSID, WIFI_PW, SERVER_IP # Turn on GREEN LED pycom.heartbeat(False) pycom.rgbled(0xff00) # Setup OTA ota = WiFiOTA(WIFI_SSID, WIFI_PW, SERVER_IP, # Update server address 8000) # Update server port # Turn off WiFi to save power w = WLAN() w.deinit() # Initialise LoRa in LORAWAN mode. lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) app_eui = ubinascii.unhexlify('70B3D57ED0008CD6') app_key = ubinascii.unhexlify('B57F36D88691CEC5EE8659320169A61C') # join a network using OTAA (Over the Air Activation) lora.join(activation=LoRa.OTAA, auth=(app_eui, app_key), timeout=0) # wait until the module has joined the network while not lora.has_joined(): time.sleep(2.5) print('Not yet joined...') # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket blocking # (waits for the data to be sent and for the 2 receive windows to expire) s.setblocking(True) while True: # send some data s.send(bytes([0x04, 0x05, 0x06]))
- Page 194 4.2.15 OTA update # make the socket non-blocking # (because if there's no data received it will block forever...) s.setblocking(False) # get any data received (if any...) data = s.recv(64) # Some sort of OTA trigger if data == bytes([0x01, 0x02, 0x03]): print("Performing OTA") # Perform OTA ota.connect() ota.update() sleep(5)
-
Page 195: Rmt
4.2.16 RMT Detailed information about this class can be found in RMT The RMT (Remote Control) peripheral of the ESP32 is primarily designed to send and receive infrared remote control signals that use on-off-keying of a carrier frequency, but due to its design it can be used to generate various types of signals, this class will allow you to do this. The RMT has 7 channels, of which 5 are available and can be mapped to any GPIO pin (Note: Pins can only be used as inputs). P13 P18 Channel Resolution Maximum Pulse Width Used by on-board LED Used by pycom.pulses_get() 100nS 3.2768 ms 100nS 3.2768 ms 1000nS 32.768 ms 1000nS 32.768 ms 3125nS 102.4 ms 3125nS 102.4 ms Transmitting The following examples create an RMT object on channel 4, configure it for transmission and send some data in various forms. The resolution of channel 4 is 1000 nano seconds, the given values are interpreted accordingly. In this first example, we define the signal as a tuple of binary values that define the shape of the desired signal along with the duration of a bit. - Page 196 4.2.16 RMT from machine import RMT # Map RMT channel 4 to P21, when the RMT is idle, it will output LOW rmt = RMT(channel=4, gpio="P21", tx_idle_level=RMT.LOW) # Produces the pattern shown in data, where each bit lasts # duration * channel resolution = 10000 * 1000ns = 10ms data = (1,0,1,1,1,0,1,0,1) duration = 10000 rmt.pulses_send(duration, data) In this example we define the signal by a tuple of durations and what state the signal starts from machine import RMT # Map RMT channel 4 to P21, when the RMT is idle, it will output LOW rmt = RMT(channel=4, gpio="P21", tx_idle_level=RMT.LOW) # The list of durations for each pulse to be, these are in units of the channels # resolution: # duration = Desired pulse length / Channel Resolution duration = (8000,11000,8000,11000,6000,13000,6000,3000,8000) # `start_level` defines if the signal starts off as LOW or HIGH, it will then # toggle state between each duration rmt.pulses_send(duration, start_level=RMT.HIGH)
- Page 197 4.2.16 RMT This third example, is a combination of the above two styles of defining a signal. Each pulse has a defined duration as well as a state. This is useful if you don't always want the signal to toggle state. from machine import RMT # Map RMT channel 4 to P21, when the RMT is idle, it will output LOW rmt = RMT(channel=4, gpio="P21", tx_idle_level=RMT.LOW) # Produces the pattern shown in data, where each bit lasts # duration[i] * channel resolution = duration[i] * 1000ns data = (1,0,1,1,0,1) duration = (400,200,100,300,200,400) rmt.pulses_send(duration, data) The following example creates an RMT object on channel 4 and configures it for transmission with carrier modulation. from machine import RMT rmt = RMT(channel=4, gpio="P21", tx_idle_level=RMT.LOW, # Carrier = 100Hz, 80% duty, modules HIGH signals tx_carrier = (100, 70, RMT.HIGH)) data = (1,0,1) duration = 10000 rmt.pulses_send(duration, data)
- Page 198 4.2.16 RMT The following example creates an RMT object on channel 2, configures it for receiving, then waits for the first, undefined number of pulses without timeout from machine import RMT rmt = machine.RMT(channel=2) rmt.init(gpio="P21", rx_idle_threshold=1000) data = rmt.pulses_get() is not set to the opposite of the third value in the tuple, tx_idle_level tx_carrier the carrier wave will continue to be generated when the RMT channel is idle. Receiving The following example creates an RMT object on channel 2, configures it for receiving a undefined number of pulses, then waits maximum of 1000us for the first pulse. from machine import RMT # Sets RMT channel 2 to P21 and sets the maximum length of a valid pulse to # 1000*channel resolution = 1000 * 100ns = 100us rmt = machine.RMT(channel=2, gpio="P21", rx_idle_threshold=1000) rmt.init() # Get a undefined number of pulses, waiting a maximum of 500us for the first # pulse (unlike other places where the absolute duration was based on the RMT # channels resolution, this value is in us) until a pulse longer than # rx_idle_threshold occurs. data = rmt.pulses_get(timeout=500) The following example creates an RMT object on channel 2, configures it for receiving, filters out pulses with width < 20*100 nano seconds, then waits for 100 pulses...
- Page 199 4.2.16 RMT from machine import RMT rmt = machine.RMT(channel=2, # Resolution = 100ns gpio="P21", # Longest valid pulse = 1000*100ns = 100us rx_idle_threshold=1000, # Filter out pulses shorter than 20*100ns = 2us rx_filter_threshold=20) # Receive 100 pulses, pulses shorter than 2us or longer than 100us will be # ignored. That means if it receives 80 valid pulses but then the signal # doesn't change for 10 hours and then 20 more pulses occur, this function # will wait for 10h data = rmt.pulses_get(pulses=100)
-
Page 200: Lora Examples
4.3 LoRa Examples LoPy Tutorials The following tutorials demonstrate the use of the LoRa functionality on the LoPy. LoRa can work in 2 different modes; LoRa-MAC (which we also call Raw-LoRa) and LoRaWAN mode. LoRa-MAC mode basically accesses de radio directly and packets are sent using the LoRa modulation on the selected frequency without any headers, addressing information or encryption. Only a CRC is added at the tail of the packet and this is removed before the received frame is passed on to the application. This mode can be used to build any higher level protocol that can benefit from the long range features of the LoRa modulation. Typical uses cases include LoPy to LoPy direct communication and a LoRa packet forwarder. LoRaWAN mode implements the full LoRaWAN stack for a class A device. It supports both OTAA and ABP connection methods, as well as advanced features like adding and removing custom channels to support "special" frequencies plans like the those used in New Zealand. -
Page 201: Lora-Mac (Raw Lora)
4.3.1 LoRa-MAC (Raw LoRa) LoRa-MAC (Raw LoRa) Basic LoRa connection example, sending and receiving data. In LoRa-MAC mode the LoRaWAN layer is bypassed and the radio is used directly. The data sent is not formatted or encrypted in any way, and no addressing information is added to the frame. For the example below, you will need two LoPys. A loop with a random delay time is while used to minimise the chances of the 2 LoPy’s transmitting at the same time. Run the code below on the 2 LoPy modules and you will see the word 'Hello' being received on both sides. from network import LoRa import socket import machine import time # initialise LoRa in LORA mode # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 # more params can also be given, like frequency, tx power and spreading factor lora = LoRa(mode=LoRa.LORA, region=LoRa.EU868) # create a raw LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) while True: # send some data s.setblocking(True) s.send('Hello') # get any data received... s.setblocking(False) data = s.recv(64) print(data) # wait a random amount of time time.sleep(machine.rng() & 0x0F) -
Page 202: Lorawan With Otaa
4.3.2 LoRaWAN with OTAA LoRaWAN (OTAA) OTAA stands for Over The Air Authentication. With this method the LoPy sends a Join request to the LoRaWAN Gateway using the and provided. If the keys are APPEUI APPKEY correct the Gateway will reply to the LoPy with a join accept message and from that point on the LoPy is able to send and receive packets to/from the Gateway. If the keys are incorrect no response will be received and the method will always return has_joined() False The example below attempts to get any data received after sending the frame. Keep in mind that the Gateway might not be sending any data back, therefore we make the socket non- blocking before attempting to receive, in order to prevent getting stuck waiting for a packet that will never arrive. - Page 203 4.3.2 LoRaWAN with OTAA from network import LoRa import socket import time import ubinascii # Initialise LoRa in LORAWAN mode. # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) # create an OTAA authentication parameters app_eui = ubinascii.unhexlify('ADA4DAE3AC12676B') app_key = ubinascii.unhexlify('11B0282A189B75B0B4D2D8C7FA38548B') # join a network using OTAA (Over the Air Activation) lora.join(activation=LoRa.OTAA, auth=(app_eui, app_key), timeout=0) # wait until the module has joined the network while not lora.has_joined(): time.sleep(2.5) print('Not yet joined...') # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket blocking # (waits for the data to be sent and for the 2 receive windows to expire) s.setblocking(True) # send some data s.send(bytes([0x01, 0x02, 0x03])) # make the socket non-blocking # (because if there's no data received it will block forever...) s.setblocking(False) # get any data received (if any...) data = s.recv(64) print(data)
-
Page 204: Lorawan With Abp
4.3.3 LoRaWAN with ABP LoRaWAN (ABP) ABP stands for Authentication By Personalisation. It means that the encryption keys are configured manually on the device and can start sending frames to the Gateway without needing a 'handshake' procedure to exchange the keys (such as the one performed during an OTAA join procedure). The example below attempts to get any data received after sending the frame. Keep in mind that the Gateway might not be sending any data back, therefore we make the socket non- blocking before attempting to receive, in order to prevent getting stuck waiting for a packet that will never arrive. - Page 205 4.3.3 LoRaWAN with ABP from network import LoRa import socket import ubinascii import struct # Initialise LoRa in LORAWAN mode. # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) # create an ABP authentication params dev_addr = struct.unpack(">l", binascii.unhexlify('00000005'))[0] nwk_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') app_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') # join a network using ABP (Activation By Personalization) lora.join(activation=LoRa.ABP, auth=(dev_addr, nwk_swkey, app_swkey)) # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket blocking # (waits for the data to be sent and for the 2 receive windows to expire) s.setblocking(True) # send some data s.send(bytes([0x01, 0x02, 0x03])) # make the socket non-blocking # (because if there's no data received it will block forever...) s.setblocking(False) # get any data received (if any...) data = s.recv(64) print(data)
-
Page 206: Lora-Mac Nano-Gateway
4.3.4 LoRa-MAC Nano-Gateway LoRa Nano-Gateway (Raw LoRa) This example allows a raw LoRa connection between two LoPys (nodes) to a single LoPy acting as a Nano-Gateway. For more information and discussions about this code, see this forum post. Gateway Code import socket import struct from network import LoRa # A basic package header, B: 1 byte for the deviceId, B: 1 byte for the pkg size, %ds: Formatted string for string _LORA_PKG_FORMAT = "!BB%ds" # A basic ack package, B: 1 byte for the deviceId, B: 1 byte for the pkg size, B: 1 by te for the Ok (200) or error messages _LORA_PKG_ACK_FORMAT = "BBB" # Open a LoRa Socket, use rx_iq to avoid listening to our own messages # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORA, rx_iq=True, region=LoRa.EU868) lora_sock = socket.socket(socket.AF_LORA, socket.SOCK_RAW) lora_sock.setblocking(False) while (True): recv_pkg = lora_sock.recv(512) if (len(recv_pkg) > 2): recv_pkg_len = recv_pkg[1] device_id, pkg_len, msg = struct.unpack(_LORA_PKG_FORMAT % recv_pkg_len, recv_ pkg) # If the uart = machine.UART(0, 115200) and os.dupterm(uart) are set in the boot.py th is print should appear in the serial port print('Device: %d - Pkg: %s' % (device_id, msg)) ack_pkg = struct.pack(_LORA_PKG_ACK_FORMAT, device_id, 1, 200) lora_sock.send(ack_pkg) - Page 207 4.3.4 LoRa-MAC Nano-Gateway The is used as a method of identifying the different devices within a _LORA_PKG_FORMAT network. The is a simple package as a response to the nodes _LORA_PKG_ACK_FORMAT ack package. Node...
- Page 208 4.3.4 LoRa-MAC Nano-Gateway import os import socket import time import struct from network import LoRa # A basic package header, B: 1 byte for the deviceId, B: 1 byte for the pkg size _LORA_PKG_FORMAT = "BB%ds" _LORA_PKG_ACK_FORMAT = "BBB" DEVICE_ID = 0x01 # Open a Lora Socket, use tx_iq to avoid listening to our own messages # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORA, tx_iq=True, region=LoRa.EU868) lora_sock = socket.socket(socket.AF_LORA, socket.SOCK_RAW) lora_sock.setblocking(False) while(True): # Package send containing a simple string msg = "Device 1 Here" pkg = struct.pack(_LORA_PKG_FORMAT % len(msg), DEVICE_ID, len(msg), msg) lora_sock.send(pkg) # Wait for the response from the gateway. NOTE: For this demo the device does an i nfinite loop for while waiting the response. Introduce a max_time_waiting for you appl ication waiting_ack = True while(waiting_ack): recv_ack = lora_sock.recv(256) if (len(recv_ack) > 0): device_id, pkg_len, ack = struct.unpack(_LORA_PKG_ACK_FORMAT, recv_ack) if (device_id == DEVICE_ID): if (ack == 200): waiting_ack = False # If the uart = machine.UART(0, 115200) and os.dupterm(uart) are s et in the boot.py this print should appear in the serial port print("ACK") else: waiting_ack = False # If the uart = machine.UART(0, 115200) and os.dupterm(uart) are s et in the boot.py this print should appear in the serial port print("Message Failed")
- Page 209 4.3.4 LoRa-MAC Nano-Gateway The node is always sending packages and waiting for the from the gateway. ack To adapt this code to user specific needs: Put a max waiting time for the to arrive and resend the package or mark it as ack invalid Increase the package size changing the to . The will _LORA_PKG_FORMAT BH%ds H allow the keeping of 2 bytes for size (for more information about struct format) Reduce the package size with bitwise manipulation Reduce the message size (for this demo, a string) to something more useful for specific development...
-
Page 210: Lopy To Lopy
4.3.5 LoPy to LoPy LoRa Module to Module Connection This example shows how to connect two Pycode LoRa capable modules (nodes) via raw LoRa. Node A from network import LoRa import socket import time # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORA, region=LoRa.EU868) s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) s.setblocking(False) while True: if s.recv(64) == b'Ping': s.send('Pong') time.sleep(5) Node B from network import LoRa import socket import time # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORA, region=LoRa.EU868) s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) s.setblocking(False) while True: s.send('Ping') time.sleep(5) - Page 211 4.3.5 LoPy to LoPy...
-
Page 212: Lorawan Nano-Gateway
4.3.6 LoRaWAN Nano-Gateway LoRaWAN Nano-Gateway This example allows to connect a LoPy to a LoRaWAN network such as The Things Network (TTN) or Loriot to be used as a nano-gateway. This example uses settings specifically for connecting to The Things Network within the European 868 MHz region. For another usage, please see the file for relevant config.py sections that need changing. Up to date versions of these snippets can be found at the following GitHub Repository. For more information and discussion about this code, see this forum post. Nano-Gateway The Nano-Gateway code is split into 3 files, and main.py config.py nanogateway.py These are used to configure and specify how the gateway will connect to a preferred network and how it can act as packet forwarder. Gateway ID Most LoRaWAN network servers expect a Gateway ID in the form of a unique 64-bit hexadecimal number (called a EUI-64). The recommended practice is to produce this ID from your board by expanding the WiFi MAC address (a 48-bit number, called MAC-48). You can obtain that by running this code prior to configuration: from network import WLAN import ubinascii wl = WLAN() ubinascii.hexlify(wl.mac())[:6] + 'FFFE' + ubinascii.hexlify(wl.mac())[6:] The result will by something like where is your b'240ac4FFFE008d88' 240ac4FFFE008d88 Gateway ID to be used in your network provider configuration. Main ( main.py ) This file runs at boot and calls the library and files to initialise the nano-gateway. config.py Once configuration is set, the nano-gateway is then started. - Page 213 4.3.6 LoRaWAN Nano-Gateway """ LoPy LoRaWAN Nano Gateway example usage """ import config from nanogateway import NanoGateway if __name__ == '__main__': nanogw = NanoGateway( id=config.GATEWAY_ID, frequency=config.LORA_FREQUENCY, datarate=config.LORA_GW_DR, ssid=config.WIFI_SSID, password=config.WIFI_PASS, server=config.SERVER, port=config.PORT, ntp_server=config.NTP, ntp_period=config.NTP_PERIOD_S ) nanogw.start() nanogw._log('You may now press ENTER to enter the REPL') input() Configuration ( config.py ) This file contains settings for the server and network it is connecting to. Depending on the nano-gateway region and provider (TTN, Loriot, etc.) these will vary. The provided example will work with The Things Network (TTN) in the European, 868Mhz, region. The Gateway ID is generated in the script using the process described above. Please change the WIFI_SSID and WIFI_PASS variables to match your desired WiFi network...
- Page 214 4.3.6 LoRaWAN Nano-Gateway """ LoPy LoRaWAN Nano Gateway configuration options """ import machine import ubinascii WIFI_MAC = ubinascii.hexlify(machine.unique_id()).upper() # Set the Gateway ID to be the first 3 bytes of MAC address + 'FFFE' + last 3 bytes o f MAC address GATEWAY_ID = WIFI_MAC[:6] + "FFFE" + WIFI_MAC[6:12] SERVER = 'router.eu.thethings.network' PORT = 1700 NTP = "pool.ntp.org" NTP_PERIOD_S = 3600 WIFI_SSID = 'my-wifi' WIFI_PASS = 'my-wifi-password' # for EU868 LORA_FREQUENCY = 868100000 LORA_GW_DR = "SF7BW125" # DR_5 LORA_NODE_DR = 5 # for US915 # LORA_FREQUENCY = 903900000 # LORA_GW_DR = "SF7BW125" # DR_3 # LORA_NODE_DR = 3 Library ( nanogateway.py ) The nano-gateway library controls all of the packet generation and forwarding for the LoRa data. This does not require any user configuration and the latest version of this code should be downloaded from the Pycom GitHub Repository. """ LoPy Nano Gateway class """ from network import WLAN from network import LoRa from machine import Timer import os import ubinascii import machine import json import time import errno import _thread import socket...
- Page 215 4.3.6 LoRaWAN Nano-Gateway PROTOCOL_VERSION = const(2) PUSH_DATA = const(0) PUSH_ACK = const(1) PULL_DATA = const(2) PULL_ACK = const(4) PULL_RESP = const(3) TX_ERR_NONE = "NONE" TX_ERR_TOO_LATE = "TOO_LATE" TX_ERR_TOO_EARLY = "TOO_EARLY" TX_ERR_COLLISION_PACKET = "COLLISION_PACKET" TX_ERR_COLLISION_BEACON = "COLLISION_BEACON" TX_ERR_TX_FREQ = "TX_FREQ" TX_ERR_TX_POWER = "TX_POWER" TX_ERR_GPS_UNLOCKED = "GPS_UNLOCKED" STAT_PK = {"stat": {"time": "", "lati": 0, "long": 0, "alti": 0, "rxnb": 0, "rxok": 0, "rxfw": 0, "ackr": 100.0, "dwnb": 0, "txnb": 0}} RX_PK = {"rxpk": [{"time": "", "tmst": 0, "chan": 0, "rfch": 0, "freq": 868.1, "stat": 1, "modu": "LORA", "datr": "SF7BW125", "codr": "4/5", "rssi": 0, "lsnr": 0, "size": 0, "data": ""}]} TX_ACK_PK = {"txpk_ack":{"error":""}} class NanoGateway: def __init__(self, id, frequency, datarate, ssid, password, server, port, ntp='poo l.ntp.org', ntp_period=3600): self.id = id self.frequency = frequency self.sf = self._dr_to_sf(datarate) self.ssid = ssid self.password = password self.server = server self.port = port self.ntp = ntp self.ntp_period = ntp_period self.rxnb = 0 self.rxok = 0 self.rxfw = 0...
- Page 216 4.3.6 LoRaWAN Nano-Gateway self.txnb = 0 self.stat_alarm = None self.pull_alarm = None self.uplink_alarm = None self.udp_lock = _thread.allocate_lock() self.lora = None self.lora_sock = None def start(self): # Change WiFi to STA mode and connect self.wlan = WLAN(mode=WLAN.STA) self._connect_to_wifi() # Get a time Sync self.rtc = machine.RTC() self.rtc.ntp_sync(self.ntp, update_period=self.ntp_period) # Get the server IP and create an UDP socket self.server_ip = socket.getaddrinfo(self.server, self.port)[0][-1] self.sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UD self.sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1) self.sock.setblocking(False) # Push the first time immediately self._push_data(self._make_stat_packet()) # Create the alarms self.stat_alarm = Timer.Alarm(handler=lambda t: self._push_data(self._make_sta t_packet()), s=60, periodic=True) self.pull_alarm = Timer.Alarm(handler=lambda u: self._pull_data(), s=25, perio dic=True) # Start the UDP receive thread _thread.start_new_thread(self._udp_thread, ()) # Initialize LoRa in LORA mode self.lora = LoRa(mode=LoRa.LORA, frequency=self.frequency, bandwidth=LoRa.BW_1 25KHZ, sf=self.sf, preamble=8, coding_rate=LoRa.CODING_4_5, tx_iq=True) # Create a raw LoRa socket self.lora_sock = socket.socket(socket.AF_LORA, socket.SOCK_RAW) self.lora_sock.setblocking(False) self.lora_tx_done = False self.lora.callback(trigger=(LoRa.RX_PACKET_EVENT | LoRa.TX_PACKET_EVENT), hand ler=self._lora_cb) def stop(self): # TODO: Check how to stop the NTP sync...
- Page 217 4.3.6 LoRaWAN Nano-Gateway # TODO: Create a cancel method for the alarm # TODO: kill the UDP thread self.sock.close() def _connect_to_wifi(self): self.wlan.connect(self.ssid, auth=(None, self.password)) while not self.wlan.isconnected(): time.sleep(0.5) print("WiFi connected!") def _dr_to_sf(self, dr): sf = dr[2:4] if sf[1] not in '0123456789': sf = sf[:1] return int(sf) def _sf_to_dr(self, sf): return "SF7BW125" def _make_stat_packet(self): now = self.rtc.now() STAT_PK["stat"]["time"] = "%d-%02d-%02d %02d:%02d:%02d GMT" % (now[0], now[1], now[2], now[3], now[4], now[5]) STAT_PK["stat"]["rxnb"] = self.rxnb STAT_PK["stat"]["rxok"] = self.rxok STAT_PK["stat"]["rxfw"] = self.rxfw STAT_PK["stat"]["dwnb"] = self.dwnb STAT_PK["stat"]["txnb"] = self.txnb return json.dumps(STAT_PK) def _make_node_packet(self, rx_data, rx_time, tmst, sf, rssi, snr): RX_PK["rxpk"][0]["time"] = "%d-%02d-%02dT%02d:%02d:%02d.%dZ" % (rx_time[0], rx _time[1], rx_time[2], rx_time[3], rx_time[4], rx_time[5], rx_time[6]) RX_PK["rxpk"][0]["tmst"] = tmst RX_PK["rxpk"][0]["datr"] = self._sf_to_dr(sf) RX_PK["rxpk"][0]["rssi"] = rssi RX_PK["rxpk"][0]["lsnr"] = float(snr) RX_PK["rxpk"][0]["data"] = ubinascii.b2a_base64(rx_data)[:-1] RX_PK["rxpk"][0]["size"] = len(rx_data) return json.dumps(RX_PK) def _push_data(self, data): token = os.urandom(2) packet = bytes([PROTOCOL_VERSION]) + token + bytes([PUSH_DATA]) + ubinascii.un hexlify(self.id) + data with self.udp_lock: try: self.sock.sendto(packet, self.server_ip)
- Page 218 4.3.6 LoRaWAN Nano-Gateway packet = bytes([PROTOCOL_VERSION]) + token + bytes([PULL_DATA]) + ubinascii.un hexlify(self.id) with self.udp_lock: try: self.sock.sendto(packet, self.server_ip) except Exception: print("PULL exception") def _ack_pull_rsp(self, token, error): TX_ACK_PK["txpk_ack"]["error"] = error resp = json.dumps(TX_ACK_PK) packet = bytes([PROTOCOL_VERSION]) + token + bytes([PULL_ACK]) + ubinascii.unh exlify(self.id) + resp with self.udp_lock: try: self.sock.sendto(packet, self.server_ip) except Exception: print("PULL RSP ACK exception") def _lora_cb(self, lora): events = lora.events() if events & LoRa.RX_PACKET_EVENT: self.rxnb += 1 self.rxok += 1 rx_data = self.lora_sock.recv(256) stats = lora.stats() self._push_data(self._make_node_packet(rx_data, self.rtc.now(), stats.time stamp, stats.sf, stats.rssi, stats.snr)) self.rxfw += 1 if events & LoRa.TX_PACKET_EVENT: self.txnb += 1 lora.init(mode=LoRa.LORA, frequency=self.frequency, bandwidth=LoRa.BW_125K sf=self.sf, preamble=8, coding_rate=LoRa.CODING_4_5, tx_iq=True) def _send_down_link(self, data, tmst, datarate, frequency): self.lora.init(mode=LoRa.LORA, frequency=frequency, bandwidth=LoRa.BW_125KHZ, sf=self._dr_to_sf(datarate), preamble=8, coding_rate=LoRa.CODING _4_5, tx_iq=True) while time.ticks_us() < tmst: pass self.lora_sock.send(data) def _udp_thread(self): while True: try:...
- Page 219 4.3.6 LoRaWAN Nano-Gateway print("Pull ack") elif _type == PULL_RESP: self.dwnb += 1 ack_error = TX_ERR_NONE tx_pk = json.loads(data[4:]) tmst = tx_pk["txpk"]["tmst"] t_us = tmst - time.ticks_us() - 5000 if t_us < 0: t_us += 0xFFFFFFFF if t_us < 20000000: self.uplink_alarm = Timer.Alarm(handler=lambda x: self._send_d own_link(ubinascii.a2b_base64(tx_pk["txpk"]["data"]), tx_pk["txpk"]["tmst"] - 10, tx_pk["txpk"]["datr"], int(tx_pk["txpk"]["freq"] * 1000000)), us=t_us) else: ack_error = TX_ERR_TOO_LATE print("Downlink timestamp error!, t_us:", t_us) self._ack_pull_rsp(_token, ack_error) print("Pull rsp") except socket.timeout: pass except OSError as e: if e.errno == errno.EAGAIN: pass else: print("UDP recv OSError Exception") except Exception: print("UDP recv Exception") # Wait before trying to receive again time.sleep(0.025) Registering with TTN To set up the gateway with The Things Network (TTN), navigate to their website and create/register an account. Enter a username and an email address to verify with their platform.
- Page 220 4.3.6 LoRaWAN Nano-Gateway Once an account has been registered, the nano-gateway can then be registered. To do this, navigate to the TTN Console web page. Registering the Gateway Inside the TTN Console, there are two options, and . Select applications gateways and then click on . This will allow for the set up and registration gateways register gateway of a new nano-gateway.
- Page 221 4.3.6 LoRaWAN Nano-Gateway On the Register Gateway page, you will need to set the following settings: These are unique to each gateway, location and country specific frequency. Please verify that correct settings are selected otherwise the gateway will not connect to TTN. You need to tick the "I'm using the legacy packet forwarder" to enable the right settings. This is because the Nano-Gateway uses the 'de facto' standard Semtech UDP protocol.
- Page 222 4.3.6 LoRaWAN Nano-Gateway Option Value Protocol Packet Forwarder Gateway EUI User Defined (must match config.py Description User Defined Frequency Plan Select Country (e.g. EU - 868 MHz) Location User Defined Antenna Placement Indoor or Outdoor The Gateway EUI should match your Gateway ID from the file. We suggest you config.py follow the procedure described near the top of this document to create your own unique Gateway ID. Once these settings have been applied, click . A Gateway Overview page Register Gateway will appear, with the configuration settings showing. Next click on the and Gateway Settings configure the Router address to match that of the gateway (default: router.eu.thethings.network The should now be configured. Next, one or more nodes can now be configured to Gateway use the nano-gateway and TTN applications may be built. LoPy Node...
- Page 223 4.3.6 LoRaWAN Nano-Gateway There are two methods of connecting LoPy devices to the nano-gateway, Over the Air Activation (OTAA) and Activation By Personalisation (ABP). The code and instructions for registering these methods are shown below, followed by instruction for how to connect them to an application on TTN. It’s important that the following code examples (also on GitHub) are used to connect to the nano-gateway as it only supports single channel connections. OTAA (Over The Air Activation) When the LoPy connects an application (via TTN) using OTAA, the network configuration is derived automatically during a handshake between the LoPy and network server. Note that the network keys derived using the OTAA methodology are specific to the device and are used to encrypt and verify transmissions at the network level. """ OTAA Node example compatible with the LoPy Nano Gateway """ from network import LoRa import socket import ubinascii import struct import time # Initialize LoRa in LORAWAN mode. lora = LoRa(mode=LoRa.LORAWAN) # create an OTA authentication params dev_eui = ubinascii.unhexlify('AABBCCDDEEFF7778') # these settings can be found from T app_eui = ubinascii.unhexlify('70B3D57EF0003BFD') # these settings can be found from T app_key = ubinascii.unhexlify('36AB7625FE77776881683B495300FFD6') # these settings can be found from TTN # set the 3 default channels to the same frequency (must be before sending the OTAA jo in request) lora.add_channel(0, frequency=868100000, dr_min=0, dr_max=5) lora.add_channel(1, frequency=868100000, dr_min=0, dr_max=5) lora.add_channel(2, frequency=868100000, dr_min=0, dr_max=5) # join a network using OTAA lora.join(activation=LoRa.OTAA, auth=(dev_eui, app_eui, app_key), timeout=0) # wait until the module has joined the network while not lora.has_joined(): time.sleep(2.5)
- Page 224 4.3.6 LoRaWAN Nano-Gateway print('Not joined yet...') # remove all the non-default channels for i in range(3, 16): lora.remove_channel(i) # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket non-blocking s.setblocking(False) time.sleep(5.0) """ Your own code can be written below! """ for i in range (200): s.send(b'PKT #' + bytes([i])) time.sleep(4) rx = s.recv(256) if rx: print(rx) time.sleep(6) ABP (Activation By Personalisation) Using ABP join mode requires the user to define the following values and input them into both the LoPy and the TTN Application: Device Address Application Session Key Network Session Key...
- Page 225 4.3.6 LoRaWAN Nano-Gateway """ ABP Node example compatible with the LoPy Nano Gateway """ from network import LoRa import socket import ubinascii import struct import time # Initialise LoRa in LORAWAN mode. lora = LoRa(mode=LoRa.LORAWAN) # create an ABP authentication params dev_addr = struct.unpack(">l", ubinascii.unhexlify('2601147D'))[0] # these settings ca n be found from TTN nwk_swkey = ubinascii.unhexlify('3C74F4F40CAE2221303BC24284FCF3AF') # these settings c an be found from TTN app_swkey = ubinascii.unhexlify('0FFA7072CC6FF69A102A0F39BEB0880F') # these settings c an be found from TTN # join a network using ABP (Activation By Personalisation) lora.join(activation=LoRa.ABP, auth=(dev_addr, nwk_swkey, app_swkey)) # remove all the non-default channels for i in range(3, 16): lora.remove_channel(i) # set the 3 default channels to the same frequency lora.add_channel(0, frequency=868100000, dr_min=0, dr_max=5) lora.add_channel(1, frequency=868100000, dr_min=0, dr_max=5) lora.add_channel(2, frequency=868100000, dr_min=0, dr_max=5) # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket non-blocking s.setblocking(False) """ Your own code can be written below! """ for i in range (200): s.send(b'PKT #' + bytes([i])) time.sleep(4) rx = s.recv(256) if rx: print(rx) time.sleep(6) TTN Applications...
- Page 226 4.3.6 LoRaWAN Nano-Gateway Now that the gateway & nodes have been setup, a TTN Application can be built; i.e. what happens to the LoRa data once it is received by TTN. There are a number of different setups/systems that can be used, however the following example demonstrates the HTTP request integration. Registering an Application Selecting the tab at the top of the TTN console, will bring up a screen for Applications registering applications. Click register and a new page, similar to the one below, will open. Enter a unique as well as a Description & Handler Registration. Application ID Now the LoPy nodes must be registered to send data up to the new Application. Registering Devices (LoPy) To connect nodes to the nano-gateway, devices need to be added to the application. To do this, navigate to the tab on the home page and click the Devices Application Register button. Device In the panel, complete the forms for the and the Register Device Device ID Device EUI The is user specified and is unique to the device in this application. The Device ID Device is also user specified but must consist of exactly 8 bytes, given in hexadecimal. EUI...
- Page 227 4.3.6 LoRaWAN Nano-Gateway Once the device has been added, change the between and Activation Method OTAA ABP depending on user preference. This option can be found under the Settings tab. Adding Application Integrations Now that the data is arriving on the TTN Backend, TTN can be managed as to where data should be delivered to. To do this, use the tab within the new Application’s Integrations settings. Upon clicking , a screen with 4 different options will appear. These have add integration various functionality and more information about them can be found on the TTN website/documentation. For this example, use the to forward the LoRaWAN Packets to a remote HTTP Integration server/address.
- Page 228 4.3.6 LoRaWAN Nano-Gateway Click to connect up an endpoint that can receive the data. HTTP Integration For testing, a website called RequestBin may be used to receive the data that TTN forwards (via POST Request). To set this up, navigate to RequestBin and click the Create a RequestBin Copy the URL that is generated and past this into the form under the URL Application Settings...
- Page 229 4.3.6 LoRaWAN Nano-Gateway This is the address that TTN will forward data onto. As soon as a LoPy starts sending messages, TTN will forward these onto and they will appear at the unique RequestBin RequestBin URL...
-
Page 230: Rn2483 To Lopy
4.3.7 RN2483 to LoPy RN2483 to LoPy This example shows how to send data between a Microchip RN2483 and a LoPy via raw LoRa. RN2483 mac pause radio set freq 868000000 radio set mod lora radio set bw 250 radio set sf sf7 radio set cr 4/5 radio set bw 125 radio set sync 12 radio set prlen 8 # Transmit via radio tx: radio tx 48656c6C6F #(should send ‘Hello’) LoPy from network import LoRa import socket lora = LoRa(mode=LoRa.LORA, frequency= 868000000, bandwidth=LoRa.BW_125KHZ, sf=7, prea mble=8, coding_rate=LoRa.CODING_4_5, power_mode=LoRa.ALWAYS_ON, tx_iq=False, rx_iq=False, public=False) s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # This keeps listening for data "forever". while(True): s.recv(64) -
Page 231: Sigfox Examples
4.4 Sigfox Examples SiPy Tutorials To ensure your device has been provisioned with Device ID and PAC number, please update to the latest firmware. The following tutorials demonstrate how to register and get started with the SiPy. The SiPy can be configured for operation in various countries based upon specified RCZ zones (see the class for more info). The SiPy supports both uplink and downlink Sigfox Sigfox messages as well as device to device communication via its FSK Mode Sigfox... -
Page 232: Register Device
4.4.1 Register Device Registering with Sigfox To ensure the device has been provisioned with Device ID and PAC number, please update to the latest firmware. In order to send a Sigfox message, the device need to register with the Sigfox Backend. Navigate to https://backend.sigfox.com/activate to find the list of Sigfox enabled development kits. Select to proceed. Pycom Next choose a Sigfox Operator for the country where the device will be activated. Find the specific country and select the operator to continue. - Page 233 4.4.1 Register Device Now need to enter the device's Device ID and PAC number. The Device ID and PAC number are retrievable through a couple of commands via the REPL. from network import Sigfox import ubinascii # initalise Sigfox for RCZ1 (You may need a different RCZ Region) sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1) # print Sigfox Device ID print(ubinascii.hexlify(sigfox.id())) # print Sigfox PAC number print(ubinascii.hexlify(sigfox.pac())) See for more info about the Sigfox Class and which region to use. Sigfox RCZ...
- Page 234 4.4.1 Register Device Once the device's Device ID and PAC number have been entered, create an account. Provide the required information including email address and click to continue. An email confirming the creation of a Sigfox Backend account and the successful registration of the device should arrive at the users inbox.
-
Page 235: Disengage Sequence Number
4.4.2 Disengage Sequence Number How To Disengage Sequence Number If your are experiencing issues with Sigfox connectivity, this could be due to the sequence number being out of sync. To prevent replay on the network, the Sigfox protocol uses sequence numbers. If there is a large difference between the sequence number sent by the device and the one expected by the backend, your message is dropped by the network. You can use the button on the device information or on the Disengage sequence number device type information page of the Sigfox backend to reset the number expected by the backend. If the sequence number of your next message is different from the last trashed sequence number, the message will be accepted. Issues with the sequence number can occur when a lot of messages are sent when outside of Sigfox coverage for instance. Firstly you will need to log into the Sigfox Backend, navigate to device, and click on the Sigfox ID of the affected SiPy. You should now see the Information page with an entry followed by a link. Device Type: Please follow the link... - Page 236 4.4.2 Disengage Sequence Number Finally, on this page click on button in the upper right corner. Disengage sequence number...
-
Page 237: Lte Examples
4.5 LTE Examples LTE Tutorials The following tutorials demonstrate the use of the LTE CAT-M1 and NB-IoT functionality on cellular enabled Pycom modules. Our cellular modules support both LTE CAT-M1 and NB-IoT, these are new lower power, long range, cellular protocols. These are not the same as the full version of 2G/3G/LTE supported by cell phones, and require your local carriers to support them. At the time of writing, CAT-M1 and NB-IoT connectivity is not widely available so be sure to check with local carriers if support is available where you are. -
Page 238: Cat-M1
4.5.1 CAT-M1 LTE class for Cat M1 Please ensure you have the latest Sequans modem firmware for the best network compatibility. Instructions for this can be found here. The LTE Cat M1 service gives full IP access through the cellular modem. Once the function has completed all the IP socket functions - including SSL - lte.connect() will be routed through this connection. This mean any code using WLAN can be adapted to Cat M1 by simply adding the connection setup step first and disconnect after. For example to connect over LTE Cat M1 to Google's web server over secure SSL: import socket import ssl import time from network import LTE lte = LTE() # instantiate the LTE object lte.attach() # attach the cellular modem to a base station while not lte.isattached(): time.sleep(0.25) lte.connect() # start a data session and obtain an IP address while not lte.isconnected(): time.sleep(0.25) s = socket.socket() s = ssl.wrap_socket(s) s.connect(socket.getaddrinfo('www.google.com', 443)[0][-1]) s.send(b"GET / HTTP/1.0\r\n\r\n") print(s.recv(4096)) s.close() lte.disconnect() lte.dettach() This also applies to our MQTT and AWS examples. IMPORTANT: Once the LTE radio is initialised, it must be de-initialised before going to deepsleep in order to ensure minimum power consumption. This is required due to the LTE radio being powered independently and allowing use cases which require the system to be taken out from deepsleep by an event from the LTE network (data or SMS received for instance). - Page 239 4.5.1 CAT-M1 When using the expansion board and the FiPy together, the RTS/CTS jumpers MUST be removed as those pins are being used by the LTE radio. Keeping those jumpers in place will lead to erratic operation and higher current consumption specially while in deepsleep.
-
Page 240: Nb-Iot
4.5.2 NB-IoT LTE class for Narrow Band IoT As shipped, Pycom modules only support CAT-M1, in order to use NB-IoT you need to flash a different firmware to the Sequans modem. Instructions for this can be found here. Current NB-IoT limitations At the moment the NB-IoT firmware supplied by Sequans only support Ericsson base stations configured for In-Band mode. Standalone and guard-band modes will be supported in a later release. Support for Huawei base stations is also limited and only lab testing with Huawei eNodeB is recommended at the moment. Full support for Huawei is planned for early Q2 2018. NB-IoT usage: Example with Vodafone: from network import LTE lte = LTE() lte.send_at_cmd('AT+CFUN=0') lte.send_at_cmd('AT!="clearscanconfig"') lte.send_at_cmd('AT!="addscanfreq band=20 dl-earfcn=6300"') lte.send_at_cmd('AT!="zsp0:npc 1"') lte.send_at_cmd('AT+CGDCONT=1,"IP","nb.inetd.gdsp"') lte.send_at_cmd('AT+CFUN=1') while not lte.isattached(): pass lte.connect() while not lte.isconnected(): pass # now use socket as usual... - Page 241 4.5.2 NB-IoT IMPORTANT: Once the LTE radio is initialised, it must be de-initialised before going to deepsleep in order to ensure minimum power consumption. This is required due to the LTE radio being powered independently and allowing use cases which require the system to be taken out from deepsleep by an event from the LTE network (data or SMS received for instance). When using the expansion board and the FiPy together, the RTS/CTS jumpers MUST be removed as those pins are being used by the LTE radio. Keeping those jumpers in place will lead to erratic operation and higher current consumption specially while in deepsleep.
-
Page 242: Module Imei
4.5.3 Module IMEI How to get the IMEI of your module In order to retrieve the IMEI of your cellular enabled Pycom module you will firstly need to make sure you are on firmware version or higher. You can check your firmware 1.17.0.b1 version by running the following code on you device via the interactive REPL. >>> import os >>> os.uname() (sysname='GPy', nodename='GPy', release='1.17.0.b1', version='v1.8.6-849-d0dc708 on 20 18-02-27', machine='GPy with ESP32') Once you have a compatible firmware, you can run the following code to get your modules IMEI number: from network import LTE lte = LTE() lte.send_at_cmd('AT+CGSN=1') You’ll get a return string like this . The value \r\n+CGSN: "354347xxxxxxxxx"\r\n\r\nOK between the double quotes is your IMEI. -
Page 243: Modem Firmware Update
4.5.3 Modem Firmware Update Firmware upgrade tool for the Sequans Monarch SQN3330 Description The Sequans Monarch SQN3330 cellular radio found on the Pycom FiPy, GPy and GO1 modules requires a different firmware to operate in CAT-M1 or NB-IoT mode. This page will explain the process to upgrade the firmware of the cellular radio The process involves streaming the firmware file from the ESP32 to the SQN3330. Currently, the file has to be stored in a micro SD card first so that the ESP32 can access it easily. We are current working to add support for streaming the file via the updater tool as well. Requirements Before proceeding you will need: Pycom cellular enabled module (GPy, FiPy, G01) FAT32 formatted microSD card (with at least 6MB of free space) A Pycom Expansion Board or shield (or a microSD card socket breakout board) Usage If your module is running the factory LTE chip firmware, you MUST first perform an update to the latest CAT-M1 firmware before trying to upgrade to the NB-IoT firmware. Skipping this step will cause your radio to become unresponsive and it will require access to the test points in order to re-flash the firmware. Firstly, you will need to download the required library files from here. You will need to place these in a directory called "lib" just like any other libraries. This can be done using either FTP or Pymakr Next you need to download the firmware file from here. You will need to place the firmware on a FAT32 formatted microSD card, then insert the SD card into a Expansion Board, Pytrack, Pysense or Pyscan. Power-up the system and connect to the interactive REPL and... - Page 244 4.5.3 Modem Firmware Update run the following code: import sqnsupgrade sqnsupgrade.run(path_to_firmware, 921600) # path_to_firmware example: '/sd/FIPY_NB1_ 35351.dup' The whole process can take between 2 and 3 minutes and at some points it will seem to stall, this is normal, just be patience. You should see an output like this: <<< Welcome to the SQN3330 firmware updater >>> Entering recovery mode Resetting. Starting STP (DO NOT DISCONNECT POWER!!!) STP started Session opened: version 1, max transfer 8192 bytes Sending 4560505 bytes: [########################################] 100% Code download done, returning to user mode Resetting (DO NOT DISCONNECT POWER!!!)..Deploying the upgrade (DO NOT DISCONNECT POWER!!!)... Resetting (DO NOT DISCONNECT POWER!!!).. Upgrade completed! Here is the current firmware version: UE6.0.0.0-ER7 LR6.0.0.0-35351 DO NOT disconnect power while the upgrade process is taking place, wait for it to finish! If the module get's stuck in here for more than 1 minute while upgrading to the NB-IoT firmware, you can cycle power and retry. In this case it is safe. Sending 4560505 bytes: [## ] 6%...
-
Page 245: Pytrack Examples
4.6 Pytrack Examples Accelerometer Both the Pysense and Pytrack use the same accelerometer. Please see the Pysense Examples to see how to use the accelerometer. -
Page 246: Pysense Examples
4.7 Pysense Examples Sensor Demos Accelerometer This basic example shows how to read pitch and roll from the on-board accelerometer and output it in comma separated value (CSV) format over serial. from LIS2HH12 import LIS2HH12 from pytrack import Pytrack py = Pytrack() acc = LIS2HH12() while True: pitch = acc.pitch() roll = acc.roll() print('{},{}'.format(pitch, roll)) time.sleep_ms(100) If you want to visualise the data output by this script a Processing sketch is available here that will show the board orientation in 3D. - Page 247 4.7 Pysense Examples...
-
Page 248: Introduction
5.1 Introduction Introduction This chapter describes modules (function and class libraries) that are built into MicroPython. There are a number of categories for the available modules: Modules which implement a subset of standard Python functionality and are not intended to be extended by the user. Modules which implement a subset of Python functionality, with a provision for extension by the user (via Python code). Modules which implement MicroPython extensions to the Python standard libraries. Modules specific to a particular port and thus not portable. Note about the availability of modules and their contents This documentation in general aspires to describe all modules and functions/classes which are implemented in MicroPython. However, MicroPython is highly configurable, and each port to a particular board/embedded system makes available only a subset of MicroPython libraries. For officially supported ports, there is an effort to either filter out non-applicable items, or mark individual descriptions with “Availability:” clauses describing which ports provide a given feature. With that in mind, please still be warned that some functions/classes in a module (or even the entire module) described in this documentation may be unavailable in a particular build of MicroPython on a particular board. The best place to find general information of the availability/non-availability of a particular feature is the “General Information” section which contains information pertaining to a specific port. Beyond the built-in libraries described in this documentation, many more modules from the Python standard library, as well as further MicroPython extensions to it, can be found in the micropython-lib repository. -
Page 249: Pycom Modules
5.2 Pycom Modules Pycom Modules These modules are specific to the Pycom devices and may have slightly different implementations to other variations of MicroPython (i.e. for Non-Pycom devices). Modules include those which support access to underlying hardware, e.g. I2C, SPI, WLAN, Bluetooth, etc. -
Page 250: Machine
5.2.1 machine module machine The module contains specific functions related to the board. machine Quick Usage Example import machine help(machine) # display all members from the machine module machine.freq() # get the CPU frequency machine.unique_id() # return the 6-byte unique id of the board (the LoPy's WiFi MAC ad dress) Reset Functions machine.reset() Resets the device in a manner similar to pushing the external RESET button. machine.reset_cause() Get the reset cause. See constants for the possible return values. Interrupt Functions machine.disable_irq() Disable interrupt requests. Returns and integer representing the previous IRQ state. This return value can be passed to to restore the IRQ to its original state. enable_irq machine.enable_irq([state]) Enable interrupt requests. The most common use of this function is to pass the value returned by to exit a critical section. Another options is to enable all interrupts disable_irq which can be achieved by calling the function with no parameters. Power Functions machine.freq() Returns CPU frequency in hertz. - Page 251 5.2.1 machine machine.idle() Gates the clock to the CPU, useful to reduce power consumption at any time during short or long periods. Peripherals continue working and execution resumes as soon as any interrupt is triggered (on many ports this includes system timer interrupt occurring at regular intervals on the order of millisecond). machine.deepsleep([time_ms]) Stops the CPU and all peripherals, including the networking interfaces (except for LTE). Execution is resumed from the main script, just as with a reset. If a value in milliseconds is given then the device will wake up after that period of time, otherwise it will remain in deep sleep until the reset button is pressed. The products with LTE connectivity (FiPy, GPy, G01), require the LTE radio to be disabled separately via the LTE class before entering deepsleep. This is required due to the LTE radio being powered independently and allowing use cases which require the system to be taken out from deepsleep by an event from the LTE network (data or SMS received for instance). machine.pin_deepsleep_wakeup(pins, mode, enable_pull) Configure pins to wake up from deep sleep mode. The pins which have this capability are: P2, P3, P4, P6, P8 to P10 and P13 to P23 The arguments are: a list or tuple containing the to setup for deepsleep wakeup. pins GPIO selects the way the configure s can wake up the module. The possible mode GPIO values are: and machine.WAKEUP_ALL_LOW machine.WAKEUP_ANY_HIGH if set to keeps the pull up or pull down resistors enabled during enable_pull True deep sleep. If this variable is set to , then or capacitive touch wakeup cannot True ULP be used in combination with wakeup.
- Page 252 5.2.1 machine Miscellaneous Functions machine.main(filename) Set the of the main script to run after is finished. If this function is not filename boot.py called then the default file will be executed. main.py It only makes sense to call this function from within boot.py machine.rng() Return a 24-bit software generated random number. machine.unique_id() Returns a byte string with a unique identifier of a board/SoC. It will vary from a board/SoC instance to another, if underlying hardware allows. Length varies by hardware (so use substring of a full value if you expect a short ID). In some MicroPython ports, ID corresponds to the network MAC address. Use to convert the byte string to hexadecimal form for ease of ubinascii.hexlify() manipulation and use elsewhere. machine.info() Returns the high water mark of the stack associated with various system tasks, in words (1 word = 4 bytes on the ESP32). If the value is zero then the task has likely overflowed its stack. If the value is close to zero then the task has come close to overflowing its stack. Constants Reset Causes machine.PWRON_RESET machine.HARD_RESET machine.WDT_RESET machine.DEEPSLEEP_RESET machine.SOFT_RESET machine.BROWN_OUT_RESET Wake Reasons machine.PWRON_WAKE machine.PIN_WAKE machine.RTC_WAKE machine.ULP_WAKE Pin Wakeup Modes...
- Page 253 5.2.1 machine machine.WAKEUP_ALL_LOW machine.WAKEUP_ANY_HIGH...
-
Page 254: Adc
5.2.1.1 ADC class ADC – Analog to Digital Conversion Quick Usage Example import machine adc = machine.ADC() # create an ADC object apin = adc.channel(pin='P16') # create an analog pin on P16 val = apin() # read an analog value Constructors class machine.ADC(id=0) Create an ADC object; associate a channel with a pin. For more info check the hardware section. Methods adc.init( * , bits=12) Enable the ADC block. This method is automatically called on object creation. can take values between 9 and 12 and selects the number of bits of resolution of Bits the ADC block. adc.deinit() Disable the ADC block. adc.channel(* , pin, attn=ADC.ATTN_0DB) Create an analog pin. is a keyword-only string argument. Valid pins are to pin P13 P20 is the attenuation level. The supported values are: ADC.ATTN_0DB attn ADC.ATTN_2_5DB ADC.ATTN_6DB ADC.ATTN_11DB Returns an instance of ADCChannel. Example: # enable an ADC channel on P16 apin = adc.channel(pin='P16') - Page 255 5.2.1.1 ADC adc.vref(vref) If called without any arguments, this function returns the current calibrated voltage (in millivolts) of the reference. Otherwise it will update the calibrated value (in millivolts) 1.1v of the internal reference. 1.1v adc.vref_to_pin(pin) Connects the internal to external . It can only be connected to 1.1v GPIO P22 P21 . It is recommended to only use on the WiPy, on other modules this pin is P6 P6 connected to the radio. Constants ADC.ATTN_0DB ADC.ATTN_2_5DB ADC.ATTN_6DB ADC.ATTN_11DB ADC channel attenuation values class ADCChannel Read analog values from internal/external sources. ADC channels can be connected to internal points of the or to pins. ADC channels are created using the MCU GPIO method. ADC.channel Methods adcchannel() Fast method to read the channel value. adcchannel.value() Read the channel value. adcchannel.init() (Re)init and enable the ADC channel. This method is automatically called on object creation.
- Page 256 5.2.1.1 ADC adcchannel.value_to_voltage(value) Converts the provided value into a voltage (in millivolts) in the same way voltage does. ADC pin input range is . This maximum value can be increased up to 0-1.1V 3.3V using the highest attenuation of . Do not exceed the maximum of 3.3V, to avoid 11dB damaging the device.
- Page 257 5.2.1.2 DAC class DAC – Digital to Analog Conversion The DAC is used to output analog values (a specific voltage) on pin or pin . The P22 P21 voltage will be between and 0 3.3V Quick Usage Example import machine dac = machine.DAC('P22') # create a DAC object dac.write(0.5) # set output to 50% dac_tone = machine.DAC('P21') # create a DAC object dac_tone.tone(1000, 0) # set tone output to 1kHz Constructors class class machine.DAC(pin) Create a DAC object, that will let you associate a channel with a can be a string pin pin argument. Methods dac.init() Enable the DAC block. This method is automatically called on object creation. dac.deinit() Disable the DAC block. dac.write(value) Set the DC level for a DAC pin. is a float argument, with values between 0 and 1. value dac.tone(frequency, amplitude) Sets up tone signal to the specified at scale. can be from frequency amplitude frequency to in steps of...
-
Page 258: Dac
5.2.1.2 DAC is 0dBV (~ 3Vpp at 600 Ohm load) 0 is -6dBV (~1.5 Vpp), is -12dBV (~0.8 Vpp) 1 2 is -18dBV (~0.4 Vpp). The generated signal is a sine wave with an DC offset of 3 VDD/2. -
Page 259: I2C
5.2.1.3 I2C class I2C – Two-Wire Serial Protocol I2C is a two-wire protocol for communicating between devices. At the physical level it consists of 2 wires: SCL and SDA, the clock and data lines respectively. I2C objects are created attached to a specific bus. They can be initialised when created, or initialised later on. Example using default Pins from machine import I2C i2c = I2C(0) # create on bus 0 i2c = I2C(0, I2C.MASTER) # create and init as a master i2c = I2C(0, pins=('P10','P11')) # create and use non-default PIN assignments (P10 =SDA, P11=SCL) i2c.init(I2C.MASTER, baudrate=20000) # init as a master i2c.deinit() # turn off the peripheral Example using non-default Pins from machine import I2C i2c = I2C(0, pins=('P10','P11')) # create and use non-default PIN assignments (P10 =SDA, P11=SCL) i2c.init(I2C.MASTER, baudrate=20000) # init as a master i2c.deinit() # turn off the peripheral Printing the object gives you information about its configuration. i2c A master must specify the recipient’s address: i2c.init(I2C.MASTER) i2c.writeto(0x42, '123') # send 3 bytes to slave with address 0x42 i2c.writeto(addr=0x42, b'456') # keyword for address Master also has other methods:... - Page 260 5.2.1.3 I2C i2c.scan() # scan for slaves on the bus, returning # a list of valid addresses i2c.readfrom_mem(0x42, 2, 3) # read 3 bytes from memory of slave 0x42, # starting at address 2 in the slave i2c.writeto_mem(0x42, 2, 'abc') # write 'abc' (3 bytes) to memory of slave 0x42 # starting at address 2 in the slave, timeout afte r 1 second Quick Usage Example from machine import I2C # configure the I2C bus i2c = I2C(0, I2C.MASTER, baudrate=100000) i2c.scan() # returns list of slave addresses i2c.writeto(0x42, 'hello') # send 5 bytes to slave with address 0x42 i2c.readfrom(0x42, 5) # receive 5 bytes from slave i2c.readfrom_mem(0x42, 0x10, 2) # read 2 bytes from slave 0x42, slave memory 0x10 i2c.writeto_mem(0x42, 0x10, 'xy') # write 2 bytes to slave 0x42, slave memory 0x10 Constructors class machine.I2C(bus, ...) Construct an I2C object on the given can only be . If the is not bus bus 0, 1, 2 bus given, the default one will be selected ( ). Buses and use the ESP32 I2C hardware 0 0 1 peripheral while bus is implemented with a bit-banged software driver. 2 General Methods i2c.init(mode, * , baudrate=100000, pins=(SDA, SCL)) Initialise the I2C bus with the given parameters: must be I2C.MASTER mode is the SCL clock rate...
- Page 261 5.2.1.3 I2C Standard Bus Operations The following methods implement the standard I2C master read and write operations that target a given slave device. i2c.readfrom(addr, nbytes) Read from the slave specified by . Returns a bytes object with the data read. nbytes addr i2c.readfrom_into(addr, buf) Read into from the slave specified by . The number of bytes read will be the buf addr length of buf Return value is the number of bytes read. i2c.writeto(addr, buf, * , stop=True) Write the bytes from to the slave specified by . The argument can also be buf addr buf an integer which will be treated as a single byte. If is set to then the stop stop False condition won’t be sent and the I2C operation may be continued (typically with a read transaction). Return value is the number of bytes written. Memory Operations Some I2C devices act as a memory device (or set of registers) that can be read from and written to. In this case there are two addresses associated with an I2C transaction: the slave address and the memory address. The following methods are convenience functions to communicate with such devices. i2c.readfrom_mem(addr, memaddr, nbytes, *, addrsize=8) Read from the slave specified by...
- Page 262 5.2.1.3 I2C Write to the slave specified by starting from the memory address specified by buf addr . The argument can also be an integer which will be treated as a single byte. memaddr buf The argument is specified in bits and it can only take 8 or 16. addrsize The return value is the number of bytes written. Constants I2C.MASTER Used to initialise the bus to master mode.
-
Page 263: Pin
5.2.1.4 Pin class Pin – Control I/O Pins A pin is the basic object to control I/O pins (also known as GPIO - general-purpose input/output). It has methods to set the mode of the pin (input, output, etc) and methods to get and set the digital logic level. For analog control of a pin, see the ADC class. Quick Usage Example from machine import Pin # initialize `P9` in gpio mode and make it an output p_out = Pin('P9', mode=Pin.OUT) p_out.value(1) p_out.value(0) p_out.toggle() p_out(True) # make `P10` an input with the pull-up enabled p_in = Pin('P10', mode=Pin.IN, pull=Pin.PULL_UP) p_in() # get value, 0 or 1 Constructors class machine.Pin(id, ...) Create a new Pin object associated with the string . If additional arguments are given, id they are used to initialise the pin. See pin.init(). from machine import Pin p = Pin('P10', mode=Pin.OUT, pull=None, alt=-1) Methods pin.init(mode, pull, * , alt) Initialise the pin: can be one of: mode Pin.IN - input pin. Pin.OUT - output pin in push-pull mode. Pin.OPEN_DRAIN - input or output pin in open-drain mode. - Page 264 5.2.1.4 Pin can be one of: pull - no pull up or down resistor. None Pin.PULL_UP - pull up resistor enabled. Pin.PULL_DOWN - pull down resistor enabled. is the id of the alternate function. alt Returns: None pin.id() Get the pin id. pin.value([value]) Get or set the digital logic level of the pin: With no argument, return 0 or 1 depending on the logic level of the pin. With value given, set the logic level of the pin. value can be anything that converts to a boolean. If it converts to True, the pin is set high, otherwise it is set low. pin([value]) Pin objects are callable. The call method provides a (fast) shortcut to set and get the value of the pin. Example: from machine import Pin pin = Pin('P12', mode=Pin.IN, pull=Pin.PULL_UP) pin() # fast method to get the value See pin.value() for more details. pin.toggle() Toggle the value of the pin. pin.mode([mode]) Get or set the pin mode. pin.pull([pull]) Get or set the pin pull. pin.hold([hold])
- Page 265 False Pin.value() until the hold is released. This Can be used to retain the pin state through a Pin.toggle() core reset and system reset triggered by watchdog time-out or Deep-sleep events. Only pins in the RTC power domain can retain their value through deep sleep or reset. These are: P2, P3, P4, P6, P8, P9, P10, P13, P14, P15, P16, P17, P18, P19, P20, P21, P22, P23 pin.callback(trigger, handler=None, arg=None) Set a callback to be triggered when the input level at the pin changes. is the type of event that triggers the callback. Possible values are: trigger Pin.IRQ_FALLING interrupt on falling edge. Pin.IRQ_RISING interrupt on rising edge. Pin.IRQ_LOW_LEVEL interrupt on low level. Pin.IRQ_HIGH_LEVEL interrupt on high level. The values can be OR-ed together, for instance trigger=Pin.IRQ_FALLING | Pin.IRQ_RISING is the function to be called when the event happens. This function will receive handler one argument. Set to to disable it. handler None is an optional argument to pass to the callback. If left empty or set to , the arg None function will receive the Pin object that triggered it. Example: from machine import Pin def pin_handler(arg): print("got an interrupt in pin %s" % (arg.id())) p_in = Pin('P10', mode=Pin.IN, pull=Pin.PULL_UP) p_in.callback(Pin.IRQ_FALLING | Pin.IRQ_RISING, pin_handler) For more information on how Pycom’s products handle interrupts, see here. Attributes class pin.exp_board Contains all Pin objects supported by the expansion board. Examples:...
- Page 266 5.2.1.4 Pin Pin.exp_board.G16 led = Pin(Pin.exp_board.G16, mode=Pin.OUT) Pin.exp_board.G16.id() class pin.module Contains all objects supported by the module. Examples: Pin Pin.module.P9 led = Pin(Pin.module.P9, mode=Pin.OUT) Pin.module.P9.id() Constants The following constants are used to configure the pin objects. Note that not all constants are available on all ports. Pin.IN Pin.OUT Pin.OPEN_DRAIN Selects the pin mode. Pin.PULL_UP Pin.PULL_DOWN Enables the pull up or pull down resistor.
-
Page 267: Pwm
5.2.1.5 PWM class PWM – Pulse Width Modulation Quick Usage Example from machine import PWM pwm = PWM(0, frequency=5000) # use PWM timer 0, with a frequency of 5KHz # create pwm channel on pin P12 with a duty cycle of 50% pwm_c = pwm.channel(0, pin='P12', duty_cycle=0.5) pwm_c.duty_cycle(0.3) # change the duty cycle to 30% Constructors class machine.PWM(timer, frequency) Create a PWM object. This sets up the to oscillate at the specified timer frequency is an integer from 0 to 3. is an integer from 1 Hz to 78 KHz (this values timer frequency can change in future upgrades). Methods pwm.channel(id, pin * , duty_cycle=0.5) Connect a PWM channel to a pin, setting the initial duty cycle. is an integer from 0 to 7. id is a string argument. is a keyword-only float argument, with values pin duty_cycle between 0 and 1. Returns an instance of PWMChannel class PWMChannel — PWM channel Methods pwmchannel.duty_cycle(value) Set the duty cycle for a PWM channel. is a float argument, with values between 0 value and 1. -
Page 268: Rtc
5.2.1.6 RTC class RTC – Real Time Clock The RTC is used to keep track of the date and time. Quick Usage Example from machine import RTC rtc = RTC() rtc.init((2014, 5, 1, 4, 13, 0, 0, 0)) print(rtc.now()) Constructors class machine.RTC(id=0, ...) Create an RTC object. See init for parameters of initialisation. # id of the RTC may be set if multiple are connected. Defaults to id = 0. rtc = RTC(id=0) Methods rtc.init(datetime=None, source=RTC.INTERNAL_RC) Initialise the RTC. The arguments are: when passed it sets the current time. It is a tuple of the form: datetime (year, month, day[, hour[, minute[, second[, microsecond[, tzinfo]]]]]) selects the oscillator that drives the RTC. The options are RTC.INTERNAL_RC source and RTC.XTAL_32KHZ For example: # for 2nd of February 2017 at 10:30am (TZ 0) rtc.init((2017, 2, 28, 10, 30, 0, 0, 0)) is ignored by this method. Use to achieve similar results. tzinfo time.timezone... - Page 269 5.2.1.6 RTC rtc.now() Get get the current tuple: datetime # returns datetime tuple rtc.now() rtc.ntp_sync(server, * , update_period=3600) Set up automatic fetch and update the time using NTP (SNTP). is the URL of the NTP server. Can be set to to disable the periodic server None updates. is the number of seconds between updates. Shortest period is 15 update_period seconds. Can be used like: rtc.ntp_sync("pool.ntp.org") # this is an example. You can select a more specific serv er according to your geographical location rtc.synced() Returns if the last has been completed, otherwise: True ntp_sync False rtc.synced() Constants RTC.INTERNAL_RC RTC.XTAL_32KHZ Clock source...
-
Page 270: Spi
5.2.1.7 SPI class SPI – Serial Peripheral Interface SPI is a serial protocol that is driven by a master. At the physical level there are 3 lines: SCK, MOSI, MISO. See usage model of I2C; SPI is very similar. Main difference is parameters to init the SPI bus: from machine import SPI spi = SPI(0, mode=SPI.MASTER, baudrate=1000000, polarity=0, phase=0, firstbit=SPI.MSB) Only required parameter is mode, must be SPI.MASTER. Polarity can be 0 or 1, and is the level the idle clock line sits at. Phase can be 0 or 1 to sample data on the first or second clock edge respectively. Quick Usage Example from machine import SPI # configure the SPI master @ 2MHz # this uses the SPI default pins for CLK, MOSI and MISO (``P10``, ``P11`` and ``P14``) spi = SPI(0, mode=SPI.MASTER, baudrate=2000000, polarity=0, phase=0) spi.write(bytes([0x01, 0x02, 0x03, 0x04, 0x05])) # send 5 bytes on the bus spi.read(5) # receive 5 bytes on the bus rbuf = bytearray(5) spi.write_readinto(bytes([0x01, 0x02, 0x03, 0x04, 0x05]), rbuf) # send a receive 5 byt Quick Usage Example using non-default pins... - Page 271 5.2.1.7 SPI from machine import SPI # configure the SPI master @ 2MHz # this uses the SPI non-default pins for CLK, MOSI and MISO (``P19``, ``P20`` and ``P2 1``) spi = SPI(0, mode=SPI.MASTER, baudrate=2000000, polarity=0, phase=0, pins=('P19','P20', 'P21')) spi.write(bytes([0x01, 0x02, 0x03, 0x04, 0x05])) # send 5 bytes on the bus spi.read(5) # receive 5 bytes on the bus rbuf = bytearray(5) spi.write_readinto(bytes([0x01, 0x02, 0x03, 0x04, 0x05]), rbuf) # send a receive 5 byt Constructors class machine.SPI(id, ...) Construct an SPI object on the given bus. can be only 0. With no additional parameters, id the SPI object is created but not initialised (it has the settings from the last initialisation of the bus, if any). If extra arguments are given, the bus is initialised. See init for parameters of initialisation. Methods spi.init(mode, baudrate=1000000, * , polarity=0, phase=0, bits=8, firstbit=SPI.MSB, pins=(CLK, MOSI, MISO)) Initialise the SPI bus with the given parameters: must be SPI.MASTER. mode is the SCK clock rate. baudrate can be 0 or 1, and is the level the idle clock line sits at. polarity can be 0 or 1 to sample data on the first or second clock edge respectively. phase is the width of each transfer, accepted values are 8, 16 and 32. bits can be SPI.MSB or SPI.LSB. firstbit is an optional tuple with the pins to assign to the SPI bus. If the pins argument is pins not given the default pins will be selected ( as CLK, as MOSI and P10 P11 P14...
- Page 272 5.2.1.7 SPI Write the data contained in . Returns the number of bytes written. buf spi.read(nbytes, * , write=0x00) Read the while writing the data specified by . Return the number of bytes nbytes write read. spi.readinto(buf, * , write=0x00) Read into the buffer specified by while writing the data specified by . Return the buf write number of bytes read. spi.write_readinto(write_buf, read_buf) Write from and read into . Both buffers must have the same length. write_buf read_buf Returns the number of bytes written Constants SPI.MASTER For initialising the SPI bus to master SPI.MSB Set the first bit to be the most significant bit SPI.LSB Set the first bit to be the least significant bit...
- Page 273 5.2.1.8 UART class UART – Universal Asynchronous Receiver/Transmitter UART implements the standard UART/USART duplex serial communications protocol. At the physical level it consists of 2 lines: RXD and TXD. The unit of communication is a character (not to be confused with a string character) which can be 5, 6, 7 or 8 bits wide. UART objects can be created and initialised using: from machine import UART uart = UART(1, 9600) # init with given baudrate uart.init(9600, bits=8, parity=None, stop=1) # init with given parameters Bits can be . Parity can be , UART.EVEN or UART.ODD. Stop can be 5, 6, 7, 8 None 1, 1.5 or 2 A UART object acts like a stream object therefore reading and writing is done using the standard stream methods: uart.read(10) # read 10 characters, returns a bytes object uart.readall() # read all available characters uart.readline() # read a line uart.readinto(buf) # read and store into the given buffer uart.write('abc') # write the 3 characters To check if there is anything to be read, use: uart.any() # returns the number of characters available for reading Quick Usage Example from machine import UART # this uses the UART_1 default pins for TXD and RXD (``P3`` and ``P4``) uart = UART(1, baudrate=9600) uart.write('hello') uart.read(5) # read up to 5 bytes Quick Usage Example using non-default pins (TXD/RXD only)
- Page 274 5.2.1.8 UART from machine import UART # this uses the UART_1 non-default pins for TXD and RXD (``P20`` and ``P21``) uart = UART(1, baudrate=9600, pins=('P20','P21')) uart.write('hello') uart.read(5) # read up to 5 bytes Quick Usage Example using non-default pins (TXD/RXD and flow control) from machine import UART # this uses the UART_1 non-default pins for TXD, RXD, RTS and CTS (``P20``, ``P21``, ` `P22``and ``P23``) uart = UART(1, baudrate=9600, pins=('P20', 'P21', 'P22', 'P23')) uart.write('hello') uart.read(5) # read up to 5 bytes Constructors class machine.UART(bus, ...) Construct a UART object on the given can be . If the is not bus bus 0, 1 or 2 bus given, the default one will be selected ( ) or the selection will be made based on the given 0 pins. On the GPy/FiPy UART2 is unavailable because it is used to communicate with the cellular radio. Methods uart.init(baudrate=9600, bits=8, parity=None, stop=1, * , timeout_chars=2, pins=(TXD, RXD, RTS, CTS)) Initialise the UART bus with the given parameters: is the clock rate. baudrate is the number of bits per character. Can be bits 5, 6, 7 or 8 is the parity, , UART.EVEN or UART.ODD.
- Page 275 5.2.1.8 UART is a 4 or 2 item list indicating the TXD, RXD, RTS and CTS pins (in that order). pins Any of the pins can be if one wants the UART to operate with limited functionality. None If the RTS pin is given the the RX pin must be given as well. The same applies to CTS. When no pins are given, then the default set of TXD (P1) and RXD (P0) pins is taken, and hardware flow control will be disabled. If , no pin assignment will be pins=None made. uart.deinit() Turn off the UART bus. uart.any() Return the number of characters available for reading. uart.read([nbytes]) Read characters. If is specified then read at most that many bytes. nbytes Return value: a bytes object containing the bytes read in. Returns on timeout. None uart.readall() Read as much data as possible. Return value: a bytes object or on timeout. None uart.readinto(buf[, nbytes]) Read bytes into the . If is specified then read at most that many bytes. buf nbytes Otherwise, read at most bytes. len(buf) Return value: number of bytes read and stored into or on timeout. buf None uart.readline()
-
Page 276: Uart
5.2.1.8 UART Send a break condition on the bus. This drives the bus low for a duration of 13 bits. Return value: None uart.wait_tx_done(timeout_ms) Waits at most for the last Tx transaction to complete. Returns if all data timeout_ms True has been sent and the TX buffer has no data in it, otherwise returns False Constants UART.EVEN UART.ODD Parity types (along with None UART.RX_ANY IRQ trigger sources... -
Page 277: Wdt
5.2.1.9 WDT class WDT – Watchdog Timer The WDT is used to restart the system when the application crashes and ends up into a non recoverable state. After enabling, the application must "feed" the watchdog periodically to prevent it from expiring and resetting the system. Quick Usage Example from machine import WDT wdt = WDT(timeout=2000) # enable it with a timeout of 2 seconds wdt.feed() Constructors class machine.WDT(id=0, timeout) Create a WDT object and start it. The can only be . See the init method for the id 0 parameters of initialisation. Methods wdt.init(timeout) Initialises the watchdog timer. The timeout must be given in milliseconds. Once it is running the WDT cannot be stopped but the timeout can be re-configured at any point in time. wdt.feed() Feed the WDT to prevent it from resetting the system. The application should place this call in a sensible place ensuring that the WDT is only fed after verifying that everything is functioning correctly. -
Page 278: Timer
5.2.1.10 Timer class Timer – Measure Time and Set Alarms Timers can be used for a great variety of tasks, like measuring time spans or being notified that a specific interval has elapsed. These two concepts are grouped into two different subclasses: : used to measure time spans. : to get interrupted after a specific interval. Chrono Alarm You can create as many of these objects as needed. Constructors class Timer.Chrono() Create a chronometer object. class Timer.Alarm(handler=None, s, * , ms, us, arg=None, periodic=False) Create an Alarm object. : will be called after the interval has elapsed. If set to , the alarm will be handler None disabled after creation. : an optional argument can be passed to the callback handler function. If arg None specified, the function will receive the object that triggered the alarm. : the interval can be specified in seconds (float), miliseconds (integer) or s, ms, us microseconds (integer). Only one at a time can be specified. : an alarm can be set to trigger repeatedly by setting this parameter to periodic True Methods Timer.sleep_us() Delay for a given number of microseconds, should be positive or 0 (for speed, the condition is not enforced). Internally it uses the same timer as the other elements of the class. Timer It compensates for the calling overhead, so for example, 100us should be really close to 100us. For times bigger than 10,000us it releases the GIL to let other threads run, so exactitude is not guaranteed for delays longer than that. - Page 279 5.2.1.10 Timer class Chrono Can be used to measure time spans. Methods chrono.start() Start the chronometer. chrono.stop() Stop the chronometer. chrono.reset() Reset the time count to 0. chrono.read() Get the elapsed time in seconds. chrono.read_ms() Get the elapsed time in milliseconds. chrono.read_us() Get the elapsed time in microseconds. Example:...
- Page 280 5.2.1.10 Timer from machine import Timer import time chrono = Timer.Chrono() chrono.start() time.sleep(1.25) # simulate the first lap took 1.25 seconds lap = chrono.read() # read elapsed time without stopping time.sleep(1.5) chrono.stop() total = chrono.read() print() print("\nthe racer took %f seconds to finish the race" % total) print(" %f seconds in the first lap" % lap) print(" %f seconds in the last lap" % (total - lap)) class Alarm – get interrupted after a specific interval Methods alarm.callback(handler, * , arg=None) Specify a callback handler for the alarm. If set to , the alarm will be disabled. None An optional argument can be passed to the callback handler function. If arg None specified, the function will receive the object that triggered the alarm. alarm.cancel() Disables the alarm. Example: from machine import Timer class Clock: def __init__(self): self.seconds = 0 self.__alarm = Timer.Alarm(self._seconds_handler, 1, periodic=True) def _seconds_handler(self, alarm): self.seconds += 1 print("%02d seconds have passed" % self.seconds) if self.seconds == 10: alarm.cancel() # stop counting after 10 seconds clock = Clock()
- Page 281 5.2.1.10 Timer For more information on how Pycom’s products handle interrupts, see notes.
- Page 282 5.2.1.11 SD class SD – Secure digital Memory Card The SD card class allows to configure and enable the memory card module of your Pycom module and automatically mount it as as part of the file system. There is a single pin /sd combination that can be used for the SD card, and the current implementation only works in 1-bit mode. The pin connections are as follows: and (no external pull-up resistors are needed) P8: DAT0 P23: SCLK P4: CMD If you have one of the Pycom expansion boards, then simply insert the card into the micro SD socket and run your script. Make sure your SD card is formatted either as FAT16 or FAT32. Quick Example Usage: from machine import SD import os sd = SD() os.mount(sd, '/sd') # check the content os.listdir('/sd') # try some standard file operations f = open('/sd/test.txt', 'w') f.write('Testing SD card write operations') f.close() f = open('/sd/test.txt', 'r') f.readall() f.close() Constructors class machine.SD(id, ...) Create a SD card object. See sd.init() for parameters if initialisation. Methods...
- Page 283 5.2.1.11 SD sd.init(id=0) Enable the SD card. sd.deinit() Disable the SD card. Please note that the SD card library currently supports FAT16/32 formatted SD cards up to 32 GB. Future firmware updates will increase compatibility with additional formats and sizes.
-
Page 284: Can
5.2.1.12 CAN class CAN – Controller Area Network The CAN class supports the full CAN 2.0 specification with standard and extended frames, as well as acceptance filtering. The ESP32 has a built-in CAN controller, but the transceiver needs to be added externally. A recommended device is the SN65HVD230. Quick Usage Example from machine import CAN can = CAN(mode=CAN.NORMAL, baudrate=500000, pins=('P22', 'P23')) can.send(id=12, data=bytes([1, 2, 3, 4, 5, 6, 7, 8])) can.recv() Constructors class machine.CAN(bus=0, ...) Create an CAN object. See init for parameters of initialisation.: # only 1 CAN peripheral is available, so the bus must always be 0 can = CAN(0, mode=CAN.NORMAL, baudrate=500000, pins=('P22', 'P23')) # pin order is Tx, Rx Methods can.init(mode=CAN.NORMAL, baudrate=500000, *, frame_format=CAN.FORMAT_STD, rx_queue_len=128, pins=('P22', 'P23')) Initialize the CAN controller. The arguments are: can take either CAN.NORMAL or CAN.SILENT. Silent mode is useful for sniffing mode the bus. sets up the bus speed. Acceptable values are between 1 and 1000000. baudrate defines the frame format to be accepted by the receiver. Useful for frame_format filtering frames based on the identifier length. Can tale either CAN.FORMAT_STD or CAN.FORMAT_EXT or CAN.FORMAT_BOTH. If CAN.FORMAT_STD is selected, extended frames won't be received and vice-versa. - Page 285 5.2.1.12 CAN defines the number of messages than can be queued by the receiver. rx_queue_len Due to CAN being a high traffic bus, large values are recommended (>= 128), otherwise messages will be dropped specially when no filtering is applied. selects the and pins (in that order). pins Tx Rx can.deinit() Disables the CAN bus. # disable the CAN bus can.deinit() can.send(id, * , data=None, rtr=False, extended=False) Send a CAN frame on the bus is the identifier of the message. id can take up to 8 bytes. It must be left empty is the message to be sent is a data remote request (rtr=True). set it to false to send a remote request. rtr specifies if the message identifier width should be 11bit (standard) or 29bit extnted (extended). Can be used like: can.send(id=0x0020, data=bytes([0x01, 0x02, 0x03, 0x04, 0x05]), extended=True) # sen ds 5 bytes with an extended identifier can.send(id=0x010, data=bytes([0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08])) # sen ds 8 bytes with an standard identifier can.send(id=0x012, rtr=True) # sends a remote request for message id=0x12 can.recv(timeout=0) Get a message from the receive queue, and optionally specify a timeout value in s (can be a floating point value e.g. ). This function returns if no messages available. If a 0.2 None message is present, it will be returned as a named tuple with the following form: (id, data, rtr, extended) >>> can.recv()
- Page 286 5.2.1.12 CAN Specify a software filter accepting only the messages that pass the filter test. There are 3 possible filter modes: CAN.FILTER_LIST allows to pass the list of IDs that should be accepted. CAN.FILTER_RANGE allows to pass a list or tuple of ID ranges that should be accepted. CAN.FILTER_MASK allows to pass a list of tuples of the form: (filer, mask) With software filters all messages in the bus are received by the CAN controller but only the matching ones are passed to the RX queue. This means that the queue won't be filled up with non relevant messages, but the interrupt overhead will remain as normal. The can contain up to 32 elements. filter_list For example: can.soft_filter(CAN.FILTER_LIST, [0x100, 0x200, 0x300, 0x400]) # only accept identifi ers from 0x100, 0x200, 0x300 and 0x400 can.soft_filter(CAN.FILTER_RANGE, [(0x001, 0x010), (0x020, 0x030), (0x040, 0x050)]) # only accept identifiers from 0x001 to 0x010, from 0x020 to 0x030 and from 0x040 to 0x 050. can.soft_filter(CAN.FILTER_MASK, [(0x100, 0x7FF), (0x200, 0x7FC)]) # more of the class ic Filter and Mask method. can.soft_filter(None) # disable soft filters, all messages are accepted can.callback(trigger, handler=None, arg=None) Set a callback to be triggered when any of this 3 events are present: trigger is the type of event that triggers the callback. Possible values are: CAN.RX_FRAME interrupt whenever a new frame is received. CAN.RX_FIFO_NOT_EMPTY interrupt when a frame is received on an empty FIFO. CAN.RX_FIFO_OVERRUN interrupt when a message is received and the FIFO is full. The values can be OR-ed together, for instance trigger=CAN.RX_FRAME | CAN.RX_FIFO_OVERRUN handler is the function to be called when the event happens. This function will receive one argument. Set handler to None to disable the callback. arg is an optional argument to pass to the callback. If left empty or set to None, the function will receive the CAN object that triggered it.
- Page 287 5.2.1.12 CAN It can be used like this: from machine import CAN can = CAN(mode=CAN.NORMAL, baudrate=500000, pins=('P22', 'P23')) def can_cb(can_o): print('CAN Rx:', can_o.recv()) can.callback(handler=can_cb, trigger=CAN.RX_FRAME) can.events() This method returns a value with bits sets (if any) indicating the events that have occurred in the bus. Please note that by calling this function the internal events registry is cleared automatically, therefore calling it immediately for a second time will most likely return a value of 0. Constants CAN.NORMAL CAN.SILENT CAN.FORMAT_STD CAN.FORMAT_EXT CAN.FORMAT_BOTH CAN.RX_FRAME CAN.RX_FIFO_NOT_EMPTY CAN.RX_FIFO_OVERRUN CAN.FILTER_LIST CAN.FILTER_RANGE CAN.FILTER_MASK...
- Page 288 5.2.1.13 RMT class RMT – Remote Controller The RMT (Remote Control) module is primarily designed to send and receive infrared remote control signals that use on-off-keying of a carrier frequency, but due to its design it can be used to generate various types of signals. Quick Usage Example: sending import machine # create a RMT object for transmission rmt = machine.RMT(channel=3, gpio="P20", tx_idle_level=0) # create series of bits to send data = (1,0,1,0,1,0,1,0,1) # define duration of the bits, time unit depends on the selected RMT channel duration = 10000 # send the signal rmt.send_pulses(duration, data) Quick Usage Example: receiving import machine # create a RMT object rmt = machine.RMT(channel=3) # Configure RTM for receiving rmt.init(gpio="P20", rx_idle_threshold=12000) # wait for any number of pulses until one longer than rx_idle_threshold data = rmt.recv_pulses() Constructors class machine.RMT(channel,...) Construct an RMT object on the given channel. can be 2-7. With no additional channel parameters, the RMT object is created but not initialised. If extra arguments are given, the RMT is initialised for transmission or reception. See for parameters of initialisation. init The resolution which a pulse can be sent/received depends on the selected channel:...
- Page 289 5.2.1.13 RMT Channel Resolution Maximum Pulse Width Used by on-board LED Used by pycom.pulses_get() 100nS 3.2768 ms 100nS 3.2768 ms 1000nS 32.768 ms 1000nS 32.768 ms 3125nS 102.4 ms 3125nS 102.4 ms Methods rmt.init(gpio, rx_idle_threshold, rx_filter_threshold, tx_idle_level, tx_carrier) Initialise the RMT peripheral with the given parameters: is the GPIO Pin to use. gpio is the maximum duration of a valid pulse. The represented time unit rx_idle_threshold (resolution) depends on the selected channel, value can be 0-65535. is the minimum duration of a valid pulse. The represented time rx_filter_threshold unit (resolution) depends on the selected channel, value can be 0-31. is the output signal's level after the transmission is finished, can be tx_idle_level RMT.HIGH or RMT.LOW. is the modulation of the pulses to send. tx_carrier Either or must be defined, both cannot be given at the rx_idle_threshold tx_idle_level same time because a channel can be configured in RX or TX mode only.
- Page 290 5.2.1.13 RMT If an RMT object needs to be reconfigured from RX/TX to TX/RX, then either first must be called or the again with the desired configuration. deinit() init() rmt.pulses_get(pulses, timeout) Reads in pulses from the GPIO pin. if not specified, this function will keep reading pulses until the pulses is exceeded. If it is specified this function will return the exactly that rx_idle_threshold number of pulses, ignoring anything shorter than or longer than rx_filter_threshold rx_idle_threshold is specified, this function will return if the first pulse does not occur within timeout microseconds. If not specified, it will wait indefinitely. timeout Return value: Tuple of items with the following structure: (level, duration): represents the level of the received bit/pulse, can be 0 or 1. level represents the duration of the received pulse, the time unit (resolution) duration depends on the selected channel. Maximum of 128 pulses can be received in a row without receiving "idle" signal. If the incoming pulse sequence contains more than 128 pulses the rest is dropped and the receiver waits for another sequence of pulses. The function can be called pulses_get to receive more than 128 pulses, however the above mentioned limitation should be kept in mind when evaluating the received data. rmt.pulses_send(duration, data, start_level) Generates pulses as defined by the parameters below represents the duration of the pulses to be sent, the time unit (resolution) duration depends on the selected channel. Tuple that represents the sequence of pulses to be sent, must be composed of 0 data or 1 elements.
-
Page 291: Rmt
5.2.1.13 RMT each pulse in will have have an equal length as set by . If and data duration data are provided as tuples, they must be of the same number of elements, with each duration pulse lasting its matching duration. Constants RMT.LOW RMT.HIGH Defines the level of the pulse. -
Page 292: Network
5.2.2 network module network This module provides access to network drivers and routing configuration. Network drivers for specific hardware are available within this module and are used to configure specific hardware network interfaces. -
Page 293: Wlan
5.2.2.1 WLAN class WLAN This class provides a driver for the WiFi network processor in the module. Example usage: import network import time # setup as a station wlan = network.WLAN(mode=network.WLAN.STA) wlan.connect('your-ssid', auth=(network.WLAN.WPA2, 'your-key')) while not wlan.isconnected(): time.sleep_ms(50) print(wlan.ifconfig()) # now use socket as usual Quick Usage Example import machine from network import WLAN # configure the WLAN subsystem in station mode (the default is AP) wlan = WLAN(mode=WLAN.STA) # go for fixed IP settings (IP, Subnet, Gateway, DNS) wlan.ifconfig(config=('192.168.0.107', '255.255.255.0', '192.168.0.1', '192.168.0.1')) wlan.scan() # scan for available networks wlan.connect(ssid='mynetwork', auth=(WLAN.WPA2, 'my_network_key')) while not wlan.isconnected(): pass print(wlan.ifconfig()) Constructors class network.WLAN(id=0, ...) Create a WLAN object, and optionally configure it. See init for params of configuration. The WLAN constructor is special in the sense that if no arguments besides the are id given, it will return the already existing WLAN instance without re-configuring it. This is because WLAN is a system feature of the WiPy. If the already existing instance is not initialised it will do the same as the other constructors an will initialise it with default values. - Page 294 5.2.2.1 WLAN Methods wlan.init(mode, * , ssid=None, auth=None, channel=1, antenna=None, power_save=False, hidden=False) Set or get the WiFi network processor configuration. Arguments are: can be either WLAN.STA, WLAN.AP or WLAN.STA_AP. mode is a string with the SSID name. Only needed when mode is WLAN.AP. ssid is a tuple with (sec, key). Security can be , WLAN.WEP, WLAN.WPA or auth None WLAN.WPA2. The key is a string with the network password. If is WLAN.WEP the sec key must be a string representing hexadecimal values (e.g. ). Only needed ABC1DE45BF when mode is WLAN.AP. a number in the range 1-11. Only needed when mode is WLAN.AP. channel selects between the internal and the external antenna. Can be either antenna WLAN.INT_ANT, WLAN.EXT_ANT. With our development boards it defaults to using the internal antenna, but in the case of an OEM module, the antenna pin ( ) is not P12 used, so it’s free to be used for other things. enables or disables power save functions in STA mode. power_save only valid in WLAN.AP mode to create an access point with a hidden SSID hidden when set to True For example, you can do: # create and configure as an access point wlan.init(mode=WLAN.AP, ssid='wipy-wlan', auth=(WLAN.WPA2,'www.wipy.io'), channel=7, a ntenna=WLAN.INT_ANT) # configure as an station wlan.init(mode=WLAN.STA) wlan.deinit()
- Page 295 5.2.2.1 WLAN is a tuple with . Security can be , WLAN.WEP, WLAN.WPA, auth (sec, key) None WLAN.WPA2 or WLAN.WPA2_ENT. The key is a string with the network password. If is WLAN.WEP the key must be a string representing hexadecimal values (e.g. sec ). If is WLAN.WPA2_ENT then the tuple can have either 3 ABC1DE45BF sec auth elements: , or just 1: . When passing the 3 element (sec, username, password) (sec,) tuple, the and arguments must not be given. keyfile certifle is the MAC address of the AP to connect to. Useful when there are several APs bssid with the same SSID. is the maximum time in milliseconds to wait for the connection to succeed. timeout is the path to the CA certificate. This argument is not mandatory. ca_certs keyfile the path to the client key. Only used if and are not part of the username password tuple. auth is the path to the client certificate. Only used if and...
- Page 296 5.2.2.1 WLAN wlan.mode([mode]) Get or set the WLAN mode. wlan.ssid([ssid]) Get or set the SSID when in AP mode. wlan.auth([auth]) Get or set the authentication type when in AP mode. wlan.channel([channel]) Get or set the channel (only applicable in AP mode). wlan.antenna([antenna]) Get or set the antenna type (external or internal). wlan.mac() Get a 6-byte long object with the WiFI MAC address. bytes Constants WLAN.STA WLAN.AP WLAN.STA_AP WLAN mode WLAN.WEP WLAN.WPA WLAN.WPA2 WLAN.WPA2_ENT WLAN network security WLAN.INT_ANT WLAN.EXT_ANT Antenna type...
-
Page 297: Server
5.2.2.2 Server class Server The class controls the behaviour and the configuration of the FTP and telnet Server services running on the Pycom device. Any changes performed using this class’ methods will affect both. Example: import network server = network.Server() server.deinit() # disable the server # enable the server again with new settings server.init(login=('user', 'password'), timeout=600) Quick Usage Example from network import Server # init with new user, password and seconds timeout server = Server(login=('user', 'password'), timeout=60) server.timeout(300) # change the timeout server.timeout() # get the timeout server.isrunning() # check whether the server is running or not Constructors class network.Server(id, ...) Create a server instance, see for parameters of initialisation. init Methods server.init(* , login=('micro', 'python'), timeout=300) Init (and effectively start the server). Optionally a new and (in user password timeout seconds) can be passed. server.deinit() Stop the server. server.timeout([timeout_in_seconds]) - Page 298 5.2.2.2 Server Get or set the server timeout. server.isrunning() Returns if the server is running (connected or accepting connections), True False otherwise.
-
Page 299: Bluetooth
5.2.2.3 Bluetooth class Bluetooth This class provides a driver for the Bluetooth radio in the module. Currently, only basic BLE functionality is available. Quick Usage Example from network import Bluetooth import time bt = Bluetooth() bt.start_scan(-1) while True: adv = bt.get_adv() if adv and bt.resolve_adv_data(adv.data, Bluetooth.ADV_NAME_CMPL) == 'Heart Rate': try: conn = bt.connect(adv.mac) services = conn.services() for service in services: time.sleep(0.050) if type(service.uuid()) == bytes: print('Reading chars from service = {}'.format(service.uuid())) else: print('Reading chars from service = %x' % service.uuid()) chars = service.characteristics() for char in chars: if (char.properties() & Bluetooth.PROP_READ): print('char {} value = {}'.format(char.uuid(), char.read())) conn.disconnect() break except: print("Error while connecting or reading from the BLE device") break else: time.sleep(0.050) Bluetooth Low Energy (BLE) Bluetooth low energy (BLE) is a subset of classic Bluetooth, designed for easy connecting and communicating between devices (in particular mobile platforms). BLE uses a methodology known as Generic Access Profile (GAP) to control connections and advertising. - Page 300 5.2.2.3 Bluetooth GAP allows for devices to take various roles but generic flow works with devices that are either a Server (low power, resource constrained, sending small payloads of data) or a Client device (commonly a mobile device, PC or Pycom Device with large resources and processing power). Pycom devices can act as both a Client and a Server. Constructors class network.Bluetooth(id=0, ...) Create a Bluetooth object, and optionally configure it. See init for params of configuration. Example: from network import Bluetooth bluetooth = Bluetooth() Methods bluetooth.init(id=0, mode=Bluetooth.BLE, antenna=None) Only one Bluetooth peripheral available so must always be 0 id currently the only supported mode is mode Bluetooth.BLE selects between the internal and the external antenna. Can be either antenna Bluetooth.INT_ANT, Bluetooth.EXT_ANT. With our development boards it defaults to using the internal antenna, but in the case of an OEM module, the antenna pin ( ) is P12 not used, so it’s free to be used for other things. Initialises and enables the Bluetooth radio in BLE mode. bluetooth.deinit() Disables the Bluetooth radio. bluetooth.start_scan(timeout) Starts performing a scan listening for BLE devices sending advertisements. This function always returns immediately, the scanning will be performed on the background. The return value is . After starting the scan the function get_adv() can be used to retrieve the None advertisements messages from the FIFO. The internal FIFO has space to cache 16 advertisements. The arguments are: specifies the amount of time in seconds to scan for advertisements, cannot be timeout...
- Page 301 5.2.2.3 Bluetooth zero. If timeout is > 0, then the BLE radio will listen for advertisements until the specified value in seconds elapses. If timeout < 0, then there’s no timeout at all, and stop_scan() needs to be called to cancel the scanning process. Examples: bluetooth.start_scan(10) # starts scanning and stop after 10 seconds bluetooth.start_scan(-1) # starts scanning indefinitely until bluetooth.stop_sc an() is called bluetooth.stop_scan() Stops an ongoing scanning process. Returns None bluetooth.isscanning() Returns if a Bluetooth scan is in progress. otherwise. True False bluetooth.get_adv() Gets an named tuple with the advertisement data received during the scanning. The tuple has the following structure: (mac, addr_type, adv_type, rssi, data) is the 6-byte ling mac address of the device that sent the advertisement. mac is the address type. See the constants section below for more details. addr_type is the advertisement type received. See the constants section below fro more adv_type details. is signed integer with the signal strength of the advertisement. rssi contains the complete 31 bytes of the advertisement message. In order to parse data the data and get the specific types, the method resolve_adv_data() can be used. Example for getting address of an advertiser: mac import ubinascii bluetooth = Bluetooth() bluetooth.start_scan(20) # scan for 20 seconds adv = bluetooth.get_adv() # ubinascii.hexlify(adv.mac) # convert hexadecimal to ascii bluetooth.get_advertisements() Same as the...
- Page 302 5.2.2.3 Bluetooth bluetooth.resolve_adv_data(data, data_type) Parses the advertisement data and returns the requested if present. If the data data_type type is not present, the function returns None Arguments: is the bytes object with the complete advertisement data. data is the data type to resolve from from the advertisement data. See constants data_type section below for details. Example: import ubinascii from network import Bluetooth bluetooth = Bluetooth() bluetooth.start_scan(20) while bluetooth.isscanning(): adv = bluetooth.get_adv() if adv: # try to get the complete name print(bluetooth.resolve_adv_data(adv.data, Bluetooth.ADV_NAME_CMPL)) mfg_data = bluetooth.resolve_adv_data(adv.data, Bluetooth.ADV_MANUFACTURER_DAT if mfg_data: # try to get the manufacturer data (Apple's iBeacon data is sent here) print(ubinascii.hexlify(mfg_data)) bluetooth.connect(mac_addr) Opens a BLE connection with the device specified by the argument. This function mac_addr blocks until the connection succeeds or fails. If the connections succeeds it returns a object of type GATTCConnection bluetooth.connect('112233eeddff') # mac address is accepted as a string bluetooth.callback(trigger=None, handler=None, arg=None) Creates a callback that will be executed when any of the triggers occurs. The arguments are: can be either Bluetooth.NEW_ADV_EVENT, trigger Bluetooth.CLIENT_CONNECTED or Bluetooth.CLIENT_DISCONNECTED is the function that will be executed when the callback is triggered.
- Page 303 5.2.2.3 Bluetooth is the argument that gets passed to the callback. If nothing is given the bluetooth arg object itself is used. An example of how this may be used can be seen in the bluetooth.events() method. bluetooth.events() Returns a value with bit flags identifying the events that have occurred since the last call. Calling this function clears the events. Example of usage: from network import Bluetooth bluetooth = Bluetooth() bluetooth.set_advertisement(name='LoPy', service_uuid=b'1234567890123456') def conn_cb (bt_o): events = bt_o.events() # this method returns the flags and clears the internal r egistry if events & Bluetooth.CLIENT_CONNECTED: print("Client connected") elif events & Bluetooth.CLIENT_DISCONNECTED: print("Client disconnected") bluetooth.callback(trigger=Bluetooth.CLIENT_CONNECTED | Bluetooth.CLIENT_DISCONNECTED, handler=conn_cb) bluetooth.advertise(True) bluetooth.set_advertisement(* , name=None, manufacturer_data=None, service_data=None, service_uuid=None) Configure the data to be sent while advertising. If left with the default of the data won’t None be part of the advertisement message. The arguments are: is the string name to be shown on advertisements. name manufacturer data to be advertised (hint: use it for iBeacons). manufacturer_data service data to be advertised. service_data uuid of the service to be advertised. service_uuid Example: bluetooth.set_advertisement(name="advert", manufacturer_data="lopy_v1")
- Page 304 5.2.2.3 Bluetooth bluetooth.advertise([Enable]) Start or stop sending advertisements. The set_advertisement() method must have been called prior to this one. bluetooth.service(uuid, * , isprimary=True, nbr_chars=1, start=True) Create a new service on the internal GATT server. Returns a object of type BluetoothServerService The arguments are: is the UUID of the service. Can take an integer or a 16 byte long string or bytes uuid object. selects if the service is a primary one. Takes a value. isprimary bool specifies the number of characteristics that the service will contain. nbr_chars if the service is started immediately. start True bluetooth.service('abc123') bluetooth.disconnect_client() Closes the BLE connection with the client. Constants Bluetooth mode Bluetooth.BLE Advertisement type Bluetooth.CONN_ADV Bluetooth.CONN_DIR_ADV Bluetooth.DISC_ADV Bluetooth.NON_CONN_ADV Bluetooth.SCAN_RSP Address type Bluetooth.PUBLIC_ADDR Bluetooth.RANDOM_ADDR Bluetooth.PUBLIC_RPA_ADDR Bluetooth.RANDOM_RPA_ADDR Advertisement data type Bluetooth.ADV_FLAG Bluetooth.ADV_16SRV_PART Bluetooth.ADV_T16SRV_CMPL Bluetooth.ADV_32SRV_PART Bluetooth.ADV_32SRV_CMPL Bluetooth.ADV_128SRV_PART Bluetooth.ADV_128SRV_CMPL...
- Page 305 5.2.2.3 Bluetooth Bluetooth.ADV_NAME_SHORT Bluetooth.ADV_NAME_CMPL Bluetooth.ADV_TX_PWR Bluetooth.ADV_DEV_CLASS Bluetooth.ADV_SERVICE_DATA Bluetooth.ADV_APPEARANCE Bluetooth.ADV_ADV_INT Bluetooth.ADV_32SERVICE_DATA Bluetooth.ADV_128SERVICE_DATA Bluetooth.ADV_MANUFACTURER_DATA Characteristic properties (bit values that can be combined) Bluetooth.PROP_BROADCAST Bluetooth.PROP_READ Bluetooth.PROP_WRITE_NR Bluetooth.PROP_WRITE Bluetooth.PROP_NOTIFY Bluetooth.PROP_INDICATE Bluetooth.PROP_AUTH Bluetooth.PROP_EXT_PROP Characteristic callback events Bluetooth.CHAR_READ_EVENT Bluetooth.CHAR_WRITE_EVENT Bluetooth.NEW_ADV_EVENT Bluetooth.CLIENT_CONNECTED Bluetooth.CLIENT_DISCONNECTED Bluetooth.CHAR_NOTIFY_EVENT Antenna type Bluetooth.INT_ANT Bluetooth.EXT_ANT...
-
Page 306: Gatt
5.2.2.3 Bluetooth Generic Attribute GATT stands for the Generic Attribute Profile and it defines the way that two Bluetooth Low Energy devices communicate between each other using concepts called Services and Characteristics. GATT uses a data protocol known as the Attribute Protocol (ATT), which is used to store/manage Services, Characteristics and related data in a lookup table. GATT comes into use once a connection is established between two devices, meaning that the device will have already gone through the advertising process managed by GAP. It’s important to remember that this connection is exclusive; i.e. that only one client is connected to one server at a time. This means that the client will stop advertising once a connection has been made. This remains the case, until the connection is broken or disconnected. The GATT Server, which holds the ATT lookup data and service and characteristic definitions, and the GATT Client (the phone/tablet), which sends requests to this server. -
Page 307: Gattcconnection
5.2.2.3 Bluetooth class GATTCConnection The GATT Client is the device that requests data from the server, otherwise known as the master device (commonly this might be a phone/tablet/PC). All transactions are initiated by the master, which receives a response from the slave. connection.disconnect() Closes the BLE connection. Returns None connection.isconnected() Returns if the connection is still open. otherwise. True False Example: from network import Bluetooth import ubinascii bluetooth = Bluetooth() # scan until we can connect to any BLE device around bluetooth.start_scan(-1) adv = None while True: adv = bluetooth.get_adv() if adv: try: bluetooth.connect(adv.mac) except: # start scanning again bluetooth.start_scan(-1) continue break print("Connected to device with addr = {}".format(ubinascii.hexlify(adv.mac))) connection.services() Performs a service search on the connected BLE peripheral (server) a returns a list containing objects of the class GATTCService if the search succeeds. Example:... - Page 308 5.2.2.3 Bluetooth # assuming that a BLE connection is already open services = connection.services() print(services) for service in services: print(service.uuid())
-
Page 309: Gattcservice
5.2.2.3 Bluetooth class GATTCService Services are used to categorise data up into specific chunks of data known as characteristics. A service may have multiple characteristics, and each service has a unique numeric ID called a UUID. The following class allows control over Client services. service.isprimary() Returns if the service is a primary one. otherwise. True False service.uuid() Returns the UUID of the service. In the case of 16-bit or 32-bit long UUIDs, the value returned is an integer, but for 128-bit long UUIDs the value returned is a bytes object. service.instance() Returns the instance ID of the service. service.characteristics() Performs a get characteristics request on the connected BLE peripheral a returns a list containing objects of the class GATTCCharacteristic if the request succeeds. -
Page 310: Gattccharacteristic
5.2.2.3 Bluetooth class GATTCCharacteristic The smallest concept in GATT is the Characteristic, which encapsulates a single data point (though it may contain an array of related data, such as X/Y/Z values from a 3-axis accelerometer, longitude and latitude from a GPS, etc.). The following class allows you to manage characteristics from a Client. characteristic.uuid() Returns the UUID of the service. In the case of 16-bit or 32-bit long UUIDs, the value returned is an integer, but for 128-bit long UUIDs the value returned is a bytes object. characteristic.instance() Returns the instance ID of the service. characteristic.properties() Returns an integer indicating the properties of the characteristic. Properties are represented by bit values that can be OR-ed together. See the constants section for more details. characteristic.read() Read the value of the characteristic, sending a request to the GATT server. Returns a bytes object representing the characteristic value. characteristic.value() Returns the locally stored value of the characteristic without sending a read request to the GATT server. If the characteristic value hasn't been read from the GATT server yet, the value returned will be 0. characteristic.write(value) Writes the given value on the characteristic. For now it only accepts bytes object representing the value to be written. characteristic.write(b'x0f') characteristic.callback(trigger=None, handler=None, arg=None) This method allows to register for notifications on the characteristic. - Page 311 5.2.2.3 Bluetooth can must be Bluetooth.CHAR_NOTIFY_EVENT. trigger is the function that will be executed when the callback is triggered. handler is the argument that gets passed to the callback. If nothing is given, the arg characteristic object that owns the callback will be used.
-
Page 312: Gattsservice
5.2.2.3 Bluetooth class GATTSService The GATT Server allows the device to act as a peripheral and hold its own ATT lookup data, server & characteristic definitions. In this mode, the device acts as a slave and a master must initiate a request. Services are used to categorise data up into specific chunks of data known as characteristics. A service may have multiple characteristics, and each service has a unique numeric ID called a UUID. The following class allows control over Server services. service.start() Starts the service if not already started. service.stop() Stops the service if previously started. service.characteristic(uuid, * , permissions, properties, value) Creates a new characteristic on the service. Returns an object of the class GATTSCharacteristic. The arguments are: is the UUID of the service. Can take an integer or a 16 byte long string or bytes uuid object. configures the permissions of the characteristic. Takes an integer with a permissions combination of the flags. sets the properties. Takes an integer with an OR-ed combination of the properties flags. sets the initial value. Can take an integer, a string or a bytes object. value service.characteristic('temp', value=25) -
Page 313: Gattscharacteristic
5.2.2.3 Bluetooth class GATTSCharacteristic The smallest concept in GATT is the Characteristic, which encapsulates a single data point (though it may contain an array of related data, such as X/Y/Z values from a 3-axis accelerometer, longitude and latitude from a GPS, etc.). The following class allows you to manage Server characteristics. characteristic.value([value]) Gets or sets the value of the characteristic. Can take an integer, a string or a bytes object. characteristic.value(123) # set characteristic value to an integer with the value 123 characteristic.value() # get characteristic value characteristic.callback(trigger=None, handler=None, arg=None) Creates a callback that will be executed when any of the triggers occurs. The arguments are: can be either Bluetooth.CHAR_READ_EVENT or trigger Bluetooth.CHAR_WRITE_EVENT. is the function that will be executed when the callback is triggered. handler is the argument that gets passed to the callback. If nothing is given, the arg characteristic object that owns the callback will be used. An example of how this could be implemented can be seen in the characteristic.events() section. characteristic.events() Returns a value with bit flags identifying the events that have occurred since the last call. Calling this function clears the events. An example of advertising and creating services on the device:... - Page 314 5.2.2.3 Bluetooth from network import Bluetooth bluetooth = Bluetooth() bluetooth.set_advertisement(name='LoPy', service_uuid=b'1234567890123456') def conn_cb (bt_o): events = bt_o.events() if events & Bluetooth.CLIENT_CONNECTED: print("Client connected") elif events & Bluetooth.CLIENT_DISCONNECTED: print("Client disconnected") bluetooth.callback(trigger=Bluetooth.CLIENT_CONNECTED | Bluetooth.CLIENT_DISCONNECTED, handler=conn_cb) bluetooth.advertise(True) srv1 = bluetooth.service(uuid=b'1234567890123456', isprimary=True) chr1 = srv1.characteristic(uuid=b'ab34567890123456', value=5) char1_read_counter = 0 def char1_cb_handler(chr): global char1_read_counter char1_read_counter += 1 events = chr.events() if events & Bluetooth.CHAR_WRITE_EVENT: print("Write request with value = {}".format(chr.value())) else: if char1_read_counter < 3: print('Read request on char 1') else: return 'ABC DEF' char1_cb = chr1.callback(trigger=Bluetooth.CHAR_WRITE_EVENT | Bluetooth.CHAR_READ_EVEN T, handler=char1_cb_handler) srv2 = bluetooth.service(uuid=1234, isprimary=True) chr2 = srv2.characteristic(uuid=4567, value=0x1234) char2_read_counter = 0xF0 def char2_cb_handler(chr): global char2_read_counter char2_read_counter += 1 if char2_read_counter > 0xF1: return char2_read_counter char2_cb = chr2.callback(trigger=Bluetooth.CHAR_READ_EVENT, handler=char2_cb_handler)
- Page 315 5.2.2.3 Bluetooth...
-
Page 316: Lora
5.2.2.4 LoRa class LoRa This class provides a LoRaWAN 1.0.2 compliant driver for the LoRa network processor in the LoPy and FiPy. Below is an example demonstrating LoRaWAN Activation by Personalisation usage: from network import LoRa import socket import ubinascii import struct # Initialise LoRa in LORAWAN mode. # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) # create an ABP authentication params dev_addr = struct.unpack(">l", binascii.unhexlify('00000005'))[0] nwk_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') app_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') # join a network using ABP (Activation By Personalisation) lora.join(activation=LoRa.ABP, auth=(dev_addr, nwk_swkey, app_swkey)) # create a LoRa socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) # set the LoRaWAN data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # make the socket non-blocking s.setblocking(False) # send some data s.send(bytes([0x01, 0x02, 0x03])) # get any data received... data = s.recv(64) print(data) Please ensure that there is an antenna connected to your device before sending/receiving LoRa messages as improper use (e.g. without an antenna), may damage the device. - Page 317 5.2.2.4 LoRa Additional Examples For various other complete LoRa examples, check here for additional examples. Constructors class network.LoRa(id=0, ...) Create and configure a LoRa object. See init for params of configuration. lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) Methods lora.init(mode, * ,region=LoRa.EU868, frequency=868000000, tx_power=14, bandwidth=LoRa.BW_125KHZ, sf=7, preamble=8, coding_rate=LoRa.CODING_4_5, power_mode=LoRa.ALWAYS_ON, tx_iq=False, rx_iq=False, adr=False, public=True, tx_retries=1, device_class=LoRa.CLASS_A) This method is used to set the LoRa subsystem configuration and to specific raw LoRa or LoRaWAN. The arguments are: can be either LoRa.LORA or LoRa.LORAWAN. mode can take the following values: LoRa.AS923, LoRa.AU915, LoRa.EU868 or region LoRa.US915. If not provided this will default to . If they are not specified, this LoRaEU868 will also set appropriate defaults for and frequency tx_power accepts values between 863000000 and 870000000 in the 868 band, or frequency between 902000000 and 928000000 in the 915 band. is the transmit power in dBm. It accepts between 2 and 14 for the 868 band, tx_power and between 5 and 20 in the 915 band. is the channel bandwidth in KHz. In the 868 band the accepted values are bandwidth LoRa.BW_125KHZ and LoRa.BW_250KHZ. In the 915 band the accepted values are LoRa.BW_125KHZ and LoRa.BW_500KHZ. sets the desired spreading factor. Accepts values between 7 and 12. sf configures the number of pre-amble symbols. The default value is 8. preamble can take the following values: LoRa.CODING_4_5, LoRa.CODING_4_6, coding_rate LoRa.CODING_4_7 or LoRa.CODING_4_8.
- Page 318 5.2.2.4 LoRa ALWAYS_ON mode, the radio is always listening for incoming - packets whenever a transmission is not taking place. In TX_ONLY the radio goes to sleep as soon as the transmission completes. In SLEEP mode the radio is sent to sleep permanently and won’t accept any commands until the power mode is changed. enables TX IQ inversion. tx_iq enables RX IQ inversion. rx_iq enables Adaptive Data Rate. adr selects between the public and private sync word. public sets the number of TX retries in LoRa.LORAWAN mode. tx_retries sets the LoRaWAN device class. Can be either LoRa.CLASS_A or device_class LoRa.CLASS_C. In LoRa.LORAWAN mode, only and are adr public tx_retries device_class used. All the other params will be ignored as they are handled by the LoRaWAN stack directly. On the other hand, in LoRa.LORA mode from those 4 arguments, only the public one is important in order to program the sync word. In LoRa.LORA mode adr and are ignored since they are only relevant to the tx_retries device_class LoRaWAN stack. For example, you can do: # initialize in raw LoRa mode lora.init(mode=LoRa.LORA, tx_power=14, sf=12) # initialize in LoRaWAN mode lora.init(mode=LoRa.LORAWAN) lora.join(activation, auth, * ,timeout=None, dr=None) Join a LoRaWAN network. Internally the stack will automatically retry every 15 seconds until a Join Accept message is received.
- Page 319 5.2.2.4 LoRa : is an optional value to specify the initial data rate for the Join Request. Possible dr values are 0 to 5 for EU868, or 0 to 4 for US915. In the case of LoRa.OTAA the authentication tuple is: where (dev_eui, app_eui, app_key) is optional. If it is not provided the LoRa MAC will be used. Therefore, you can do dev_eui OTAA in 2 different ways: lora.join(activation=LoRa.OTAA, auth=(app_eui, app_key), timeout=0) # the device MAC address is used as DEV_EUI lora.join(activation=LoRa.OTAA, auth=(dev_eui, app_eui, app_key), timeout=0) # a custo m DEV_EUI is specified Example: from network import LoRa import socket import time import ubinascii # Initialise LoRa in LORAWAN mode. # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) # create an OTAA authentication parameters app_eui = ubinascii.unhexlify('ADA4DAE3AC12676B') app_key = ubinascii.unhexlify('11B0282A189B75B0B4D2D8C7FA38548B') # join a network using OTAA (Over the Air Activation) lora.join(activation=LoRa.OTAA, auth=(app_eui, app_key), timeout=0) # wait until the module has joined the network while not lora.has_joined(): time.sleep(2.5) print('Not yet joined...') In the case of LoRa.ABP the authentication tuple is: (dev_addr, nwk_swkey, app_swkey) Example:...
- Page 320 5.2.2.4 LoRa from network import LoRa import socket import ubinascii import struct # Initialise LoRa in LORAWAN mode. # Please pick the region that matches where you are using the device: # Asia = LoRa.AS923 # Australia = LoRa.AU915 # Europe = LoRa.EU868 # United States = LoRa.US915 lora = LoRa(mode=LoRa.LORAWAN, region=LoRa.EU868) # create an ABP authentication params dev_addr = struct.unpack(">l", ubinascii.unhexlify('00000005'))[0] nwk_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') app_swkey = ubinascii.unhexlify('2B7E151628AED2A6ABF7158809CF4F3C') # join a network using ABP (Activation By Personalisation) lora.join(activation=LoRa.ABP, auth=(dev_addr, nwk_swkey, app_swkey)) lora.bandwidth([bandwidth]) Get or set the bandwidth in raw LoRa mode (LoRa.LORA). Can be either LoRa.BW_125KHZ (0), LoRa.BW_250KHZ (1) or LoRa.BW_500KHZ (2): # get raw LoRa Bandwidth lora.bandwidth() # set raw LoRa Bandwidth lora.bandwidth(LoRa.BW_125KHZ) lora.frequency([frequency]) Get or set the frequency in raw LoRa mode (LoRa.LORA). The allowed range is between 863000000 and 870000000 Hz for the 868 MHz band version or between 902000000 and 928000000 Hz for the 915 MHz band version. # get raw LoRa Frequency lora.frequency() # set raw LoRa Frequency lora.frequency(868000000) lora.coding_rate([coding_rate])
- Page 321 5.2.2.4 LoRa Get or set the coding rate in raw LoRa mode (LoRa.LORA). The allowed values are: LoRa.CODING_4_5 (1), LoRa.CODING_4_6 (2), LoRa.CODING_4_7 (3) and LoRa.CODING_4_8 (4). # get raw LoRa Coding Rate lora.coding_rate() # set raw LoRa Coding Rate lora.coding_rate(LoRa.CODING_4_5) lora.preamble([preamble]) Get or set the number of preamble symbols in raw LoRa mode (LoRa.LORA): # get raw LoRa preamble symbols lora.preamble() # set raw LoRa preamble symbols lora.preamble(LoRa.CODING_4_5) lora.sf([sf]) Get or set the spreading factor value in raw LoRa mode (LoRa.LORA). The minimum value is 7 and the maximum is 12: # get raw LoRa spread factor value lora.sf() # set raw LoRa spread factor value lora.sf(7) lora.power_mode([power_mode]) Get or set the power mode in raw LoRa mode (LoRa.LORA). The accepted values are: LoRa.ALWAYS_ON, LoRa.TX_ONLY and LoRa.SLEEP: lora.stats() Return a named tuple with useful information from the last received LoRa or LoRaWAN packet. The named tuple has the following form: (rx_timestamp, rssi, snr, sftx, sfrx, tx_trials, tx_power, tx_time_on_air, tx_counter, tx_frequency) Example:...
- Page 322 5.2.2.4 LoRa lora.stats() Where: is an internal timestamp of the last received packet with microseconds rx_timestamp precision. holds the received signal strength in dBm. rssi contains the signal to noise ratio id dB (as a single precision float). snr tells the data rate (in the case of LORAWAN mode) or the spreading factor (in the sfrx case of LORA mode) of the last packet received. tells the data rate (in the case of LORAWAN mode) or the spreading factor (in the sftx case of LORA mode) of the last packet transmitted. is the number of tx attempts of the last transmitted packet (only relevant for tx_trials LORAWAN confirmed packets). is the power of the last transmission (in dBm). tx_power is the time on air of the last transmitted packet (in ms). tx_time_on_air is the number of packets transmitted. tx_counter is the frequency used for the last transmission. tx_frequency lora.has_joined() Returns if a LoRaWAN network has been joined. otherwise.: True False lora.add_channel(index, * , frequency, dr_min, dr_max) Add a LoRaWAN channel on the specified . If there’s already a channel with that index index it will be replaced with the new one. The arguments are: : Index of the channel to add. Accepts values between 0 and 15 for EU and index between 0 and 71 for US.
- Page 323 5.2.2.4 LoRa Removes the channel from the specified . On the 868MHz band the channels 0 to 2 index cannot be removed, they can only be replaced by other channels using the lora.add_channel method. A way to remove all channels except for one is to add the same channel, 3 times on indexes 0, 1 and 2. An example can be seen below: lora.remove_channel() On the 915MHz band there are no restrictions around this. lora.mac() Returns a byte object with the 8-Byte MAC address of the LoRa radio. lora.callback(trigger, handler=None, arg=None) Specify a callback handler for the LoRa radio. The types are trigger LoRa.RX_PACKET_EVENT, LoRa.TX_PACKET_EVENT and LoRa.TX_FAILED_EVENT The LoRa.RX_PACKET_EVENT event is raised for every received packet. The LoRa.TX_PACKET_EVENT event is raised as soon as the packet transmission cycle ends, which includes the end of the receive windows (even if a downlink is received, the LoRa.TX_PACKET_EVENT will come last). In the case of non-confirmed transmissions, this will occur at the end of the receive windows, but, in the case of confirmed transmissions, this event will only be raised if the is received. If the is not received ack ack LoRa.TX_FAILED_EVENT will be raised after the number of configured have tx_retries been performed. An example of how this callback functions can be seen the in method lora.events(). lora.ischannel_free(rssi_threshold) This method is used to check for radio activity on the current LoRa channel, and if the rssi of the measured activity is lower than the given, the return value will be rssi_threshold , otherwise . Example: True False lora.ischannel_free(-100) lora.set_battery_level(level)
- Page 324 5.2.2.4 LoRa means that the end-device is connected to an external power source. 0 specifies the battery level, 1 being at minimum and 254 being at maximum. 1..254 means that the end-device was not able to measure the battery level. 255 lora.set_battery_level(127) # 50% battery lora.events() This method returns a value with bits sets (if any) indicating the events that have triggered the callback. Please note that by calling this function the internal events registry is cleared automatically, therefore calling it immediately for a second time will most likely return a value of 0. Example: def lora_cb(lora): events = lora.events() if events & LoRa.RX_PACKET_EVENT: print('Lora packet received') if events & LoRa.TX_PACKET_EVENT: print('Lora packet sent') lora.callback(trigger=(LoRa.RX_PACKET_EVENT | LoRa.TX_PACKET_EVENT), handler=lora_cb) lora.nvram_save() Save the LoRaWAN state (joined status, network keys, packet counters, etc) in non-volatile memory in order to be able to restore the state when coming out of deepsleep or a power cycle. lora.nvram_save() lora.nvram_restore() Restore the LoRaWAN state (joined status, network keys, packet counters, etc) from non- volatile memory. State must have been previously stored with a call to before nvram_save entering deepsleep. This is useful to be able to send a LoRaWAN message immediately after coming out of deepsleep without having to join the network again. This can only be used if the current region matches the one saved. lora.nvram_restore() lora.nvram_erase()
- Page 325 5.2.2.4 LoRa Remove the LoRaWAN state (joined status, network keys, packet counters, etc) from non- volatile memory. lora.nvram_erase() Constants LoRa.LORA LoRa.LORAWAN LoRa stack mode LoRa.OTAA LoRa.ABP LoRaWAN join procedure LoRa.ALWAYS_ON LoRa.TX_ONLY LoRa.SLEEP Raw LoRa power mode LoRa.BW_125KHZ LoRa.BW_250KHZ LoRa.BW_500KHZ Raw LoRa bandwidth LoRa.CODING_4_5 LoRa.CODING_4_6 LoRa.CODING_4_7 LoRa.CODING_4_8 Raw LoRa coding rate LoRa.RX_PACKET_EVENT LoRa.TX_PACKET_EVENT LoRa.TX_FAILED_EVENT Callback trigger types (may be ORed) LoRa.CLASS_A LoRa.CLASS_C LoRaWAN device class LoRa.AS923 LoRa.AU915 LoRa.EU868 LoRa.US915 LoRaWAN regions Working with LoRa and LoRaWAN Sockets LoRa sockets are created in the following way: import socket s = socket.socket(socket.AF_LORA, socket.SOCK_RAW) And they must be created after initialising the LoRa network card. LoRa sockets support the following standard methods from the socket module: socket.close() Usage: s.close() socket.bind(port_number) Usage:...
- Page 326 5.2.2.4 LoRa s.bind(1) The bind() method is only applicable when the radio is configured in LoRa.LORAWAN mode. socket.send(bytes) Usage: s.send(bytes([1, 2, 3])) s.send('Hello') socket.recv(bufsize) Usage: s.recv(128) socket.recvfrom(bufsize) This method is useful to know the destination port number of the message received. Returns a tuple of the form: (data, port) Usage: s.recvfrom(128) socket.setsockopt(level, optname, value) Set the value of the given socket option. The needed symbolic constants are defined in the socket module ( etc.). In the case of LoRa the values are always integers. Examples: SO_*...
- Page 327 5.2.2.4 LoRa # configuring the data rate s.setsockopt(socket.SOL_LORA, socket.SO_DR, 5) # selecting non-confirmed type of messages s.setsockopt(socket.SOL_LORA, socket.SO_CONFIRMED, False) # selecting confirmed type of messages s.setsockopt(socket.SOL_LORA, socket.SO_CONFIRMED, True) Socket options are only applicable when the LoRa radio is used in LoRa.LORAWAN mode. When using the radio in LoRa.LORA mode, use the class methods to change the spreading factor, bandwidth and coding rate to the desired values. socket.settimeout(value) Sets the socket timeout value in seconds. Accepts floating point values. Usage: s.settimeout(5.5) socket.setblocking(flag) Usage: s.setblocking(True)
- Page 328 5.2.2.5 Sigfox class Sigfox Sigfox is a Low Power Wide Area Network protocol that enables remote devices to connect using ultra-narrow band, UNB technology. The protocol is bi-directional, messages can both be sent up to and down from the Sigfox servers. When operating in and the module can only send messages on the default RCZ2 RCZ4 macro-channel (this is due to Sigfox network limitations). Therefore, the device needs to reset automatically to the default macro-channel after every 2 transmissions. However, due to FCC duty cycle limitations, there must a minimum of a 20s delay after resetting to the default macro-channel. Our API takes care of this, (and in real life applications you should not be in the need to send Sigfox messages that often), so it will wait for the necessary amount of time to make sure that the duty cycle restrictions are fulfilled. This means that if you run a piece of test code like: for i in range(1, 100): # send something s.send('Hello ' + str(i)) There will be a 20 second delay after every 2 packets. This class provides a driver for the Sigfox network processor in the Sigfox enabled Pycom devices. Quick Usage Example...
- Page 329 5.2.2.5 Sigfox from network import Sigfox import socket # init Sigfox for RCZ1 (Europe) sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1) # create a Sigfox socket s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) # make the socket blocking s.setblocking(True) # configure it as uplink only s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, False) # send some bytes s.send(bytes([1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12])) Please ensure that there is an antenna connected to your device before sending/receiving Sigfox messages as in proper use (e.g. without an antenna), may damage the device. Constructors class network.Sigfox(id=0, ...) Create and configure a Sigfox object. See init for params of configuration. Examples: # configure radio for the Sigfox network, using RCZ1 (868 MHz) sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1) # configure radio for FSK, device to device across 912 MHz sigfox = Sigfox(mode=Sigfox.FSK, frequency=912000000) Methods sigfox.init(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1, * , frequency=None) Set the Sigfox radio configuration. The arguments are: can be either Sigfox.SIGFOX or Sigfox.FSK. Sigfox.SIGFOX uses the Sigfox mode modulation and protocol while Sigfox.FSK allows to create point to point communication...
- Page 330 5.2.2.5 Sigfox between 2 Devices using FSK modulation. takes the following values: Sigfox.RCZ1, Sigfox.RCZ2, Sigfox.RCZ3, rcz Sigfox.RCZ4. The argument is only required if the mode is Sigfox.SIGFOX. rcz sets the frequency value in mode. Can take values between 863 and frequency FSK 928 MHz. The SiPy comes in 2 different hardware flavours: a +14dBm Tx power version which can only work with and and a +22dBm version which works exclusively on RCZ1 RCZ3 and RCZ2 RCZ4 sigfox.mac() Returns a byte object with the 8-Byte MAC address of the Sigfox radio. sigfox.id() Returns a byte object with the 4-Byte bytes object with the Sigfox ID. sigfox.rssi() Returns a signed integer with indicating the signal strength value of the last received packet. sigfox.pac() Returns a byte object with the 8-Byte bytes object with the Sigfox PAC. To return human-readable values you should import and convert binary ubinascii values to hexidecimal representation. For example: print(ubinascii.hexlify(sigfox.mac())) sigfox.frequencies() Returns a tuple of the form: (uplink_frequency_hz, downlink_frequency_hz) sigfox.public_key([public]) Sets or gets the public key flag. When called passing a value the Sigfox public key True will be used to encrypt the packets. Calling it without arguments returns the state of the flag.
- Page 331 5.2.2.5 Sigfox # enable encrypted packets sigfox.public_key(True) # return state of public_key sigfox.public_key() Constants sigfox.SIGFOX sigfox.FSK Sigfox radio mode. SIGFOX to specify usage of the Sigfox Public Network. to specify device to device communication. FSK sigfox.RCZ1 sigfox.RCZ2 sigfox.RCZ3 sigfox.RCZ4 Sigfox zones. to specify Europe, Oman & South Africa. RCZ1 for the USA, Mexico & Brazil. RCZ3 for Japan. RCZ2 for Australia, New Zealand, Singapore, Taiwan, Hong Kong, Colombia & RCZ4 Argentina. Working with Sigfox Sockets Sigfox sockets are created in the following way: import socket s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) And they must be created after initialising the Sigfox network card. Sigfox sockets support the following standard methods from the module: socket socket.close() Use it to close an existing socket. socket.send(bytes) In Sigfox mode the maximum data size is 12 bytes. In FSK the maximum is 64. # send a Sigfox payload of bytes s.send(bytes([1, 2, 3])) # send a Sigfox payload containing a string s.send('Hello') socket.recv(bufsize)
- Page 332 5.2.2.5 Sigfox This method can be used to receive a Sigfox downlink or FSK message. # size of buffer should be passed for expected payload, e.g. 64 bytes s.recv(64) socket.setsockopt(level, optname, value) Set the value of the given socket option. The needed symbolic constants are defined in the socket module ( etc.). In the case of Sigfox the values are always an integer. SO_* Examples: # wait for a downlink after sending the uplink packet s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, True) # make the socket uplink only s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, False) # use the socket to send a Sigfox Out Of Band message s.setsockopt(socket.SOL_SIGFOX, socket.SO_OOB, True) # disable Out-Of-Band to use the socket normally s.setsockopt(socket.SOL_SIGFOX, socket.SO_OOB, False) # select the bit value when sending bit only packets s.setsockopt(socket.SOL_SIGFOX, socket.SO_BIT, False) Sending a Sigfox packet with a single bit is achieved by sending an empty string, i.e.: import socket s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) # send a 1 bit s.setsockopt(socket.SOL_SIGFOX, socket.SO_BIT, True) s.send('') socket.settimeout(value) # set timeout for the socket, e.g. 5 seconds s.settimeout(5.0) socket.setblocking(flag) # specifies if socket should be blocking based upon Boolean flag. s.setblocking(True) If the socket is set to blocking, your code will be wait until the socket completes sending/receiving. Sigfox Downlink...
-
Page 333: Sigfox
5.2.2.5 Sigfox A Sigfox capable Pycom devices (SiPy) can both send and receive data from the Sigfox network. To receive data, a message must first be sent up to Sigfox, requesting a downlink message. This can be done by passing a argument into the method. True setsockopt() s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, True) An example of the downlink procedure can be seen below: # init Sigfox for RCZ1 (Europe) sigfox = Sigfox(mode=Sigfox.SIGFOX, rcz=Sigfox.RCZ1) # create a Sigfox socket s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) # make the socket blocking s.setblocking(True) # configure it as DOWNLINK specified by 'True' s.setsockopt(socket.SOL_SIGFOX, socket.SO_RX, True) # send some bytes and request DOWNLINK s.send(bytes([1, 2, 3])) # await DOWNLINK message s.recv(32) Sigfox FSK (Device to Device) To communicate between two Sigfox capable devices, it may be used in FSK mode. Two devices are required to be set to the same frequency, both using FSK. Device 1: sigfox = Sigfox(mode=Sigfox.FSK, frequency=868000000) s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) s.setblocking(True) while True: s.send('Device-1') time.sleep(1) print(s.recv(64)) Device 2:... - Page 334 5.2.2.5 Sigfox sigfox = Sigfox(mode=Sigfox.FSK, frequency=868000000) s = socket.socket(socket.AF_SIGFOX, socket.SOCK_RAW) s.setblocking(True) while True: s.send('Device-2') time.sleep(1) print(s.recv(64)) Remember to use the correct frequency for your region (868 MHz for Europe, 912 MHz for USA, etc.)
-
Page 335: Lte
5.2.2.6 LTE class LTE The LTE class provides access to the LTE-M/NB-IoT modem on the GPy and FiPy. LTE- M/NB-IoT are new categories of cellular protocols developed by the 3GPP and optimised for long battery life power and longer range. These are new protocols currently in the process of being deployed by mobile networks across the world. The GPy and FiPy support both new LTE-M protocols: Cat-M1: also known as LTE-M defines a 1.4 MHz radio channel size and about 375 kbps of throughput. It is optimised for coverage and long battery life, outperforming 2G/GPRS, while being similar to previous LTE standards. Cat-NB1 also known as NB-IoT, defines a 200 kHz radio channel size and around 60 kbps of uplink speed. It's optimised for ultra low throughput and specifically designed for IoT devices with a very long battery life. NB-IoT shares some features with LTE such as operating in licensed spectrum, but it's a very different protocol. It should be noted that NB-IoT has many restrictions as does not offer full IP connectivity and does not support mobility. When moving between cells, you will need to reconnect. Please note: The GPy and FiPy only support the two protocols above and are not compatible with older LTE standards. The Sequans modem used on Pycom's cellular enabled modules can only work in one of these modes at a time. In order to switch between the two protocols you need to flash a different firmware to the Sequans modem. Instructions for this can be found here. AT Commands The AT commands for the Sequans Monarch modem on the GPy/FiPy are available in a PDF file. Constructors class network.LTE(id=0, ...) Create and configure a LTE object. See init for params of configuration. - Page 336 5.2.2.6 LTE from network import LTE lte = LTE() Methods lte.init(*, carrier=None) This method is used to set up the LTE subsystem. After a this method can take deinit() several seconds to return waiting for the LTE modem to start-up. Optionally specify a carrier name. The available options are: is generic for any verizon, at&t, standard standard carrier, and it's also the option used when no arguments are given. lte.deinit() Disables LTE modem completely. This reduces the power consumption to the minimum. Call this before entering deepsleep. lte.attach(*, band=None) Enable radio functionality and attach to the LTE Cat M1 network authorised by the inserted SIM card. Optionally specify the band to scan for networks. If no band (or ) is None specified, all 6 bands will be scanned. The possible values for the band are: 3, 4, 12, 13, 20 and 28 lte.isattached() Returns if the cellular mode is attached to the network. otherwise. True False lte.dettach() Detach the modem from the LTE Cat M1 and disable the radio functionality. lte.connect(*, cid=1) Start a data session and obtain and IP address. Optionally specify a CID (Connection ID) for the data session. The arguments are: - `cid` is a Connection ID. This is carrier specific, for Verizon use `cid=3`. For oth ers like Telstra it should be `cid=1`. For instance, to attach and connect to Verizon:...
- Page 337 5.2.2.6 LTE import time from network import LTE lte = LTE(carrier="verizon") lte.attach(band=13) while not lte.isattached(): time.sleep(0.5) print('Attaching...') lte.connect(cid=3) while not lte.isconnected(): time.sleep(0.5) print('Connecting...') # Now use sockets as usual... lte.isconnected() Returns if there is an active LTE data session and IP address has been obtained. True otherwise. False lte.disconnect() End the data session with the network. lte.send_at_cmd(cmd) Send an AT command directly to the modem. Returns the raw response from the modem as a string object. IMPORTANT: If a data session is active (i.e. the modem is connected), sending the AT commands requires to pause and then resume the data session. This is all done automatically, but makes the whole request take around 2.5 seconds. Example: lte.send_at_cmd('AT+CEREG?') # check for network registration manually (sames as lt e.isattached()) Optionally the response can be parsed for pretty printing: def send_at_cmd_pretty(cmd): response = lte.send_at_cmd(cmd).split('\r\n') for line in response: print(line) send_at_cmd_pretty('AT!="showphy"') # get the PHY status send_at_cmd_pretty('AT!="fsm"') # get the System FSM...
- Page 338 5.2.2.6 LTE lte.imei() Returns a string object with the IMEI number of the LTE modem. lte.iccid() Returns a string object with the ICCID number of the SIM card. lte.reset() Perform a hardware reset on the cellular modem. This function can take up to 5 seconds to return as it waits for the modem to shutdown and reboot.
-
Page 339: Aes
5.2.3 AES class AES - Advanced Encryption Standard AES (Advanced Encryption Standard) is a symmetric block cipher standardised by NIST. It has a fixed data block size of 16 bytes. Its keys can be 128, 192, or 256 bits long. AES is implemented using the ESP32 hardware module. Quick Usage Example from crypto import AES import crypto key = b'notsuchsecretkey' # 128 bit (16 bytes) key iv = crypto.getrandbits(128) # hardware generated random IV (never reuse it) cipher = AES(key, AES.MODE_CFB, iv) msg = iv + cipher.encrypt(b'Attack at dawn') # ... after properly sent the encrypted message somewhere ... cipher = AES(key, AES.MODE_CFB, msg[:16]) # on the decryption side original = cipher.decrypt(msg[16:]) print(original) Constructors class ucrypto.AES(key, mode, IV, * , counter, segment_size) Create an AES object that will let you encrypt and decrypt messages. The arguments are: (byte string) is the secret key to use. It must be 16 (AES-128), 24 (AES-192), or key 32 (AES-256) bytes long. is the chaining mode to use for encryption and decryption. Default is mode AES.MODE_ECB. (byte string) initialisation vector. Should be 16 bytes long. It is ignored in modes IV AES.MODE_ECB and AES.MODE_CRT. (byte string) used only for AES.MODE_CTR. Should be 16 bytes long. Should counter not be reused. - Page 340 5.2.3 AES is the number of bits and are segmented in. Is segment_size plaintext ciphertext only used in AES.MODE_CFB. Supported values are AES.SEGMENT_8 and AES.SEGMENT_128. Methods ucrypto.encrypt() Encrypt data with the key and the parameters set at initialisation. ucrypto.decrypt() Decrypt data with the key and the parameters set at initialisation. Constants AES.MODE_ECB Electronic Code Book. Simplest encryption mode. It does not hide data patterns well (see this article for more info). AES.MODE_CBC Cipher-Block Chaining. An Initialisation Vector (IV) is required. AES.MODE_CFB Cipher feedback. and are processed in segments of plaintext ciphertext segment_size bits. Works a stream cipher. AES.MODE_CTR Counter mode. Each message block is associated to a counter which must be unique across all messages that get encrypted with the same key. AES.SEGMENT_8 AES.SEGMENT_128 Length of the segment for AES.MODE_CFB. To avoid security issues, IV should always be a random number and should never be reused to encrypt two different messages. The same applies to the counter in CTR mode. You can use crypto.getrandbits() for this purpose.
-
Page 341: Pycom
5.2.4 pycom pycom – Pycom Device Features The module contains functions to control specific features of the Pycom devices, pycom such as the heartbeat RGB LED. Quick Usage Example import pycom pycom.heartbeat(False) # disable the heartbeat LED pycom.heartbeat(True) # enable the heartbeat LED pycom.heartbeat() # get the heartbeat state pycom.rgbled(0xff00) # make the LED light up in green color Functions pycom.heartbeat([enable]) Get or set the state (enabled or disabled) of the heartbeat LED. Accepts and returns boolean values ( or True False pycom.heartbeat_on_boot([enable]) Allows you permanently disable or enable the heartbeat LED. Once this setting is set, it will persist between reboots. Note, this only comes into effect on the next boot, it does not stop the already running heartbeat. pycom.rgbled(color) Set the colour of the RGB LED. The colour is specified as 24 bit value representing red, green and blue, where the red colour is represented by the 8 most significant bits. For instance, passing the value will light up the LED in a very bright green. 0x00FF00 pycom.nvs_set(key, value) Set the value of the specified key in the NVRAM memory area of the external flash. Data stored here is preserved across resets and power cycles. Value can only take 32-bit integers at the moment. Example:... - Page 342 5.2.4 pycom import pycom pycom.nvs_set('temp', 25) pycom.nvs_set('count', 10) pycom.nvs_get(key) Get the value the specified key from the NVRAM memory area of the external flash. Example: import pycom pulses = pycom.nvs_get('count') If a non-existing key is given the returned value will be None pycom.nvs_erase(key) Erase the given key from the NVRAM memory area. pycom.nvs_erase_all() Erase the entire NVRAM memory area. pycom.wifi_on_boot([enable]) Get or set the WiFi on boot flag. When this flag is set to , the AP with the default SSID True for example) will be enabled as part of the boot process. If the flag is set to lopy-wlan-xxx False, the module will boot with WiFi disabled until it's enabled by the script via the WLAN class. This setting is stored in non-volatile memory which preserves it across resets and power cycles. Example: import pycom pycom.wifi_on_boot(True) # enable WiFi on boot pycom.wifi_on_boot() # get the wifi on boot flag pycom.wdt_on_boot([enable]) Enables the WDT at boot time with the timeout in ms set by the function . If this flag is set, the application needs to reconfigure the WDT with a wdt_on_boot_timeout new timeout and feed it regularly to avoid a reset.
- Page 343 5.2.4 pycom import pycom pycom.wdt_on_boot(True) # enable WDT on boot pycom.wdt_on_boot() # get the WDT on boot flag pycom.wdt_on_boot_timeout([timeout]) Sets or gets the WDT on boot timeout in milliseconds. The minimum value is 5000 ms. import pycom pycom.wdt_on_boot_timeout(10000) # set the timeout to 5000ms pycom.wdt_on_boot_timeout() # get the WDT timeout value pycom.pulses_get(pin, timeout) Return a list of pulses at . The methods scans for transitions at and returns a list pin pin of tuples, each telling the pin value and the duration in microseconds of that value. is a pin pin object, which must have set to or mode. The scan stops if not INP OPEN_DRAIN transitions occurs within milliseconds. timeout Example: # get the raw data from a DHT11/DHT22/AM2302 sensor from machine import Pin from pycom import pulses_get from time import sleep_ms pin = Pin("G7", mode=Pin.OPEN_DRAIN) pin(0) sleep_ms(20) pin(1) data = pulses_get(pin, 100) pycom.ota_start() pycom.ota_write(buffer) pycom.ota_finish() Perform a firmware update. These methods are internally used by a firmware update though FTP. The update starts with a call to...
- Page 344 5.2.4 pycom active. shall hold the image data to be written, in arbitrary sizes. A block size of buffer 4096 is recommended. Example: # Firmware update by reading the image from the SD card from pycom import ota_start, ota_write, ota_finish from os import mount from machine import SD BLOCKSIZE = const(4096) APPIMG = "/sd/appimg.bin" sd = SD() mount(sd, '/sd') with open(APPIMG, "rb") as f: buffer = bytearray(BLOCKSIZE) mv = memoryview(buffer) size=0 ota_start() while True: chunk = f.readinto(buffer) if chunk > 0: ota_write(mv[:chunk]) size += chunk print("\r%7d " % size, end="") else: break ota_finish() Instead of reading the data to be written from a file, it can obviously also be received from a server using any suitable protocol, without the need to store it in the devices file system.
- Page 345 5.3 MicroPython Modules Micropython libraries The following list contains the standard Python libraries, MicroPython-specific libraries and Pycom specific modules that are available on the Pycom devices. The standard Python libraries have been "micro-ified" to fit in with the philosophy of MicroPython. They provide the core functionality of that module and are intended to be a drop-in replacement for the standard Python library. Some modules are available by an u-name, and also by their non-u-name. The non-u- name can be overridden by a file of that name in your package path. For example, will first search for a file or directory and load that import json json.py json package if it's found. If nothing is found, it will fallback to loading the built-in ujson module.
-
Page 346: Micropython Modules
5.3.1 micropython class micropython – MicroPython Internals Controls Functions micropython.alloc_emergency_exception_buf(size) Allocate size bytes of RAM for the emergency exception buffer (a good size is around 100 bytes). The buffer is used to create exceptions in cases when normal RAM allocation would fail (eg within an interrupt handler) and therefore give useful traceback information in these situations. A good way to use this function is to place it at the start of a main script (e.g. boot.py ) and then the emergency exception buffer will be active for all the code following it. main.py micropython.const(expr) Used to declare that the expression is a constant so that the compile can optimise it. The use of this function should be as follows: from micropython import const CONST_X = const(123) CONST_Y = const(2 * CONST_X + 1) Constants declared this way are still accessible as global variables from outside the module they are declared in. On the other hand, if a constant begins with an underscore then it is hidden, it is not available as a global variable, and does not take up any memory during execution. This const function is recognised directly by the MicroPython parser and is provided as part of the module mainly so that scripts can be written which run under both micropython CPython and MicroPython, by following the above pattern. micropython.opt_level([level]) is given then this function sets the optimisation level for subsequent compilation of level scripts, and returns . Otherwise it returns the current optimisation level. None micropython.mem_info([verbose]) - Page 347 5.3.1 micropython Print information about currently used memory. If the argument is given then extra verbose information is printed. The information that is printed is implementation dependent, but currently includes the amount of stack and heap used. In verbose mode it prints out the entire heap indicating which blocks are used and which are free. micropython.qstr_info([verbose]) Print information about currently interned strings. If the argument is given then verbose extra information is printed. The information that is printed is implementation dependent, but currently includes the number of interned strings and the amount of RAM they use. In verbose mode it prints out the names of all RAM-interned strings. micropython.stack_use() Return an integer representing the current amount of stack that is being used. The absolute value of this is not particularly useful, rather it should be used to compute differences in stack usage at different points. micropython.heap_lock() micropython.heap_unlock() Lock or unlock the heap. When locked no memory allocation can occur and a MemoryError will be raised if any heap allocation is attempted. These functions can be nested, i.e. can be called multiple times in a row and heap_lock() the lock-depth will increase, and then must be called the same number of heap_unlock() times to make the heap available again. micropython.kbd_intr(chr) Set the character that will raise a exception. By default this is set to 3 KeyboardInterrupt during script execution, corresponding to . Passing to this function will disable Ctrl-C -1 capture of , and passing...
- Page 348 5.3.2 uctypes uctypes – Access Binary Data in a Structured Format This module implements "foreign data interface" for MicroPython. The idea behind it is similar to CPython’s modules, but the actual API is different, streamlined and ctypes optimised for small size. The basic idea of the module is to define data structure layout with about the same power as the C language allows, and the access it using familiar dot-syntax to reference sub-fields. Module ustruct Standard Python way to access binary data structures (doesn’t scale well to large and complex structures). Defining Structure Layout Structure layout is defined by a "descriptor" - a Python dictionary which encodes field names as keys and other properties required to access them as associated values. Currently, requires explicit specification of offsets for each field. Offset are given in bytes from uctypes a structure start. Following are encoding examples for various field types: Scalar types: "field_name": uctypes.UINT32 | 0 In other words, value is scalar type identifier OR-ed with field offset (in bytes) from the start of the structure. Recursive structures: "sub": (2, { "b0": uctypes.UINT8 | 0, "b1": uctypes.UINT8 | 1, I.e. value is a 2-tuple, first element of which is offset, and second is a structure descriptor dictionary (note: offsets in recursive descriptors are relative to a structure it defines). Arrays of Primitive Types:...
- Page 349 5.3.2 uctypes "arr": (uctypes.ARRAY | 0, uctypes.UINT8 | 2), I.e. value is a 2-tuple, first element of which is ARRAY flag OR-ed with offset, and second is scalar element type OR-ed number of elements in array. Arrays of Aggregate Types: "arr2": (uctypes.ARRAY | 0, 2, {"b": uctypes.UINT8 | 0}), I.e. value is a 3-tuple, first element of which is ARRAY flag OR-ed with offset, second is a number of elements in array, and third is descriptor of element type. Pointer to a primitive type: "ptr": (uctypes.PTR | 0, uctypes.UINT8), I.e. value is a 2-tuple, first element of which is PTR flag OR-ed with offset, and second is scalar element type. Pointer to an aggregate type: "ptr2": (uctypes.PTR | 0, {"b": uctypes.UINT8 | 0}), I.e. value is a 2-tuple, first element of which is PTR flag OR-ed with offset, second is descriptor of type pointed to. Bitfields: "bitf0": uctypes.BFUINT16 | 0 | 0 << uctypes.BF_POS | 8 << uctypes.BF_LEN, I.e. value is type of scalar value containing given bitfield (typenames are similar to scalar types, but prefixes with "BF"), OR-ed with offset for scalar value containing the bitfield, and further OR-ed with values for bit offset and bit length of the bitfield within scalar value, shifted by BF_POS and BF_LEN positions, respectively. Bitfield position is counted from the least significant bit, and is the number of right-most bit of a field (in other words, it’s a number of bits a scalar needs to be shifted right to extra the bitfield). In the example above, first value will be extracted at offset 0 (this detail may be UINT16 important when accessing hardware registers, where particular access size and alignment are required), and then bitfield whose rightmost bit is least-significant bit of this , and UINT16...
- Page 350 5.3.2 uctypes length is 8 bits, will be extracted - effectively, this will access least-significant byte of UINT16 Note that bitfield operations are independent of target byte endianness, in particular, example above will access least-significant byte of in both little- and big-endian UINT16 structures. But it depends on the least significant bit being numbered 0. Some targets may use different numbering in their native ABI, but always uses normalised numbering uctypes described above. Module Contents class uctypes.struct(addr, descriptor, layout_type=NATIVE) Instantiate a "foreign data structure" object based on structure address in memory, descriptor (encoded as a dictionary), and layout type (see below). uctypes.LITTLE_ENDIAN Layout type for a little-endian packed structure. (Packed means that every field occupies exactly as many bytes as defined in the descriptor, i.e. the alignment is 1). uctypes.BIG_ENDIAN Layout type for a big-endian packed structure. uctypes.NATIVE Layout type for a native structure - with data endianness and alignment conforming to the ABI of the system on which MicroPython runs. uctypes.sizeof(struct) Return size of data structure in bytes. Argument can be either structure class or specific instantiated structure object (or its aggregate field). uctypes.addressof(obj) Return address of an object. Argument should be bytes, or other object bytearray supporting buffer protocol (and address of this buffer is what actually returned). uctypes.bytes_at(addr, size) Capture memory at the given address and size as bytes object. As bytes object is immutable, memory is actually duplicated and copied into bytes object, so if memory contents change later, created object retains original value.
- Page 351 5.3.2 uctypes uctypes.bytearray_at(addr, size) Capture memory at the given address and size as object. Unlike bytearray bytes_at() function above, memory is captured by reference, so it can be both written too, and you will access current value at the given memory address. Structure Descriptors and Instantiating Structure Objects Given a structure descriptor dictionary and its layout type, you can instantiate a specific structure instance at a given memory address using uctypes.struct() constructor. Memory address usually comes from following sources: Predefined address, when accessing hardware registers on a baremetal system. Lookup these addresses in datasheet for a particular MCU/SoC. As a return value from a call to some FFI (Foreign Function Interface) function. From uctypes.addressof(), when you want to pass arguments to an FFI function, or alternatively, to access some data for I/O (for example, data read from a file or network socket). Structure objects Structure objects allow accessing individual fields using standard dot notation: . If a field is of scalar type, getting it will produce a primitive my_struct.substruct1.field1 value (Python integer or float) corresponding to the value contained in a field. A scalar field can also be assigned to. If a field is an array, its individual elements can be accessed with the standard subscript operator - both read and assigned to. [] If a field is a pointer, it can be dereferenced using syntax (corresponding to C [0] * operator, though works in C too). Subscripting a pointer with other integer values but 0 [0] are supported too, with the same semantics as in C. Summing up, accessing structure fields generally follows C syntax, except for pointer dereference, when you need to use operator instead of [0] * Limitations Accessing non-scalar fields leads to allocation of intermediate objects to represent them.
-
Page 352: Uctypes
5.3.2 uctypes Avoid nested structures. For example, instead of , define separate layout descriptors for each mcu_registers.peripheral_a.register1 peripheral, to be accessed as peripheral_a.register1 Avoid other non-scalar data, like array. For example, instead of use peripheral_a.register[0] peripheral_a.register0 Note that these recommendations will lead to decreased readability and conciseness of layouts, so they should be used only if the need to access structure fields without allocation is anticipated (it’s even possible to define 2 parallel layouts - one for normal usage, and a restricted one to use when memory allocation is prohibited). - Page 353 5.3.3 sys sys – System Specific Functions Functions sys.exit(retval=0) Terminate current program with a given exit code. Underlyingly, this function raise as exception. If an argument is given, its value given as an argument to SystemExit SystemExit sys.print_exception(exc, file=sys.stdout) Print exception with a traceback to a file-like object file (or by default). sys.stdout Difference to CPython This is simplified version of a function which appears in the traceback module in CPython. Unlike , this function takes just exception value traceback.print_exception() instead of exception type, exception value, and traceback object; file argument should be positional; further arguments are not supported. CPython-compatible traceback module can be found in micropython-lib Constants sys.argv A mutable list of arguments the current program was started with. sys.byteorder The byte order of the system ("little" or "big"). sys.implementation Object with information about the current Python implementation. For MicroPython, it has following attributes: name - string "micropython" version - tuple (major, minor, micro), e.g. (1, 7, 0) This object is the recommended way to distinguish MicroPython from other Python implementations (note that it still may not exist in the very minimal ports). Difference to CPython...
-
Page 354: Sys
5.3.3 sys CPython mandates more attributes for this object, but the actual useful bare minimum is implemented in MicroPython. sys.maxsize Maximum value which a native integer type can hold on the current platform, or maximum value representable by MicroPython integer type, if it’s smaller than platform max value (that is the case for MicroPython ports without long int support). This attribute is useful for detecting "bitness" of a platform (32-bit vs 64-bit, etc.). It’s recommended to not compare this attribute to some value directly, but instead count number of bits in it: bits = 0 v = sys.maxsize while v: bits += 1 v >>= 1 if bits > 32: # 64-bit (or more) platform else: # 32-bit (or less) platform # Note that on 32-bit platform, value of bits may be less than 32 # (e.g. 31) due to peculiarities described above, so use "> 16", # "> 32", "> 64" style of comparisons. sys.modules Dictionary of loaded modules. On some ports, it may not include builtin modules. sys.path A mutable list of directories to search for imported modules. sys.platform The platform that MicroPython is running on. For OS/RTOS ports, this is usually an identifier of the OS, e.g. . For baremetal ports, it is an identifier of a board, e.g. for linux pyboard the original MicroPython reference board. It thus can be used to distinguish one board from another. If you need to check whether your program runs on MicroPython (vs other Python implementation), use instead. sys.implementation sys.stderr Standard error stream. sys.stdin Standard input stream. - Page 355 5.3.3 sys sys.stdout Standard output stream. sys.version Python language version that this implementation conforms to, as a string. sys.version_info Python language version that this implementation conforms to, as a tuple of ints.
-
Page 356: Uos
5.3.4 uos uos – Basic "Operating System" Services The module contains functions for filesystem access and function. uos urandom Port Specifics The filesystem has as the root directory and the available physical drives are accessible / from here. They are currently: – the internal flash filesystem /flash – the SD card (if it exists) /sd Functions uos.uname() Return information about the system, firmware release version, and MicroPython interpreter version. uos.chdir(path) Change current directory. uos.getcwd() Get the current directory. uos.listdir([dir]) With no argument, list the current directory. Otherwise list the given directory. uos.mkdir(path) Create a new directory. uos.remove(path) Remove a file. uos.rmdir(path) Remove a directory. - Page 357 5.3.4 uos uos.rename(old_path, new_path) Rename a file. uos.stat(path) Get the status of a file or directory. The return value is a tuple with the following 10 values, in order: : protection bits. st_mode number. (not implemented, returns 0) st_ino inode : device. (not implemented, returns 0) st_dev : number of hard links. (not implemented, returns 0) st_nlink : user id of owner. (not implemented, returns 0) st_uid : group id of owner. (not implemented, returns 0) st_gid : size of file in bytes. st_size : time of most recent access. st_atime : time of most recent content modification. st_mtime : time of most recent metadata change. st_ctime uos.getfree(path) Returns the free space (in KiB) in the drive specified by path. uos.sync() Sync all filesystems. uos.urandom(n) Return a bytes object with n random bytes. uos.unlink(path) Alias for the method. remove() uos.mount(block_device, mount_point, * , readonly=False) Mounts a block device (like an SD object) in the specified mount point. Example: os.mount(sd, '/sd') uos.unmount(path) Unmounts a previously mounted block device from the given path.
- Page 358 5.3.4 uos uos.mkfs(block_device or path) Formats the specified path, must be either or . A block device can also be /flash /sd passed like an SD object before being mounted. uos.dupterm(stream_object) Duplicate the terminal (the REPL) on the passed stream-like object. The given object must at least implement the and methods. read() write() Constants uos.sep Separation character used in paths...
-
Page 359: Array
5.3.5 array array – Arrays of Numeric Data See Python array for more information. Supported format codes: (the latter 2 depending on the b, B, h, H, i, I, l, L, q, Q, f, d floating-point support). Classes class array.array(typecode[, iterable]) Create array with elements of given type. Initial contents of the array are given by an iterable. If it is not provided, an empty array is created. array.append(val) Append new element to the end of array, growing it. array.extend(iterable) Append new elements as contained in an iterable to the end of array, growing it. -
Page 360: Cmath
5.3.6 cmath cmath – Mathematical Functions for Complex Numbers The module provides some basic mathematical functions for working with complex cmath numbers. Floating point support required for this module. Functions cmath.cos(z) Return the cosine of z cmath.exp(z) Return the exponential of z cmath.log(z) Return the natural logarithm of . The branch cut is along the negative real axis. z cmath.log10(z) Return the base-10 logarithm of . The branch cut is along the negative real axis. z cmath.phase(z) Returns the phase of the number , in the range (-pi, +pi). z cmath.polar(z) Returns, as a tuple, the polar form of z cmath.rect(r, phi) Returns the complex number with modulus and phase r phi cmath.sin(z) Return the sine of z cmath.sqrt(z) Return the square-root of z... - Page 361 5.3.6 cmath Constants cmath.e Base of the natural logarithm cmath.pi The ratio of a circle’s circumference to its diameter...
-
Page 362: Math
5.3.7 math math – Mathematical Functions The math module provides some basic mathematical functions for working with floating-point numbers. Floating point support required for this module. Functions math.acos(x) Return the inverse cosine of x math.acosh(x) Return the inverse hyperbolic cosine of x math.asin(x) Return the inverse sine of x math.asinh(x) Return the inverse hyperbolic sine of x math.atan(x) Return the inverse tangent of x math.atan2(y, x) Return the principal value of the inverse tangent of y/x math.atanh(x) Return the inverse hyperbolic tangent of x math.ceil(x) Return an integer, being x rounded towards positive infinity. math.copysign(x, y) Return x with the sign of y math.cos(x) - Page 363 5.3.7 math Return the cosine of x math.cosh(x) Return the hyperbolic cosine of x math.degrees(x) Return radians converted to degrees. x math.erf(x) Return the error function of x math.erfc(x) Return the complementary error function of x math.exp(x) Return the exponential of x math.expm1(x) Return exp(x) - 1 math.fabs(x) Return the absolute value of x math.floor(x) Return an integer, being rounded towards negative infinity. x math.fmod(x, y) Return the remainder of x/y math.frexp(x) Decomposes a floating-point number into its mantissa and exponent. The returned value is the tuple such that exactly. If then the function returns (m, e) x == m * 2**e x == 0 , otherwise the relation holds.
- Page 364 5.3.7 math math.isfinite(x) Return if is finite. True x math.isinf(x) Return if is infinite. True x math.isnan(x) Return if is not-a-number True x math.ldexp(x, exp) Return x * (2**exp) math.lgamma(x) Return the natural logarithm of the gamma function of x math.log(x) Return the natural logarithm of x math.log10(x) Return the base-10 logarithm of x math.log2(x) Return the base-2 logarithm of x math.modf(x) Return a tuple of two floats, being the fractional and integral parts of . Both return values x have the same sign as x math.pow(x, y) Returns to the power of...
- Page 365 5.3.7 math math.sinh(x) Return the hyperbolic sine of x math.sqrt(x) Return the square root of x math.tan(x) Return the tangent of x math.tanh(x) Return the hyperbolic tangent of x math.trunc(x) Return an integer, being rounded towards x 0 Constants math.e Base of the natural logarithm math.pi The ratio of a circle’s circumference to its diameter...
- Page 366 5.3.8 gc gc – Garbage Collector Functions gc.enable() Enable automatic garbage collection. gc.disable() Disable automatic garbage collection. Heap memory can still be allocated, and garbage collection can still be initiated manually using gc.collect(). gc.collect() Run a garbage collection. gc.mem_alloc() Return the number of bytes of heap RAM that are allocated. gc.mem_free() Return the number of bytes of available heap RAM.
-
Page 367: Ubinascii
5.3.9 ubinascii ubinascii – Binary/ASCII Conversions This module implements conversions between binary data and various encodings of it in ASCII form (in both directions). Functions ubinascii.hexlify(data[, sep]) Convert binary data to hexadecimal representation. Returns bytes string. Difference to CPython If additional argument, is supplied, it is used as a separator between hexadecimal sep values. ubinascii.unhexlify(data) Convert hexadecimal data to binary representation. Returns bytes string. (i.e. inverse of hexlify ubinascii.a2b_base64(data) Convert Base64-encoded data to binary representation. Returns bytes string. ubinascii.b2a_base64(data) Encode binary data in Base64 format. Returns string. -
Page 368: Ujson
5.3.10 ujson ujson – JSON Encoding and Decoding This modules allows to convert between Python objects and the JSON data format. Functions ujson.dumps(obj) Return represented as a JSON string. obj ujson.loads(str) Parse the JSON and return an object. Raises if the string is not correctly str ValueError formed. ujson.load(fp) Parse contents of (a -supporting file-like object containing a JSON document). fp .read() Raises if the content is not correctly formed. ValueError... -
Page 369: Ure
5.3.11 ure ure – regular expressions This module implements regular expression operations. Regular expression syntax supported is a subset of CPython re module (and actually is a subset of POSIX extended regular expressions). Supported operators are: Match any character. Match set of characters. Individual characters and ranges are . [] supported. Counted repetitions , more advanced assertions, named groups, etc. are not ({m,n}) supported. Functions ure.compile(regex) Compile regular expression, return regex object ure.match(regex, string) Match regex against . Match always happens from starting position in a string. string ure.search(regex, string) Search regex in a string. Unlike match, this will search string for first position which matches regex (which still may be 0 if regex is anchored). ure.DEBUG Flag value, display debug information about compiled expression. Regex objects... - Page 370 5.3.11 ure Compiled regular expression. Instances of this class are created using ure.compile() regex.match(string) regex.search(string) regex.split(string, max_split=-1) Match objects Match objects as returned by and methods. match() search() match.group([index]) Only numeric groups are supported.
-
Page 371: Usocket
5.3.12 usocket usocket – Socket Module This module provides access to the BSD socket interface. See corresponding CPython module for comparison. Socket Address Format(s) Functions below which expect a network address, accept it in the format of (ipv4_address, , where is a string with dot-notation numeric IPv4 address, e.g. port) ipv4_address , and port is integer port number in the range 1-65535. Note the domain names are 8.8.8.8 not accepted as , they should be resolved first using ipv4_address socket.getaddrinfo() Functions socket.socket(socket.AF_INET, socket.SOCK_STREAM, socket.IPPROTO_TCP) Create a new socket using the given address family, socket type and protocol number. socket.getaddrinfo(host, port) Translate the host/port argument into a sequence of 5-tuples that contain all the necessary arguments for creating a socket connected to that service. The list of 5-tuples has following structure: The following example shows how to connect (family, type, proto, canonname, sockaddr) to a given url: s = socket.socket() s.connect(socket.getaddrinfo('www.micropython.org', 80)[0][-1]) Exceptions socket.error socket.timeout Constants socket.AF_INET socket.AF_LORA Family types... - Page 372 5.3.12 usocket socket.SOCK_STREAM socket.SOCK_DGRAM socket.SOCK_RAW Socket types socket.IPPROTO_UDP socket.IPPROTO_TCP Socket protocols socket.SOL_SOCKET socket.SOL_LORA socket.SOL_SIGFOX Socket options layers socket.SO_REUSEADDR IP socket options socket.SO_CONFIRMED socket.SO_DR LoRa socket options socket.SO_RX socket.SO_TX_REPEAT socket.SO_OOB socket.SO_BIT Sigfox socket options class Socket Methods socket.close() Mark the socket closed. Once that happens, all future operations on the socket object will fail. The remote end will receive no more data (after queued data is flushed). Sockets are automatically closed when they are garbage-collected, but it is recommended to them explicitly, or to use a with statement around them. close() socket.bind(address) Bind the to . The socket must not already be bound. The socket address address parameter must be a tuple containing the IP address and the port. In the case of LoRa sockets, the address parameter is simply an integer with the port number, for instance: s.bind(1)
- Page 373 5.3.12 usocket socket.listen([backlog]) Enable a server to accept connections. If backlog is specified, it must be at least 0 (if it’s lower, it will be set to 0); and specifies the number of unaccepted connections that the system will allow before refusing new connections. If not specified, a default reasonable value is chosen. socket.accept() Accept a connection. The socket must be bound to an address and listening for connections. The return value is a pair where is a new socket object usable to (conn, address) conn send and receive data on the connection, and is the address bound to the socket address on the other end of the connection. socket.connect(address) Connect to a remote socket at address socket.send(bytes) Send data to the socket. The socket must be connected to a remote socket. socket.sendall(bytes) Alias of socket.send(bytes) socket.recv(bufsize) Receive data from the socket. The return value is a bytes object representing the data received. The maximum amount of data to be received at once is specified by bufsize socket.sendto(bytes, address) Send data to the socket. The socket should not be connected to a remote socket, since the destination socket is specified by address. socket.recvfrom(bufsize) Receive data from the socket. The return value is a pair where (bytes, address) bytes a bytes object representing the data received and is the address of the socket address sending the data.
- Page 374 5.3.12 usocket Set the value of the given socket option. The needed symbolic constants are defined in the socket module ( etc.). The value can be an integer or a bytes-like object representing SO_* a buffer. socket.settimeout(value) Set a timeout on blocking socket operations. The value argument can be a nonnegative floating point number expressing seconds, or . If a non-zero value is given, None subsequent socket operations will raise a timeout exception if the timeout period value has elapsed before the operation has completed. If zero is given, the socket is put in non- blocking mode. If None is given, the socket is put in blocking mode. socket.setblocking(flag) Set blocking or non-blocking mode of the socket: if flag is false, the socket is set to non- blocking, else to blocking mode. This method is a shorthand for certain calls: settimeout() sock.setblocking(True) is equivalent to sock.settimeout(None) sock.setblocking(False) is equivalent to sock.settimeout(0.0) socket.makefile(mode='rb') Return a file object associated with the socket. The exact returned type depends on the arguments given to makefile(). The support is limited to binary modes only ( and rb wb CPython’s arguments: , and are not supported. encoding errors newline The socket must be in blocking mode; it can have a timeout, but the file object’s internal buffer may end up in a inconsistent state if a timeout occurs. Difference to CPython Closing the file object returned by WILL close the original socket as well. makefile() socket.read(size) Read up to size bytes from the socket. Return a bytes object. If is not given, it...
- Page 375 5.3.12 usocket socket.readinto(buf[, nbytes]) Read bytes into the . If is specified then read at most that many bytes. buf nbytes Otherwise, read at most bytes. len(buf) Return value: number of bytes read and stored into buf socket.readline() Read a line, ending in a newline character. Return value: the line read. socket.write(buf) Write the buffer of bytes to the socket. Return value: number of bytes written.
- Page 376 5.3.13 select select – Wait for Events on a Set of Streams This module provides functions to wait for events on streams (select streams which are ready for operations). Pyboard specifics Polling is an efficient way of waiting for read/write activity on multiple objects. Current objects that support polling are: pyb.UART, pyb.USB_VCP. Functions select.poll() Create an instance of the class. Poll select.select(rlist, wlist, xlist[, timeout]) Wait for activity on a set of objects. This function is provided for compatibility and is not efficient. Usage of Poll recommended instead. class Poll Methods poll.register(obj[, eventmask]) Register for polling. is logical OR of: obj eventmask - data available for reading select.POLLIN - more data can be written select.POLLOUT - error occurred select.POLLERR - end of stream/connection termination detected defaults to select.POLLHUP eventmask select.POLLIN | select.POLLOUT poll.unregister(obj) Unregister from polling. obj...
-
Page 377: Select
5.3.13 select poll.modify(obj, eventmask) Modify the for eventmask obj poll.poll([timeout]) Wait for at least one of the registered objects to become ready. Returns list of ( obj event ...) tuples, element specifies which events happened with a stream and is a event combination of constants described above. There may be other elements in select.POLL* tuple, depending on a platform and version, so don’t assume that its size is 2. In case of timeout, an empty list is returned. Timeout is in milliseconds. -
Page 378: Utime
5.3.14 utime utime – Time Functions The module provides functions for getting the current time and date, measuring time utime intervals, and for delays. Time Epoch: Pycom’s ESP32 port uses standard for POSIX systems epoch of 1970-01-01 00:00:00 UTC Maintaining actual calendar date/time This requires a Real Time Clock (RTC). On systems with underlying OS (including some RTOS), an RTC may be implicit. Setting and maintaining actual calendar time is responsibility of OS/RTOS and is done outside of MicroPython, it just uses OS API to query date/time. On baremetal ports however system time depends on object. The machine.RTC() current calendar time may be set using function, and machine.RTC().datetime(tuple) maintained by following means: By a backup battery (which may be an additional, optional component for a particular board). Using networked time protocol (requires setup by a port/user). Set manually by a user on each power-up (many boards then maintain RTC time across hard resets, though some may require setting it again in such case). If actual calendar time is not maintained with a system/MicroPython RTC, functions below which require reference to current absolute time may behave not as expected. Functions utime.gmtime([secs]) Convert a time expressed in seconds since the Epoch (see above) into an 8-tuple which contains: If is not (year, month, mday, hour, minute, second, weekday, yearday) secs provided or , then the current time from the RTC is used. None includes the century (for example 2014). year... - Page 379 5.3.14 utime is 1-366 yearday utime.localtime([secs]) Like but converts to local time. If is not provided or , the current time gmtime() secs None from the RTC is used. utime.mktime() This is inverse function of . It’s argument is a full 8-tuple which expresses a time localtime as per . It returns an integer which is the number of seconds since localtime Jan 1, 2000 utime.sleep(seconds) Sleep for the given number of can be a floating-point number to sleep seconds seconds for a fractional number of seconds. Note that other MicroPython ports may not accept floating-point argument, for compatibility with them use and sleep_ms() sleep_us() functions. utime.sleep_ms(ms) Delay for given number of milliseconds, should be positive or 0. utime.sleep_us(us) Delay for given number of microseconds, should be positive or 0 utime.ticks_ms() Returns uptime, in milliseconds. utime.ticks_us() Just like above, but in microseconds. ticks_ms utime.ticks_cpu() Same as...
- Page 380 5.3.14 utime measure arbitrarily long periods of time (because functions wrap around and ticks_*() usually would have short period). The expected usage pattern is implementing event polling with timeout: # Wait for GPIO pin to be asserted, but at most 500us start = time.ticks_us() while pin.value() == 0: if time.ticks_diff(start, time.ticks_us()) > 500: raise TimeoutError utime.time() Returns the number of seconds, as an integer, since the Epoch, assuming that underlying RTC is set. If an RTC is not set, this function returns number of seconds since power up or reset). If you want to develop portable MicroPython application, you should not rely on this function to provide higher than second precision. If you need higher precision, use and functions, if you need calendar time, without an ticks_ms() ticks_us() localtime() argument is a better choice. utime.timezone([secs]) Set or get the timezone offset, in seconds. If is not provided, it returns the current secs value. In MicroPython, works the opposite way to Python. In Python, to get the time.timezone local time, you write , while in MicroPython it is local_time = utc - timezone local_time = utc + timezone...
-
Page 381: Uhashlib
5.3.15 uhashlib uhashlib – Hashing Algorithm This module implements binary data hashing algorithms. MD5 and SHA are supported. By limitations in the hardware, only one active hashing operation is supported at a time. Constructors class uhashlib.md5([data]) Create a MD5 hasher object and optionally feed data into it. class uhashlib.sha1([data]) Create a SHA-1 hasher object and optionally feed data into it. class uhashlib.sha224([data]) Create a SHA-224 hasher object and optionally feed data into it. class uhashlib.sha256([data]) Create a SHA-256 hasher object and optionally feed data into it. class uhashlib.sha384([data]) Create a SHA-384 hasher object and optionally feed data into it. class uhashlib.sha512([data]) Create a SHA-512 hasher object and optionally feed data into it. Methods hash.update(data) Feed more binary data into hash. hash.digest() Return hash for all data passed through hash, as a bytes object. After this method is called, more data cannot be fed into hash any longer. hash.hexdigest() - Page 382 5.3.15 uhashlib This method is NOT implemented. Use to achieve a ubinascii.hexlify(hash.digest()) similar effect.
-
Page 383: Ussl
5.3.16 ussl ussl – ssl module This module provides access to Transport Layer Security (often known as "Secure Sockets Layer") encryption and peer authentication facilities for network sockets, both client-side and server-side. Functions ssl.wrap_socket(sock, keyfile=None, certfile=None, server_side=False, cert_reqs=CERT_NONE, ca_certs=None) Takes an instance of , and returns an instance of ssl.SSLSocket, a sock socket.socket subtype of , which wraps the underlying socket in an SSL context. Example: socket.socket import socket import ssl s = socket.socket() ss = ssl.wrap_socket(s) ss.connect(socket.getaddrinfo('www.google.com', 443)[0][-1]) Certificates must be used in order to validate the other side of the connection, and also to authenticate ourselves with the other end. Such certificates must be stored as files using the FTP server, and they must be placed in specific paths with specific names. For instance, to connect to the Blynk servers using certificates, take the file located ca.pem in the examples folder and put it in . Then do: blynk /flash/cert/ import socket import ssl s = socket.socket() ss = ssl.wrap_socket(s, cert_reqs=ssl.CERT_REQUIRED, ca_certs='/flash/cert/ca.pem') ss.connect(socket.getaddrinfo('cloud.blynk.cc', 8441)[0][-1]) SSL sockets inherit all methods and from the standard sockets, see the module. usocket Exceptions ssl.SSLError Constants... - Page 384 5.3.16 ussl ssl.CERT_NONE ssl.CERT_OPTIONAL ssl.CERT_REQUIRED Supported values in cert_reqs...
-
Page 385: Ucrypto
5.3.17 ucrypto ucrypto — Cryptography This module provides native support for cryptographic algorithms. It’s loosely based on PyCrypto. Classes class AES - Advanced Encryption Standard Methods crypto.getrandbits(bits) Returns a bytes object filled with random bits obtained from the hardware random number generator. According to the ESP32 Technical Reference Manual, such bits "... can be used as the basis for cryptographical operations". "These true random numbers are generated based on the noise in the Wi-Fi/BT RF system. When Wi-Fi and BT are disabled, the random number generator will give out pseudo-random numbers." The parameter is rounded upwards to the nearest multiple of 32 bits. bits Cryptography is not a trivial business. Doing things the wrong way could quickly result in decreased or no security. Please document yourself in the subject if you are depending on encryption to secure important information. -
Page 386: Ustruct
5.3.18 ustruct ustruct – Pack and Unpack Primitive Data Types See Python struct for more information. Supported size/byte order prefixes: @, <, >, ! Supported format codes: (the latter 2 depending b, B, h, H, i, I, l, L, q, Q, s, P, f, d on the floating-point support). Functions ustruct.calcsize(fmt) Return the number of bytes needed to store the given fmt ustruct.pack(fmt, v1, v2, ...) Pack the values according to the format string . The return value is a v1, v2, ... fmt bytes object encoding the values. ustruct.pack_into(fmt, buffer, offset, v1, v2, ...) Pack the values according to the format string into a buffer starting at v1, v2, ... fmt may be negative to count from the end of buffer. offset offset ustruct.unpack(fmt, data) Unpack from the according to the format string . The return value is a tuple of the data fmt unpacked values. ustruct.unpack_from(fmt, data, offset=0) Unpack from the starting at according to the format string may data... - Page 387 5.3.19 _thread thread - Low-level Threading API This module provides low-level primitives for working with multiple threads (also called light- weight processes or tasks) — multiple threads of control sharing their global data space. For synchronisation, simple locks (also called mutexes or binary semaphores) are provided. When a thread specific error occurs a exception is raised. RuntimeError Quick Usage Example import _thread import time def th_func(delay, id): while True: time.sleep(delay) print('Running thread %d' % id) for i in range(2): _thread.start_new_thread(th_func, (i + 1, i)) Functions _thread.start_new_thread(function, args[, kwargs]) Start a new thread and return its identifier. The thread executes the function with the argument list args (which must be a tuple). The optional argument specifies a kwargs dictionary of keyword arguments. When the function returns, the thread silently exits. When the function terminates with an unhandled exception, a stack trace is printed and then the thread exits (but other threads continue to run). _thread.exit() Raise the exception. When not caught, this will cause the thread to exit silently. SystemExit _thread.allocate_lock() Return a new lock object. Methods of locks are described below. The lock is initially unlocked. _thread.get_ident()
- Page 388 5.3.19 _thread Return the of the current thread. This is a nonzero integer. Its value has thread identifier no direct meaning; it is intended as a magic cookie to be used e.g. to index a dictionary of thread-specific data. Thread identifiers may be recycled when a thread exits and another thread is created. _thread.stack_size([size]) Return the thread stack size (in bytes) used when creating new threads. The optional size argument specifies the stack size to be used for subsequently created threads, and must be (use platform or configured default) or a positive integer value of at least (4KiB). 0 4096 4KiB is currently the minimum supported stack size value to guarantee sufficient stack space for the interpreter itself. Objects _thread.LockType This is the type of lock objects. class Lock – used for synchronisation between threads Methods Lock objects have the following methods: lock.acquire(waitflag=1, timeout=-1) Without any optional argument, this method acquires the lock unconditionally, if necessary waiting until it is released by another thread (only one thread at a time can acquire a lock — that’s their reason for existence). If the integer argument is present, the action depends on its value: if it is zero, the waitflag lock is only acquired if it can be acquired immediately without waiting, while if it is nonzero, the lock is acquired unconditionally as above. If the floating-point timeout argument is present and positive, it specifies the maximum wait time in seconds before returning. A negative timeout argument specifies an unbounded wait. You cannot specify a timeout if is zero. waitflag The return value is if the lock is acquired successfully, if not. True False lock.release() Releases the lock. The lock must have been acquired earlier, but not necessarily by the...
-
Page 389: Thread
5.3.19 _thread lock.locked() Return the status of the lock: if it has been acquired by some thread, if not. True False In addition to these methods, lock objects can also be used via the with statement, e.g.: import _thread a_lock = _thread.allocate_lock() with a_lock: print("a_lock is locked while this executes") -
Page 390: Builtin
5.3.20 Builtin Builtin Functions All builtin functions are described here. They are also available via builtins module. abs() all() any() bin() class bool class bytearray class bytes callable() chr() class method() compile() - Page 391 5.3.20 Builtin class complex class dict dir() divmod() enumerate() eval() exec() filter() class float class frozenset getattr() globals()
- Page 392 5.3.20 Builtin hasattr() hash() hex() id() input() class int isinstance() issubclass() iter() len() class list locals() map()
- Page 393 5.3.20 Builtin max() class memoryview min() next() class object oct() open() ord() pow() print() property() range()
- Page 394 5.3.20 Builtin repr() reversed() round() class set setattr() sorted() staticmethod() class str sum() super() class tuple type() zip()
- Page 395 5.3.20 Builtin...
-
Page 396: Product Info Pages
6.0 Introduction Product Info pages The follow pages contain all information relating to each product, for examples: pinouts, spec sheets, relevant examples and notes. Development Modules WiPy 2.0 WiPy 3.0 SiPy LoPy LoPy4 FiPy OEM modules L01/W01 Reference Board Universal Reference Board Shields and Expansion boards Expansion Board 2.0 Pysense Pytrack Deep Sleep Shield... - Page 397 6.1 Development Modules Development Devices This section contains all of the datasheets for the Pycom Development Devices. This includes the WiPy 2.0 and 3.0, LoPy, LoPy 4, SiPy, GPy, and FiPy.
-
Page 398: Wipy 2.0
6.1.1 WiPy 2.0 WiPy 2.0 Store: Discontinued, See WiPy3 Getting Started Click Here Pinout The pinout of the WiPy2 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. Datasheet... - Page 399 6.1.1 WiPy 2.0 The datasheet of the WiPy2 is available as a PDF File. Notes WiFi By default, upon boot the WiPy2 will create a WiFi access point with the SSID wipy-wlan- , where is a random 4-digit number, and the password XXXX XXXX www.pycom.io Power The pin on the WiPy2 can be supplied with a voltage ranging from to Vin 3.5v 5.5v The pin on the other hand is output only, and must not be used to feed power into the 3.3v WiPy2, otherwise the on-board regulator will be damaged. Deep Sleep Due to a couple issues with the WiPy2 design the module draws more current than it should while in deep sleep. The DC-DC switching regulator always stays in high performance mode which is used to provide the lowest possible output ripple when the modules is in use. In this mode, it draws a quiescent current of 10mA. When the regulator is put into ECO mode, the quiescent current goes down to 10uA. Unfortunately, the pin used to control this mode is out of the RTC domain, and therefore not usable during deep sleep. This causes the regulator to always stay in PWM mode, keeping its quiescent current at 10mA. Alongside this the flash chip doesn't enter power down mode because the CS pin is floating during deep sleep. This causes the flash chip to consume around 2mA of current. To work around this issue a "deep sleep shield" is available that attaches to the module and allows power to be cut off from the device. The device can then be re-enabled either on a timer or via pin interrupt. With the deep sleep shield the current consumption during deep sleep is between 7uA and 10uA depending on the wake sources configured. Tutorials Tutorials on how to the WiPy2 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the WiPy2: WiFi connection...
- Page 400 6.1.1 WiPy 2.0...
-
Page 401: Wipy 3.0

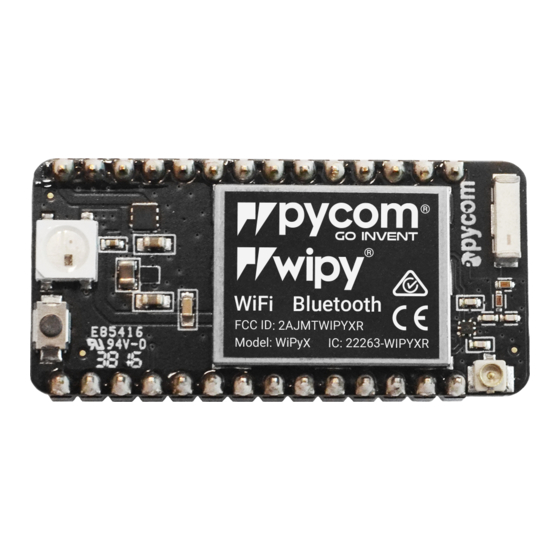

6.1.2 WiPy 3.0 WiPy 3.0 Store: Buy Here Getting Started Click Here Pinout The pinout of the WiPy3 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. - Page 402 6.1.2 WiPy 3.0 Differences from WiPy 2.0 Deep sleep current draw fixed, now only 19.7µA Upgraded RAM from 512KB to 4MB Upgraded External FLASH from 4MB to 8MB Antenna select pin moved from GPIO16 to GPIO21 (P12) Datasheet The datasheet of the WiPy3 is available as a PDF File. Notes WiFi By default, upon boot the WiPy3 will create a WiFi access point with the SSID wipy-wlan- , where is a random 4-digit number, and the password XXXX XXXX www.pycom.io The RF switch that selects between the on-board and external antenna is connected to , for this reason using should be avoided unless WiFi is disabled in your P12 P12 application. Power The pin on the WiPy3 can be supplied with a voltage ranging from to Vin 3.5v 5.5v The pin on the other hand is output only, and must not be used to feed power into the 3.3v WiPy3, otherwise the on-board regulator will be damaged. Tutorials Tutorials on how to the WiPy3 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the WiPy3: WiFi connection...
-
Page 403: Lopy
6.1.3 LoPy LoPy Store: Buy Here Getting Started Click Here Pinout The pinout of the LoPy is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. Datasheet... - Page 404 6.1.3 LoPy The datasheet of the LoPy is available as a PDF File. Notes WiFi By default, upon boot the LoPy will create a WiFi access point with the SSID lopy-wlan- , where is a random 4-digit number, and the password XXXX XXXX www.pycom.io Power The pin on the LoPy can be supplied with a voltage ranging from to . The Vin 3.5v 5.5v pin on the other hand is output only, and must not be used to feed power into the 3.3v LoPy, otherwise the on-board regulator will be damaged. Deep Sleep Due to a couple issues with the LoPy design the module draws more current than it should while in deep sleep. The DC-DC switching regulator always stays in high performance mode which is used to provide the lowest possible output ripple when the modules is in use. In this mode, it draws a quiescent current of 10mA. When the regulator is put into ECO mode, the quiescent current goes down to 10uA. Unfortunately, the pin used to control this mode is out of the RTC domain, and therefore not usable during deep sleep. This causes the regulator to always stay in PWM mode, keeping its quiescent current at 10mA. Alongside this the flash chip doesn't enter power down mode because the CS pin is floating during deep sleep. This causes the flash chip to consume around 2mA of current. To work around this issue a "deep sleep shield" is available that attaches to the module and allows power to be cut off from the device. The device can then be re-enabled either on a timer or via pin interrupt. With the deep sleep shield the current consumption during deep sleep is between 7uA and 10uA depending on the wake sources configured. Tutorials Tutorials on how to the LoPy module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the LoPy: WiFi connection...
- Page 405 6.1.3 LoPy LoRaWAN nano gateway...
- Page 406 6.1.4 LoPy 4 LoPy4 Store: Buy Here Getting Started Click Here Pinout The pinout of the LoPy4 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software.
- Page 407 6.1.4 LoPy 4 Datasheet The datasheet of the LoPy4 is available as a PDF File. Notes WiFi By default, upon boot the LoPy4 will create a WiFi access point with the SSID lopy4-wlan- , where is a random 4-digit number, and the password XXXX XXXX www.pycom.io The RF switch that selects between the on-board and external antenna is connected to , for this reason using should be avoided unless WiFi is disabled in your P12 P12 application. Power The pin on the LoPy4 can be supplied with a voltage ranging from to . The Vin 3.5v 5.5v pin on the other hand is output only, and must not be used to feed power into the 3.3v LoPy4, otherwise the on-board regulator will be damaged. Tutorials Tutorials on how to the LoPy4 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the LoPy4: WiFi connection LoRaWAN node LoRaWAN nano gateway Sigfox...
-
Page 408: Sipy
6.1.5 SiPy SiPy Store: Buy Here Getting Started Click Here Pinout The pinout of the SiPy is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. Datasheet... - Page 409 6.1.5 SiPy The datasheet of the SiPy is available as a PDF File. Notes WiFi By default, upon boot the SiPy will create a WiFi access point with the SSID sipy-wlan-XXXX , where is a random 4-digit number, and the password XXXX www.pycom.io Power The pin on the SiPy can be supplied with a voltage ranging from to . The Vin 3.5v 5.5v pin on the other hand is output only, and must not be used to feed power into the 3.3v SiPy, otherwise the on-board regulator will be damaged. Deep Sleep Due to a couple issues with the SiPy design the module draws more current than it should while in deep sleep. The DC-DC switching regulator always stays in high performance mode which is used to provide the lowest possible output ripple when the modules is in use. In this mode, it draws a quiescent current of 10mA. When the regulator is put into ECO mode, the quiescent current goes down to 10uA. Unfortunately, the pin used to control this mode is out of the RTC domain, and therefore not usable during deep sleep. This causes the regulator to always stay in PWM mode, keeping its quiescent current at 10mA. Alongside this the flash chip doesn't enter power down mode because the CS pin is floating during deep sleep. This causes the flash chip to consume around 2mA of current. To work around this issue a "deep sleep shield" is available that attaches to the module and allows power to be cut off from the device. The device can then be re-enabled either on a timer or via pin interrupt. With the deep sleep shield the current consumption during deep sleep is between 7uA and 10uA depending on the wake sources configured. Tutorials Tutorials on how to the SiPy module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the SiPy: WiFi connection Sigfox...
- Page 410 6.1.5 SiPy...
-
Page 411: Gpy
6.1.6 GPy Store: Buy Here Getting Started Click Here Pinout The pinout of the GPy is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. Datasheet... - Page 412 6.1.6 GPy The datasheet of the GPy is available as a PDF File. Notes WiFi By default, upon boot the GPy will create a WiFi access point with the SSID gpy-wlan-XXXX where is a random 4-digit number, and the password XXXX www.pycom.io The RF switch that selects between the on-board and external antenna is connected to , for this reason using should be avoided unless WiFi is disabled in your P12 P12 application. Power The pin on the GPy can be supplied with a voltage ranging from to . The Vin 3.5v 5.5v pin on the other hand is output only, and must not be used to feed power into the 3.3v GPy, otherwise the on-board regulator will be damaged. AT Commands The AT commands for the Sequans Monarch modem on the GPy are available in a PDF file. Tutorials Tutorials on how to the GPy module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the GPy: WiFi connection LTE CAT-M1 NB-IoT...
-
Page 413: Fipy
6.1.7 FiPy FiPy Store: Buy Here Getting Started Click Here Pinout The pinout of the FiPy is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK,MOSI,MISO) and I2C (SDA,SCL) are defaults and can be changed in Software. Datasheet... - Page 414 6.1.7 FiPy The datasheet of the FiPy is available as a PDF File. Notes WiFi By default, upon boot the FiPy will create a WiFi access point with the SSID fipy-wlan-XXXX , where is a random 4-digit number, and the password XXXX www.pycom.io The RF switch that selects between the on-board and external antenna is connected to , for this reason using should be avoided unless WiFi is disabled in your P12 P12 application. Power The pin on the FiPy can be supplied with a voltage ranging from to . The Vin 3.5v 5.5v pin on the other hand is output only, and must not be used to feed power into the 3.3v FiPy, otherwise the on-board regulator will be damaged. AT Commands The AT commands for the Sequans Monarch modem on the FiPy are available in a PDF file. Tutorials Tutorials on how to the FiPy module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the FiPy: WiFi connection LoRaWAN node LoRaWAN nano gateway Sigfox LTE CAT-M1 NB-IoT...
- Page 415 6.1.7 FiPy...
-
Page 416: Oem Modules
6.2 OEM Modules OEM Devices This section contains all of the datasheets for the Pycom OEM Devices. This includes the W01, L01, L04, and G01. -
Page 417: W01
6.2.1 W01 Pinout The pinout of the W01 is available as a PDF File. Specsheets The specsheet of the W01 is available as a PDF File. - Page 418 6.2.1 W01 Drawings The drawings for the W01 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK, MOSI, MISO) and I2C (SDA, SCL) are defaults and can be changed in Software. Tutorials Tutorials on how to the W01 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the W01: WiFi connection...
-
Page 419: L01
6.2.2 L01 Pinout The pinout of the L01 is available as a PDF File. Specsheets The specsheet of the L01 is available as a PDF File. - Page 420 6.2.2 L01 Drawings The drawings for the L01 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK, MOSI, MISO) and I2C (SDA, SCL) are defaults and can be changed in Software. Tutorials Tutorials on how to the L01 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the L01: WiFi connection LoRaWAN node LoRaWAN nano gateway...
-
Page 421: L04
6.2.3 L04 Pinout The pinout of the L04 is available as a PDF File. Specsheets The specsheet of the L04 is available as a PDF File. - Page 422 6.2.3 L04 Drawings The drawings for the L04 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK, MOSI, MISO) and I2C (SDA, SCL) are defaults and can be changed in Software. Tutorials Tutorials on how to the L04 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the L04: WiFi connection LoRaWAN node LoRaWAN nano gateway Sigfox...
-
Page 423: G01
6.2.4 G01 Pinout The pinout of the G01 is available as a PDF File. Specsheets The specsheet of the G01 is available as a PDF File. - Page 424 6.2.4 G01 Drawings The drawings for the G01 is available as a PDF File. Please note that the PIN assignments for UART1 (TX1/RX1), SPI (CLK, MOSI, MISO) and I2C (SDA, SCL) are defaults and can be changed in Software. AT Commands The AT commands for the Sequans Monarch modem on the G01 are available in a PDF file. Tutorials Tutorials on how to the G01 module can be found in the examples section of this documentation. The following tutorials might be of specific interest for the G01: WiFi connection LTE CAT-M1 NB-IoT...
-
Page 425: L01 Oem Baseboard Reference
6.2.5 L01 OEM Baseboard Reference L01 reference design The L01 OEM reference board is a reference design suitable L01 as well as W01 making it possible to have a single PCB design that can accommodate both OEM modules. If you require a reference board for the L04 or G01, this design is not suitable as it does not feature a SIM slot or the double antenna connection. For the G01 or L04 please use the Universal OEM Baseboard Reference Features Suits both L01 or W01 OEM Modules U.FL connector for the L01's LoRa output. On-board 2.4GHz antenna for WiFi and Bluetooth, with the ability to switch to a external antenna via a U.FL connector. WS2812B RGB LED 3.5-5.5 Input switch mode DC-DC regulator with low current draw during deep sleep Reset button Layout The layout of the L01 baseboard reference is available as a PDF File. - Page 426 6.2.5 L01 OEM Baseboard Reference Schematic The schematic of the L01 baseboard reference is available as a PDF File. Altium Project and Gerber Files The Altium Project and Gerber files are also available as a ZIP File.
- Page 427 6.2.5 L01 OEM Baseboard Reference...
-
Page 428: Universal Oem Baseboard Reference
6.2.6 Universal OEM Baseboard Reference OEM Baseboard Reference Design Files The universal OEM reference board is a reference design suitable W01, L01, L04 and G01 OEM modules, making it possible to have a single PCB design that can accommodate all our OEM modules. If you require a reference board for the G01, only this design is suitable. The L01 reference board does not contain the necessary SIM slot. Features Suits all OEM modules (L01, L04, W01, G01) On-board 2.4GHz antenna for WiFi and Bluetooth, with the ability to switch to a external antenna via a U.FL connector. 3 U.FL connectors for all the outputs available on the OEM modules WS2812B RGB LED 3.5-5.5 Input switch mode DC-DC regulator with low current draw during deep sleep Reset button Layout The layout of the OEM baseboard reference is available as a PDF File. - Page 429 6.2.6 Universal OEM Baseboard Reference Schematic The schematic of the OEM baseboard reference is available as a PDF File. Altium Project and Gerber Files The Altium Project and Gerber files are also available as a ZIP File.
- Page 430 6.2.6 Universal OEM Baseboard Reference...
-
Page 431: Expansion Boards And Shields
6.3 Expansion Boards and Shields Expansion Boards and Shields This section contains all of the datasheets for the Pycom Expansion Boards and Shields. This includes the Expansion Board, Pytrack, Pysense and Deep Sleep Shield. -
Page 432: Expansion Board 3.0
6.3.1 Expansion Board 3.0 Expansion Board 3.0 Pinout The pinout of the Expansion Board is available as a PDF File. Be gentle when plugging/unplugging from the USB connector. Whilst the USB connector is soldered and is relatively strong, if it breaks off it can be very difficult to fix. Battery Charger... - Page 433 6.3.1 Expansion Board 3.0 The Expansion Board features a single cell Li-Ion/Li-Po charger. When the board is being powered via the micro USB connector, the Expansion Board will charge the battery (if connected). When the jumper is present the battery will be charged at . If this CHG 450mA value is too high for your application, removing the jumper lowers the charge current to 100mA Specsheets The specsheet of the Expansion Board is available as a PDF File. Differences between v2.0 and v3.0 The FTDI chip as been replaced with a custom programmed PIC like on the Pysense/Pytrack/Pyscan boards. This allows our firmware update tool to automatically put the module into bootloader mode. Added a "Safe boot" button to enter safe boot easier. This button connects P12 and if pressed and held while the reset button is pressed on a Pycom module, 3.3v the module will enter safe boot.
-
Page 434: Pytrack
6.3.2 Pytrack Pytrack Pinout The pinout of the Pytrack is available as a PDF File. Battery Charger The board features a single cell Li-Ion/Li-Po charger. When the board is being powered via the micro USB connector, it will charge the battery (if connected). Specsheets... - Page 435 6.3.2 Pytrack The specsheet of the Pytrack is available as a PDF File.
-
Page 436: Pysense
6.3.3 Pysense Pysense Pinout The pinout of the Pysense is available as a PDF File. Battery Charger The board features a single cell Li-Ion/Li-Po charger. When the board is being powered via the micro USB connector, it will charge the battery (if connected). Specsheets... - Page 437 6.3.3 Pysense The specsheet of the Pysense is available as a PDF File.
-
Page 438: Pyscan
6.3.4 Pyscan Pyscan Pyscan Libraries Pyscan libraries to use the RFID/NFC reader are located here: https://github.com/pycom/pycom-libraries/tree/master/pyscan The accelerometer library is here: https://github.com/pycom/pycom-libraries/blob/master/pytrack/lib/LIS2HH12.py For the time being, we recommend to upload the file via FTP due to current MFRC630.mpy limitations of Pymakr that will be fixed shortly. Libraries for the rest of the components will be added soon. Pyscan components: Accelerometer: ST LIS2HH12 Ambient light sensor: Lite-on LTR-329ALS-01 RFID/NFC reader: NXP MFRC63002HN, 151 Driver The Windows 7 driver for Pyscan is located in: https://docs.pycom.io/chapter/pytrackpysense/installation/drivers.html For other Operating Systems there's no driver required. Pinout The pinout of the Pyscan is available as a PDF File. - Page 439 6.3.4 Pyscan Battery Charger The board features a single cell Li-Ion/Li-Po charger. When the board is being powered via the micro USB connector, it will charge the battery (if connected). Specsheets The specsheet of the Pyscan is available as a PDF File.
-
Page 440: Expansion Board 2.0
6.3.5 Expansion Board 2.0 Expansion Board 2.0 Pinout The pinout of the Expansion Board is available as a PDF File. - Page 441 6.3.5 Expansion Board 2.0 Be gentle when plugging/unplugging from the USB connector. Whilst the USB connector is soldered and is relatively strong, if it breaks off it can be very difficult to fix. Battery Charger The Expansion Board features a single cell Li-Ion/Li-Po charger. When the board is being powered via the micro USB connector, the Expansion Board will charge the battery (if connected). When the jumper is present the battery will be charged at . If this CHG 450mA value is too high for your application, removing the jumper lowers the charge current to 100mA Specsheets The specsheet of the Expansion Board is available as a PDF File.
-
Page 442: Deep Sleep Shield
6.3.6 Deep Sleep Shield Deep Sleep Shield The schematic of the Deep Sleep Shield is available as a PDF File. Pinout The pinout of the Deep Sleep Shield is available as a PDF File. To correctly connect a WiPy 2.0, LoPy or SiPy to the Deep Sleep Shield, align the white triangle on the Shield with the LED of the Pycom Device. Once the Pycom Device is seated onto the Deep Sleep Shield, this can then be connected to the Expansion Board. - Page 443 6.3.6 Deep Sleep Shield...
-
Page 444: Deep Sleep Api
6.3.6.1 Deep Sleep API Deep Sleep API This chapter describes the library which controls the Deep Sleep Shield. This includes the controls for external interrupts and timer setup of the deep sleep functionality. To use this library, please upload the associated Deep Sleep Library to on the target /lib Pycom device. Quick Example from deepsleep import DeepSleep import deepsleep ds = DeepSleep() # get the wake reason and the value of the pins during wake up wake_s = ds.get_wake_status() print(wake_s) if wake_s['wake'] == deepsleep.PIN_WAKE: print("Pin wake up") elif wake_s['wake'] == deepsleep.TIMER_WAKE: print("Timer wake up") else: # deepsleep.POWER_ON_WAKE: print("Power ON reset") ds.enable_pullups('P17') # can also do ds.enable_pullups(['P17', 'P18']) ds.enable_wake_on_fall('P17') # can also do ds.enable_wake_on_fall(['P17', 'P18']) ds.go_to_sleep(60) # go to sleep for 60 seconds DeepSleep The Deep Sleep Shield allows for waking up via a user trigger and also via an external interrupt (i.e. Accelerometer, Button). Constructors class DeepSleep() Creates a DeepSleep object, that will control the board's sleep features. For example; ds = DeepSleep() - Page 445 6.3.6.1 Deep Sleep API Methods deepsleep.enable_auto_poweroff() This method allows for a critical battery voltage to be set. For example, if the external power source (e.g. LiPo Cell) falls below , turn off the Pycom device. This is intended to 3.3V protect the hardware from under voltage. deepsleep.enable_pullups(pins) This method allows for pull-up pins to be enabled. For example, if an external trigger occurs, wake the Pycom device from Deep Sleep. may be passed into the method as a list, pins i.e. ['P17', 'P18'] deepsleep.disable_pullups(pins) This method allows for pull-up pins to be disabled. For example, if an external trigger occurs, wake the Pycom device from Deep Sleep. may be passed into the method as a list, pins i.e. ['P17', 'P18'] deepsleep.enable_wake_on_raise(pins) This method allows for pull-up pins to trigger on a rising voltage. For example, if an external rising voltage triggers occurs, wake the Pycom device from Deep Sleep. may be pins passed into the method as a list, i.e. ['P17', 'P18'] deepsleep.disable_wake_on_raise(pins) This method allows for disabling pull-up pins that trigger on a rising voltage. may be pins passed into the method as a list, i.e. ['P17', 'P18'] deepsleep.enable_wake_on_fall(pins) This method allows for pull-up pins to trigger on a falling voltage. For example, if an external falling voltage triggers occurs, wake the Pycom device from Deep Sleep. may be pins passed into the method as a list, i.e.
- Page 446 6.3.6.1 Deep Sleep API deepsleep.set_min_voltage_limit(value) This method relates to the method and allows the user to specify the enable_auto_poweroff minimum power off voltage as a value. deepsleep.go_to_sleep(seconds) This method sends the board into deep sleep for a period of or until an external seconds interrupt has triggered (see set_pullups deepsleep.hw_reset() This method resets the PIC controller and resets it to the state previous to the pins/min- voltage being set. Please note that more functionality is being added weekly to these libraries. If a required feature is not available, feel free to contribute with a pull request at the Pycom Libraries GitHub repository.
-
Page 447: Notes
6.4 Notes Notes Powering with an external power source The devices can be powered by a battery or other external power source. Be sure to connect the positive lead of the power supply to , and ground to VIN GND When powering via VIN The input voltage must be between and 3.4V 5.5V Please DO NOT power the board via the pin as this may damage the device. 3.3V ONLY use the pin for powering Pycom devices. VIN The battery connector for the Expansion Board is a JST PHR-2 variant. The Expansion Board exposes the male connector and an external battery should use a female adapter in order to connect and power the expansion board. The polarity of the battery should be checked before being plugged into the expansion board, the cables may require swapping. The pins of the modules are NOT tolerant, connecting them to voltages GPIO 5V higher than might cause irreparable damage to the device. 3.3V Static electricity can damage components on the device and may destroy them. If there is a lot of static electricity in the area (e.g. dry and cold climates), take extra care not to shock the device. If the device came in a ESD bag (Silver packaging), the best way to store and carry the device is inside this bag as it will be protected against static discharges. -
Page 448: Development Modules
7.1 Development Modules Development Modules Datasheets 7.1.1 WiPy 2.0 7.1.2 WiPy 3.0 7.1.3 LoPy 7.1.4 LoPy 4 7.1.5 SiPy 7.1.6 GPy 7.1.7 FiPy... -
Page 449: Oem Modules
7.2 OEM Modules OEM Module Datasheets 7.2.1 W01 7.2.2 L01 7.2.3 L04 7.2.4 G01... -
Page 450: Expansion Boards And Shields
7.3 Expansion Boards and Shields Expansion Board and Shield Datasheets 7.3.1 Expansion Board 3.0 7.3.2 Pytrack 7.3.3 Pysense 7.3.4 Expansion Board 2.0... -
Page 451: Introduction
8.1 Introduction What is Pybytes? Pybytes is an IoT Ecosystem that empowers you by granting full control of all your Pycom devices. With Pybytes you have control over your device's data stream and more: Visualise sensors data according to your interests using our customisable dashboard; Check the status of your entire fleet; Keep track of your assets with our geolocation feature; Distribute firmware updates on a scalable approach. In a nutshell, Pybytes is an environment designed to optimise your IoT applications using Pycom boards. What Pybytes offers you? Data Visualisation: Pybytes dashboard is customisable, allowing you to freely set up key performance indicators and time series data from all your sensors. Intelligent notifications: Keep track of your device's status, battery level, data streaming and measurements with pre-defined alarms. Receive notifications via email or SMS. Terminal: Execute commands to gather accurate information from your devices using Pybytes terminal shell. Firmware updates over the air: Upgrade or downgrade firmware versions with our exclusive firmware update. Track your assets position: Google Maps API empowers your view over your device's geolocation. Let's get started! Getting started with Pybytes Connect your Pycom module to Pybytes... - Page 452 8.1 Introduction Visualise data from your device...
- Page 453 8.2 Getting Started Create your Pybytes account Follow these steps to create a Pybytes account: Step 1: Go to the registration page 1. Go to this link. 2. Enter your full name, email address and a password to your account. 3. Confirm the verification message sent to your email address. 4. Click on the link and complete your login. Go Invent! Now it's time to explore Pybytes. You can start by connecting your Pycom board to Pybytes. Check here!
-
Page 454: Add A Device To Pybytes
8.3 Add a device to Pybytes Add a device to pybytes In this section, we will explain to you how to add a device to Pybytes Step 1: Add device wizard In Pybytes, go to Page: Devices 1. Click on Add Device 2. Select your device (e.g., WiPy, LoPy, SiPy, etc.);... - Page 455 8.3 Add a device to Pybytes 3. Select your shield (e.g., PySense, PyTrack, PyScan or other); 4. Select your network option;...
- Page 456 8.3 Add a device to Pybytes 5. Enter a unique name and the network credentials (SSID and password) for your device; Step 2: Connect your device to Pybytes At the end of the "Add Device" wizard, Pybytes will give you two options for you to connect your device to Pybytes:...
- Page 457 8.3 Add a device to Pybytes Select how you would like to connect your device to Pybytes: CONNECT YOUR DEVICE QUICKLY (RECOMMENDED) CONNECT YOUR DEVICE BY FLASHING PYBYTES LIBRARY From firmware 1.16.x onwards all Pycom devices come with Pybytes library build-in folder. That means that you can choose between adding your device quickly /frozen with the firmware updater or you can flash Pybytes library manually.
-
Page 458: Connect To Pybytes: Quick Add
8.3.1 Connect to Pybytes: Quick Add Connecting a device to Pybytes quickly by using the Firmware Updater In this section, we explain to you how to connect your device to Pybytes quickly using the Firmware Updater. In case you want to extend Pybytes library you can flash Pybytes library manually. Click here for more information. Step 1: Download the firmware updater At the last step of the "Add Device" process: 1. Download the firmware updater for your operating system;... - Page 459 8.3.1 Connect to Pybytes: Quick Add 2. Copy the device token. Step 2: Firmware updater Install the Firmware updater on your computer. 1. Start the Firmware updater...
- Page 460 8.3.1 Connect to Pybytes: Quick Add 2. Select your device serial port (Make sure your device is connected to your computer); 3. Mark the options "Erase flash file system" and "Force update Pybytes registration"; 4. Paste your device token from Pybytes;...
- Page 461 8.3.1 Connect to Pybytes: Quick Add 5. The firmware updater will update the device's firmware.
- Page 462 8.3.1 Connect to Pybytes: Quick Add Next step: Set up your device's dashboard! Now it's time to display data from your device into Pybytes dashboard. You can check more about it here!
-
Page 463: Connect To Pybytes: Flash Pybytes Library Manually
8.3.2 Connect to Pybytes: Flash Pybytes library manually Connecting a device to Pybytes by flashing Pybytes library manually In this section, we will explain to you how to connect your device to Pybytes by flashing Pybytes library manually. From firmware 1.16.x onwards all Pycom devices come with Pybytes library build-in folder. That means that you can add your device quickly without the need of /frozen flashing Pybytes library manually. Click here for more information. Step 1: Download your Pybytes Library At the last step of the "Add Device" process: 1. Click on download *Pybytes library*... - Page 464 8.3.2 Connect to Pybytes: Flash Pybytes library manually You can also download Pybytes library at the device's settings page: 1. Navigate to your device in Pybytes; 2. On your device's page click on settings tab; 3. Click on the button Download at Pybytes library; Step 2. Flash your device with Pymakr In case you haven't installed Pymakr plugin, follow these instructions. 1. Connect your device to your computer with USB cable. 2. Extract download Pybytes library and open extracted folder with Atom. 3. Get your device serial port: in Pymakr plugin click on More > get serial ports 4. Paste your device's serial port to file: pymakr.conf...
- Page 465 8.3.2 Connect to Pybytes: Flash Pybytes library manually "address": "PASTE_YOUR_SERIAL_PORT_HERE", "username": "micro", "password": "python", "sync_folder": "flash" 5. Checkout your file. It will be pre-filled with your information flash/pybytes_config.json from Pybytes Like deviceToken or WiFi credentials. You can change e.g. your WiFy password here. 6. Put your device in safe boot mode. 7. Upload code to your device by clicking on Upload button in Pymakr. After all Pybytes library files are uploaded to device, device will restart and will connect to Pybytes. Pybytes library is written to folder and will take precedence over build in /flash firmware libraries in folder. /frozen Next step: Set up your device's dashboard! Now it's time to display data from your device into Pybytes dashboard. You can check more about it here!
-
Page 466: Visualise Data From Your Device
8.4 Visualise data from your device Visualise data from your device. In this section, we will explain to you how to create widgets for data visualisation and set up your device's dashboard on Pybytes. We assume that you already have your device connected to Pybytes. In case you haven't, check how to add your device here. After your done with that, you can proceed to the next example. Step 1: Set up your application (main.py) The first step is to have an application running on your device. The application in this example sends data from a vector every 10 seconds to Pybytes. 1. Open the file on Pymakr; main.py 2. Insert the following code on your main.py... - Page 467 8.4 Visualise data from your device # # Import what is necessary to create a thread import _thread from time import sleep # # Increment index used to scan each point from vector sensors_data def inc(index, vector): if index < len(vector)-1: return index+1 else: return 0 # # Define your thread's behaviour, here it's a loop sending sensors data every 10 sec onds def send_env_data(): idx = 0 sensors_data = [0, -0.2, -0.5, -0.7, -0.8, -0.9, -0.9, -0.9, -0.8, -0.6, -0.4, -0.2 , 0, 0.3, 0.5, 0.7, 0.8, 0.9, 0.9, 0.9, 0.8, 0.6, 0.4, 0.1] while (pybytes): pybytes.send_virtual_pin_value(False, 1, sensors_data[idx]) idx = inc(idx, sensors_data) sleep(10) # # Start your thread _thread.start_new_thread(send_env_data, ()) 1. Upload the code into your device. Now your device is sending data to Pybytes. In this code, we're calling the function pybytes.send_virtual_pin_value(persistent, to communicate with Pybytes. This function is part of the Pybytes pin, value)) library, and it has three arguments: and persistent pin value denotes information that is infrequently accessed and not likely to persistent be modified; represents which virtual pin is receiving data; pin is the value being attributed to that particular pin. value Step 2: Add a signal from your device Go to Pybytes.
- Page 468 8.4 Visualise data from your device 2. On your device's page click on tab. Data 3. Click on the button. Define New Signal...
- Page 469 8.4 Visualise data from your device 4. Define the new signal by entering a number, a name, a data type and a unit. Finally, click on the button Define 5. Your signal was added!
- Page 470 8.4 Visualise data from your device The name and unit are labels used to identify your signal inside Pybytes (In this example we defined as the name of the signal and as the unit). Sinwave Rad The signal number has to match the pin number that you defined on function call, inside your code (In this pybytes.send_virtual_pin_value main.py example we defined pin = 1 The datatype also has to match the variable used as argument on function call, inside your code (In this pybytes.send_virtual_pin_value main.py example our variable is a floating number; therefore we defined as a Float32 Step 3: Add a widget for the signal 1. Click on the signal card.
- Page 471 8.4 Visualise data from your device 2. Click on the button Create a new display 3. Select the type of visualisation (e.g. Bar chart or Line chart).
- Page 472 8.4 Visualise data from your device 4. You can adjust the parameters of your widget at . After, click on the button Settings Create 5. Your widget was created. Now, add your widget to your device's dashboard. Click on the button on your widget. Edit...
- Page 473 8.4 Visualise data from your device 6. Mark the checkbox at . Finally, click on the button Display on Dashboard Settings Save 7. Click on the tab . Your widget was successfully added there! Dashboard...
- Page 474 8.4 Visualise data from your device Step 4: Organise your dashboard 1. Click on the button . Now the dashboard's grid will enter the edit mode and Organise allow you to resize and reposition its widgets. 2. Resize a widget by clicking on the triangle icon at the bottom right corner of the widget and drag the cursor over the grid. After, click on the button to save this action. Save...
- Page 475 8.4 Visualise data from your device 3. Change the widget's position by drag-and-dropping it over the grid. After, click on the button to save this action. Save Done! Now you've learned how to set up your device's dashboard to display data. Also, you can add more widgets to other pins of your device.
- Page 476 8.4 Visualise data from your device...
-
Page 477: Documentation Notes
9.1 Introduction Documentation Notes The Pycom documentation aims to be straightforward and to adhere to typical Python documentation to allow for ease of understanding. However, there may be some unusual features for those not used to Python documentation or that are new to the MicroPython Language. This section of the documentation aims to provide clarity for any of the design specifics that might be confusing for those new to Python and this style of documentation. -
Page 478: Syntax
9.2 Syntax Documentation Syntax The Pycom documentation follows standard Python Library format using the popular Sphinx Docs tool. There are some notable points regarding the syntax of classes, methods and constants. Please see the notes below and familiarise yourself with the specific details before reviewing the documentation. Keyword Arguments refer to the arguments that are passed into a constructor (upon Keyword Arguments referencing a class object). When passing values into a MicroPython constructor it is not always required to specify the name of the argument and instead rely on the order of the arguments passed as to describe what they refer to. In the example below, it can be seen that the argument is passed into the method without specifying a name. mode i2c.init() The values of the arguments (as seen in the examples/docs) refer to the default values that are passed into the constructor if nothing is provided. i2c.init(mode, * , baudrate=100000, pins=(SDA, SCL)) An example of how this method might be called: i2c.init(I2C.MASTER, pins=('P12', 'P11')) It can be seen that a value for was not passed into the method and thus baudrate MicroPython will assume a default value of . Also the first argument was not 100000 mode specified by name, as the constructor does not require it, denoted by the lack of an = symbol in the constructor documentation. Passing Arguments into a Method It is important to note that there are certain class methods that can only accept a keyword for certain arguments as well as some that only accept a . This is intentional by value design but is not always apparent to the user calling specific methods. The differences between the two are outlined below, with examples referencing where differences might apply and what to be aware of. - Page 479 Another example shows how the class, requires a keyword argument PWM pwm.channel() for but does not for pin id from machine import PWM pwm = PWM(0, frequency=5000) pwm_c = pwm.channel(0, pin='P12') # no keyword argument requires for id (0) but is req uired for pin (pin='P12') Value The documentation may refer to a method that takes an argument listed by name but does allow for a keyword to be passed. For example, the class contains a method pycom . This lists that the method accepts a value for , however this may not be rgbled color specified by , only . This is intentional as the being passed is the keyword value value only argument valid for this method pycom.rgbled(color) If the argument is passed into the method with a keyword, it will return an error stating TypeError: function does not take keyword arguments. import pycom pycom.rgbled(color=0xFF0000) # Incorrect pycom.rgbled(0xFF0000) # Correct Another example of a method that only accepts value input. In this case, the RTC.init()
- Page 480 9.2 Syntax from machine import RTC rtc = RTC() rtc.init(datetime=(2014, 5, 1, 4, 13, 0, 0, 0)) # Incorrect rtc.init((2014, 5, 1, 4, 13, 0, 0, 0)) # Correct Constants The section of a library within the docs refers to specific values from that library’s constants class. These might be used when constructing an object from that class or when utilising a method from within that class. These are generally listed by the library name followed by the specific value. See the example below: I2C.MASTER() Be aware that you can only reference these constants upon importing and constructing a object from a library.
-
Page 481: Repl Vs Scripts
9.3 REPL vs Scripts REPL vs Scripts Users of this documentation should be aware that examples given in the docs are under the expectation that they are being executed using the MicroPython REPL. This means that when certain functions are called, their output may not necessarily be printed to the console if they are run from a script. When using the REPL many classes/functions automatically produce a printed output displaying the return value of the function to the console. The code snippet below demonstrates some examples of classes/functions that might display this behaviour. Basic Arithmetic 1 + 1 # REPL will print out '2' to console 1 + 1 # Script will not return anything the console print(1 + 1) # Both the REPL and a script will return '2' to the console Calling Methods import ubinascii ubinascii.hexlify(b'12345') # REPL will print out "b'3132333435'" to the console ubinascii.hexlify(b'12345') # Script will not return any the console In order to use these functions that do not print out any values, you will need to either wrap them in a statement or assign them to variables and call them later when you wish print() to use them. For example: # immediately print to console when using a script print(1 + 1) # or save variable to for later value = 1 + 1 # do something here... print(value) -
Page 482: Firmware Downgrade
10.1 Firmware Downgrade Firmware Downgrade The firmware upgrade tool usually updates your device to the latest available firmware version. If you require to downgrade your device to a previous firmware there are two methods to achieve this. If you are using an Expansion Board 1.0 or 2.0, you will need to have a jumper connected between and to use either procedure below. You will also need to G23 GND press the reset button before beginning. You can obtain previous firmware versions here: WiPy LoPy SiPy FiPy LoPy4 Note: Prior to version the firmware for modules with LoRa functionality was 1.16.0.b1 frequency specific. From and onward, the firmware is region agnostic and this 1.16.0.b1 can either be set programatically or via the config block (see here). As of version of the firmware update tool, you can now provide a 1.12.0.b0 .tar archive of the firmware you wish to upload to the board. .tar.gz When you start the update tool you will see the following screen:... - Page 483 10.1 Firmware Downgrade When you tick the option, an address bar will appear. Click the Flash from local file ... button and locate the file with the firmware you wish to flash to your device. .tar(.gz) From this point the updater will behave just like a regular update but using the local file instead of downloading the latest. Command line You can also use the CLI version of the update tool to downgrade your device. Will need to get a or archive of the firmware you wish to upload to the board. Then run .tar .tar.gz the following commands: $ pycom-fwtool-cli -v -p PORT flash -t /path/to/firmware/archive.tar.gz...
-
Page 484: Cli Updater
10.2 CLI Updater Command Line Update Utility Windows After installing the Windows version of the updater tool, the CLI tool pycom-fwtool-cli.exe can be found here: 32-Bit Windows: C:\Program Files\Pycom\Pycom Firmware Update\ 64-Bit Windows: C:\Program Files (x86)\Pycom\Pycom Firmware Update\ macOS In order to get access to the CLI tool on macOS, you will need to right click on the Mac version of the updater tool and click , then navigate to Show Package Contents , here you will find the Contents/Resources pycom-fwtool-cli Linux In the Ubuntu 14.04 LTS (and newer) version of the updater tool, pycom-fwtool-cli installed in . In the Generic Linux package, the tool is extracted into folder /usr/local/bin ./pyupgrade Usage... - Page 485 10.2 CLI Updater usage: pycom-fwtool-cli [-h] [-v] [-d] [-q] [-p PORT] [-s SPEED] [-c] [-x] [--ftdi] [--pic] [-r] {list,chip_id,wmac,smac,sigfox,exit,flash,copy,write,write_rem ote,wifi,pybytes,cb,nvs,ota,lpwan,erase_fs,erase_all} ... Update your Pycom device with the specified firmware image file For more details please see https://docs.pycom.io/chapter/advance/cli.html positional arguments: {list,chip_id,wmac,smac,sigfox,exit,flash,copy,write,write_remote,wifi,pybytes,cb,nv s,ota,lpwan,erase_fs,erase_all} list Get list of available COM ports chip_id Show ESP32 chip_id wmac Show WiFi MAC smac Show LPWAN MAC sigfox Show sigfox details exit Exit firmware update mode flash Write firmware image to flash copy Read/Write flash memory partition write Write to flash memory wifi Get/Set default WIFI parameters pybytes Read/Write pybytes configuration cb Read/Write config block nvs Read/Write non volatile storage ota Read/Write ota block lpwan Get/Set LPWAN parameters [ EU868 US915 AS923 AU915] erase_fs Erase flash file system area erase_all Erase entire flash! optional arguments: -h, --help show this help message and exit -v, --verbose show verbose output from esptool -d, --debug show debuggin output from fwtool -q, --quiet suppress success messages -p PORT, --port PORT the serial port to use -s SPEED, --speed SPEED baudrate -c, --continuation continue previous connection -x, --noexit do not exit firmware update mode --ftdi force running in ftdi mode --pic force running in pic mode...
- Page 486 10.2 CLI Updater pycom-fwtool-cli [global parameters] [command] [command parameters] While shows help for global parameters and a list of available pycom-fwtool-cli -h commands, command specific parameters can be viewed using pycom-fwtool-cli [command] -h The parameter has been added as a courtesy for users of 3rd party -r, --reset ESP32 products. This functionality is not supported by the Expansion Board 2.0 and may cause this tool to crash or hang in certain circumstances. Global Parameters `-h / --help` : shows above help (you can also get detailed help for each sub-comma `-v / --verbose` : show verbose output from esptool. `-d / --debug` : show debug output from fwtool. `-q / --quiet` : suppress most output, used for scripting `-p / --port` : specifies the serial port to be used. Can also be set via **environ ment variable ESPPORT** `-s / --speed` : specifies the serial speed to be used. Can also be set via **enviro nment variable ESPBAUD** `-c / --continuation` : continue previous connection in FTDI mode. This allows running multiple commands sequentially without having to reset the module. This option is ign ored in PIC mode as the module can be reset via the serial connection. `-x / --noexit` : This will prevent the PIC from leaving firmware update mode. `--ftdi` : This will force the CLI updater to run in FTDI mode. `--pic` : This will force the CLI updater to run in PIC mode. `-r, --reset` : This will force the CLI updater to use Espressif's workaround to sw itch into Firmware update mode. This reset method is intended for 3rd party hardware o nly and is not supported by the Expansion Board 2.0 Commands list Get list of available serial ports ports. usage: pycom-fwtool-cli list [-h] optional arguments: -h, --help show this help message and exit Example: On macOS:...
- Page 487 10.2 CLI Updater $ pycom-fwtool-cli list /dev/cu.usbmodemPy343431 [Pytrack] [USB VID:PID=04D8:F013 SER=Py343434 LOCATION=20-2] /dev/cu.Bluetooth-Incoming-Port [n/a] [n/a] On Windows: COM6 [Pytrack] [USB VID:PID=04D8:F013 SER=Py343434 LOCATION=20-2] This is the only command that does not require any additional parameters. All other commands require that the serial port is specified either through the -p option or through environment variable You can optionally specify --port ESPPORT the speed either through or via environment variable . The -s --speed ESPBAUD default speed is . The maximum speed for read operations on PIC based 921600 expansion boards & shields is . The speed will be reduced automatically if 230400 necessary. Special note for Expansion Board 2.0 You will need to have a jumper wire connected between and to use any of G23 GND the commands below. You will also need to press the reset button either before running each command or at least before running the first command. To avoid having to press the reset button again after each command, you can use the -c -- option. The first command connecting to the device MUST NOT use the continuation option. This is to make sure a program called...
- Page 488 10.2 CLI Updater Shows the WiFi MAC of the connected module. usage: pycom-fwtool-cli -p PORT wmac [-h] optional arguments: -h, --help show this help message and exit smac Shows the LPWAN MAC of the connected module. usage: pycom-fwtool-cli -p PORT smac [-h] optional arguments: -h, --help show this help message and exit sigfox Show sigfox details usage: pycom-fwtool-cli -p PORT sigfox [-h] optional arguments: -h, --help show this help message and exit exit If a Pysense/Pytrack/Expansion 3 has previously been left in firmware update mode by using the option, this command can be used to exit the firmware update mode. -x usage: pycom-fwtool-cli -p PORT exit [-h] optional arguments: -h, --help show this help message and exit flash Writes firmware image to flash, must be as a file as provided by Pycom. These .tar(.gz) files can be found on GitHub.
- Page 489 10.2 CLI Updater usage: pycom-fwtool-cli -p PORT flash [-h] [-t TAR] optional arguments: -h, --help show this help message and exit -t TAR, --tar TAR perform the upgrade from a tar[.gz] file copy Read/Write flash memory partition from/to local file usage: pycom-fwtool-cli -p PORT [-h] [-p PARTITION] [-f FILE] [-r] [-b] optional arguments: -h, --help show this help message and exit -p PARTITION, --partition PARTITION The partition to read/write (all, fs, nvs, factory, secureboot, bootloader, partitions, otadata, fs1, ota_0, config) -f FILE, --file FILE name of the binary file (default: <wmac>-<part>.bin) -r, --restore restore partition from binary file -b, --backup backup partition to binary file (default) write Write to a specific location in flash memory. usage: pycom-fwtool-cli -p PORT write [-h] [-a ADDRESS] [--contents CONTENTS] optional arguments: -h, --help show this help message and exit -a ADDRESS, --address ADDRESS address to write to --contents CONTENTS contents of the memory to write (base64) wifi Get/Set default WiFi parameters. usage: pycom-fwtool-cli wifi [-h] [--ssid SSID] [--pwd PWD] [--wob [WOB]] optional arguments: -h, --help show this help message and exit --ssid SSID Set Wifi SSID --pwd PWD Set Wifi PWD --wob [WOB] Set Wifi on boot...
- Page 490 Read/Write pybytes configuration. usage: pycom-fwtool-cli pybytes [-h] [--token TOKEN] [--mqtt MQTT] [--uid UID] [--nwprefs NWPREFS] [--extraprefs EXTRAPREFS] optional arguments: -h, --help show this help message and exit --token TOKEN Set Device Token --mqtt MQTT Set mqttServiceAddress --uid UID Set userId --nwprefs NWPREFS Set network preferences --extraprefs EXTRAPREFS Set extra preferences Note: The local file is overwritten when making any modifications pybytes_config.json using this command (requires Pybytes firmware or higher and Firmware 1.17.5.b6 updater 1.14.3 Read/Write config block (LPMAC, Sigfox PAC & ID, etc.). You can find the structure of this block here. usage: pycom-fwtool-cli -p PORT cb [-h] [-f FILE] [-b] [-r] optional arguments: -h, --help show this help message and exit -f FILE, --file FILE name of the backup file -b, --backup backup cb partition to file -r, --restore restore cb partition from file If neither or is provided, the command will default to backup. If no file name is -b -r provided, is used. <WMAC>.cb To backup your config block: $pycom-fwtool-cli -p PORT cb To restore your config block: $pycom-fwtool-cli -p PORT cb -r -f backup.cb Read/Write non-volatile storage.
- Page 491 10.2 CLI Updater usage: pycom-fwtool-cli -p PORT nvs [-h] [-f FILE] [-b] [-r] optional arguments: -h, --help show this help message and exit -f FILE, --file FILE name of the backup file -b, --backup backup cb partition to file -r, --restore restore cb partition from file If neither or is provided, the command will default to backup. If no file name is -b -r provided, is used. <WMAC>.nvs To backup your NVS: $pycom-fwtool-cli -p PORT nvs To restore your NVS: $pycom-fwtool-cli -p PORT nvs -r -f backup.nvs Read/Write ota block, this contains data relating to OTA updates such as the hash of the OTA firmware. usage: pycom-fwtool-cli ota [-h] [-f FILE] [-b] [-r] optional arguments: -h, --help show this help message and exit -f FILE, --file FILE name of the backup file -b, --backup backup cb partition to file -r, --restore restore cb partition from file If neither nor is provided, the command will default to backup. If no file name is -b -r provided, is used. <WMAC>.ota To backup your OTA block: $pycom-fwtool-cli -p PORT ota To restore your OTA block: $pycom-fwtool-cli -p PORT ota -r -f backup.ota lpwan...
- Page 492 10.2 CLI Updater usage: pycom-fwtool-cli -p PORT lpwan [-h] [--region REGION] optional arguments: -h, --help show this help message and exit --region REGION Set default LORA region --erase_region Erase default LORA region --lora_region Output only LORA region erase_fs Erase flash file system area. This is useful if some code running on the device is preventing access to the REPL. usage: pycom-fwtool-cli -p PORT erase_fs [-h] optional arguments: -h, --help show this help message and exit erase_all Erase entire flash, only use this if you are sure you know what you are doing. This will remove your devices lpwan mac addresses etc. usage: pycom-fwtool-cli erase_all [-h] optional arguments: -h, --help show this help message and exit...
- Page 493 10.3 SecureBoot and Encryption Steps for using Secure Boot and Flash Encryption Summary In order to encrypt your firmware, you will need to build it from source. Our firmware source code can be found here, along with instructions on how to build it. Below you will find specific instructions on how generate keys, build and flash encrypted firmware. 1. Obtain keys (for Secure Boot and Flash Encryption) 2. Flash keys and parameters in efuses 3. Compile bootloader and application with make SECURE=on 4. Flash: bootloader-digest at address and encrypted; all the others (partitions and 0x0 application) encrypted, too. Prerequisites Firstly you will need to setup the tool chain and download the source code. detailed instructions on how to achieve this can be found here. Once you have complete this, you will need to open a terminal in the folder of the firmware source code repo. esp32 Next you will need keys for Flash Encryption and Secure Boot; they can be generated randomly with the following commands: python $IDF_PATH/components/esptool_py/esptool/espsecure.py generate_flash_encrypt ion_key flash_encryption_key.bin python $IDF_PATH/components/esptool_py/esptool/espsecure.py generate_signing_key s ecure_boot_signing_key.pem The Secure Boot key has to be transformed into secure_boot_signing_key.pem secure- , to be burnt into efuses. This can be done in 2 ways: bootloader-key.bin python $IDF_PATH/components/esptool_py/esptool/espsecure.py extract_public_key --k eyfile secure_boot_signing_key.pem signature_verification_key.bin or, as an artifact of the make build process, on the same directory level as Makefile make BOARD=GPY SECURE=on TARGET=boot...
- Page 494 10.3 SecureBoot and Encryption To flash the keys ( and ) into the flash_encryption_key.bin secure-bootloader-key.bin efuses (write and read protected) run the following commands (ignoring the lines that start with # Note: Irreversible operations # Burning Encryption Key python $IDF_PATH/components/esptool_py/esptool/espefuse.py --port /dev/ttyUSB0 bur n_key flash_encryption flash_encryption_key.bin # Burning Secure Boot Key python $IDF_PATH/components/esptool_py/esptool/espefuse.py --port /dev/ttyUSB0 bur n_key secure_boot secure-bootloader-key.bin # Enabling Flash Encryption mechanism python $IDF_PATH/components/esptool_py/esptool/espefuse.py --port /dev/ttyUSB0 bur n_efuse FLASH_CRYPT_CNT # Configuring Flash Encryption to use all address bits together with Encryption ke y (max value 0x0F) python $IDF_PATH/components/esptool_py/esptool/espefuse.py --port /dev/ttyUSB0 bur n_efuse FLASH_CRYPT_CONFIG 0x0F # Enabling Secure Boot mechanism python $IDF_PATH/components/esptool_py/esptool/espefuse.py --port /dev/ttyUSB0 bur n_efuse ABS_DONE_0 If the keys are not written in efuse, before flashing the bootloader, then random keys will be generated by the ESP32, they can never be read nor re-written, so bootloader can never be updated. Even more, the application can be re-flashed (by USB) just 3 more times. Makefile options: make BOARD=GPY SECURE=on SECURE_KEY=secure_boot_signing_key.pem ENCRYPT_KEY=flash_ encryption_key.bin TARGET=[boot|app] is the main flag; it's not optional SECURE=on the following defaults are set: SECURE=on encryption is enable is the secure boot key, located relatively to Makefile secure_boot_signing_key.pem is the flash encryption key, located relatively to Makefile flash_encryption_key.bin For flashing the bootloader digest and the encrypted versions of all binaries:...
-
Page 495: Secureboot And Encryption
10.3 SecureBoot and Encryption For flashing the has to be written at address 0x0, instead of bootloader-reflash-digest.bin the (at address bootloader.bin 0x1000 Build is done using option; additionally, all the binaries are pre-encrypted. SECURE=on make BOARD=GPY clean make BOARD=GPY SECURE=on TARGET=boot make BOARD=GPY SECURE=on TARGET=app make BOARD=GPY SECURE=on flash Manual flash command: python $IDF_PATH/components/esptool_py/esptool/esptool.py --chip esp32 --port /dev /ttyUSB0 --baud 921600 --before no_reset --after no_reset write_flash -z --flash_mode dio --flash_freq 80m --flash_size detect 0x0 build/GPY/release/bootloader/bootloader-r eflash-digest.bin_enc 0x8000 build/GPY/release/lib/partitions.bin_enc 0x10000 build/GP Y/release/gpy.bin_enc_0x10000 OTA update The OTA should be done using the pre-encrypted application image. Because the encryption is done based on the physical flash address, there are 2 application binaries generated: which has to be written at default factory address: gpy.bin_enc_0x10000 0x10000 which has to be written at the partition address gpy.bin_enc_0x1A0000 ota_0 0x1A0000 Hint: on MicroPython interface, the method responds with the pycom.ota_slot() address of the next OTA partition available (either or 0x10000 0x1A0000... - Page 496 11.1 License MicroPython License Information The MIT License (MIT) Copyright (c) 2013-2015 Damien P. George, and others Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software. THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Copyright (c) 2017, Pycom Limited. This software is licensed under the GNU GPL version 3 or any later version, with permitted additional terms. For more information see the Pycom Licence v1.0 document supplied with this file, or available at https://www.pycom.io/opensource/licensing...
