Pycom WiPy 3.0 Quick Start Manual

WiPy 3.0

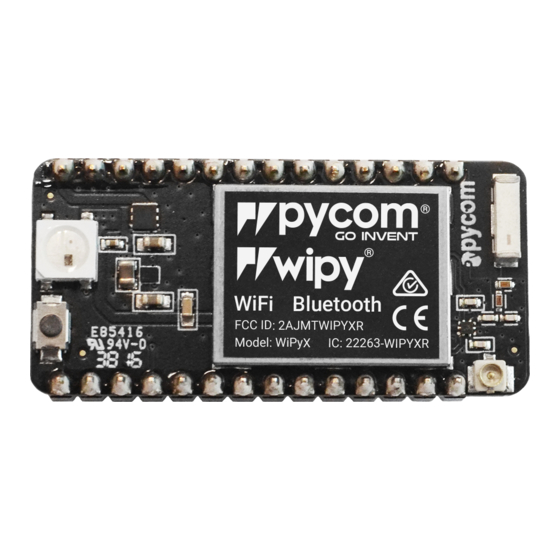

Introducing the WiPy 3.0. The tiny MicroPython enabled Wifi
&
Bluetooth IoT development platform. With a 1KM WiFi range,
state of the art Espressif ESP32 chipset and dual processor,
the WiPy 3.0 is all about taking the Internet of Things to the
next level.
Create and connect your things everywhere. Fast.
WiPy Features
- Powerful CPU, BLE and state of the art WiFi
radio.
- 1KM Wifi Range
- MicroPython enabled
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other
connected micro controllers
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip
- Network processor handles the WiFi connectivity and the
IPv6
stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the
ADC channels and control most of the internal peripherals
during deep-sleep mode while only consuming 25uA
Use the Pymakr IDE
Super easy code editor to write your Python scripts
Quick Verification
For easy and fast debugging use the interactive shell that is
acces- sible through telnet or one of the serial ports
Easy Upload
Upload your scripts, and any other files you want to the WiPy
3.0 via the FTP server
Locally or remotely
Reset the WiPy 3.0 (you can do it locally, or remotely via
Telnet)
Distributed and manufactured by Pycom Ltd.
Registered office:
High Point, 9 Sydenham Road, Guildford, Surrey GU1 3RX, UK
Copyright © 2017 by Pycom Ltd. All rights reserved. No part of this
document may be reproduced, distributed, or transmitted in any form
Mechanical
Size: 42mm x 20mm x 3.5mm (excluding headers)
Operating temperature:
3V3 ultra low
-20 to 85 degrees
noise switching
celsius
regulator
RGB
RF
heart beat
8MB flash memory
Reset
Switch
Interfaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Hash / encryption
SHA, MD5, DES,
AES
WiFi
802.11b/g/n 16mbps
Bluetooth
Low energy and
classic
RTC
Running at 32KHz
Power
- 3.3V to 5.5V
3V3 output capable
of sourcing up to
500mA
With dozens of ready to use templates and libraries
soon to be available on the Pycom Exchange,
developing a new IoT solution is now easier and faster.
Additional support for Blynk: SMTP, MQTT, URLLIB,
ONEWIRE, Accelerometer, Event loop MicroPython
together with the universal hard-
ware API allow us to build a large set of powerful, robust,
and portable libraries across hardware platforms.
or by any means, including photocopying, recording, or other electronic or
ESP 32 dual core
micro- roller and
cont
Blue WiFi/ tooth 4.2
radio
High
performance
SM
D antenna
U.FL
Security & Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC - 2AJMTWIPY3R
- CE 0700
Memory
- RAM: 4MB
- External flash: 8MB
- Hardware floating
point acceleration
- Python multi-threading
