Summary of Contents for Roadragon G-M100

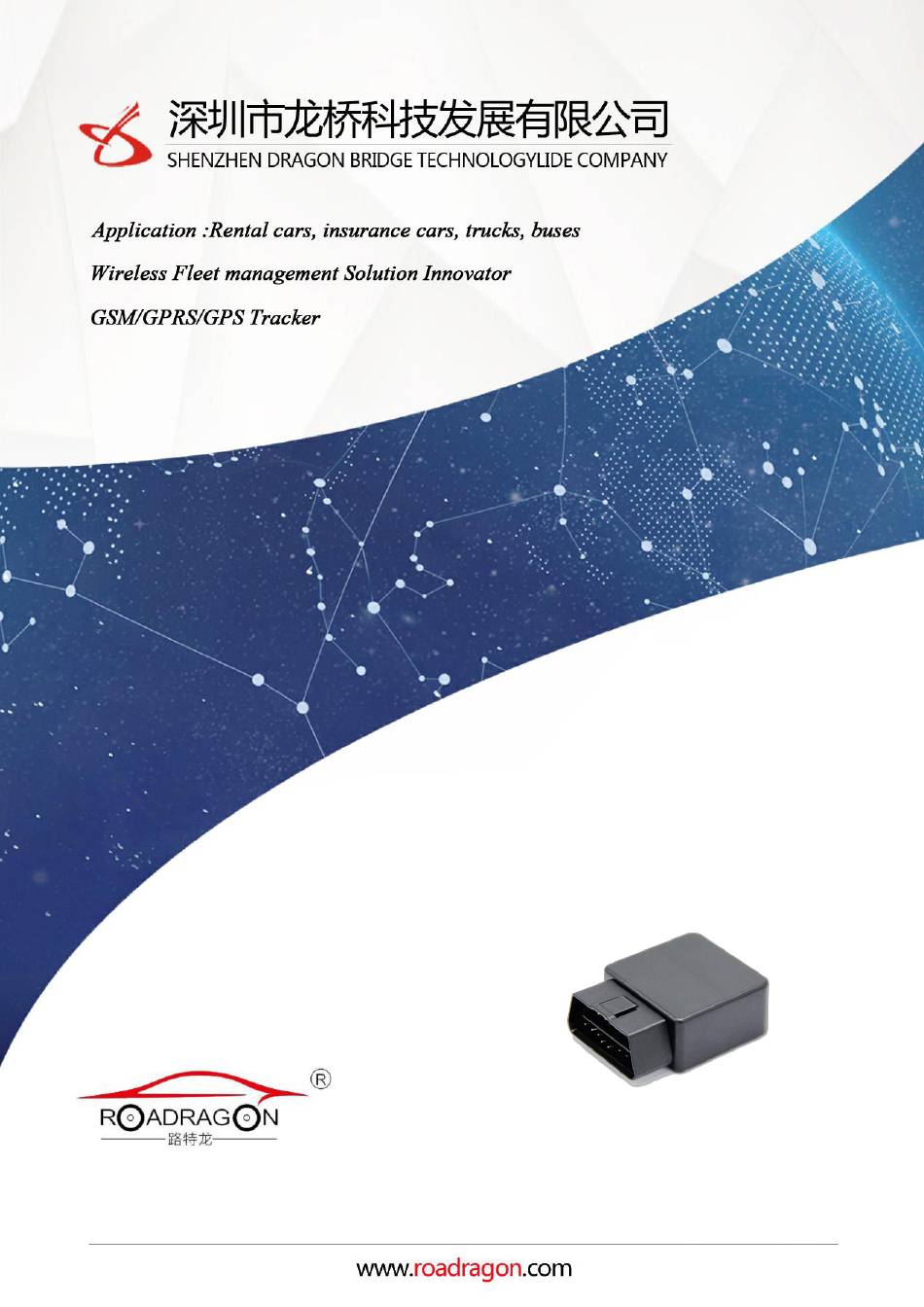

- Page 1 G-M100 User manual User Manuel G-M100...
-
Page 2: Table Of Contents
G-M100 User manual Contents 目录 1 Introduction................................2 1.1 product description.............................2 2 Product Overview..............................2 2.1 Product accessories............................ 2 2.2 Device LED light status..........................2 2.2.1 RED LED (OBD Working status)....................2 2.2.2 Yellow LED (GSM signal status)....................2 2.2.3 Blue LED (GPS signal status)......................2 2.3 Parameters..............................3... -
Page 3: Introduction

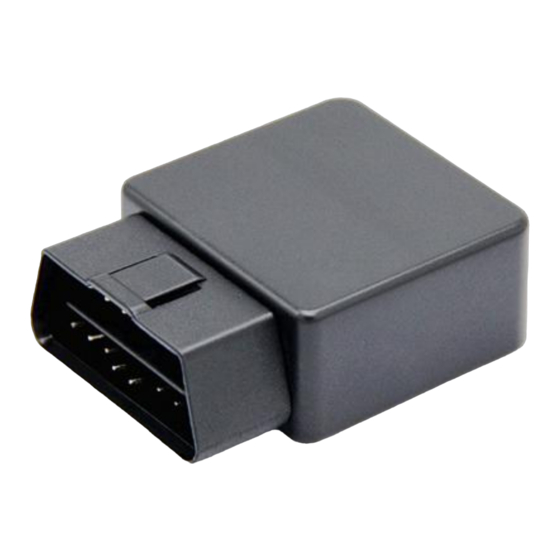

1 Introduction 1.1 product description The G-M100 is a 4g wireless communication technology and gps/bd system positioning technology, which is a 4g intelligent information acquisition terminal built for the car network. with obd data flow detection, fault code detection, frame number reading, fatigue driving setting, power off alar m, overspeed alarm, water temperature threshold setting, idle alarm, wifi network hot spots and so on. -
Page 4: Parameters
G-M100 User manual 2.3 Parameters Items description Size of the whole 59mm × 45mm × 22mm machine size Weight Operating Voltage DC 9－35V Backup battery 80mAh (3.7V polymer battery) Working current 12V/73.6mA Working -20 C ~75 C temperature Storage temperature... -
Page 5: Installation Instructions
G-M100 User manual 3 Installation instructions 3.1 Preparation before installation: 1. Open the box and check whether the device and the accessories are complete, otherwise please contact your dealer. 2. SIM card selection, the device works with Micro SIM card, and support full Netcom band. -
Page 6: Sms Commands And Instructions
G-M100 User manual 3.3.3 SMS commands and instructions: Send SMS command from user’s SIM card number to the SIM card number which inside the GPS device. The commands in the following SMS command list are in English input format, and the le tters are case-sensitive according to the instruction requirements. - Page 7 G-M100 User manual Please go to outdoor place where GPS GPS no location signal good Platform map shows Vehicle did not move after incorrect location Please drive the vehicle on the road installation ACC connected or not Connect the device and turn on ACC...
