- Page 1 User manual MT-009 4G User Manuel MT-009 4G...
-
Page 2: Table Of Contents
User manual MT-009 4G content 1.feature of product..............................1 2.technical parameter.............................. 2 2.1 Machine parameters............................2 Product features................................3 3.1 Positioning monitoring function........................3 3.1.1 Regular monitoring..........................3 3.1.2 Blind spot compensation........................3 3.1.3 corner compensation...........................3 3.1.4 Base station positioning........................3 3.1.5 A-GPS..............................3 3.2 Alarm function.............................. -
Page 3: Feature Of Product
1.feature of product Support GPS/Beidou, AGPS, base station and other positioning functions, accurate positioning; The device supports 4G and 2G networks in most regions of the world, which can meet the needs of almost all regions of the world and cross-regional use. 4G network supports TDD LTE/FDD LTE, 2G network supports GSM/GPRS. -
Page 4: Technical Parameter
2.technical parameter 2.1 Machine parameters Product Features specific description Operating Voltage DC 9V~100V Working current Average current <40mA (DC12V), maximum current <120mA (DC12V) Built-in battery 90mAH,3.6V，Lithium polymer battery battery protection Anti-200V power supply reverse connection; main power voltage detection; Terminal volume 70mm*40mm*13mm(L*W*H) Terminal weight 47±5g... -
Page 5: Product Features
Product features 3.1 Positioning monitoring function 3.1.1 Regular monitoring The vehicle satellite terminal can set a certain moment or a certain time period or at a certain time interval, and send the vehicle's position and status information to the monitoring center. 3.1.2 Blind spot compensation When the terminal enters the GPRS/LTE blind area, the trajectory data will be saved at the shortest time interval of 30S, and the blind area data will be uploaded to the platform when the... -
Page 6: Alarm Function
3.2 Alarm function 3.2.1 Low pressure alarm When the battery voltage on the vehicle is too low (0-11V or 19-22V), the vehicle terminal will report a low voltage alarm to the monitoring center. 3.2.2 Overspeed alarm, low speed alarm When the vehicle speed is higher than the overspeed alarm value, the vehicle terminal will notify the monitoring center. -
Page 7: Smart Function
3.3 Smart function 3.3.1 Smart sleep The host has a built-in high-sensitivity G-sensor acceleration sensor, which can monitor whether the vehicle is moving in real time. When no motion is detected for a long time, the host automatically enters a power-saving state, closes the GPS/BD module, and at the same time GSM enters the heartbeat return state. -
Page 8: Remote Upgrade
3.3.7 Remote upgrade As long as the GPRS status is available, the terminal software can be upgraded by remote wireless mode. 3.3.8 Dual IP or dual domain name The terminal supports dual IP connection between the main server and the standby server, and the default connection is to the main server. -
Page 9: Installation Notes

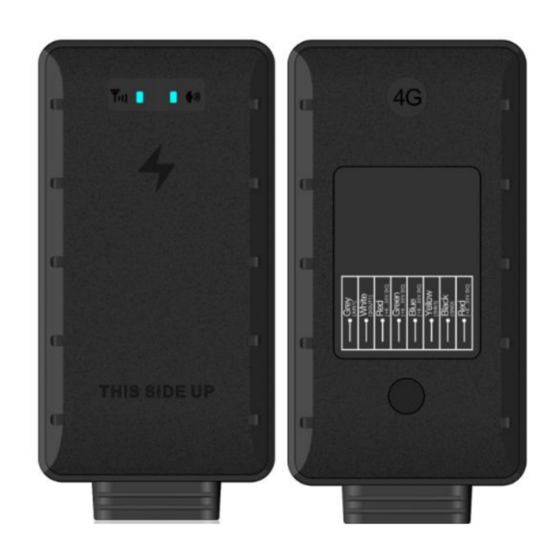

4.Installation Notes 4.1 Get to know the product red LED light Green LED light Fast flash: GPRS connected Flashing quickly: Searching for positioning signals Slow flash: GPRS connected Steady on: precise positioning Steady on: The module is Slow flash: base station positioning abnormal Off: Unlocated SIM card holder... -
Page 10: Installation And Debugging
4.2 Installation and debugging 4.2.1 SIM card installation Open the top cover of the terminal, insert the prepared SIM card into the card holder, and then confirm that the card buckle is in place. Please ensure that the SIM card has been activated with GPRS/LTE function in advance, and know the SIM card number。... -
Page 11: More Sms Instructions
unauthorized disassembly, collision, charging, soaking in water, over 80°C, human failure, force majeure damage, etc., otherwise the resulting short circuit, insufficient working time, battery deformation, leakage, explosion, etc. Consequential loss, no warranty and compensation； 4.4 More SMS instructions Set the real-time positioning mode return interval T1: Start the return interval, the value range is 5-300 seconds, the default is 15 seconds T2: Interval between flameout and return, the value range is 0, 5-300 seconds, the... - Page 12 IP,119.23.233.52,6000,1# Set the main server IP to 119.23.233.52, port 6000, and communication type to TCP IP,ip or dns,port,type# IP,www.365qczx.com,6000,0# Set the main server domain name to www.365qczx.com, port 6000, and communication type to UDP IP2,119.23.233.52,6000,1# Set the backup server IP to 119.23.233.52, port 6000, and communication type to IP2,ip or dns,port,type# IP2,www.365qczx.com,6000,0# Set the backup server domain name to www.365qczx.com, port 6000, and...
