Summary of Contents for Roadragon LLS-100TS

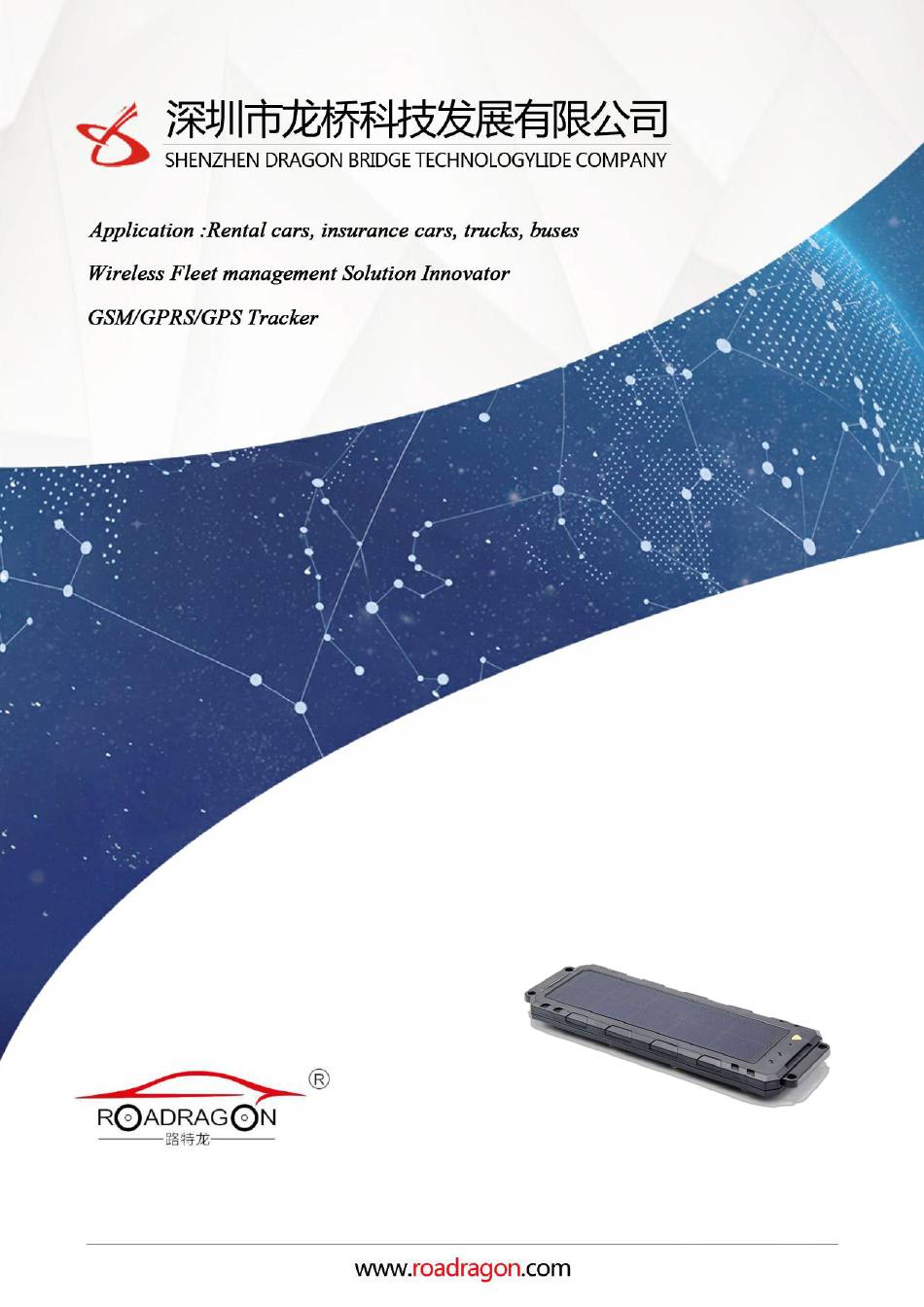

- Page 1 User manual LLS-100TS User Manuel LLS-100TS...
-
Page 2: Table Of Contents
User manual LLS-100TS Contents 1 Introduction..............................2 1.1 product description..........................2 2 Product Overview............................3 2.1 Product accessories..........................3 2.2 Device LED light and push-button..................... 4 2.3 Parameters............................5 3 Product Function............................7 3.1 Function.............................. 7 4 Equipment installation........................... 7 5 Precautions..............................11... -
Page 3: Introduction

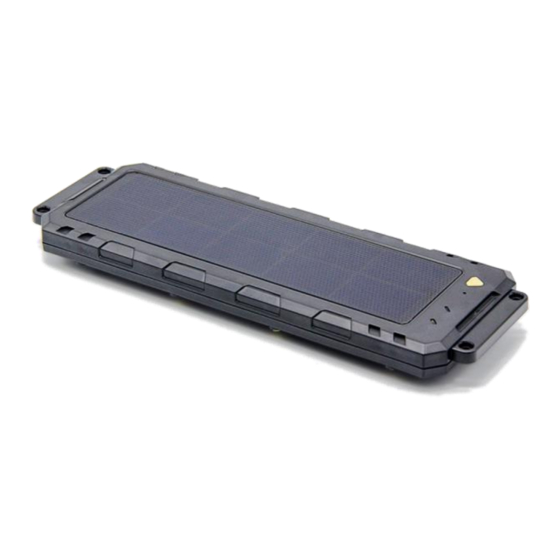

1 Introduction 1.1 product description The LLS-100TS is a positioning terminal specially designed for Vehicle and Marine positioning mo nitoring applications(Two different software). LLS-100TS can do the position monitoring and tracki ng of outdoor valuable assets such as ships and Container through GPS/BD satellite positioning te chnology, solar charging technology, GSM/GPRS communication technology, and Multi--Mode flexi ble configuration of location service monitoring and management system. -
Page 4: Product Overview
User manual LLS-100TS 16. Solar panel specifications: Single crystal gauge, voltage 5.5V, 17. current 200mA, conversion rate 21.5% 18. Protection level: Waterproof IP67 19. Applicable environment: -20°C~75°C 20. Humidity: 30%----95% 21. Device Dimensions: 264mm*90mm*25mm 22. Bracket: 264mm*63.5mm*17mm 23. Device+ bracket：264mm*90mm*28.5mm 24. -
Page 5: Device Led Light And Push-Button
User manual LLS-100TS Waterproof sticker 1 Waterproof sticker 2 M3*11 screws Bracket (with magnet） 2.2 Device LED light and push-button... -
Page 6: Parameters
User manual LLS-100TS Status light ---- corresponding working status Green light indicates GPS status: 1. No positioning: 4 seconds cycle, 2 seconds interval on and off; 2. Positioning: 4 seconds period, 0.5s on and 3.5s off Red light indicates GSM status: 1. - Page 7 User manual LLS-100TS Solar panel Single crystal gauge, voltage 5.5V, current 200mA, conversion rate 21.5% specifications Battery capacity 10000mAh Lithium polymer battery GNSS type Beidou/GPS dual mode A-GNSS Auxiliary Support Applicable -20 C ~75 C environment Working humidity 30%-95% RH does not clot...
-
Page 8: Product Function
User manual LLS-100TS 3 Product Function 3.1 Function 1.Supervision of the daily position of small fishing vessels; 2.Navigation track management; 3.Supporting blind zone supplements; 4.Solar charging, no external power supply is required, the power can be inquired, and the low-power active alarm;... - Page 9 User manual LLS-100TS As shown, place the SIM card Step 2: Turn on the switch Set the switch next to the SIM card to the ON position and light up. After the switch is turned to the ON position, the indicator...
- Page 10 User manual LLS-100TS Step 3: Make sure the equipment is online Query the device on the platform to report the current location information correctly, enter step 4 correctly, otherwise please confirm whether the SIM card is open GPRS and install correctly.
- Page 11 User manual LLS-100TS Step 6: Fixed mounting bracket on site Fix the mounting bracket (with strong magnetic force) at the installation site with at least 4 M5 stainless steel tapping screws, as shown below Step 7: Fix the host on the mounting bracket...
-
Page 12: Precautions
User manual LLS-100TS 5 Precautions 1. During the installation process, please standardize the operation. After installation, please clean up the site to keep it clean and tidy. 2. After testing the equipment in the office or warehouse, please be sure to turn the switch to OFF. When testing in the office or warehouse, the equipment cannot be exposed to direct sunlight, cannot be charged, and is always in a state of power consumption. - Page 13 User manual LLS-100TS Please confirm whether there is strong magnetic on the mounting bracket; No disassembly alarm Whether the side of the device indicator is close to the direction of the magnet;...
