Summary of Contents for Roadragon LTS-100DS
- Page 1 100DS User manual LTS- User Manuel LTS-100DS...
-
Page 2: Table Of Contents
100DS User manual LTS- Contents 1 Introduction..............................2 1.1 product description..........................2 2 Product Overview............................2 2.1 Product accessories..........................2 2.2 Interface Definition..........................2 2.3 Field of application..........................3 2.4 Product acessories..........................3 2.5 Function.............................. 3 2.6 Specification Description........................4 3 Instructions for use............................5 3.1 SIM card installation and device start up................... 5 3.2 Device LED light status........................ -
Page 3: Introduction

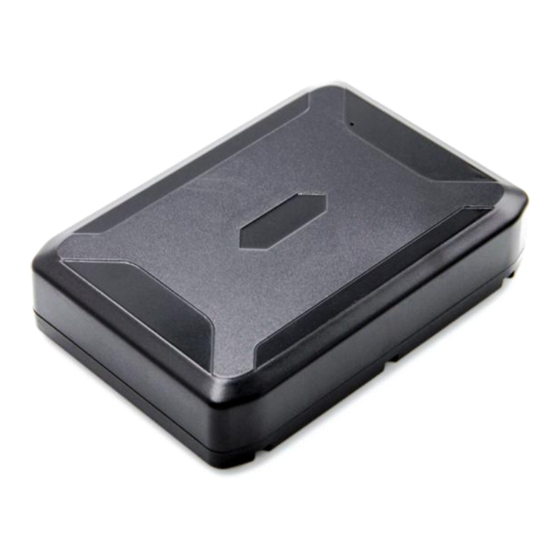

1 Introduction 1.1 product description The LTS-100DS GPS TRACKER Tracker combines GSM wireless communication technology and GPS global positioning system technology, using industrial-grade fire protection materials, six 18MM × 3MM strong magnetic devices, IPX-5 waterproof design, built-in 8000MAH large-capacity battery, long standby for 100 days , Through the SMS and global positioning service platform for remote target positioning and monitoring management. -
Page 4: Field Of Application
100DS User manual LTS- 2.3 Field of application ● Car Rental / Small Fleet Management ● Outdoor activities ● Guardianship of children/elderly people/disabled persons/valuables ● Personal security ● Staff Management ● Tracking and positioning ● Animal Protection and Range Management 2.4 Product acessories ●... -
Page 5: Specification Description
100DS User manual LTS- 2.6 Specification Description Item specification Charging voltage DC 5V/1000mA (MICRO USB) 4000MAH（4000, 8000,10000 Optional） Built-in battery size 110mm*77mm*26mm Weight 296g Operating temperature -20° to 55° C Working humidity 5% to 95% Non-condensing GSM module Quad-band GSM 850/900/1800/1900Mhz GPS chip TD1030 GPS+ BeiDou Dual Mode Positioning Chip GPS sensitivity... -
Page 6: Instructions For Use
100DS User manual LTS- 3 Instructions for use 3.1 SIM card installation and device start up 3.1.1 Open the packing box and check whether the device model is correct and the accessories are complete. Otherwise, please contact your dealer. 3.1.2 SIM card selection, the device needs to insert a GSM SIM card, GSM card Unicom or mobile optional (Global GSM network) 3.1.3 Installation of the SIM card, disassemble the device waterproof plug, according to the label, insert the SIM card chip downwards into the card slot, and put on a waterproof plug. -
Page 7: Equipment Charging
100DS User manual LTS- 3.3 Equipment charging Each time the device is charged, charge it for more than 20 hours. Please use the original charger and battery. Note: (1) The battery of this product contains chemical components. Please do not use force to beat, prick and put into fire (2) Please charge in time to ensure the normal operation of the equipment. -
Page 8: Sos Emergency Help
100DS User manual LTS- 3.7 SOS Emergency Help 3.7.1 SOS Specific Number Settings The specific number is the alarm number, which can be sent by adding a specific number command to the device to add the number, two SOS-specific numbers can be added, 101 is the default master number, 102 is the first SOS-specific number, and 103 is the second SOS-specific number. -
Page 9: Vibration Alarm
100DS User manual LTS- When the master control number or specific number sends this command to the device SIM card number, the device dials back the phone to implement the monitoring function. Note: To realize this function, you must first set the master control number and SOS specific number. 3.8 Vibration alarm 3.8.1 Turn on vibration SMS alarm: 125# Reply: OK... -
Page 10: Arm/Restart And Factory Reset
100DS User manual LTS- The device enters sleep mode after entering for 5 minutes. The vibration cannot be awakened. It can be sent to a single working mode continuously. Work mode, automatic operation mode instructions change the working state to wake the device. 3.13.2 Automatic Operation Mode (Default) The device did not set any alarms. -
Page 11: Monitoring Platform Applications
100DS User manual LTS- 4 Monitoring platform applications 4.1 Real-time monitoring, network / mobile check car GPS+LBS dual-mode positioning, GPS positioning accuracy of 2 meters, with GPS signal GPS positioning, no GPS Location of the signal is localized by LBS base station, dual mode automatic switch, keep your device always online, ensure your monitoring 365 days x 24 hours is online. - Page 12 100DS User manual LTS- 5.2.3 Observe whether the dropped line area is dropped individually or all to determine whether it is an operator network problem. 5.2.4 Whether the SIM card owes fees; 5.2.5 Has the GPRS service been cancelled (offline on the last day of the month); 5.2.6 Query parameter settings to check if the GPRS transmission interval is correct.
