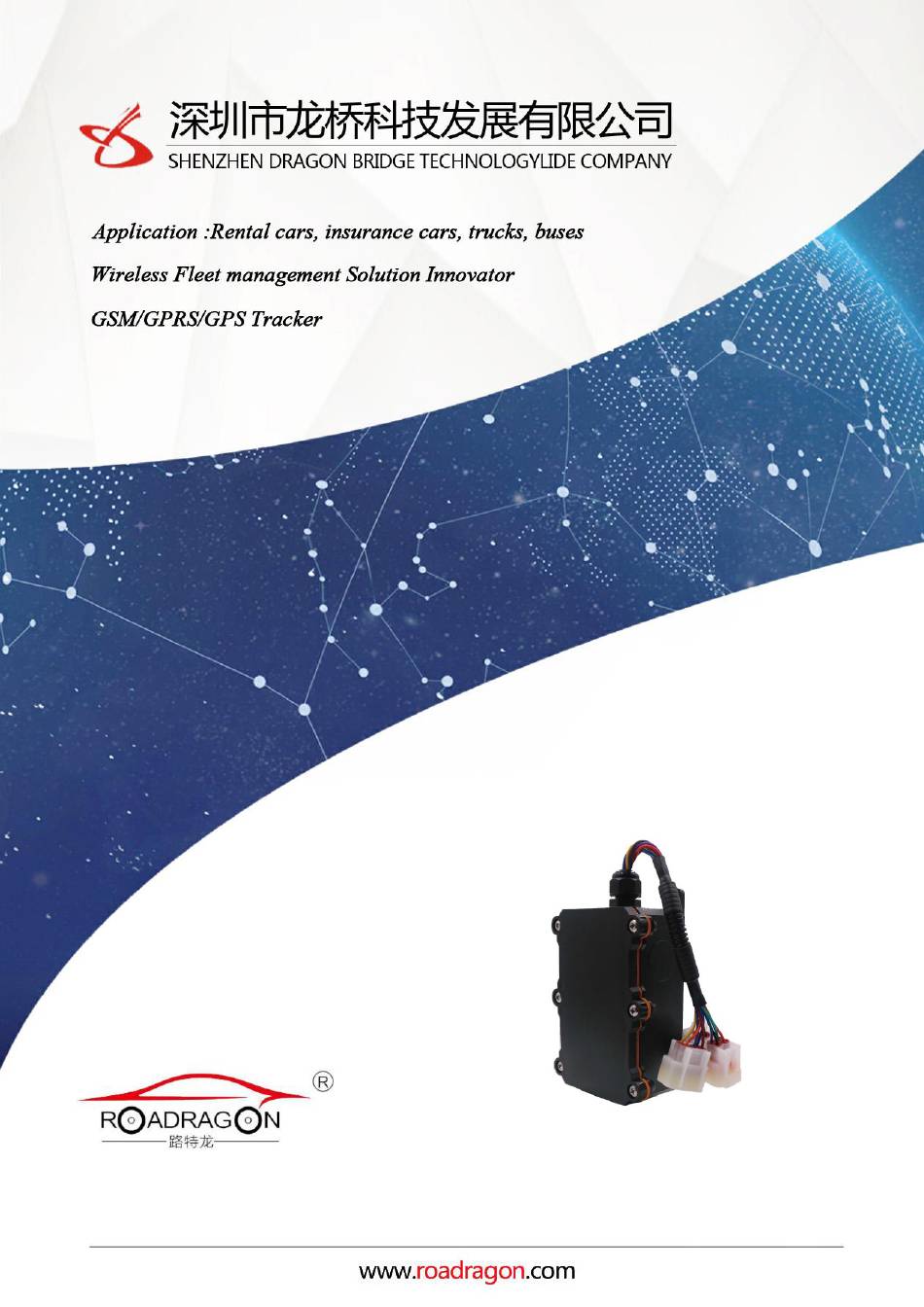

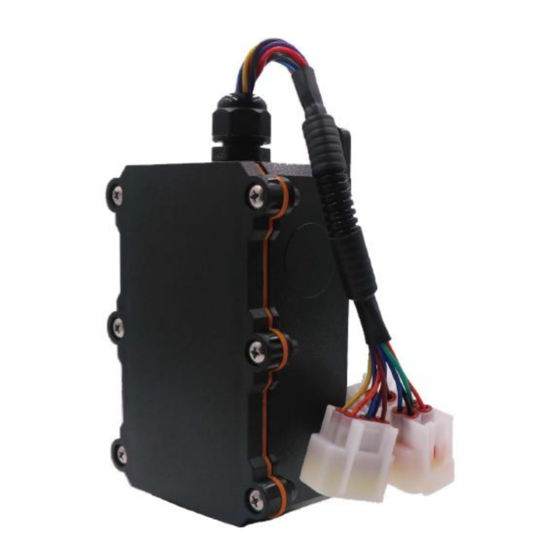

- Page 1 LTS-100D User manual User Manuel LTS-100D...
-
Page 2: Table Of Contents
LTS-100D User manual Content Product overview..............................1 Product Features..............................2 2.1 basic skills................................. 2 2.1.1 Positioning monitoring........................2 2.1.2 Regular monitoring..........................2 2.1.3 Blind spot compensation........................2 2.1.4 corner compensation...........................2 2.1.5 Base station positioning........................2 2.1.6 Main power detection......................... 3 2.1.7 Overspeed alarm..........................3 2.1.8 Main power failure alarm........................ -
Page 3: Product Overview
Product overview LTS-100D is a special positioning product Switchable between wired and wireless Built-in 5200mAh polymer lithium battery, use real-time positioning under the condition of wiring. Support satellite positioning, AGPS positioning, base station positioning, etc. Communication support: GSM and GPRS. -
Page 4: Product Features
Product Features 2.1 basic skills 2.1.1 Positioning monitoring It includes functions such as timing return, blind spot compensation, speed and mileage statistics, and regional monitoring. The system issues positioning commands, and the terminal returns data including longitude, latitude, speed, direction, and status information. 2.1.2 Regular monitoring The vehicle-mounted satellite positioning terminal can set a certain moment or a certain period of time or send the vehicle's position and status information to the monitoring center at certain time... -
Page 5: Main Power Detection
location is analyzed by the server. 2.1.6 Main power detection The terminal detects the main voltage in real time. When the battery voltage on the vehicle is too low, the vehicle terminal reports a low voltage alarm to the monitoring center. 2.1.7 Overspeed alarm When the vehicle speed is higher than the overspeed alarm value, the vehicle terminal will notify the monitoring center. -
Page 6: Intelligent Self-Test
data will be converted to heartbeat return; After the G-Sensor detects in real time that it enters the sports mode, the terminal immediately exits the power saving mode and enters the normal working state. 2.1.12 Intelligent self-test The in-vehicle terminal can perform self-diagnosis. Once a fault occurs, it will send a fault notification to the center, such as GPS, GSM, etc., and can automatically take relevant measures. -
Page 7: Extensions
2.2 extensions 2.2.1 Tire pressure detection The terminal can be connected to a tire pressure detector to detect tire pressure information in real time and send it to the background. The terminal can judge the tire pressure status in real time. Once abnormal tire pressure is found, the tire pressure alarm can be notified in real time. -
Page 8: Technical Parameter
technical parameter 3.1 Electrical parameters Product Features specific description Operating Voltage DC 9V~36V, suitable for 12V/24V vehicles Working current Average current <100mA@12V Main power sleep <15mA@12V current battery sleep current <300uA@3.7V (long standby mode) Built-in battery Lithium polymer battery, capacity 3.7V/5200mAH Charge Built-in battery supports fast charging communication... -
Page 9: Installation Notes
Host fixing hole Built-in antenna SIM card holder Remove the face cover battery switch Red LED, communication status Green LED, positioning status To remove the face cover, you need to use When the power is off, insert the SIM card into the card holder, Phillips screwdriver, remove 6 screws. -
Page 10: Parameter Settings
Equipment wiring instructions: Including the positive and negative wire harness of the power 3P power plug: supply, when installing the wiring, it should be connected with the trailer power cord. he default is RS232 serial communication interface, 4P communication plug ： T which provides 5V power output, which can supply power for external sensors. -
Page 11: Set Postback Interval
No warranty or compensation for consequential losses. 4. 3 Installation location LTS-100D is designed to meet the IP68 protection standard and can be installed and fixed in exposed environments. Usually, it can be fixed at the position marked in the figure below, and the...
