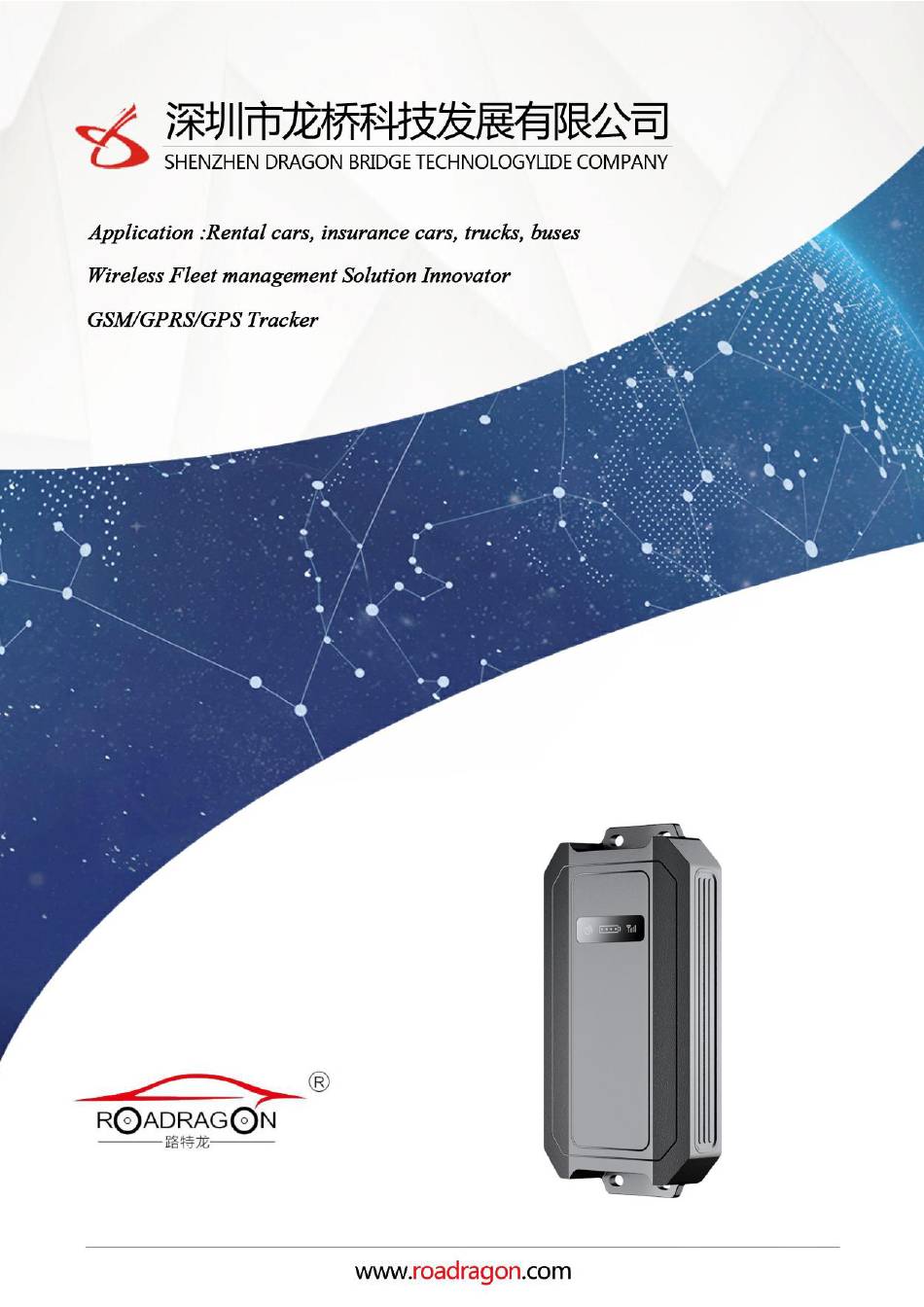

- Page 1 BK-800 User manual User Manuel BK-800 — 1 —...
-
Page 2: Table Of Contents
BK-800 User manual Contents 1 Product Overview ............................. 3 1.1 Appearance ..........................3 1.2 LED status ..........................3 1.3 Product features summary ...................... 4 1.4 Hardware parameters ......................4 2 Product functions ............................. 6 2.1 Work modes ........................6 2.2 AGPS ..........................7 2.3 LBS ............................ -

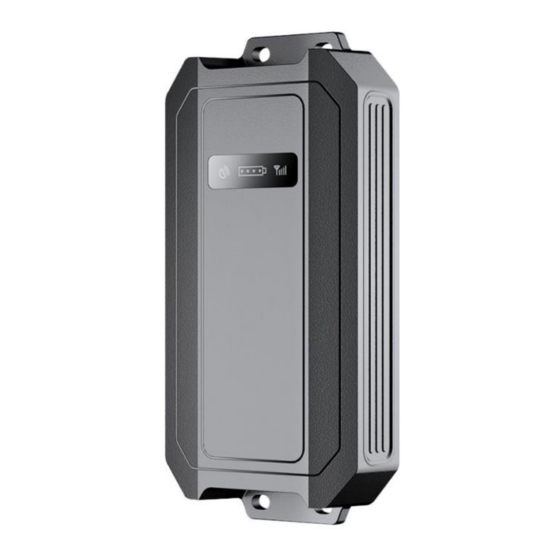

Page 3: Product Overview
BK-800 User manual 1 Product Overview PART 01 Product Overview 1.1 Appearance Enclosure IP67 waterproof Magnets To stick the device to metal surface Inside the enclosure for hidden installation purpose, to turn on Power button or turn off device To detect removal alarm ,remove the sticker on the light sensor,... -
Page 4: Led Status
BK-800 User manual 1.2 LED status Event Status Network connecting Fast flash Cellular LED (Red) Network connected Slow flash Module error Solid on GPS position Solid on LBS position 0.5 seconds on, 0.5 seconds off Position LED(Green) Wifi Position 2 seconds on, 2 seconds off... -
Page 5: Hardware Parameters
BK-800 User manual 1.4 Hardware parameters Dimension 154mm*82mm*30mm（L*W*H） Physical Weight 350±5g Communication module Quectel BG95 Working frequency: Cat M1: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26*/B27/B28/B66/B85 • Cat NB2: LTE-FDD B1/B2/B3/B4/B5/B8/B12/B13/B 18/B19/B20/B25/B26*/B28/B66/B71/B85 Cellular Frequency • EGPRS: 850/900/1800/1900MHz protocol: Embedded TCP/IP stack Sensitivity: -107dBm@850/900MHz -106dBm@1800/1900MHz... -
Page 6: Product Functions
BK-800 User manual Microsim 3 status LEDs, Indicator Green: GPS, Red: Network, Blue: battery Working Temperature -20℃ ~ +70℃ Environmental Humidity 5% ~ 95% (no fog) Parameter Ingress Protection Rating IP67 PART 02 Product Functions 2 Product functions 2.1 Work modes There are 3 working modes for BK800: real time tracking mode、sleep mode、clock mode. -
Page 7: Agps
BK-800 User manual Note: Device judge whether it is still or moving by it’s G-sensor; When the value of T2 is bigger than 3600 seconds, the communication module is shut down after sleep, If T2 is less than 3600 seconds, the communication stays online when enters the sleep state. -
Page 8: Lbs
BK-800 User manual 2.3 LBS If device enters into the blind zone and GPS cannot be fixed, the device will switch to LBS position, LBS provides the reference location which might not be accurate 2.4 Wi-Fi The device has built in Wi-Fi Chip, it automatically connects to the WIFI hotspot nearby and filter the... -
Page 9: Ota Commands From Backend
2.8 Strong Magnetic and waterproof function BK-800 is with built-in with super strong magnet that can firmly stick the device to the metal surface, it is easy to install and conceal, and the device is with waterproof function, which can be installed on any assets that are outdoors 2.9 Tamper alarm... -
Page 10: Setup And Debugging
BK-800 User manual 3.1【Setup and debugging 】 3.1.1 SIM card installation Unscrew the top cover of the device, insert the prepared SIM card into the SIM card holder, and then confirm that the SIM card button is well placed . Please make sure that the SIM card has data service available in advance and write down the SIM card number. - Page 11 BK-800 User manual SSCOM configuration: Please contact Roadragon team for configuration tools and documents. Mounting recommendations Easy installation is one of the major advantages of our asset tracker. Here are some major ways of installation for our BK800 tracker There are 4 ways of installation that are widely used by our partners around the world on assets such as trailers, containers, reefers, caravans, railcar, construction and agricultural equipments, power generators, etc.
- Page 12 BK-800 User manual — 12 —...
