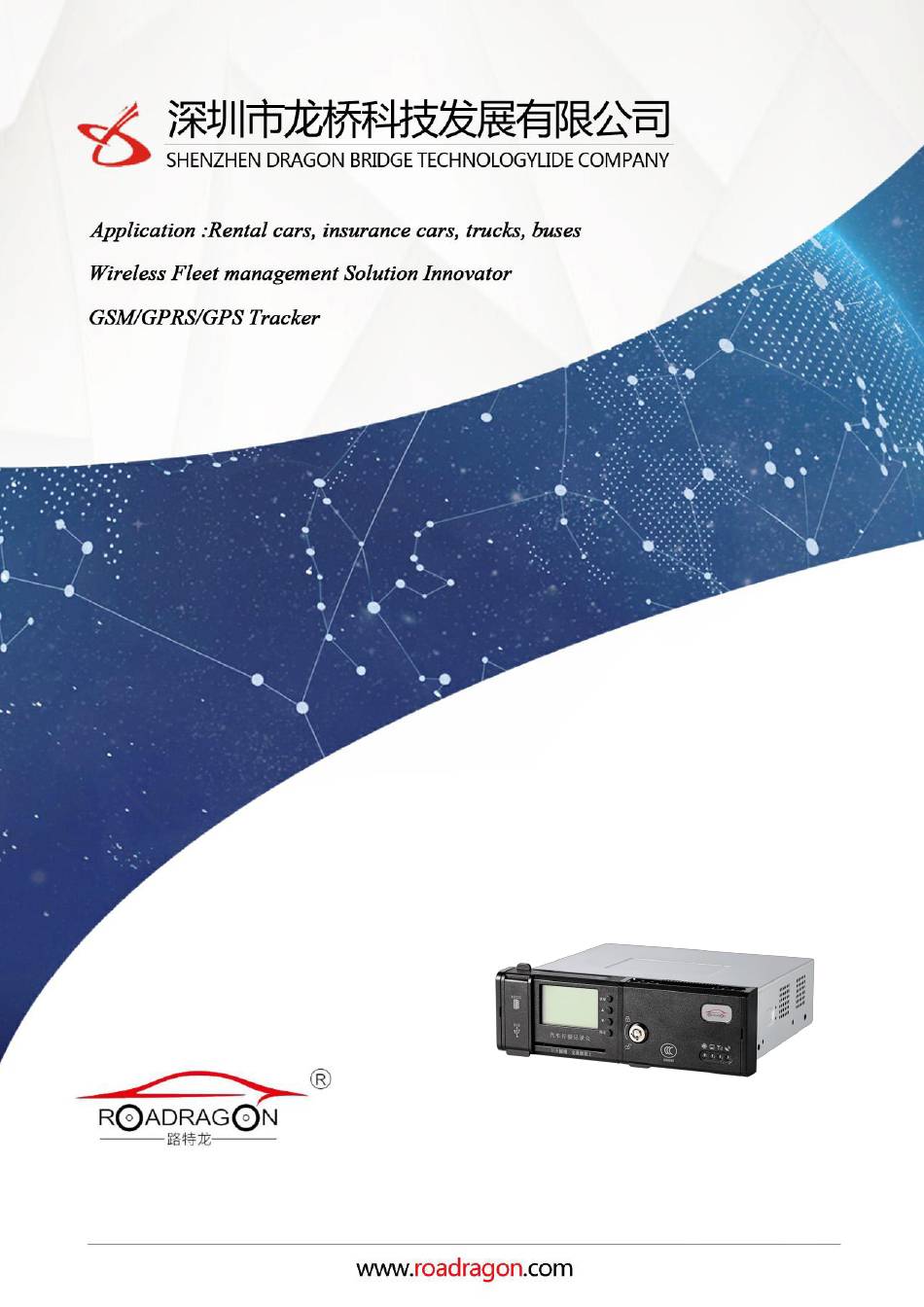

- Page 1 G-V303 User manual User Manual G-V303...
-
Page 2: Table Of Contents
G-V303 User manual Contents 1 Introduction..............................2 1.1 product description..........................2 1.2 Product Feature........................... 2 1.3 Product Nameplate..........................3 1.4 The Product Configuration List......................3 2 Product Overview............................5 2.1 Parts List............................. 5 2.2 Specifications............................5 2.2.1 Specifications...........................5 2.2.2 Parameter index........................6 2.3 Interface Characteristics........................8 3 Product Interface Definition And Wiring Instructions.................. -
Page 3: Introduction
1 Introduction 1.1 product description G-V303 is an intelligent driving assistant system based on image recognition technology. This technology can not only monitor the unsafe behavior of driver's fatigue driving, distraction driving, lane deviation, front car proximity, blind area pedestrian and so on, but also cooperate with the monitoring driving platform to upload data and dispatch intervention. -
Page 4: Product Nameplate
G-V303 User manual 1.3 Product Nameplate Product Name: Car Video Monitoring Terminal Product Model: G-V303 4G Product Specifications: L172mm*W188mm*H59mm Implementation Standards: GB/T 19056-2012, JTt/T 794-2011, JT/T 808-2011, JT/T 1076-2016, JT/T 1078-2016 1.4 The Product Configuration List Table 1 Product Standard List... - Page 5 G-V303 User manual Hard disk carrier assembly With screws Note: The above is a list of the standard configuration of the complete set of products, and accessories that are out of the above range must be paid extra fee Table 2 Product Optional List No.
-
Page 6: Product Overview
G-V303 User manual 2 Product Overview 2.1 Parts List Property description Host size: L172mm*W188mm*H59mm DMS anti-fatigue camera size:76mm *38mm *92mm ADAS camera size : 62mm *43mm *75mm Product size BSD camera size: 90mm*64mm*58mm Acousto-optic alarm: 143mm*125mm*37mm AV display :172 mm*112mm*47mm ( without bracket) Product renderings 2.2 Specifications... -
Page 7: Parameter Index
G-V303 User manual camera Lens parameters 4G，6mm, D=65° H=56° V=31° Frame rate 25fps Video format PAL system Resolution 1280*720 Lens parameters 4G，3.6mm, D=85° H=60° V=53° ADAS Frame rate 25fps camera Video format PAL system Other With the speaker Resolution 1280*720 Lens parameters 4G，6mm, H=75°... - Page 8 G-V303 User manual Video signal Input Most 5 channel audio Audio Output Most 2 channel audio Display Screen Shows 1 /2 /4 /6 screen display Video audio Video H.264, audio g711a compression format Image resolution ratio CIF、HD1、D1、720P Video mode Boot/manual/timing/planning/alarm video events...
-
Page 9: Interface Characteristics
G-V303 User manual 2.3 Interface Characteristics Interface Characteristics Parameter Description DB9 Serial Used for accident suspect data export Data export, ADAS calibration and parameter Front USB Interface setting of part mark for driving recorder Driver signs IC card Driver Sign Card... -
Page 10: Product Interface Definition And Wiring Instructions
G-V303 User manual 3 Product Interface Definition And Wiring Instructions 3.1 Drawing G-V303 Terminal Front Connect Interface Specifications RS232 Used for accident suspect data export Connect mobile phone for ADAS calibration, parameter setting, etc IC card slot Driver Sign Card... - Page 11 G-V303 User manual Connect Interface Specifications Connect 4G antenna GNSS Connected positioning antenna Connect GF06T audio and video cable, camera AV1-AV6/AV OUT and AV screen Connected finger meter / cloud head and other 485/CAN peripheral / CAN data acquisition SPK/TTS...
- Page 12 G-V303 User manual Table 4 Definition Of Transparent Transmission Port Function Description Function Description Receive Ground Transmit Power Table 5 Definition Of 4 Pin Serial Port Function Description Function Description Receive Ground Transmit Power Table 6 Definition SPK/TTS Interface Function...
- Page 13 G-V303 User manual Table 8 Definition AV1-AV6/AV OUT Interface Function Description Function Description Audio input 6 Video output Audio input 5 Audio input 4 Audio input 3 Audio input 2 Audio input 1 Video input 6 Video input 5 Video input 4...
-
Page 14: Interface Definition
G-V303 User manual 3.2 Interface Definition Interface Definition Of Video Line... - Page 15 G-V303 User manual Device connection diagram (hard disk version)
-
Page 16: Instructions
G-V303 User manual 3.3 Instructions 3.3.1 Menu Indication Menu Text Message Information demand Information Information service Phone book Default number Turn off WIFI Client Mode WIFI Mode Hotspot sharing mode Senior assistant mode Single IP/domain name setting Double IP/domain name setting... - Page 17 G-V303 User manual Registration online Logout Single IP/domain name setting Double IP/domain name setting IP setting Zhongjiao IP setting Video IP Setting Terminal Phone Number Online Province ID parameter checking City ID Car plate number Colour of car plate Terminal number...
- Page 18 G-V303 User manual Set Speed type Speed type Check Speed type Set Electronic coefficient Electronic coefficient Check Electronic coefficient APN access point Back factory settings Unlock sim card Unlock settings Modify unlock password 6-channel D1 (default) 6-channel 720P 4-channel 1080P...
-
Page 19: Definition Of Indicator Light
G-V303 User manual GPS positioning status GPS antenna status Main power status port status Power saving status checking Right steering status Other settings Left steering status Fuel status Terminal model number Manufacture ID 3.3.2 Definition Of Indicator Light Name Definition Long bright：No sim card was detected. -
Page 20: Operation
G-V303 User manual Not Light: No SD card or hard disk detected Long bright: SD card or hard disk failure Flash: SD card or hard disk works fine Green 3.3.3 Operation Online parameter checking, you can check Online Host parameter... -
Page 21: Analysis Of Common Problems And After-Sales Service
G-V303 User manual Online parameters → Video IP setting, input video IP, domain name, complete setting, send SMS Command: Video IP setting <SPBSJ*P:BSJGPS*G9SET*3G:1,1,219.133.034.1 98,9966> Online parameter → terminal phone number; enter 11 digits to complete the setting, send SMS Terminal... - Page 22 G-V303 User manual vehicle underground parking Driving off the area with weak signal lot, tunnel, weak signal SIM card has no effective 3G/4G Contact the network operator to traffic recharge Lock is opened Locked Video can't open ACC off Check ACC...
-
Page 23: Attention
G-V303 User manual 4.2 Attention 1. Stay away from water 2. Please keep the car battery fully charged 3. Device working current is 9-36v, recommended 12v and 24v. Tracker will damage if the current is over this range. 4. Working temperature is -25to 75centigrade, please cut off power if the temperature is over this range.
