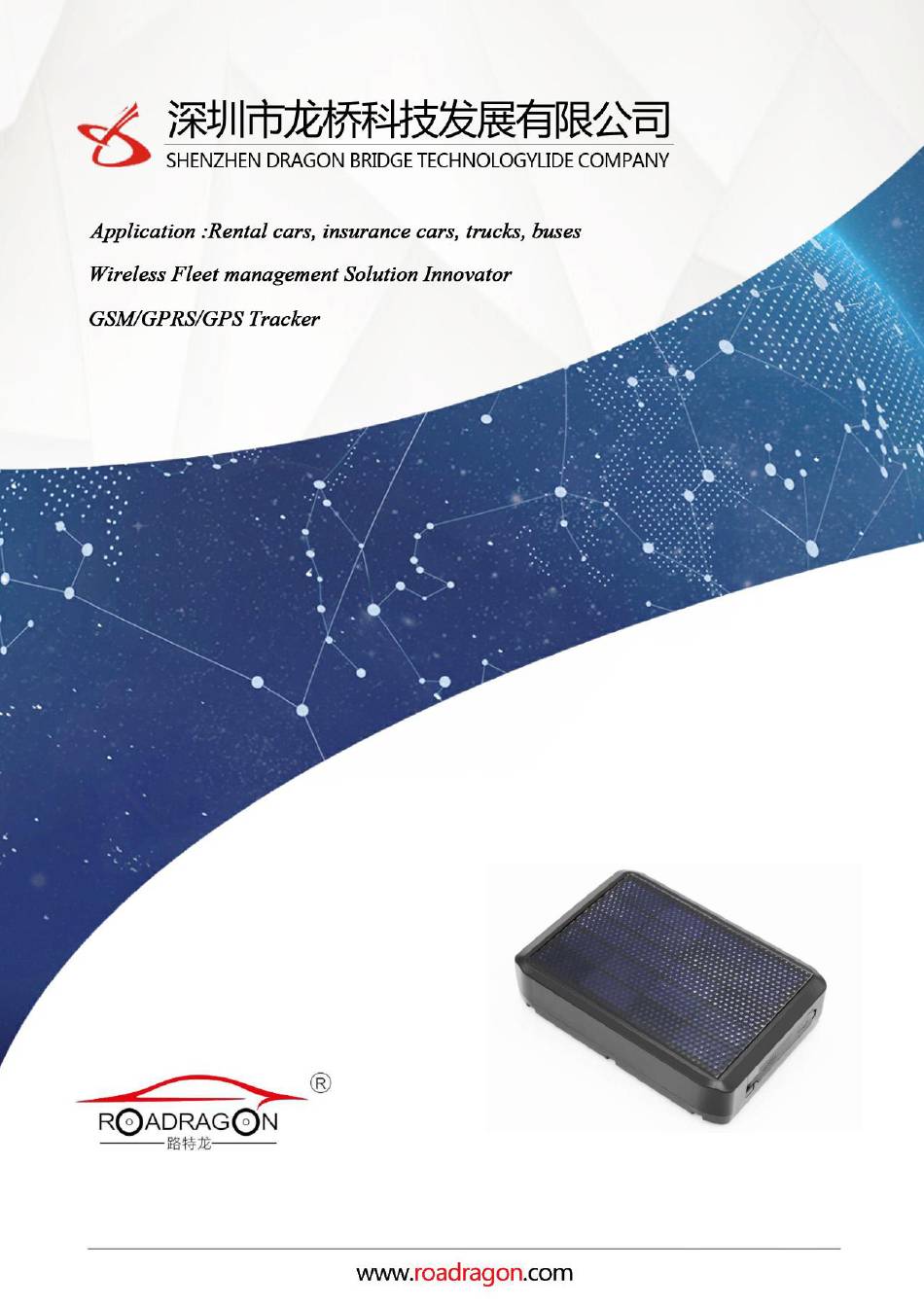

- Page 1 100DST 4G User manual LTS- User Manuel LTS-100DST 4G...
-
Page 2: Table Of Contents
100DST 4G User manual LTS- Contents 1 Introduction ..............................2 1.1 product description ..........................2 2 Product Overview ............................2 2.1 Product accessories ..........................2 2.2 Interface Definition ..........................2 2.3 Field of application ..........................3 2.4 Product acessories ..........................3 2.5 Function .............................. 3 2.6 Specification Description ........................ -
Page 3: Introduction

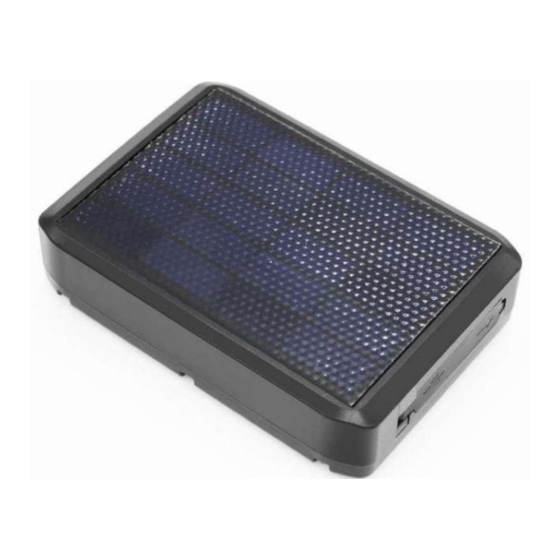

1 Introduction 1.1 product description The LTS-100DST 4G GPS TRACKER Tracker combines GSM wireless communication technology and GPS global positioning system technology, using industrial-grade fire protection materials, six 18MM × 3MM strong magnetic devices, IPX-5 waterproof design, built-in 10400MAH large-capacity battery,Solar panel charged device , Through the SMS and global positioning service platform for remote target positioning and monitoring management. -
Page 4: Field Of Application
100DST 4G User manual LTS- 2.3 Field of application ● Car Rental / Small Fleet Management ● Outdoor activities ● Guardianship of children/elderly people/disabled persons/valuables ● Personal security ● Staff Management ● Tracking and positioning ● Animal Protection and Range Management 2.4 Product acessories ●... -
Page 5: Instructions For Use
100DST 4G User manual LTS- Size 110mm*77mm*26mm Weight 410g Operating temperature -20° to 55° C Working humidity 5% to 95% Non-condensing Quad-band GSM 850/900/1800/1900Mhz GSM module Support 4G CAT 1 network GPS chip TD1030 GPS+ BeiDou Dual Mode Positioning Chip GPS sensitivity --162Db GPS frequency... -
Page 6: Device Led Light Status
100DST 4G User manual LTS- 3.1.1 Open the packing box and check whether the device model is correct and the accessories are complete. Otherwise, please contact your dealer. 3.1.2 SIM card selection, the device needs to insert a GSM SIM card, GSM card Unicom or mobile optional (Global GSM network) 3.1.3 Installation of the SIM card, disassemble the device waterproof plug, according to the label, insert the SIM card chip downwards into the card slot, and put on a waterproof plug. -
Page 7: Sms Command
100DST 4G User manual LTS- Each time the device is charged, charge it for more than 20 hours. Please use the original charger and battery. Note: (1) The battery of this product contains chemical components. Please do not use force to beat, prick and put into fire (2) Please charge in time to ensure the normal operation of the equipment. -
Page 8: Query Device Status
100DST 4G User manual LTS- Turn off the static upload time static,123456,120 setting Server IP modification settings IP space IP address space port set IP OK number example ： IP 106.3.230.234 8185 3.5 Query device status SMS command: CXZT GT25_MC25_LQ_TQ_V_1_1_20220901 ID: 6170697545 IP: :lqkj.yzxgps.com 7018 BAT: 85%... -
Page 9: Customer Service
100DST 4G User manual LTS- The logistics company can use this software to set the departure time, route notifications, line alerts, and area of the monitored goods. Alarms, collision alarms, rollover alarms, driving speeds, etc. We will comprehensively analyze the status of goods in transit and issue statements.
