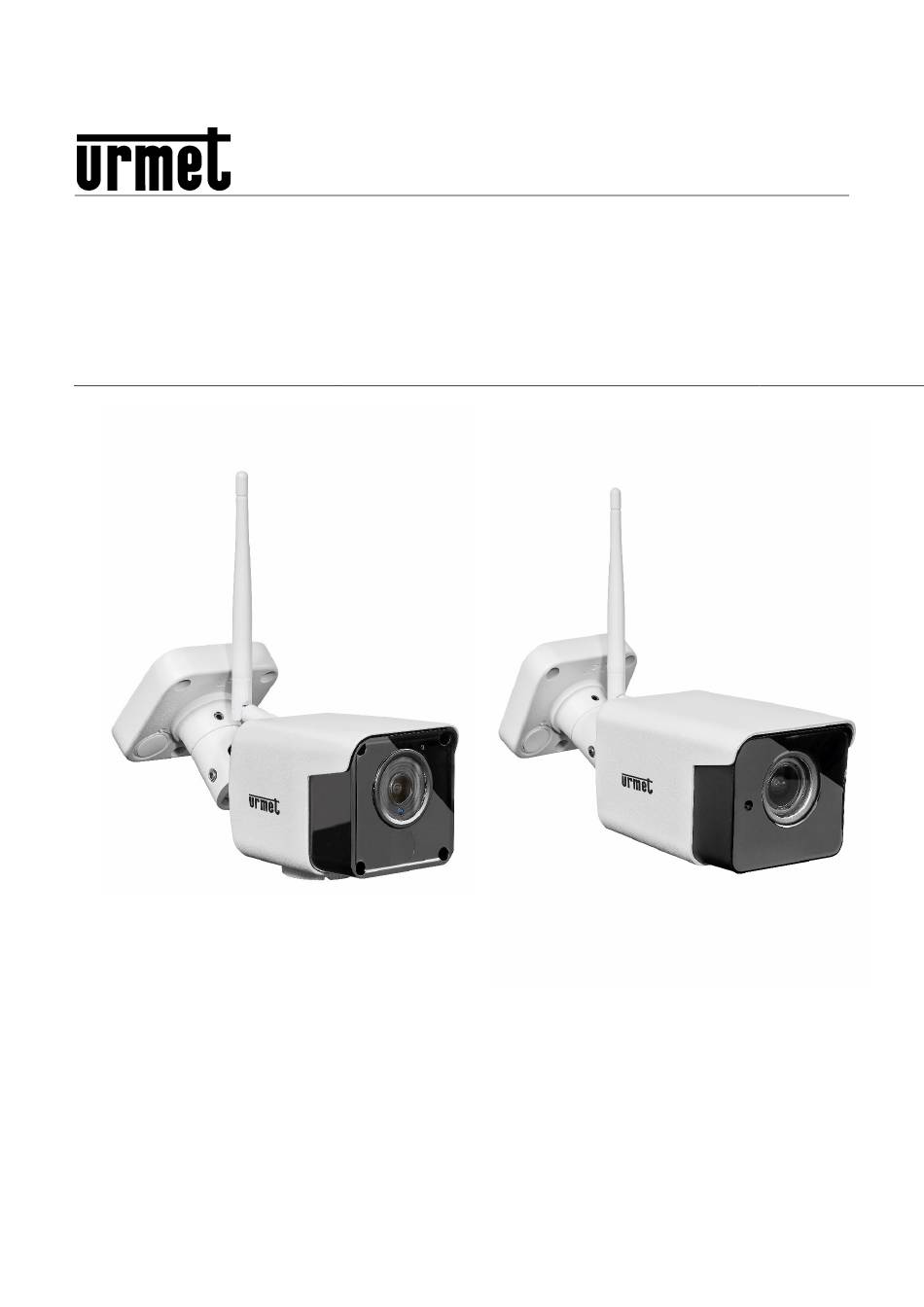

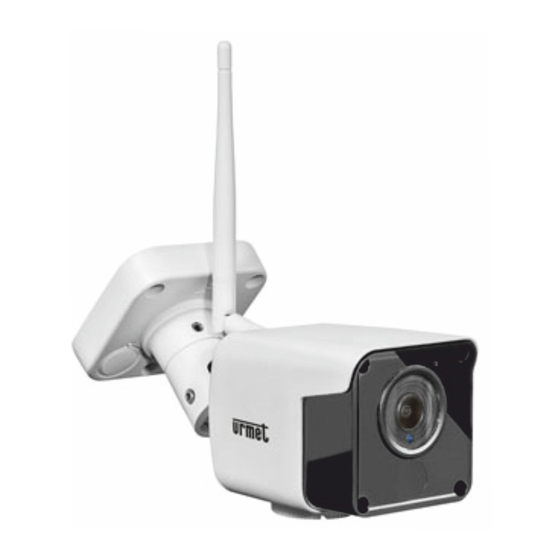

Mod.
1099
DS1099-106
WIFI 1080P IP PoE CAMERAS SERIES
BULLET
1099/214
1099/216
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1099/214 and is the answer not in the manual?

Questions and answers

Summary of Contents for urmet domus 1099/214

  • Page 1 Mod. 1099 DS1099-106 WIFI 1080P IP PoE CAMERAS SERIES BULLET 1099/214 1099/216 USER MANUAL...
  • Page 2: Table Of Contents

    Warnings ............................4 SIMPLIFIED EU DECLARATION OF CONFORMITY .................. 5 INSTALLATION ............................. 5 1099/214 WiFi Bullet fixed lens camera ................... 5 1099/216  WiFi Bullet Varifocal camera ................... 6 HOW TO CONFIGURE THE CAMERA IN A NETWORK................6 How to add the camera to a WiFi network from the App ............. 6 How to add the camera to a WiFi network using a smartphone browser ........
  • Page 3: Introduction

    Care if you encounter problems during operations. The manual will be regularly updated without prior notice. PRODUCT DESCRIPTION URMET devices Ref. 1099/214, Sch. 1099/216 are wireless IP cameras which may be controlled entirely by connecting to the TCP/IP network. Technical specifications High-performance CMOS sensor.
  • Page 4: Warnings

    WARNINGS Power Make sure that the rating plate data corresponds to the power specifications before connecting the device to the  mains. Arrange a suitable circuit breaker and fuse upstream of the devices.  Disconnect power by means of the circuit breaker in the event of a failure and/or bad operation. ...
  • Page 5: Simplified Eu Declaration Of Conformity

    IMPORTANT NOTE: the camera loses network configuration and the WiFi interface returns to Access Point mode. SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, URMET S.p.A. declares that the radio equipment types: cameras 1099/214, 1099/216, are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com...
  • Page 6: 1099/216  Wifi Bullet Varifocal Camera

    1099/216  WIFI BULLET VARIFOCAL CAMERA It is advisable to proceed as follows for correct camera installation and configuration: Make sure that no units are powered before starting the installation procedure. Fit the aerial on the camera. It is advisable to install and configure one camera at a time if you are installing multiple cameras on the same network.
  • Page 7: How To Add The Camera To A Wifi Network Using A Smartphone Browser

    HOW TO ADD THE CAMERA TO A WIFI NETWORK USING A SMARTPHONE BROWSER The camera can be easily configured on the WiFi network using the smartphone browser: Open the WiFi settings of the smartphone and select the SSID of the camera in AP (Access Point) mode, the SSID is of the URM_ type as in the image below Wait for the connection icon to change from 3G (or other) to Wi-Fi.
  • Page 8 Once the smartphone is connected to the camera's Wifi, using any smartphone browser, open the camera's web page at the address http://223.223.100.1 by logging in with User Name: admin, Password: admin Search After logging in, the Wi-Fi management page of the camera opens directly, pressing the button displays the list of Wi-Fi networks detected by the camera.
  • Page 9 Select the Wi-Fi corresponding to the internet router to which you want to connect the camera and enter the router's Wi-Fi Save Saved! network password, then press and wait for the message lower in the page: DS1099-106...
  • Page 10: How To Add The Camera To A Cabled Network And Connect From The App

    At this point the smartphone automatically gets disconnected from the camera which is no longer in AP (Access Point) mode, the camera is therefore connected to the internet router. IMPORTANT: from factory settings the camera works in DHCP mode therefore it automatically receives a dynamic IP address assigned by the router.
  • Page 11 After having detected the IP camera, right-click and select “Open in IE” to open a Web page on IE. See the applicable section in the complete manual if installation of an ActiveX component is required. You can select user name (default: admin), password (default: admin), stream type (Main/Sub Stream) and language on the login page.
  • Page 12: How To Add The Camera To A Wifi Network Using Ap Mode And Pc

    Select the SSID of the WiFi network you want to connect the camera to, enter the network key and save the configuration by pressing the “Save” button. It is advisable to check that the WiFi signal received by the camera is higher than or equal to 60.
  • Page 13: Easytool

    Press the “Refresh List” button of “EasyTool” to refresh the list and view the camera with the changes made. IMPORTANT NOTE: to set/edit the network parameters of the camera (IP address, subnet mask, gateway) it is advisable to use EasyTool or the web page of the camera. It is not advisable to set/edit the network configurations of the camera in the NVR/HVR menus on which the camera was added;...
  • Page 14: Activex Control Configuration

    ACTIVEX CONTROL CONFIGURATION You will need to install the plug-ins when inspecting the IP camera using Internet Explorer for the first time. Set the browse protection level to install the plug-in. Select the menu [Tools/Internet Options/Security/Custom Level] and for "ActiveX controls and plug-ins"...
  • Page 15: Connection From Other Web Browsers

    CONNECTION FROM OTHER WEB BROWSERS The camera web page can be accessed using a browser other than Internet Explorer, simply by keying in the IP address of the camera on the navigation bar of the browser. In this case, no additional components need to be installed and the displayed stream live consists in MJPEG video stream for which selecting Main/Sub is not effective on the login home page.
  • Page 16: Playback

    Other Live interface buttons (on Internet Explorer with ActiveX only): : this is used to search and playback the video files recorded in the camera’s SD memory card (not included). : This is used to access the device setup menu to set the various customised parameters; : Snapshot, file type, saving path etc.;...
  • Page 17: Remote Settings

    Select one of the red dates within the selected month and push the button to display the video recorded files on the time bar. Different colors refer to different recording Type (Normal, Manual, Alarm, Motion). Use the button to start playing back the video. To quickly position the playback time cursor on the time bar during the playback you can use the function: and push while the video is playing.
  • Page 18 IMAGE CONTROL Click on 【Display】→【Image Control】 to access the following interface. IRCUT Mode: 5 modes:  GPIO Mode or Passive Mode : default mode. The camera switches from colors to black and white (turning on the IR LEDs) and vice versa based on the environment light detected by the external sensor integrated in the camera.
  • Page 19: Network

    PRIVACY ZONE Click on 【Display】→【Privacy Zone】 to access the following interface. Privacy zone setting: 1. Click to enable the privacy zone. 2. Select the Privacy area to be activated from the available four (Window 1, Window 2, Window 3, Window 4). 3.
  • Page 20 This page can be used to display and set the parameters related to the LAN of the camera: Type: DHCP, Static or PPoE. The default setting is DHCP.  Command Port: This is the command port of the IP camera. Default: 6060 ...
  • Page 21 Type: MainStream, SubStream.  The user can set: Resolution, FPS, Audio (if the camera model has audio input), Bitrate control: CBR/VBR and the  MainStream/SubStream Bitrate value. Resolution: MainStream 1080P(1920x1080), 720P (1280×720), 640x512 SubStream (704×576, 640×360,  352×288). FPS: max 25 for the Mainstream and 25 for the Substream ...
  • Page 22 Wireless Click on 【Network】) →【Wireless】 to access the following interface. Press the “Search” button to open the following page showing all the available WiFi networks and the signal power detected for each one: Select the SSID of the WiFi network you want to connect the camera to, enter the network key and save the configuration by pressing the Save button.
  • Page 23 Click on 【Network】) →【Email】 to access the following interface. Server: it supports IP address or domain string Email Click on 【Network】) →【Email】 to access the following interface DS1099-106...
  • Page 24 Email service setting. By using this function in association with the Motion alarm function, the camera can sent the images acquired by email on the Internet by contacting the set email server (SMTP). SMTP Port: The default value is 25 (email service port). If Email: Disable/Enable.
  • Page 25 RTSP Click on 【Network】) →【RTSP】 to access the following interface. RTSP Port: The default password is 554. The device will be restarted after the change.  DS1099-106...
  • Page 26: Alarm

    Description rtsp://IP:Port/live/A/B • • IP: IP address of the device. Port: RTSP port of the device. Default: 554. • • A: 0, 1, 2 ... channel ID number (for camera type devices use any ID, e.g. 0). B: MAIN refers to “main stream”, SUB refers to “sub stream”. •...
  • Page 27 Setting procedure 1. Motion detection can be activated/deactivated. 2. Holding the left button pressed, drag the mouse to select the motion detection area. Single cells can be enabled by clicking on them. 3. Set motion detection sensitivity, options: High, Middle, Low. 4.
  • Page 28 Schedule: in this page it is possible to program when the alarm must be activated (All Day, User_defined). When 【User_defined】is selected, holding the left button pressed, drag the mouse to select the programming periods. Single cells can be enabled by clicking on each of them. By clicking on each weekday’s name, the whole day line is enabled/disabled.
  • Page 29 Human Detection Schedule Schedule: in this page it is possible to program when the alarm must be activated (All Day, User_defined). When 【User_defined】is selected, holding the left button pressed, drag the mouse to select the programming periods. Single cells can be enabled by clicking on each of them. By clicking on each weekday’s name, the whole day line is enabled/disabled.
  • Page 30: Record

    8.3.4 RECORD Click on【Record】→【Schedule】to access the following page. In this page it is possible to set the weekly schedule of video recording function on the SD memory card. Stream type: this parameter indicates the stream that the camera uses to video record files on the SD memory card. Default: Mainstream.
  • Page 31 DATE/TIME: this user interface can be used to set the date and time, including System Time, NTP, Date Format and Time Format. After having made the setting, click on Save. The device sets to the automatic time synchronisation function: NTP: Synchronise time with the NTP server on the Internet. Click on NTP to enable the NTP setting. Enter the ...
  • Page 32 USERS Click on 【System】→【Users】 to access the following interface. New users can be created, activated and deactivated and the password can managed here. INFO Click on 【System】→【Info】 to access the following interface. DS1099-106...
  • Page 33 When an SD memory card is plugged into the camera’s slot, it is possible: To read the information about total and available memory space  To format the memory card by pushing the button  To browse the memory card’s content by pushing the button .
  • Page 34 Click on 【System】→【Log】 to access the following interface. Log Type: five types can be selected (system log, parameter log, registration log, user log, alarm log, events  log, memory log, All logs. Specify start date/time and end date/time for the searched log. Click on “Search”...
  • Page 35: Advanced

    PTZ: enable/disable the function  PTZ Address: RS485 address of the device  PTZ Bitrate: RS485 transmission bitrate  PTZ Protocol: PTZ commands transmission protocol  Press Save to save the changes. 8.3.6 ADVANCED The following options 【Audio Setting】,【Snapshot Setting】, 【Time Capture】,【Firmware Update】, 【Load Default】, e 【Maintain】are present as shown in the following figure: Audio Setting DS1099-106...
  • Page 36 SnapShot settings These image settings are applied to the following features: MJPEG stream, snapshot via HTTP command, snapshot saved on local micro SD memory and FTP server, snapshot attached to event emails. Image Resolution: 1 options  Image Quality: 3 options ...
  • Page 37 Load Default Click on 【Advanced】→【Load Default】 to access the following interface. Select “Reset factory settings” and press the Save button to restore all default setting except for: network parameters (LAN and Wireless), user Password, NTP, DST, channel name. Select “Full Reset factory settings” and press the button Save to restore the factory default settings. Click on “Reboot”...
  • Page 38: Local Settings

    Video Player software available in the CD or on the website www.urmet.it. OUTPUT Click on 【Logout】to close the web interface of the IP camera: TECHNICAL SPECIFICATIONS GENERAL DATA 1099/214 1099/216 Max absorption Typ: 170mA(D), 450mA(N). Peak 470mA (when IR CUT moves D/N). Power supply...
  • Page 39 Camera sensor 1/2,8 Sony Starlight 2MP Motorized varifocal 2.8-12mm, Camera lens Fixed lens 2.8mm, F 2.0 F1.6 Field of vision (horizontal) H108° W H108° T H37° Electronic shutter (s) 1/25 ~ 1/10.000s Sensitivity (lux) 0.1Lux@(F1.2,AGC ON), 0 Lux with IR Cut IR filter Mechanical with auto switch Video resolution (H x V)
  • Page 40: 10 Appendix

    10 APPENDIX 10.1 FAQ ◆ IE does not load or install the plug-ins. Possible cause: The IE protection setting is too high. Solution: Set IE protection to minimum level. ◆ After updating, the user cannot inspect the IP camera using IE. Solution: Flush the IE cache.
