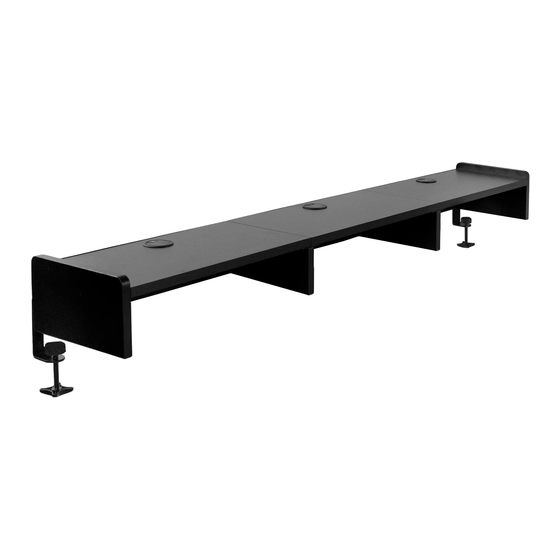

Clamp-on 60" Shelf / Compartment Monitor Riser
Instruction Manual
SKU: STAND-SHELF60B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-shelf60b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo STAND-SHELF60B
Summary of Contents for Vivo STAND-SHELF60B
- Page 1 Clamp-on 60” Shelf / Compartment Monitor Riser Instruction Manual SKU: STAND-SHELF60B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-shelf60b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble Connecting Plates (H) to Center Braces (F) using M4x16mm Flathead Screws (S-C) and a Phillips screwdriver. STEP 2 Insert Wooden Dowels (M) into Middle Shelf Panel (B). Assemble Right Shelf Panel (A) and Left Shelf Panel (C) to Middle Shelf Panel (B) using Wooden Dowels (M). - Page 4 STEP 3 Assemble Connecting Plates (H) to the shelf assembly using M5x12mm Screws (S-G) and a Phillips screwdriver. STEP 4 Insert Cam Lock Screws (S-A) into Left End Panel (D) and Right End Panel (E).
- Page 5 STEP 5 Insert Cam Lock Nuts (S-B) into Right Shelf Panel (A) and Left Shelf Panel (C). Assemble Left End Panel (D) to Left Shelf Panel (C), and Right End Panel (E) to Right Shelf Panel (A). Rotate Cam Lock Nuts (S-B) using a Phillips screwdriver to secure the assembly.
- Page 6 STEP 6 Assemble Left Back Panel (I), Middle Back Panel (J), and Right back Panel (K) to the shelf assembly using M4x16mm Screws (S-D), Gaskets (S-F), and a Phillips screwdriver. STEP 7 Secure Clamps (G) to to the shelf assembly using M4x25mm Screws (S-E).
- Page 7 STEP 8 Insert Cable Management Covers (L) into shelf assembly. STEP 9 Mount Clamps (G) to the desktop. Desktop...
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
