Vivo STAND-SIT1WD Assembly Manual

Vivo STAND-SIT1WD Assembly Manual

Sit to stand single monitor workstation
Hide thumbs Also See for STAND-SIT1WD:

Advertisement

Table of Contents

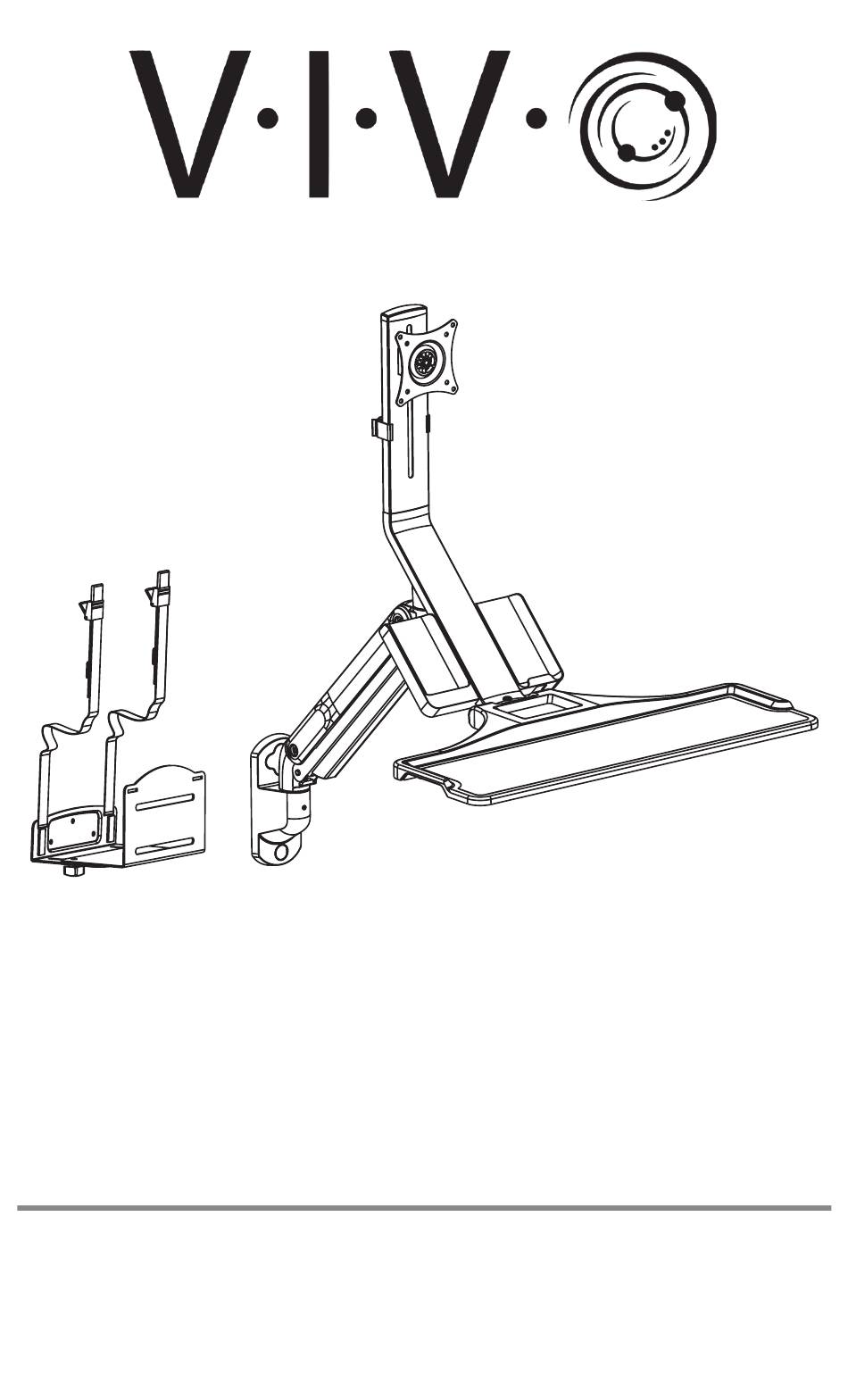

Sit to Stand Single
Monitor Workstation
STAND-SIT1WD
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-SIT1WD and is the answer not in the manual?

Questions and answers

Related Manuals for Vivo STAND-SIT1WD

Summary of Contents for Vivo STAND-SIT1WD

  • Page 1 Sit to Stand Single Monitor Workstation STAND-SIT1WD Assembly Manual...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.

  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) E (x1) Wall Bracket Smartphone Keyboard Lower Support Tray Tray F (x1) G (x1) H (x1) I (x1) J (x1) Upper Support VESA Plate Cable Clip Large Cover Small Cover K (x1) L (x2) M (x2)

  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Option 1: Wood Stud Mounting Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/16” (4.5mm) Hold the Wall Bracket (A) onto the wall in the center of a stud and mark the three center hole locations.
  • Page 5 Option 2: Concrete Mounting Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/8” (10mm) Hold the Wall Bracket (A) onto the wall where desired and mark the top two holes and the bottom Hole Depth: hole as shown. Use of a level is recommended. 2.4”...
  • Page 6 STEP 2 Insert the Large Cover (I) into the top hole and Small Cover (J) into the bottom hole of Wall Bracket (A). STEP 3 Insert the Arm (B) into the Wall Bracket (A) and secure by tightening the set screw using 3mm Allen Wrench (T-A).
  • Page 7 STEP 4 Remove the pre-installed Thumbscrew (E1) from Lower Support Arm (E) and set aside. Attach Smartphone Tray (C) to the Lower Support Arm (E) using M5x10mm Screws (S-C) and a Phillips screwdriver. Attach the Keyboard Tray (D) to the Lower Support Arm (E) using ST4.8x16mm Screws (S-B) and a Phillips screwdriver.
  • Page 8 STEP 5 Attach the Upper Support Arm (F) to Lower Support Arm (E) using M8x25mm Screws (S-A) and 6mm Allen Wrench (T-C). Knob Ensure the Knob on Upper Support Arm is towards the back. STEP 6 Slide the Upper Assembly onto the Arm (B) and secure by tightening the set screw using 3mm Allen Wrench (T-A).
  • Page 9 STEP 7 Use 4mm Allen Wrench (T-B) to tighten the set screw on the front of Lower Support Arm (E) to lock the Keyboard Tray (D) in an up position. Thread the previously removed Thumbscrew (E1) into the bottom of Keyboard Tray to lock it in a down position. STEP 8 Attach VESA Plate (G) to the back of the monitor using appropriate Screws (M-A or M-B) with M5 Washers (M-C).
  • Page 10 STEP 8 - Cont’d Slide the VESA Plate (G) with monitor onto the Upper Support Arm (F). Secure by tightening the pre-installed screw on the side using a Phillips screwdriver.
  • Page 11 STEP 9 Remove the pre-installed nuts from the PC Holder (K). Separate into Wall Bracket (K1), Slider Bracket (K2) and Washers (K3). Set aside Slider Bracket and Washers for later.
  • Page 12 STEP 10 Option A: Wood Stud Mounting Position the Wall Bracket (K1) where desired ensuring the center two holes are lined up with a stud. Mark the center holes using a pencil. Use of a stud finder and level is recommended. Drill into the marked locations using the diagram below.
  • Page 13 Option B: Partial Drywall Mounting Position the Wall Bracket (K1) where desired ensuring at least one hole is lined up with a stud. Mark all four holes using a pencil. Use of a stud finder and level is recommended. For each marked location, follow the instructions depending on whether the location is backed by a stud or drywall only.
  • Page 14 Option B - Cont’d 1. Insert the T Ends of Straps (L) into slots in Wall Bracket (K1). 2. For the hole with wood stud backing, attach the Wall Bracket using ST4.2x45mm Screws (W-D) with M6x10mm Washers (W-G) and a Phillips screwdriver. 3.
  • Page 15 STEP 11 - Cont’d Feed the Straps (L) through the slots on Slider Bracket (K2), then back through the Clip. Clip Place the PC onto the PC Holder (K), then slide in the Slider Bracket (K2) and tighten the Knobs (M). Pull the Straps (L) through the Clips and close the buckles to secure. Clip...
  • Page 16 Adjustments Adjusting Tray Height Position Mount Arm Turn 10-20x to Set Tray Height Position the arm horizontally, as shown above, and firmly hold in Turn 6mm Allen Wrench (T-C) 10-20 times place. to obtain proper support for your tray. Use the guide below to adjust the tension according to the amount of counterbalance Insert 6mm Allen Wrench (T-C)
  • Page 17 Adjusting Monitor Height To adjust monitor height, loosen the knob on the back of Upper Support Arm (F). Adjust as desired and re-tighten the knob. Attach Cable Clip (H) to the back of Upper Support Arm (F) and remove cable covers from Arm (B) using a Phillips screwdriver.

  • Page 18: Adjustment Ranges

    Adjustment Ranges Adjust as desired. 10° +10° 180° -10° 90° 90°...
