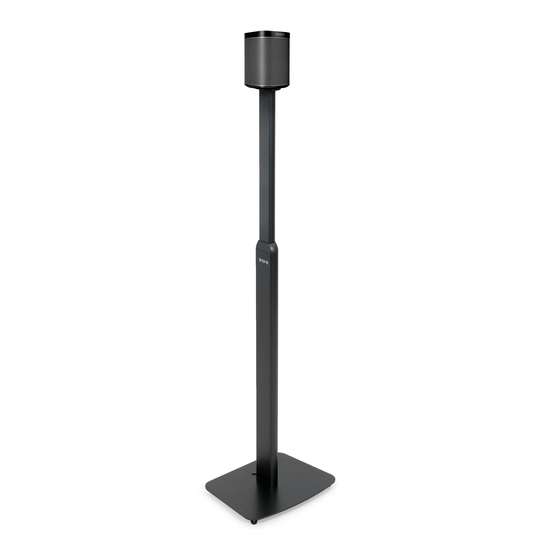

48" Speaker Stand for SONOS PLAY 1 and PLAY 3
Instruction Manual
SKU: STAND-SP04H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-sp04h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-SP04H
Summary of Contents for Vivo STAND-SP04H
- Page 1 48” Speaker Stand for SONOS PLAY 1 and PLAY 3 Instruction Manual SKU: STAND-SP04H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sp04h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 6.6 lbs Failure to do so may result in serious injury. (3 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION 1 Screw carpet spikes (A4) into base (B2). Adjust to sit flat and tighten nuts to hold spike position. A4x4 OPTION 2 Screw plastic feet (A5) into base (B2). - Page 4 STEP 3 Loosen set screw using 1.5mm Allen key (A13), adjust pole height, then tighten set screw. STEP 4 OPTION A Assemble PLAY:1 mounting bracket (A2) to pole using flat head screws (A7) and tighten with 4mm Allen wrench (A11). Press plastic cover (A3) onto top of mounting bracket. A7x2...
- Page 5 STEP 4 (Continued) OPTION B Assemble PLAY:3 mounting bracket (A1) to pole using flat head screws (A7) and tighten with 4mm Allen key (A11). Press plastic cover (A3) onto top of mounting bracket. A7x2...
- Page 6 STEP 5 OPTION A Insert mounting screw (A8) into back of Sonos PLAY:1 speaker, leaving 5mm of thread exposed. Place speaker on stand, making sure screw is inserted into slot, then tighten screw to secure the speaker.
- Page 7 STEP 5 (Continued) OPTION B Place Sonos PLAY:3 speaker on stand and secure center screw hole using mounting screw (A8). Insert plastic locks (A9) through vertical holes in bracket and speaker, and secure with pins (A10). A9x2 A10x2...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
