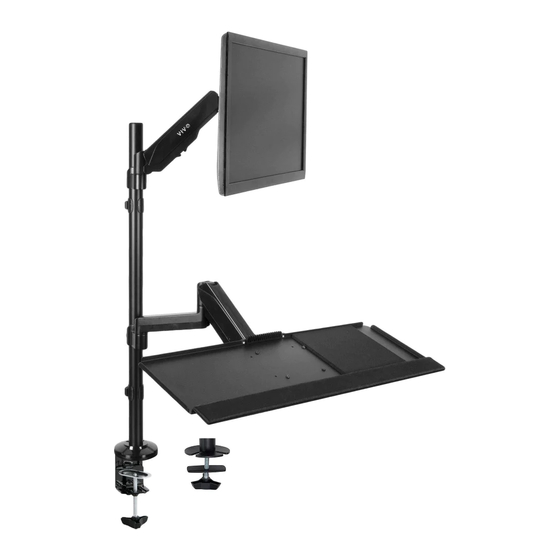

Sit to Stand Single Monitor Desk Mount Workstation
Instruction Manual
SKU: STAND-SIT1B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-sit1b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-SIT1B
Summary of Contents for Vivo STAND-SIT1B
- Page 1 Sit to Stand Single Monitor Desk Mount Workstation Instruction Manual SKU: STAND-SIT1B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-sit1b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 2.2-17.6lbs Failure to do so may result in serious injury. (1-8kg) MOUNT Phillips 2.2lbs Screwdriver (1kg) KEYBOARD ASSEMBLY STEPS STEP 1 Slide base cover (E) over pole (M). STEP 2 OPTION A: Clamp Installation Attach five rubber pads (K) to clamp (B).
- Page 4 STEP 2 (Continued) OPTION B: Grommet Installation If you are securing the stand to the desktop without clamp (B), use existing grommet hole, or drill a ⅜” (10mm) hole. Attach base (C) to pole (M). Tighten grub screws in base (C) using 3mm Allen key (P).
- Page 5 STEP 4 Attach VESA plate (F) to back of monitor using bolts (M-A, M-B, M-C, M-D) and washers (M-E). For curved or recessed monitors, spacers (M-F) may be required. M- A M- B M- C M- D M- E M- E M- F STEP 5 Slide VESA plate (F) onto arm (G).
- Page 6 STEP 6 Adjust the tension of monitor and keyboard arms using 6mm Allen key (Q). Remove the bottom covers as shown in diagram and run cables through. Reattach cable cover. STEP 7 Adjust tension in both brackets using 6mm Allen key (Q) to hold monitor and keyboard at desired angles.
- Page 7 Adjust as Desired...
