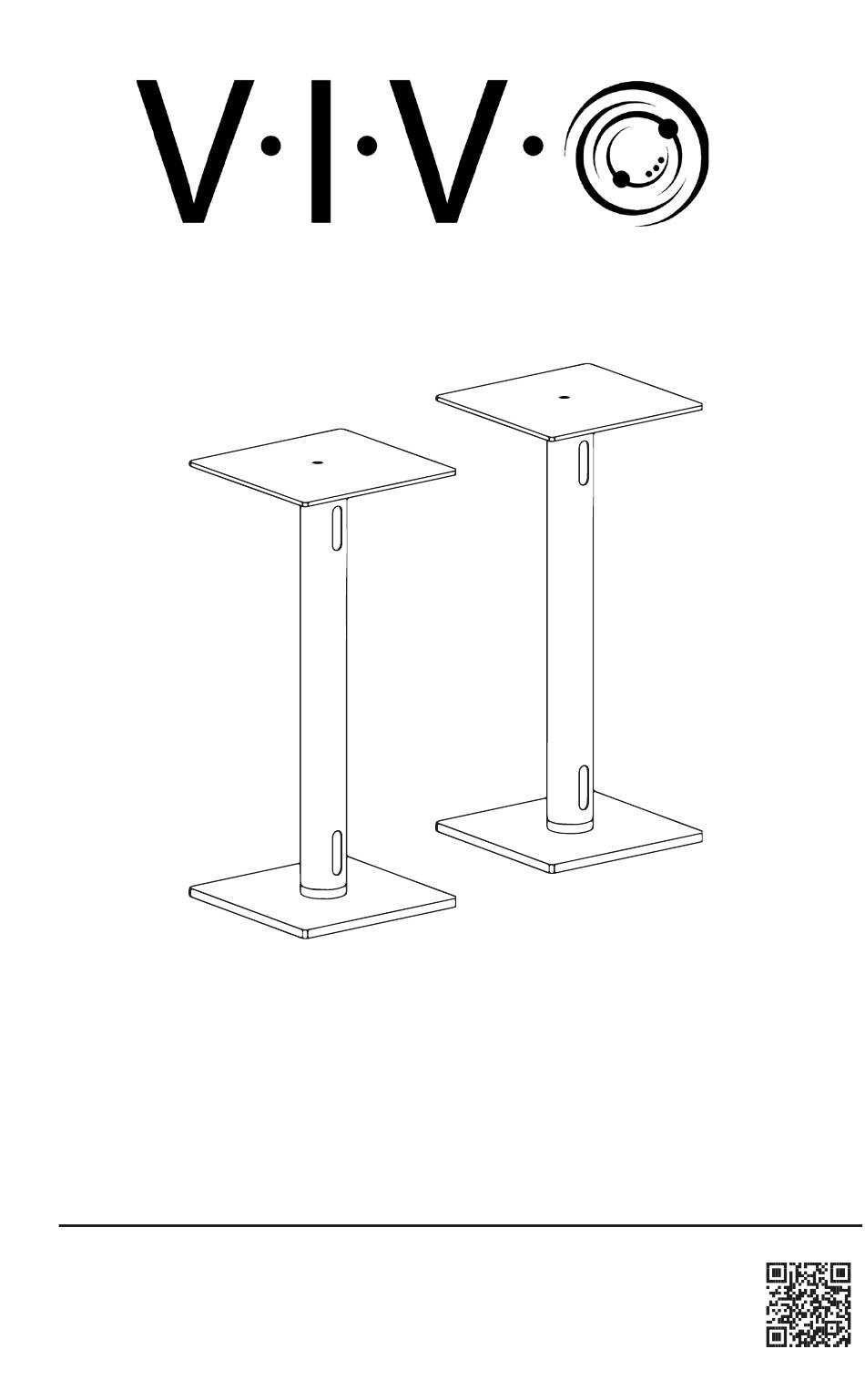

- Page 1 Acrylic Speaker Floor Stands - 2 Pack SKU: STAND-SP2A Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-sp2a...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x2) B (x2) Base Shelf C (x2) Post D (x4) Sheet of Pads Included Hardware & Tools S-A (x2) T-A (x1) S-B (x2) M5x22mm Phillips M8x20mm Screw Screwdriver Screws Weight Capacity: 22lbs (10kg)
- Page 4 ASSEMBLY STEPS STEP 1 Identify the Base (A), which is the flat acrylic piece. Secure Post (C) to the top of Base (A), using M8x20mm Screw (S-B). Screw should be installed through the Larger Hole on the underside of the Base and into the Larger Hole on Post. Tighten with a Phillips screwdriver. Install four Pads (D) to the bottom of Base (A) as shown.
- Page 5 STEP 2 Secure Shelf (B) to the top of Post (C) using M5x22mm Screw (S-A) and Phillips Screwdriver (T-A). S-A (x1)
- Page 6 STEP 3 Apply remaining Pads (D) as desired to Shelf (B) or Base (A).
- Page 7 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 8 LAST UPDATED: 12/13/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
