Mount the Device on a Table

•
All 5320 Series support mounting in a standard two-post rack. Rack mounting ears are included with
the device.
•
Additionally, both the 5320-16P-4XE and 5320-16P-4XE-DC support wall-mounting and under-the-
table mounting. Anchors and wood screws are included with the device.
Mount the Device on a Table
5320 series switches provide four self-adhesive rubber pads for mounting on tables or other flat
surfaces. The pads keep the switch from scratching the supporting surface and help ensure adequate
airflow around the switches when they are mounted on top of one another. You can safely place up to
four switches on top of one another.
Caution
Do not place other equipment on top of table-mounted switches.
To mount a switch on a table - or any firm, flat surface - follow these steps.
1. Carefully separate the four rubber pads that are provided
2. Apply the pads to the underside of the switch by placing a pad at each corner, ensuring that all
corners are aligned.
switch.

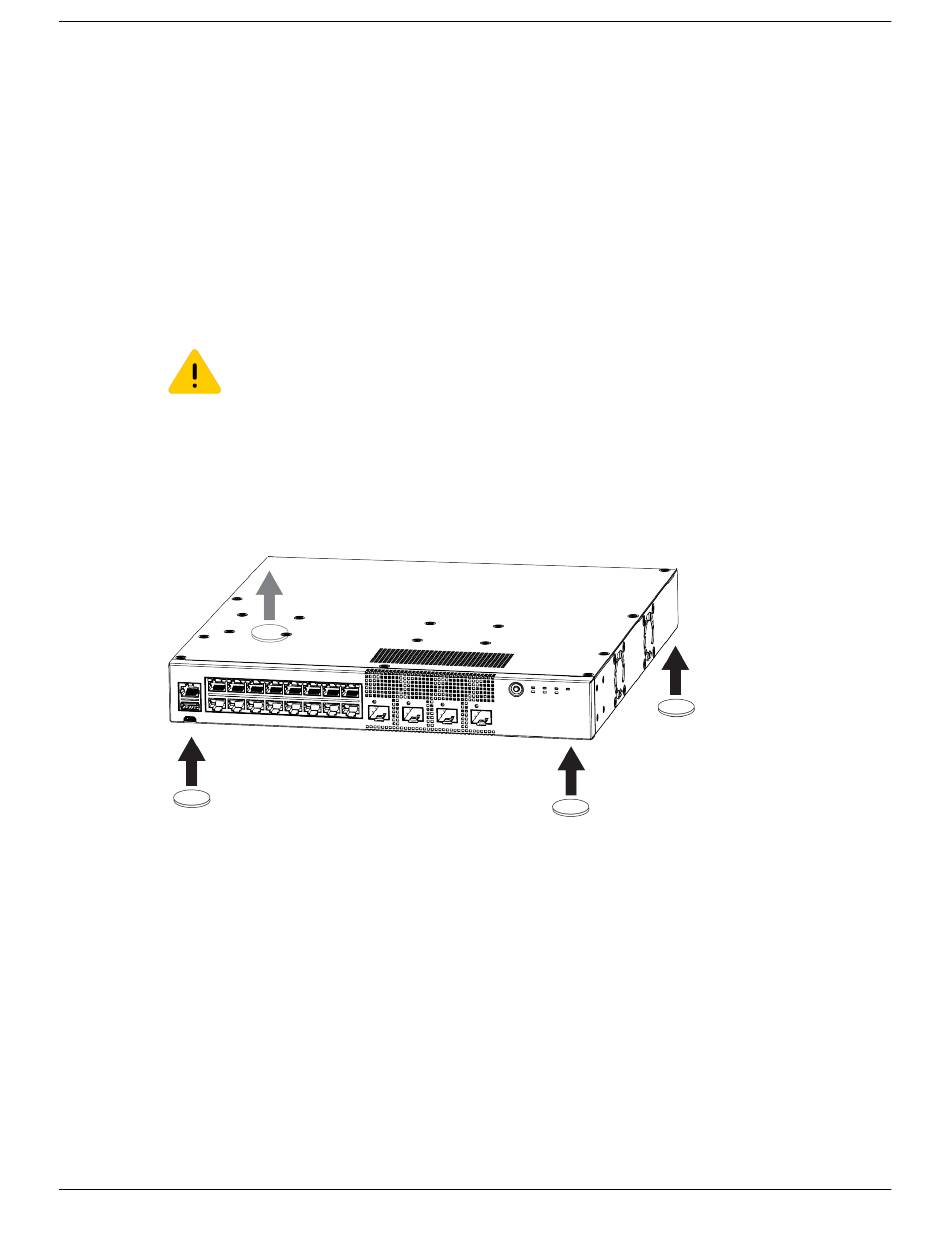

Figure 29: Table Mount: 5320 Series

Install the Device in a Rack

This procedure uses a two-post mounting kit, which accommodates rack posts 3 inches or 6 inches
wide. Rack mounting ears can support both flush- and mid-mount.
The two-post rack mount kit XN-2P-RMKIT-006 is required for models 5320- 48T-8XE, 5320-48P-8XE,
5320-24T-8XE, and 5320-24P-8XE. The two-post rack mount kit XN-2P-RMKIT-007 is required for
models 5320-16P-4XE and 5320-16P-4XE-DC.
Take care to load the rack so that it is not top-heavy. Start installing equipment at the bottom and work
up.
56 ExtremeSwitching 5320 Series Hardware Installation Guide
Figure 29 shows the locations for attaching the rubber mounting feet on the
Install Your Switch
