ExtremeSwitching 5320 Series Overview
2 = USB Type-A port
The rear panel of the switch includes:
•
Grounding lug
•
1 AC power inlet connector

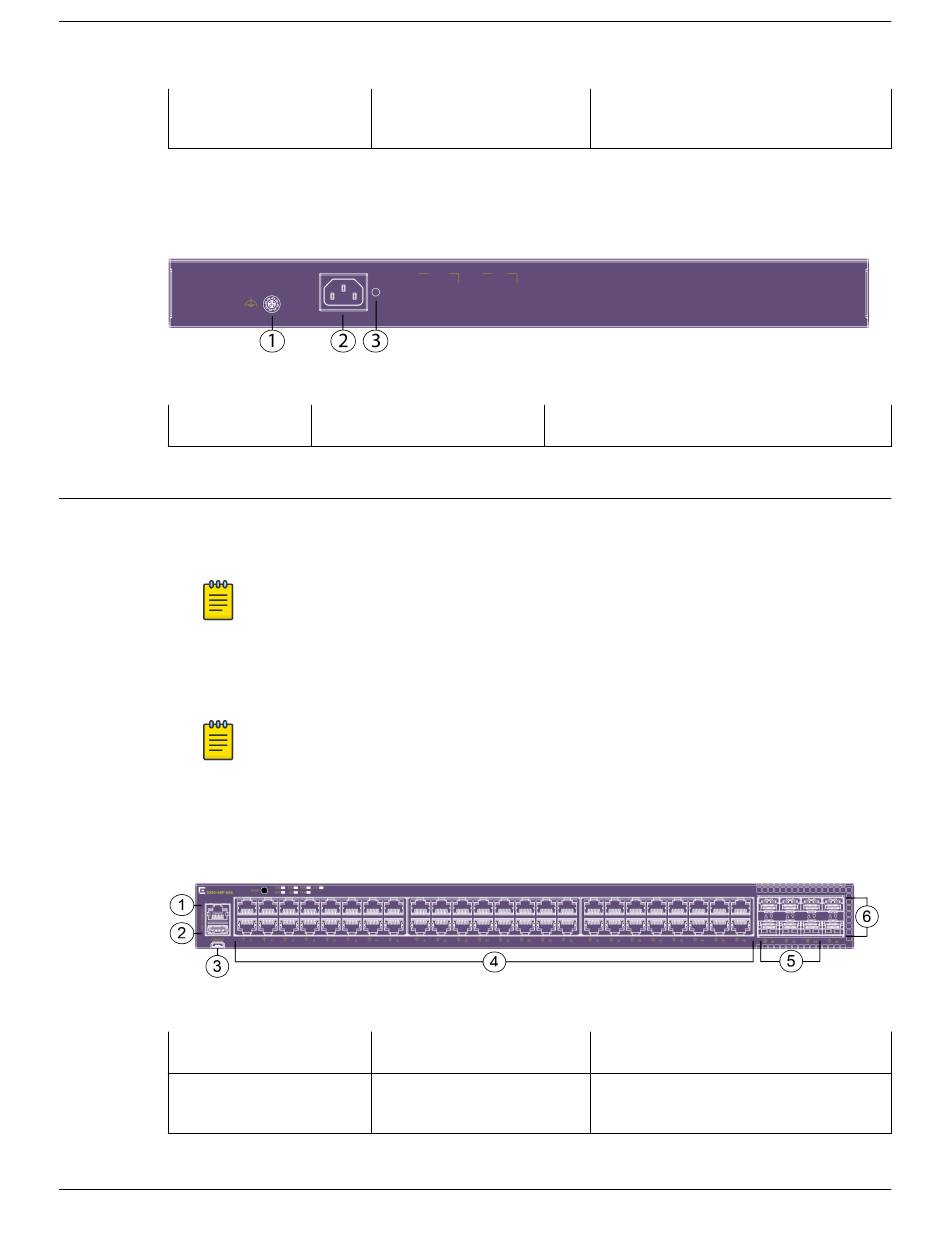

Figure 2: 5320-48T-8XE Rear Panel
1 = Grounding lug

5320-48P-8XE Switch Features

The front panel of the switch includes:
•
48 10/100/1000BASE-T (autosensing) MACsec capable ports with 802.3at Type 2 PoE (30W).
•
6 1Gb SFP MACsec capable uplink ports (unpopulated) upgradeable to 10Gb
•
2 10Gb Stacking/SFP+ ports (unpopulated)
•
1 Serial console port (RJ-45)
•
1 USB Type-A port for management or external flash
•
1 USB Micro-B console port
Figure 3: 5320-48P-8XE Front Panel
1 = RJ-45 serial console port 3 = USB Micro-B console port
2 = USB Type-A port
4 = 10/100/1000BASE-T ports 6 = 10Gb SFP+ Universal Ports/stacking
2 = AC power inlet connector
Note
The 10/100 ports support half duplex; the 1000 port supports full duplex. Half-duplex is
not supported on these ports when operating at 1Gbps.
Note
These ports support 10Gb when stacking without a license. They support 10Gb as Ethernet
ports when they are upgraded with the appropriate license.
4 = 10/100/1000BASE-T ports 6 = 10Gb SFP+ Universal Ports/stacking
ExtremeSwitching 5320 Series Hardware Installation Guide
5320-48P-8XE Switch Features
ports
3 = Cable tie mount for power cord management
5 = 1/10Gb SFP uplink ports
ports
