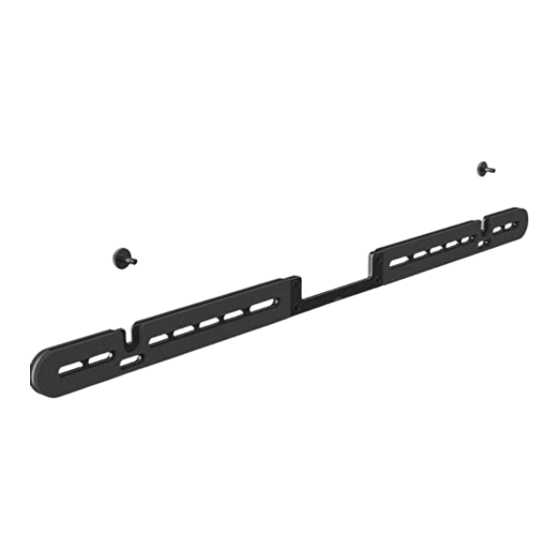

- Page 1 Sound Bar Wall Mount SON003-W 10kg SON003-B 22lbs RATED support@walielectric.com...
- Page 3 Supplied Parts List Bracket Center Plate Bolt Knob A (x2) B (x1) C (x4) D (x2) Allen Key ST4.8x50 Screw Φ8x40 Anchor E (x1) W-A (x4) W-B (x4) Step 1 Attach the Center Plate to the Brackets with Bolt , and tighten using Allen Key...
- Page 4 Step 2 Option A Solid Wood Wall 1. Align the top edge of the mount with the bottom of your TV and keep 5.5 inch away from your TV and mark the 4 screw locations. Making sure the arrow in the center is pointed into the center of TV. 2.
- Page 5 Step 2 Step 2 Option B Option B Wood Stud 1. Align the top edge of the mount with the bottom of your TV and keep 5.5 inch away from your TV and mark the 2 screw locations. Making sure the arrow in the center is pointed into the center of TV.
- Page 6 Step 2 Step 2 Option C Option B Concrete/Brick Wall 1. Align the top edge of the mount with the bottom of your TV and keep 5.5 inch away from your TV and mark the 4 screw locations. Making sure the arrow in the center is pointed into the center of TV.
- Page 7 Step 3 Screw the 2 Knobs D into the back of soundbar until they are fully tightened. Step 4 Connect the power and HDMI cabels to the back of the soundbar. Note: if you are connecting the cabels to the TV at this time, be sure to plug the HDMI cabel into HDMI ARC port on your TV.
- Page 8 We support the technology that brings your home to life. We offer high quality products, professional customer service, and extensive technical support. If you have any questions,please contact us. 1-844-SATTLER (18447288537) support@walielectric.com www.walielectric.com...
