4. Temperature regulator MHC-01
The device has been equipped with MHC-01 temperature
regulator.

Heating Controller

1 2
4
4.1.

Setting up the controller

1. Prior to plugging in the device to the mains, one
must make sure that the controller is switched off.
2. Switch (0/1) on the control panel shall be in "0"
position
3. Once plugged in to the mains, Switch (0/1) shall be
moved from "0" position to "1" position
4. Controller should be programmed in line with
individual needs
5.
In order to enter the programming mode (Prog),
buttons "+" and "-" must be pressed at the same time
during controller start-up.

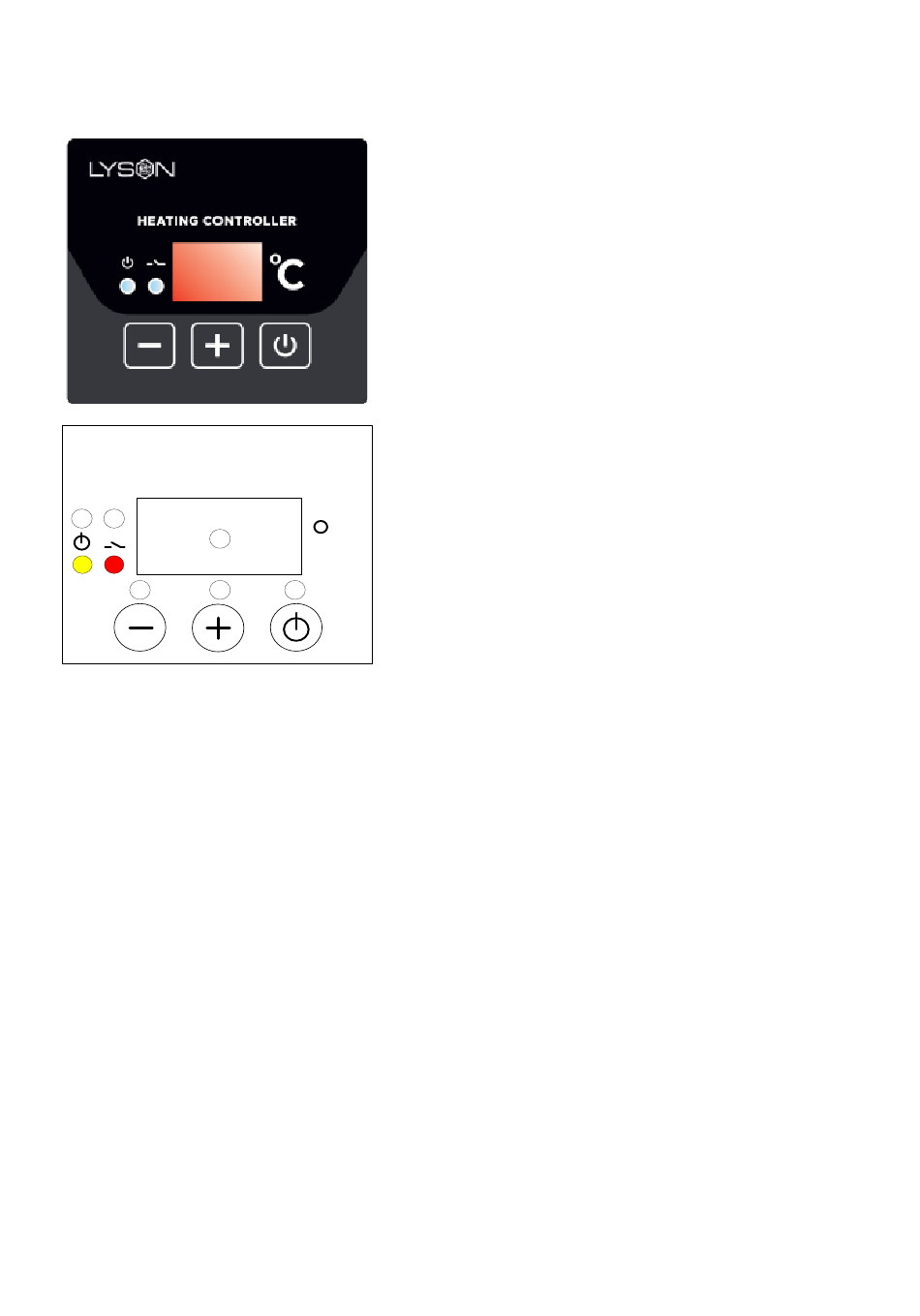

4.2. Starting work with the controller
1 – signalling the work state
Indicator lights up – temperature regulator switched on,
indicator dimmed – temperature regulator switched off
(controller operates as an ordinary thermometer), indicator
flashes – temperature regulator switched on and initial
heating in progress
Indicator lights up – transmitter contacts closed (heating
on), indicator dimmed – contacts opened (heating off)
c
3
5 6
3 – display
Working mode – default mode, selected after controller
power supply switched on. The display shows the measured
temperature, readings specified in
Setting mode – selected when button "+" or "-" has been
pressed. The display shows the preset temperature.
Readings specified in C. Reading flashes and returns to
o
measured temperature after a while.
Working time setting mode (Pro.) – activated when
"ON/OFF" button is pressed and held. The display shows
working time, counting it from activation, after which the
thermostat gets switched off. Readings specified in hours.
Display brightness setting mode (d.br.) – activated when
"ON/OFF" button is pressed and held for a longer time. The
display shows the currently set brightness on all its
segments . When the setting limit values are reached, the
segments start to flash.
The modes specified below are accessible once the
relevant code have been entered.
Calibration mode (CAL.) code L-1 – activated when the
"ON/OFF' button has been pressed and held for a longer time.
The display shows the measured temperature including the
calibration. Readings specified in
Preliminary heating time setting mode (P.tI.) code L-2 –
activated when "ON/OFF" button is pressed and held for a
longer time. The display shows the working time, counting it
from the activation, for which the controller performs
preliminary heating maintaining the preliminary heating
temperature programmed by the manufacturer. Reading
"OFF" means deactivation of the preliminary heating function.
Readings specified in minutes. When preliminary heating
activated, the controller displays marking "HC2" during start-
up.
Preliminary heating temperature setting mode (P.tE.)
code L-3 – activated when the "ON/OFF" button is pressed
and held for a longer time. The display shows the value of
preset temperature for preliminary heating. Readings P ...
specified in C.
o
Preset temperature limit setting mode (L.t.h.) code L-4 –
activated when "ON/OFF" button is pressed and held for a
loner time. The display shows maximum value of preset
temperature that can be set . Readings L ... are specified in
4 – button „-„ value decreasing
Working mode – pressing the button will decrease the
preset temperature value. During preliminary heating, the
option to change the setting for preset temperature is blocked.
Working time setting mode – pressing the button will
decrease the time after which the thermostat will get
switched off.
Display brightness setting mode – pressing the button will
decrease the brightness of the display.
Calibration mode – pressing the button will decrease the
value of the temperature to be transferred, calibrating the
measurement duct in this way.
Preliminary heating time setting mode – pressing the
button will decrease the time after which the thermostat will
switch from preliminary heating phase to proper heating
phase.
Preliminary heating temperature setting mode – pressing
the button will decrease the value of preset temperature that
will be maintained during preliminary heating.
Preset temperature limit setting mode – pressing the
button will decrease the value of maximum preset
temperature that will be to set.
