LYSON PREMIUM PC-03 Instruction Manual

Uncapping machine with controller 230v or 400v

Advertisement

Quick Links

Instructions manual

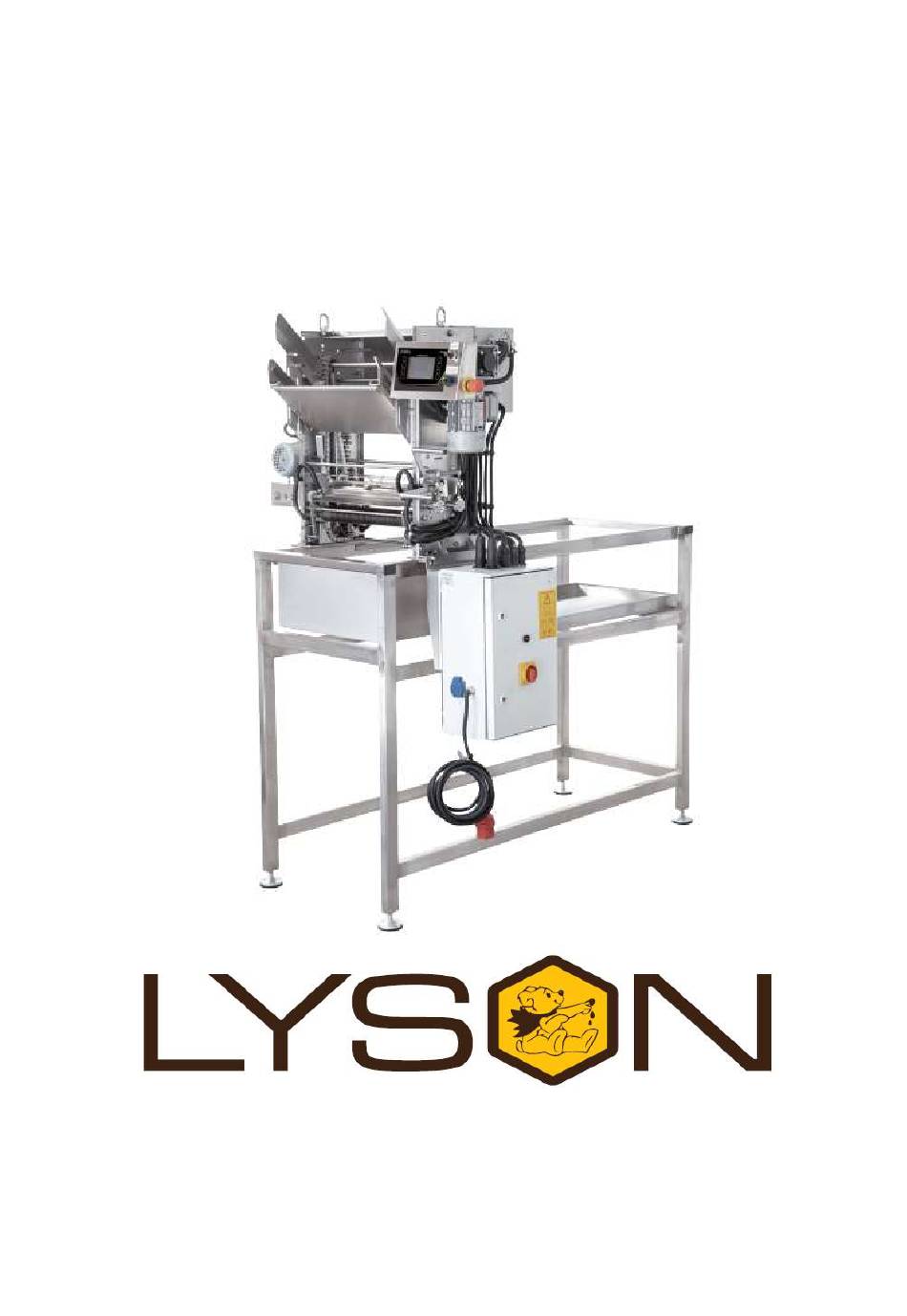

PREMIUM Uncapping machine with
PC-03
CONTROLLER
230V or 400V
Przedsiębiorstwo Pszczelarskie Tomasz Łysoń
Spółka z o.o. Spółka Komandytowa
34-125 Sułkowice, ul. Racławicka 162, Polska
www.lyson.com.pl, email; lyson@lyson.com.pl
Headquarters: Klecza Dolna 148, 34-124 Klecza Górna

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIUM PC-03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LYSON PREMIUM PC-03

  • Page 1 Instructions manual PREMIUM Uncapping machine with PC-03 CONTROLLER 230V or 400V Przedsiębiorstwo Pszczelarskie Tomasz Łysoń Spółka z o.o. Spółka Komandytowa 34-125 Sułkowice, ul. Racławicka 162, Polska www.lyson.com.pl, email; lyson@lyson.com.pl Headquarters: Klecza Dolna 148, 34-124 Klecza Górna...
  • Page 2: Table Of Contents

    The manual covers following devices (codes): W902Z_P; W903Z_P Table of contents: 1 General safety instructions 1.1. Electrical safety 1.2. Operation safety 2 PC-03 controller 2.1. Buttons 2.2. Controller operation 2.3. Error codes Instructions for use 3.1. General rules – preparation for use 3.2.
  • Page 3: General Safety Instructions

    PREMIUM In the event of damage to the device, to avoid any health and safety risks, repairs should be carried out UNCAPPING MACHINE only by qualified personnel. WITH PC-03 For indoor use only. The device is not suitable for CONTROLLER outdoor use.
  • Page 4 2. PC-03 controller The PC-03 controller operates the uncapping machine and the extruder. The control panel is divided into two parts; the left part controls the operation of the extruder, while the right part controls the operation of the uncapping machine Fig.2. After placing the device in a desired place and blocking the wheels: - plug in the device.
  • Page 5: Buttons

    2.1. Buttons: Below is a view of the controller panel after entering the menu. Button 1 – „START” Switching on the extruder - counter clockwise After entering the menu (button no. 4) configure the extruder rotation (increase of rotation speed) Settings range from 10%-100%.
  • Page 6 Activation of individual machine components is indicated by moving graphics on the display. Fig.11. Stopping the knives - button no. 6 Fig.8. Switching on the heating of knives - button no. 7 The set temperature is maintained by the controller. Fig.12.
  • Page 7: Error Codes

    2.3. Error codes Elements: 3.1 Controller PC-03 controller equipped with 3.2 Frame advanced error detection mechanisms. The detection of 3.3 PSU box any error activates the emergency stop action and calls 3.4 Power cord 400V lub 230V up the error report screen.
  • Page 8: Heating System

    Liquid level indicator in closed circuit Knife spacing is adjusted by two levers, adjustment lever A and locking lever B Fig.18. Fig.18. 3.2 . Heating system WARNING!!!! The tank should be filled up with liquid after the unit has been disconnected from the mains via the filler Fig. Filler port through which we refill the liquid tank.
  • Page 9: Technical Specifications

    7 Warranty The product purchased from the Lyson Company is covered by a manufacturer's warranty. The warranty period is 24 Fig.19. Switch on the control box "0" position months from the date of purchase.
