Fig. 2. Depending on the previous set-ups, the screen will
display previously preset creaming machine operating time.
The controller possesses several programmes , which allows
to select precisely the total creaming time ranging from 24
hours to 99 hours as well as 1 hour in special cycle.
Controller handling boils down to the selection of a programme
( by pressing the "P" button and subsequent activation of
selected programme cycle by pressing the START button.
In order to select a proper operating time for the creaming
machine, "P" button shall be pressed, as in Fig. 3.
24h, 36h, 48h, 60h, 72h, 84h, 96h, 99h.
Cycle execution time

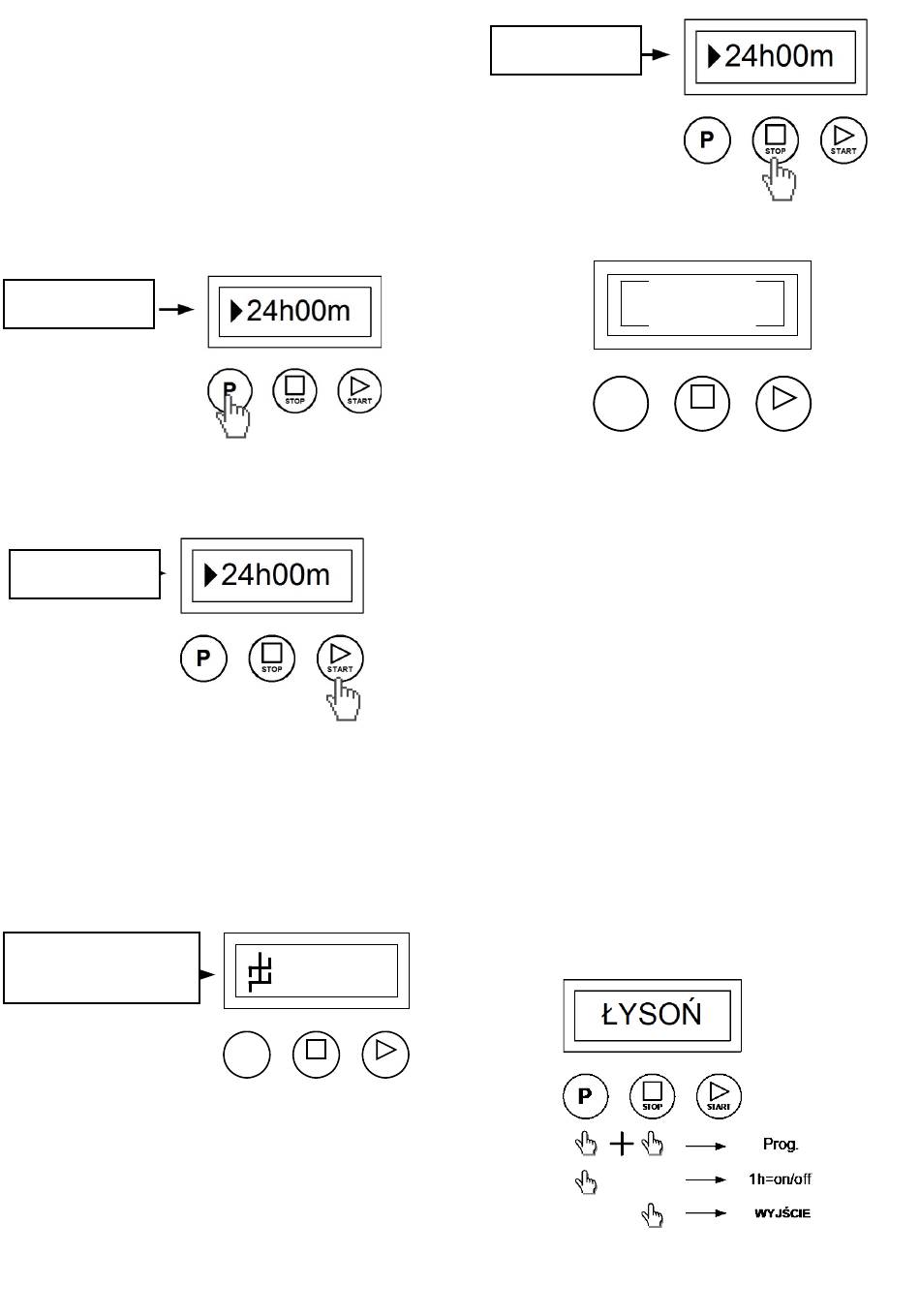

Fig. 3. Selection of programme.
In order to activate the creaming machine stirrer operation,
press START button, as in Fig. 4
Cycle execution time
Fig. 4. Programme activation
The screen of the controller working with activated creaming
cycle specifies the time that has passed since the cycle
activation. (Fig. 5). Additional icon informs about the stirrer
activation mode.
(no icon – stirrer stoppage, visible icon – stirrer rotates)
Time that has passe since
the creaming machine Czas, jaki upłynął
od włączenia cyklu
activation
Fig 5. Activated creaming cycle
STOP button allows to deactivate the programme performed
(Fig.6).
Re-activated programme will operate from the beginning , i.e.
operating throughout the entire time specified.
Proper termination of the creaming cycle is signalled by an
inscription OK (Fig .7) showed in the display screen.
2:30
P
STOP START
Cycle execution time
Fig. 6. Stopping the creaming process.
P
Fig 7. Terminated creaming cycle
4.1.2. SETTING UP THE "STIRRING CYCLE"
The "Stirring Cycle" allows to configure the controller from
constant stirrer operation for one hour.
Activation of the cycle is possible only in the creaming
machines equipped with heating system (i.e. on the de-
crystallizer) !!!
In order to activate the Stirring Cycle, during the controller start-
up ("ŁYSOŃ-C01 note shall appear), one should press and hold
STOP button and P button at the same time.
Having entered the menu on the display screen, a message
informing on the active programming mode ("Prog") is displayed
and when both buttons are released the current configuration of
the "Stirring Cycle" is showed.
Changing the "Stirring Cycle" configuration is possible by
pressing the "P" button.
Configuration 1h=on means that 1h programme will be on.
Respectively, configuration 1h=off means that creaming
function under 1 h cycle will be off.
Leaving the "Cycle programming" is possible by pressing STOP
button.
P = 1h (Constant stirring cycle),
Fig 9. Controller's "Stirring Cycle"
OK
STOP START
