M2 Antenna Systems FGSD-2.4DH Manual

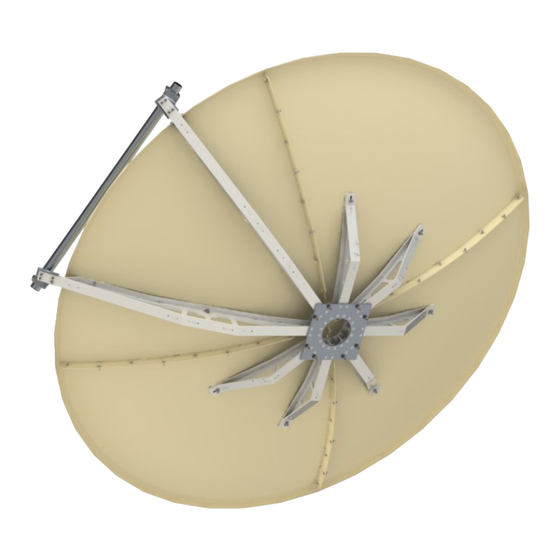

Satellite dish, m2 back structure dh, 2.4 /8 ft 4 pieces, w/ yagi support

Hide thumbs

page of 10

/ 10
Bookmarks

Quick Links

Download this manual

M2 ANTENNA SYSTEMS, INC.

MODEL NO: 2 AXIS WITH S-BAND

MODEL NO: FGSD-2.4DH AND

FGSD-2.4DH-YS

FEED

SATELLITE DISH, M2 BACK STRUCTURE

LOCKHEED

DH, 2.4 /8 FT 4 PIECES, W/ YAGI SUPPORT

M2 ANTENNA SYSTEMS, INC. 4402 N. SELLAND AVE. FRESNO, CA 93722

TEL: (559) 432-8873 FAX: (559) 432-3059 WEB: WWW.M2INC.COM

6/24/2020

REV A

Need help?

Do you have a question about the FGSD-2.4DH and is the answer not in the manual?

Questions and answers

Summary of Contents for M2 Antenna Systems FGSD-2.4DH

Page 1 FEED SATELLITE DISH, M2 BACK STRUCTURE LOCKHEED DH, 2.4 /8 FT 4 PIECES, W/ YAGI SUPPORT M2 ANTENNA SYSTEMS, INC. 4402 N. SELLAND AVE. FRESNO, CA 93722 TEL: (559) 432-8873 FAX: (559) 432-3059 WEB: WWW.M2INC.COM 6/24/2020 REV A ©2020 M2 ANTENNA SYSTEMS INCOPORATED...
Page 2 BOLT, 1/4-20 X 1”, FLAT ALLEN HEAD LOCKNUT, 1/4-20 QTY (32) FIG. 1 FGSD-2.4DH STEP 2A: Install the DISH SUPPORTS for the FGSD-2.4DH. Leave all the hardware finger tight (See FIG. 2). See STEP 2B for assembly FGSD-2.4DH-YS SATELLITE DISH SUPPORT QTY (8) FIG. 2...
Page 3 SATELLITE DISH MOUNT ASSEMBLY STEP 2B: FGSD-2.4DH-YS Install the DISH SUPPORTS for the FGSD-2.4DH-YS. Make sure the two YAGI SUPPORTS are adjacent to each other. Leave all the hardware finger tight (See FIG. 3). SATELLITE DISH SUPPORT, YAGI SUPPORT QTY (2)
Page 4 SATELLITE DISH MOUNT ASSEMBLY SATELLITE DISH ASSEMBLY STEP 4: The SATELLITE DISH PANELS come with color coded dots on the RIB to indicate which PANELS need to be mated together for proper alignment. Each dot is labeled with SERIAL NUMBERS and matching RIB NUMBERS (See FIG. 5). SATELLITE DISH SERIAL NUMBER (WILL BE DIFFERENT FOR YOUR DISH) RIB IDENTIFICATION...
Page 5 SECTIONED SATELLITE DISH ASSEMBLY BOLT, 3/8-16 X 1-1/2” FLAT WASHER, 3/8” SATELLITE DISH QTY (8) FLAT WASHER, 3/8” LOCK WASHER, 3/8” SATELLITE DISH NUT, 3/8-16 FIG. 8 MOUNT ASSEMBLY QTY (8) STEP 7: Attach the SATELLITE DISH to the SATELLITE DISH MOUNT ASSEMBLY (See FIG. 8). STEP 8: Attach the SATELLITE DISH MOUNT and DISH to the ANTENNA POSITIONER (See...
Page 6 SATELLITE DISH FIG. 10 STEP 9: Position the ANTENNA POSITIONER to 0 DEGREES. Attach the fourth SATELLITE DISH PAN- EL (See FIG. 10). THIS COMPLETES THE ASSEMBLY OF THE FGSD-2.4DH SYSTEM. CONTINUE THE NEXT PAGE TO FINISH THE FGSD-2.4DH-YS ASSEMBLY.
Page 7 FGSD-2.4DH-YS YAGI MOUNT STEP 10: Install additional fasteners to the EX- TENDED SATELLITE DISH SUPPORT and the SATELLITE DISH (See FIG 11). EXTENDED SATELLITE DISH SUPPORT QTY (2) BOLT, 1/4-20 X 3/4” FLAT WASHER, 1/4” LOCK WASHER, 1/4” NUT, 1/4-20 QTY (4) FIG.
Page 8 LOCK NUT, 5/16-18 QTY (4) FIG. 13 STEP 12: Install the YAGI SUPPORT TUBE. Use the 2” CRADLES to mount the YAGI SUP- PORT TUBE to the YAGI SUPPORT BRACKET (See FIG 13). THIS COMPLETES THE ASSEMBLY OF THE FGSD-2.4DH-YS SYSTEM.
Page 9 FGSD-2.4DH PARTS & HARDWARE LIST DESCRIPTION SATELLITE DISH PANEL, 2.4m (8’) .................... 4 SATELLITE DISH MOUNT BASE PLATE (M2ASD0028) ............1 SATELLITE DISH MOUNTING RING, TOP (M2ASD0032) ............1 SATELLITE DISH SUPPORT (SASD0004) ................. 8 SATELLITE DISH ASSY STAND, 4” X 15”, CARDBOARD (M2ASD0035) ........1 HARDWARE BOLT, 3/8-16 X 1-1/2”...
Page 10 FGSD-2.4DH-YS PARTS & HARDWARE LIST DESCRIPTION SATELLITE DISH PANEL, 2.4m (8’) .................... 4 SATELLITE DISH MOUNT BASE PLATE (M2ASD0028) ............1 SATELLITE DISH MOUNTING RING, TOP (M2ASD0032) ............1 SATELLITE DISH SUPPORT (SASD0004) ................. 6 SATELLITE DISH SUPPORT (SASD0051) ................. 2 YAGI SUPPORT BRACKET, RH (M2ASA0060) ................
