SPECIFICATIONS:
Model ......................................... EB-432/RK70CM
Frequency Range ....................... 400 To 470 MHz
Gain, Overhead 90 ..................... 5.5 dBic Typical
Impedance ................................. 50 OHMS
VSWR ......................................... < 2.0:1
VSWR ......................................... 1.5:1 @ 420– 450 MHz
Pattern. ....................................... Omni Directional
Polarity ....................................... RH Circular Overhead
Polarity ....................................... Horizontal @ Horizon
FEATURES:
The EB-432 EGGBEATER offers exciting new performance characteristics for both fixed and mobile operations.
The EGGBEATER produces smooth Omni directional HORIZONTAL polarity at the horizon. Above the horizon, the pat-
tern transforms to RIGHT HAND CIRCULAR, making it a natural for OSCAR satellite use. By spacing the EGGBEATER
1/8 wave above a metal surface or the RK-70CM for base installations, the circular lobe increases by 6 dB, producing a
hemispherical pattern. No rotation or steering is required. For terrestrial mobile, base, net control, contest or field day op-
eration, increasing the distance above ground or over a metallic surface improves the horizontal radiation by up to 6 dB.
This produces instantaneous communications in all directions. Hams with little room or budget for larger antennas will
experience a new standard of performance with the EB-432/RK70CM.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

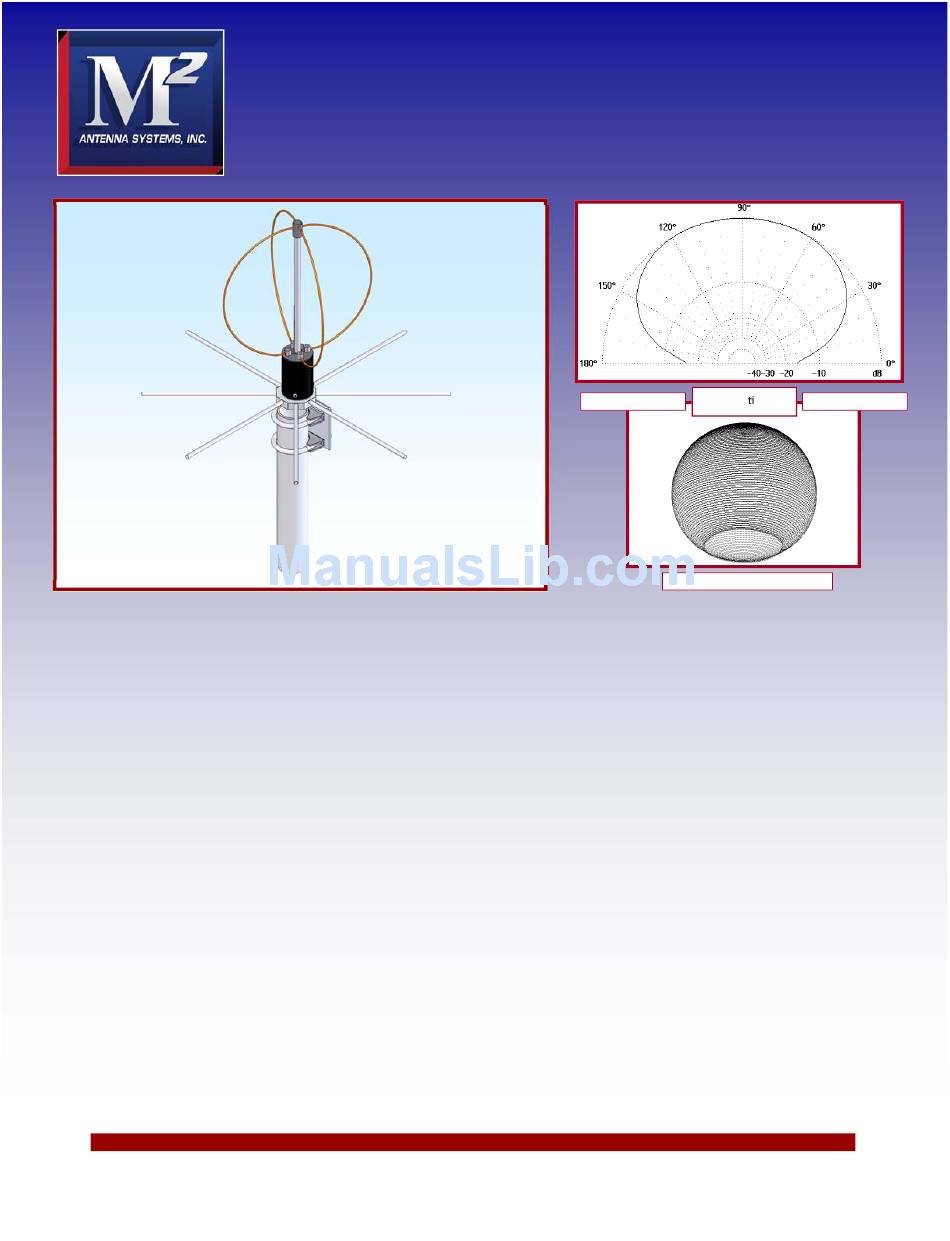

M2 Antenna Systems, Inc.

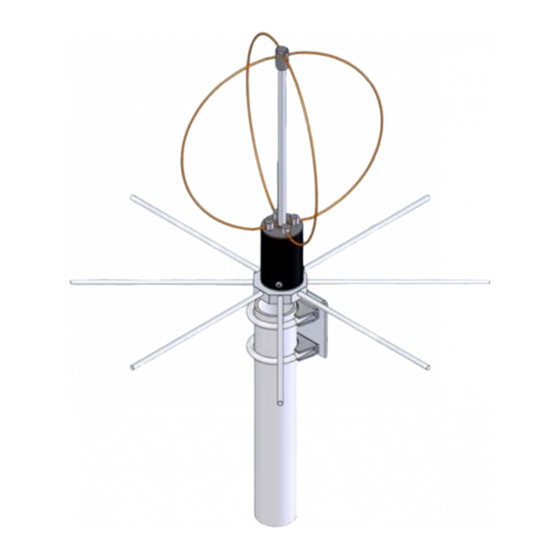

Model No: EB-432/RK70CM
Eggbeater Satellite Antenna
Shown with RK-70CM
Reflector Kit
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incoporated
Peak= 5.62 dBi
Power Handling .......................... 500W Max
Mounting ..................................... 1-1/2" to 2" Nom.
Connector ................................... "N" Female
Size ............................................. 13.5" H x 9.5" W
Wind Survival / Wind Area .......... 100 MPH / .07 Sq. Ft.
Weight / Ship Wt. ........................ 2 Lbs. / 3 Lbs.
Eleva on
Total Field
Circular Omni Antenna
05/28/15
Rev.02
Advertisement
Table of Contents
Related Manuals for M2 Antenna Systems EB-432/RK70CM
Summary of Contents for M2 Antenna Systems EB-432/RK70CM
- Page 1 This produces instantaneous communications in all directions. Hams with little room or budget for larger antennas will experience a new standard of performance with the EB-432/RK70CM. M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com 05/28/15 ©2015 M2 Antenna Systems Incoporated...
- Page 2 EB-432/RK70CM ASSEMBLY MANUAL Caution: The copperweld steel loop elements are packed in a tightly wrapped condition. Use extreme care while unpacking the loops. Work in a clear area and be sure no one is standing near during unpacking. Tool Required: 3/32” and 5/32 Allen wrench (provided) and 1/2 & 9/16 end wrench or socket.
- Page 3 EB-432/RK70CM PART LAYOUT GENERAL INFORMATION Feedline should be good quality 50 ohm coax cable. Times LMR-400 and Belden 9913F are excellent low-loss foam types and RG-8X is also good for short run as in a mobile setup. Connect the male "N" to the Balun case connector and, if a mast is used, secure the cable to the mast with tape or nylon ties, beginning 4-6 inches below the connector and repeating every 12”...
- Page 4 EB-432/RK70CM ASSEMBLY MANUAL NOTE: OTHER MOUNTING OPTIONS...
- Page 5 EB-432/RK70CM PARTS & HARDWARE DESCRIPTION ..................QTY EB-432 BODY ASSEMBLY ..............1 LOOP ELEMENTS, #10 COPPERWELD, 29-1/8” ........2 SET SCREW, 10-32 X 1/4”, SS ..............4 3/32” ALLEN WRENCH ................1 ASSEMBLY MANUAL ................1 RK-70CM REFLECTOR KIT: REFLECTOR PLATE, 1/2” X 2-1/2” (M23AEB0010) ........ 1 RADIAL RODS, 1/4”...
