SPECIFICATIONS:

Model ......................................... FD35.5
Frequency Range ....................... 35-36 MHz
Gain ............................................ 6.5 dBi / 4.36 dBd
Front to back .............................. 10 dB Typical
Beamwidth ............................... E=130° (Azimuth)
Feed type ................................... "T" Match
Feed Impedance. ....................... 50 Ohms
Maximum VSWR ........................ < 1.5:1

FEATURES:

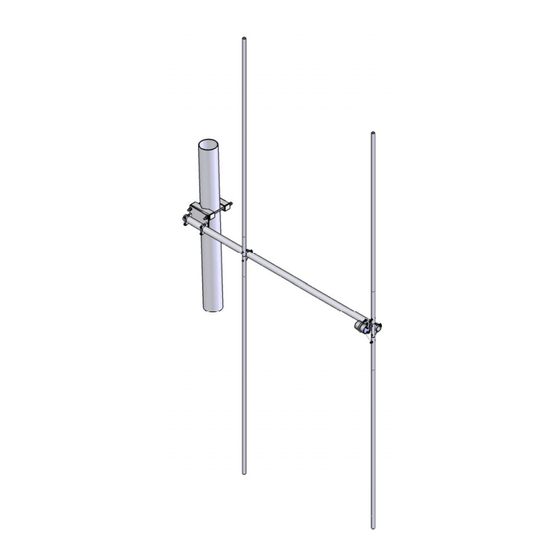

The FD35.5 Dipole antenna offers performance characteristics for specialized operations within the 46-36 MHz region.
The FD35.5 Dipole produces a smooth, vertically polarized pattern. No rotation or steering is required. The FD35.5
Dipole's rugged, weatherproof construction suits mobile and marine applications as well as fixed, land based installations
in hostile environments.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: FD35.5
*Subtract 2.14 from dBi for dBd
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2022 M2 Antenna Systems Incorporated
Polarity ........................................ Vertical
Input Connector .......................... "N" Female
Power Handling .......................... 1 kW
Element Length .......................... 131"
Mounting ..................................... 2" Mast
Wind Survival ............................. 100 MPH
Weight / Ship Wt. ........................ 45 Lbs. / 55 Lbs.
08/16/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD35.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M2 Antenna Systems FD35.5

  • Page 1 The FD35.5 Dipole antenna offers performance characteristics for specialized operations within the 46-36 MHz region. The FD35.5 Dipole produces a smooth, vertically polarized pattern. No rotation or steering is required. The FD35.5 Dipole’s rugged, weatherproof construction suits mobile and marine applications as well as fixed, land based installations in hostile environments.
  • Page 2 35.5 MHz Dipole Assembly Manual TYPICAL TOOLS REQUIRED: 7/16, 1/2 spin-tight, end wrenches and or sockets and large adjustable wrench. NOTE, ZINC PASTE HAS BEEN SUPPLIED TO ADD LIFE TO THE CONNECTIONS IN THIS ANTENNA. IT CAN ALSO BE USED ON ALL THREADS AS ANTI-SEIZE COMPOUND. 1.
  • Page 3 35.5 MHz DIPOLE WITH OPTIONAL REFLECTOR BALUN LEADS INSTALLATION DETAIL FORM BALUN LEADS AS SHOWN IN PICTURE...
  • Page 4 Lock Nut, 1/4-20 SS ................. 4 Lock Washer, 1/4” Split Ring SS ............. 2 Flat Washer, 1/4” SS ............... 2 Penetrox Paste, Cup ................ 1 M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 (559) 432-8873 FAX: 559-432-3059...
