SPECIFICATIONS:

Model ........................................ FG170-230-5
Frequency Range ....................... 170 To 230 mHz
*Gain .......................................... 8.2 dBic Nominal
Beamwidth ............................... 150 mHz = 70°
Impedance. ................................ 50 Ohms Unbalanced
VSWR ........................................ 1.5 Typical
Polarity ....................................... RHCP or LHC

FEATURES:

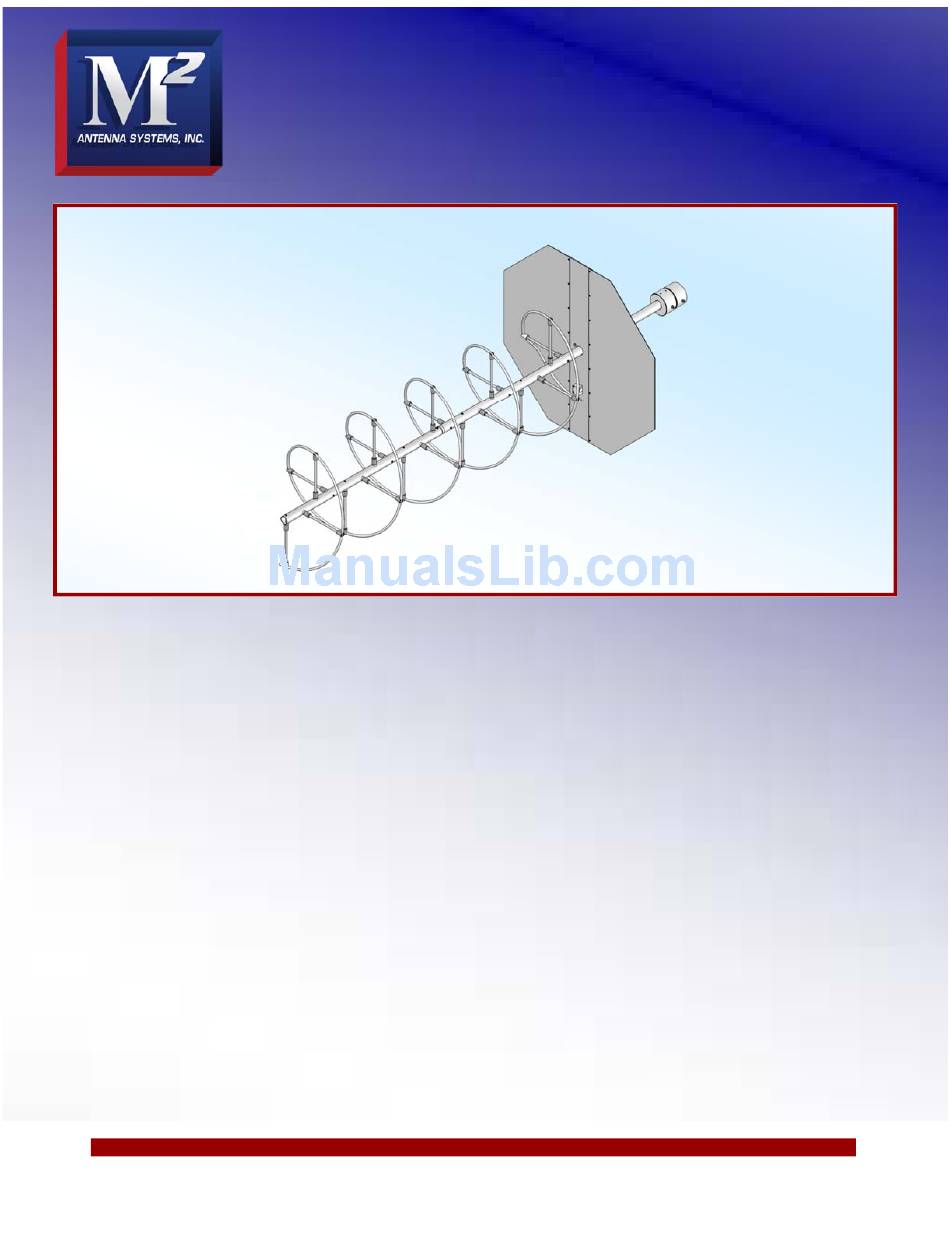

The M2 170-230-5 Helix antenna offers medium performance characteristics for specialized fixed and rapid de-
ploy operations within the 170 to 230 MHz band. It is perfect for either terrestrial or satellite applications. The antenna is
supplied with a manually adjustable Azimuth / Elevation mount and a counter weight. The antenna is shipped with the
helix assembled less ground plane. Finishes are optional. The steel adjustable mounting fixture and counterweight are
zinc plated. Optional arrays of 2 or more are available. Other frequency ranges and gains are also available down to 100
MHz. Complete motorized, computer controlled AZ-EL systems are also manufactured by M2.
Where circular polarity is not required but high bandwidth is, M2 offers a line of various log periodic antennas from 5 to
1300 MHz. If it is antenna related, we probably have made it. Call us with your requirements.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: FG170-230-5
(Customer Specified)
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2015 M2 Antenna Systems Incorporated
Elipticity ...................................... <3db
Connector ................................... Type "N" Female
Power Handling .......................... 1 kW, Higher avl.
Boom Length / Dia ...................... 94" / 1-1/2"
Turning Radius: .......................... 76-5/8"
Mast Size .................................... 2" Nom.
Wind Survival ............................. 100 MPH
Weight / Ship Wt. ........................ 31 Lbs. / 185 Lbs.
12/14/15
Rev.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG170-230-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for M2 Antenna Systems FG170-230-5

  • Page 1: Specifications

    Where circular polarity is not required but high bandwidth is, M2 offers a line of various log periodic antennas from 5 to 1300 MHz. If it is antenna related, we probably have made it. Call us with your requirements. M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722 Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com 12/14/15 Rev.00...
  • Page 2 HELICAL 170-230-5 ASSEMBLY...
  • Page 3 HELICAL 170-230-5 ASSEMBLY...
  • Page 4 HELICAL 170-230-5 ASSEMBLY...
  • Page 5 HELICAL 170-230-5 ASSEMBLY ANTENNA SYSTEMS, INC. 4402 N. SELLAND AVE. FRESNO, CA 93722 (559) 432-8873 FAX: 432-3059 www.m2inc.com Email: sales@m2inc.com...
  • Page 6 HELICAL 170-230-5 PARTS & HARDWARE DESCRIPTION ..................QTY HELIX & BOOM ASSEMBLY ..............1 FEED BLOCK ASSEMBLY ..............1 FEED SUPPORT BLOCK ................ 1 GROUND PLANE CENTER ..............1 GROUND PLANE HALF ................2 G-PLANE CLAMP (R. 0.750) ..............1 LD CRADLE.
