M2 Antenna Systems 6M5XHP Manual

SPECIFICATIONS:

Model ......................................... 6M5XHP
Frequency Range ....................... 50.0 To 50.5 MHz
*Gain, (FS)f ................................ 11.54 dBi
Front to back .............................. 21 dB Typical
Beamwidth ............................... E=42° H=52°
Feed type ................................... Direct feed
Feed Impedance. ....................... 50 Ohms Unbalanced
Maximum VSWR ........................ 1.1 @ 50.175
Input Connector .......................... SO-239
*Subtract 2.14 from dBi for dBd / FS = Free Space / ** H = High / W = Wide

FEATURES:

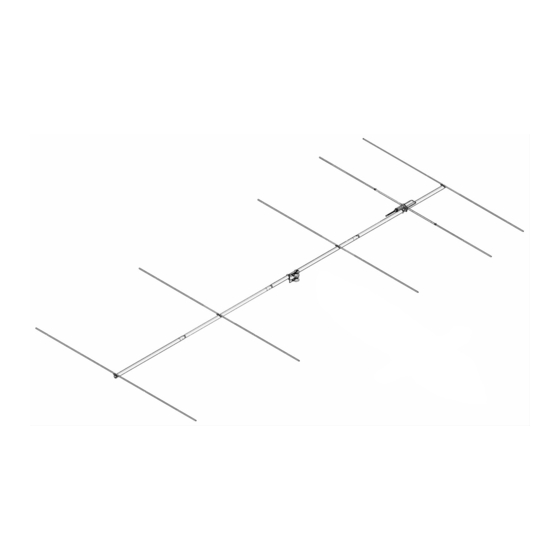

The 6M5XHP is the latest computer optimized version of our popular 6M5X. The 6M5XHP has been re-designed
to use a hairpin type direct feed. We just made a good thing better, maintaining a low wind load and great performance
for its size. The 6M5XHP will compliment the rest of your antenna system and not overload your tower. The 6M5XHP is
perfect for the Ham trying 6 meters for the first time or the seasoned vet who may stack them for lower angle of radiation
or even some EME use.
M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722
M2 Antenna Systems, Inc.
Model No: 6M5XHP
Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com
©2018 M2 Antenna Systems Incorporated
Power Handling .......................... 1.5 kW, Higher avl.
Boom Length / Dia ...................... 216" / 1-1/2"
Maximum Element Length .......... 113"
Turning Radius: .......................... 134"
**Stacking Distance .................... 15'-21'H & 19'-23' W
Mast Size .................................... 1-1/2" to 2" Nom.
Wind area / Survival ................... 2.2 Sq. Ft. / 100 MPH
Weight / Ship Wt. ........................ 13 Lbs. / 16 Lbs.
7/24/18
REV A
