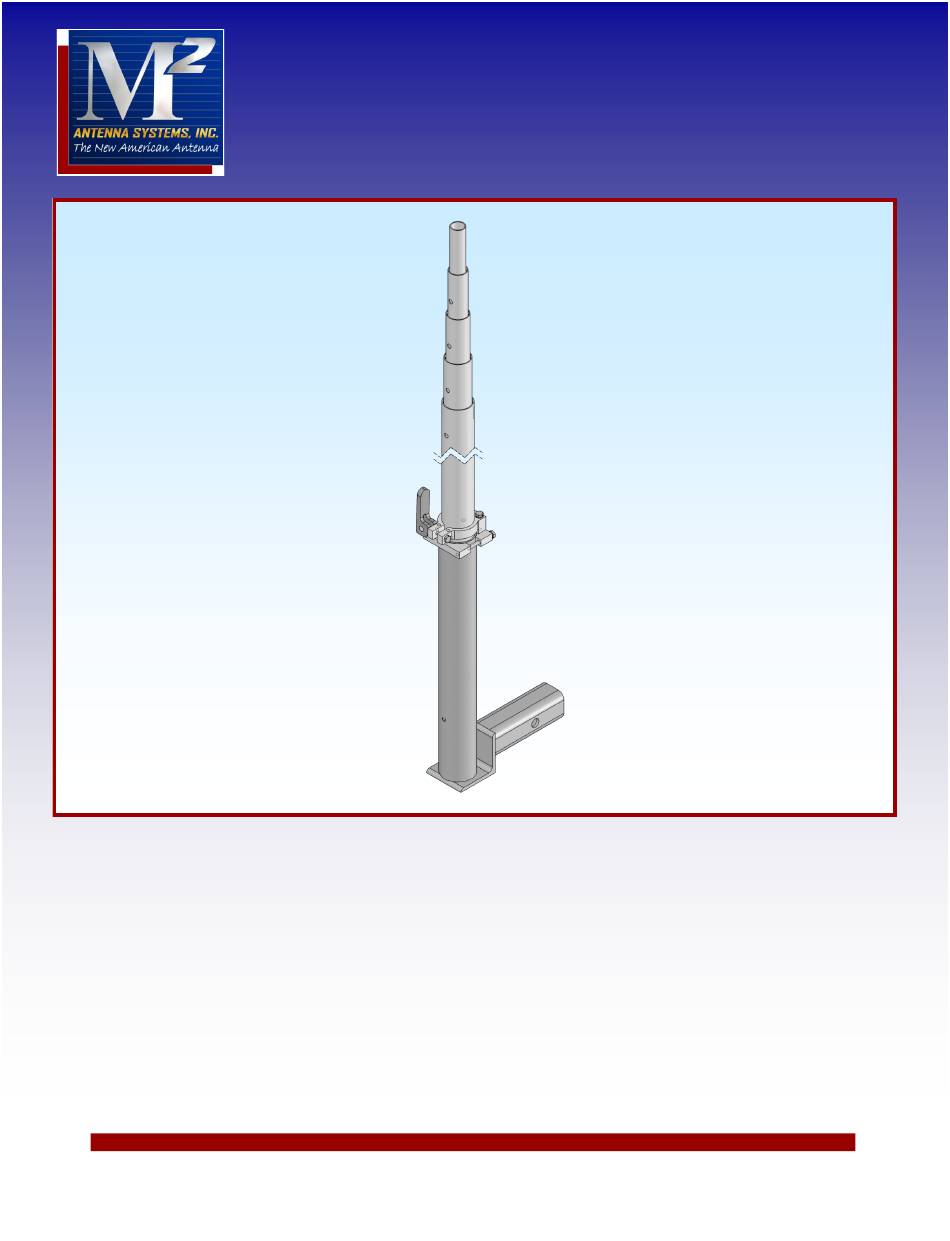

M2 Antenna Systems FGHM64 Manual

Portable hitch mast

Model ......................................... FGHM64

Collapsed Size ........................... 74"

Extended Size ............................ 288.50"

Mast Size.................................... 2", 1-3/4", 1-1/2, 1-1/4" & 1"

Weight ........................................ 16 Lbs.

Material....................................... Aluminum 6061-T6

FEATURES:

The M2 FGHM64 is a portable telescoping mast designed to fit a standard 2" hitch receivers for portable and

quick deploy operations. The unit will collapse down to 74" for ease of transport. No assembly required.

M2 Antenna Systems, Inc. 4402 N. Selland Ave. Fresno, CA 93722

M2 Antenna Systems, Inc.

Model No: FGHM64

PORTABLE HITCH MAST

Tel: (559) 432-8873 Fax: (559) 432-3059 Web: www.m2inc.com

08/01/19

Rev.03

Table of Contents

Need help?

Do you have a question about the FGHM64 and is the answer not in the manual?

Page 1 Material........Aluminum 6061-T6 FEATURES: The M2 FGHM64 is a portable telescoping mast designed to fit a standard 2” hitch receivers for portable and quick deploy operations. The unit will collapse down to 74” for ease of transport. No assembly required.
Page 2 FGHM64 SYSTEM LAYOUT (EXAMPLE) 23CM22EZA 440-6SS NOTE: Optional overhead guy support kit available for additional tie down support if needed. 2M-3SS 6M-3SS NOTE: SHOWN FULLY EXTENDED WITH ANTENNAS NOTE: SHOWN COLLAPSED WITH ANTENNAS...
Page 3 FGHM64 MAST CLAMP ASSEMBLY BOLT, 1/4-28 X 1-3/4”,SS NOTE: TIGHTEN OR LOOSEN BOLT TO ADJUST CLAMP TENSION.
Page 4 FGHM64 HITCH BASE DETAILS NOTE: The FGHM64 has been designed to fit most standard 2” hitch receivers. Slip hitch base assembly into your hitch receiver and secure with one on each side: Bolt, 1/2-20 X 1” and 1/2” lock washer.
Page 5 FGHM64 OPERATION DETAILS Raising the mast Carefully raise one section at a time. Begin with the smaller 1” tubing. Look for indicating marks on tube to help line up your locking pins with pin holes. Repeat the following procedure for the remaining sections.
Page 6 FGHM64 PARTS & HARDWARE DESCRIPTION ..................QTY HITCH BASE ASSEMBY (SAMS6400) ........... 1 TELESCOPING MAST ASSEMBLY (SAMS6402) ........1 MAST CLAMP (M2AMP6403) ..............1 MAST CRADLE (M2AMP6407) ..............1 MAST CRADLE WITH HOLES (M2AMP6404) ........1 PIVOT CLAMP ARM (M2AMP6406) ............1 PIVOT CLAMP JOINT ( M2AMP6405) .............
