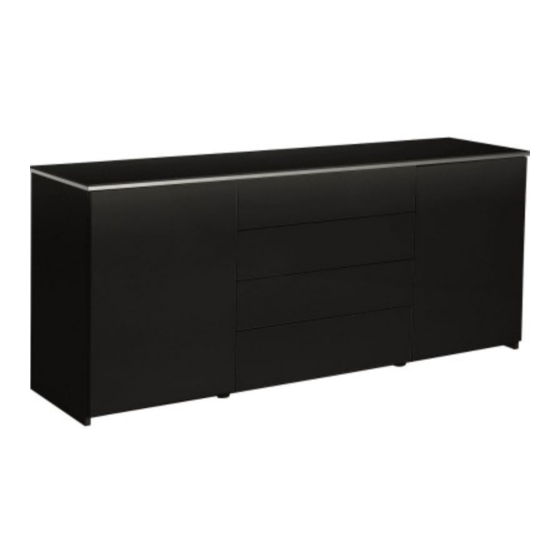

Aurora - 4 Drawer 2 Door Sideboard
Assembly Instructions -
Dimensions
Width - 146cm
Depth - 39cm
Height - 63.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
157/1844
171/5703
391/2607
MADE IN
BRITAIN
Issue 4 - 26/05/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Aurora 157/1844
Summary of Contents for Argos Aurora 157/1844
- Page 1 Aurora - 4 Drawer 2 Door Sideboard Assembly Instructions - 157/1844 Please keep for future reference 171/5703 391/2607 Dimensions Width - 146cm Depth - 39cm MADE IN Height - 63.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 4 - 26/05/15...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 40kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Left Upright Right Upright (D2600A) (D2610A) (D2602A) (D2612A) (620 x 371mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into each small drawer front and the large drawer front Note: Tighten metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 6 Fit the wedgefixes Turn the drawer assemblies over. On each of the drawer assemblies, slide 2 wedgefixes into the small groove in the drawer front and 2 into the small groove in the drawer back , as shown. Once the wedgefixes are in place, tighten up their screws.
- Page 8 Assembly Instructions Step 8 Prepare the left upright Finished front edge Tap a wooden dowel into the left upright 10mm Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Insert 2 large locking nuts into the left...
- Page 9 Assembly Instructions Step 9 Prepare the right upright Tap a wooden dowel into the right upright Finished Insert 2 large locking front edge nuts into the right upright Fit 4 runners the right upright The 1st screw uses the 2nd hole in from the front of the runner.
- Page 10 Assembly Instructions Step 10 Prepare the base Tap 2 wooden dowels into the base Insert 4 large locking nuts into the base Finished front edge Step 11 Fit the feet and uprights to the base Screw the feet onto p l a the base and on into i n c...
- Page 11 Assembly Instructions Step 12 Prepare the left side Tap a wooden dowel into the left side Screw 2 metal dowels Finished into the left side front edge Insert 2 large locking nuts into the left side Fit 2 hinge plates onto the left side , making...
- Page 12 Assembly Instructions Step 14 Fit the left and right sides Push the left side and right side onto the base Use a screwdriver to tighten the 4 large locking nuts fitted to the base Note: Turn the large locking nuts as far as Finished they will go - more than...
- Page 13 Assembly Instructions Step 16 Fit the top Push the top onto the assembly. Use a screwdriver to tighten the 8 large locking nuts fitted to the left side , right side , left upright and right upright Step 17 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the unit by...
- Page 14 Assembly Instructions Step 18 Fit the door plates and door pushes to the left upright Fit 4 door plates the left upright using screws Press the door push into the door plate Press the back of the door push to click into place.
- Page 15 Assembly Instructions Step 20 Fit the shelves Lower the 2 shelves down onto the shelf studs Step 21 Prepare the 2 doors Push fit 2 hinges into each of the doors Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
- Page 16 Assembly Instructions Step 22 Fit the 2 doors Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 17 Assembly Instructions Step 23 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the top (or base) of the unit is level, front-to-back and side- to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
- Page 18 Adjustment If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 20 ALR2938...
