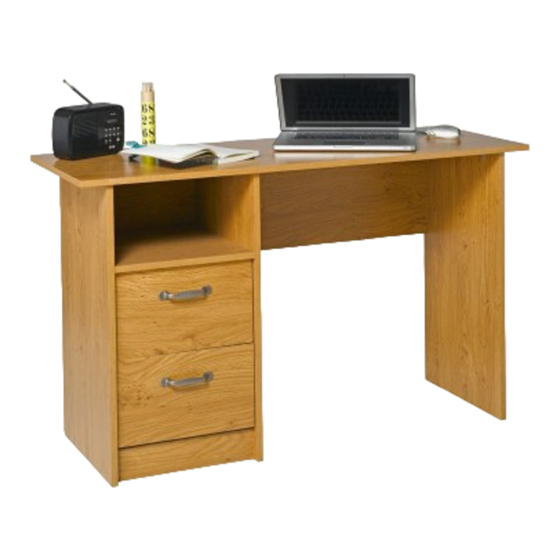

Dalton - Pedestal Desk

Assembly Instructions -

Dimensions

Width - 120cm

Depth - 44cm

Height - 71.5cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

617/3601

158/5122

MADE IN

BRITAIN

Issue 3 - 24/09/13

Need help?

Do you have a question about the Dalton 617/3601 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Dalton 617/3601

Page 1 Dalton - Pedestal Desk Assembly Instructions - 617/3601 Please keep for future reference 158/5122 Dimensions Width - 120cm Depth - 44cm MADE IN Height - 71.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 3 - 24/09/13...
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 23kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left End Right End Upright (D1822A) (D1823A) (D1824A) (700 x 395mm) (700 x 395mm) (700 x 395mm) Modesty...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 2 drawer fronts Screw 2 metal dowels into the holes shown on the back of each drawer front Note: Tighten metal dowels up fully against...
Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
Page 7 Assembly Instructions Step 7 Runners must be pushed up against Fit runners to the the drawer front drawers Turn the 2 drawer assemblies over. Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the drawer front...
Page 8 Assembly Instructions Step 9 screw screw screw Prepare the upright Fit 2 runners the upright The 1st screw uses the 2nd hole in from the front of the runner. The 2nd and 3rd screws use the holes that line up with the other panel holes.
Page 9 Assembly Instructions Step 10 Join the shelf to the upright Push the shelf onto the upright p l a c h i s u r Use a screwdriver to f a c tighten the 2 large locking nuts fitted to the shelf Finished Finished...
Page 10 Assembly Instructions Step 12 Plain chipboard surface Prepare the 2 rails Tap 2 wooden dowels into each of the rails Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. 10mm Insert 2 large locking nuts...
Page 11 Assembly Instructions Step 15 Prepare the right end Screw 2 metal dowels into the right end Insert 2 large locking nuts into the right end Finished front edge Step 16 Prepare the modesty Insert 4 large locking nuts into the modesty Step 17 Fit the modesty Push the modesty...
Page 12 Assembly Instructions Step 18 Fit the right end Push the right end onto the modesty Use a screwdriver to tighten the 2 large locking nuts fitted to the modesty Finished front edge Step 19 Prepare the top Screw 6 metal dowels into the top Finished front edge...
Page 13 Assembly Instructions Step 20 Fit the top Carefully stand the unit up for this step. Push the top down onto the assembly. Use a screwdriver to tighten the 6 large locking nuts fitted to the left end , the right and the upright Warning: The unit is heavy.
Page 14 Assembly Instructions Step 22 Secure unit to a wall Warning: The unit is heavy. To prevent possible Lift with care. overbalancing we recommend that this unit is secured to a suitable wall by use of the metal bracket fitted underneath the shelf Fixings are not supplied as they will need to suit the wall type, and the...
