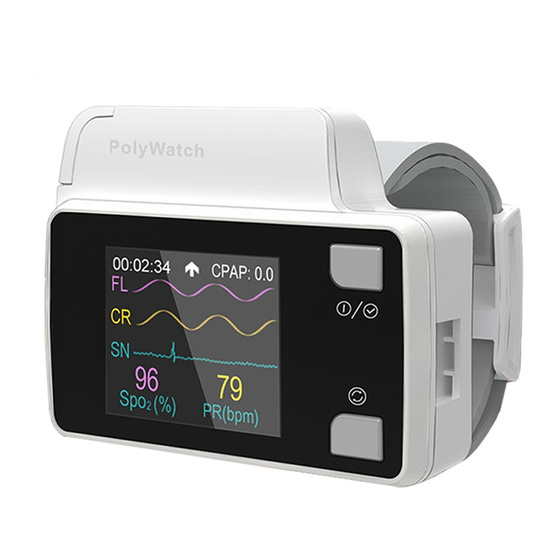

Sleep Apnea Diagnosis Device and Accessories
Sleep Screener
YH-600A Pro
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YH-600A Pro and is the answer not in the manual?

Questions and answers

Related Manuals for BMC YH-600A Pro

Summary of Contents for BMC YH-600A Pro

  • Page 1 Sleep Apnea Diagnosis Device and Accessories Sleep Screener YH-600A Pro User Manual...

  • Page 2: Table Of Contents

    YH-600A Pro User Manual V3.0 Table of Contents CHAPTER 1: DEVICE INTRODUCTION AND OPERATION ..1 1. Symbols ..................1 1.1 Control Buttons ..............1 1.2 Device Symbols ............... 1 2. Warnings, Cautions and Important Tips ........2 3. Contraindications ..............2 4.
  • Page 3 YH-600A Pro User Manual V3.0 13. Disposal................. 35 14. EMC Requirements ............... 36 CHAPTER 2: ANALYSIS SOFTWARE FOR SLEEP SCREENER ....................41 1. Software Installation ..............41 2. Co-use of the Software with Sleep Diagnostic Device .... 41 2.1 Run the Software ............41 2.2 Data Management Application ........
  • Page 4 YH-600A Pro User Manual V3.0 2.4.5.1 View ..........76 2.4.5.2 Help........... 81 2.5 Data Manual Analysis ............ 81 2.5.1 Technician Annotation ........ 81 2.5.2 Add, Delete, and Move Channels ....82 2.5.3 Add and Delete Events ......83 3. Exit Program................85 4.

  • Page 5: Chapter 1: Device Introduction And Operation

    The information in this manual has been carefully checked and is believed to be accurate. In the interest of continued product development, BMC Medical Co., Ltd. reserves the right to make changes and improvements to this manual and the products it describes at any time, without notice or obligation.

  • Page 6: Warnings, Cautions And Important Tips

    YH-600A Pro User Manual V3.0 Lot number Manufacturer Authorized Representative in the European Community European Union Approval No SpO Alarms 2. Warnings, Cautions and Important Tips WARNING! Indicate the possibility of injury to the user or operator. CAUTION! Indicate the possibility of damage to the device.

  • Page 7: Specifications

    YH-600A Pro User Manual V3.0 4. Specifications Range 0% ~ 100% ≤ ± 3% (70% ~ 85%), ≤ ± 2% (85% ~ 100%) Accuracy Pulse rate Range 30 ~ 250 bpm ≤ 2 bpm (30 ~ 100 bpm) Accuracy ≤ 2% (100 ~ 250 bpm)
  • Page 8 YH-600A Pro User Manual V3.0 Atmospheric pressure Operation 860 ~ 1060 hPa Storage / 700 ~ 1060 hPa Transportation Power supply DC 1.5 V ± 0.15 V (1 × 1.5 V LR6 AA) Minimum record No less than 8 hours...

  • Page 9: Intended Use

    • No modification of this equipment is allowed. CAUTIONS! • YH-600A Pro cannot be used on a water bed or a bed with an electric blanket, because these electrical equipments will disturb the operation of YH-600A Pro. • Federal law restricts these devices to sale by or on the order of a physician.
  • Page 10 YH-600A Pro User Manual V3.0 operation of other electrical equipments, such as television, radio and mobile phone, or if YH-600A Pro does disturb the operation, you should move YH-600A Pro far away from these equipments. • YH-600A Pro must be able to measure the pulse properly to obtain accurate SpO measurement.

  • Page 11: Glossary

    YH-600A Pro User Manual V3.0 6. Glossary Because of the respiratory tract’s airway Snore limitation, sound is made when respiratory airflow gets through the narrow respiratory tract, which usually indicates that the patient is likely to have suffered in years from sleep apnea syndrome along with the increase of age.
  • Page 12 YH-600A Pro User Manual V3.0 The AI means the number of apneas per hour, which is equal to the number of times apnea has occurred the whole night divided by the sleep time of whole night (awakening and invalid time are not contained), and the unit of time is hour.

  • Page 13: Model

    YH-600A Pro User Manual V3.0 7. Model Table 1-1 Monitoring Parameters and Components Monitoring Model Components Parameters Main Device, Airflow Kit, USB Data Cable and , pulse rate, Bluetooth Data airflow waveform, Transmission, TF Card, YH-600A Pro snore, wrist movement...

  • Page 14: Package Contents

    YH-600A Pro User Manual V3.0 8. Package Contents Table 1-2 shows package contents. Table 1-2 Package Contents Pulse Main Device Oximeter Sensor USB Data Airflow Kit Cable CPAP Airflow Pressure Cannula Tube TF Card User Manual Quick Computer Quick Operation...
  • Page 15 ② The finger sheath and cannula are CE marking approved, indicating compliance to the Medical Device Directive. ③ Several accessories are available for using YH-600A Pro. To ensure a safe and effective therapy, adopt only BMC accessories. 11 / 87...

  • Page 16: System Features

    The performance and functional characteristics of YH-600A Pro include all the user-friendly features of the predicate device. YH-600A Pro is powered by one 1.5 V AA battery. Testing was performed to demonstrate that the performance of YH-600A Pro in its intended environment is as safe and effective as that of the legally marketed predicate devices.

  • Page 17: Main Device Structure

    YH-600A Pro User Manual V3.0 9.2 Main Device Structure Port On-Off / OK Button Flow / COM Port Display Screen Shift Button Fig 1-1 Main device structure Table 1-3 shows Component and Function. Table 1-3 Component and Function Component Function...

  • Page 18: Instructions For Use

    YH-600A Pro User Manual V3.0 10. Instructions for Use CAUTIONS! • Avoid exposure to sources of direct airflow, such as fans during recording. • Avoid using this device in an MRI environment or in close proximity to a high EMI emission source.
  • Page 19 YH-600A Pro User Manual V3.0 Main Device TF Card Port Battery Compartment Battery Door TF Card Step 2: Inserting TF card and battery Step 3: Closing battery door Fig 1-2 Inserting the TF card and battery WARNING! • The battery may leak or explode if used or disposed of improperly.

  • Page 20: Wearing The Main Device

    YH-600A Pro User Manual V3.0 If the TF card is inserted incorrectly or not inserted, a red “X” symbol will appear on the “TF card” icon in the standby interface, as shown in Fig1-4, indicating “incorrect insertion or absence of TF card”.

  • Page 21: Wearing The Airflow Cannula

    YH-600A Pro User Manual V3.0 Fig 1-5 Wearing the main device CAUTION! • Make sure the wrist belt is neither too loose nor too tight; otherwise normal device operation will be affected. 10.1.3 Wearing the Airflow Cannula As Fig 1-6 shows, place the two prongs of the cannula in the nostrils, hook the cannula around the ears, and push the slide fastener upward to fix the cannula on the head.

  • Page 22: Wearing The Pulse Oximeter Sensor

    YH-600A Pro User Manual V3.0 10.1.4 Wearing the Pulse Oximeter Sensor As Fig 1-7 shows, insert the index finger until it reaches the bottom of the pulse oximeter sensor, tape the sensor onto the finger, and insert the data connector of the pulse oximeter sensor into the SpO port on the top of the main device.

  • Page 23: Connecting The Main Device With The Airflow Kit

    YH-600A Pro User Manual V3.0 • Do not use the pulse oximeter sensor during MRI scanning. • Do not use broken pulse oximeter sensor. • Do not immerse the pulse oximeter sensor in liquid, as it causes short circuit. •...

  • Page 24: Accessing The Initial Interface

    YH-600A Pro User Manual V3.0 water has entered the enclosure, if the enclosure is broken, or if the device has been dropped from a high place or hand, discontinue use and contact BMC. 10.2.1 Accessing the Initial Interface Press and hold the On-Off / OK Button for five seconds, and the initial interface will appear, as shown in Fig 1-8.

  • Page 25: Accessing The "Record" Interface

    YH-600A Pro User Manual V3.0 Data, and Tools, and when it falls on an icon, press the On-Off / OK Button to enter the corresponding interface. The device can be turned off if the On-Off / OK Button pressed and held for five seconds in the standby interface.
  • Page 26 YH-600A Pro User Manual V3.0 Table 1-4 Wearing alert message Alert Message Causes Alert Removal Insert the SpO probe When recording or long-press the starts, the device On-Off / OK Button cannot detect the to start probe recording compulsorily Insert the airflow kit or...

  • Page 27: Record" Interface

    When recording is completed, press the On-Off / OK Button and Shift Button simultaneously to exit the “Record” interface and return to the standby interface. The “Record” interface of YH-600A Pro, as shown in Fig 1-10. Recording time CPAP pressure Pulse waveform Airflow waveform...

  • Page 28: Accessing The "Setup" Interface

    The waveform of the signal is non-normalized so that the software can provide to the operator that the pulse rate value displayed is potentially incorrect. However, YH-600A Pro which does not store the waveform data just keeps waveform updating to give the implication of the detector in working state.
  • Page 29 YH-600A Pro User Manual V3.0 the yellow frame to the “Setup” icon . Press the On-Off / OK to enter the “Setup” interface. The user can adjust Button settings, and press the On-Off / OK Button to confirm the adjustment, as shown in Fig 1-11.

  • Page 30: Accessing The "Data" Interface

    YH-600A Pro User Manual V3.0 CAUTION! • Do not remove the battery when the device is working in the countdown mode, otherwise the countdown process will be interrupted. • Countdown Setup, allowing users to set the device to start recording at a certain time according to their needs. The maximum countdown time is 14 hours.

  • Page 31: Accessing The "Tools" Interface

    YH-600A Pro User Manual V3.0 24 00:02:00 23 00:01:54 No records. 22 07:01:00 21 06:00:00 Figure 1-15 “Records” interface-No Records Figure 1-14 “Records” interface-List of records Select a record in the list of records, and press the On-Off / OK Button .
  • Page 32 YH-600A Pro User Manual V3.0 The “Transfer Data (BT)” interface shows all records and allows data transmission. If there are no data records, the screen will display “No records.”, but Bluetooth pairing will not be affected, as shown in Fig 1-17.

  • Page 33: Turning Off The Device

    YH-600A Pro User Manual V3.0 Erasing records... Erasing records... 100% Erase complete! Fig 1-19 “Erase” interface The “About” interface shows the information, software version and battery power are included, as shown in Fig 1-20. Press any key to exit. PolyWatch...

  • Page 34: Troubleshooting

    YH-600A Pro User Manual V3.0 11. Troubleshooting Table 1-5 shows troubleshooting. Table 1-5 Troubleshooting Problem Possible Cause Solution (s) Battery installed Check battery Device won’t incorrectly installation start Battery exhausted Replace battery Screen flickers Low battery voltage Replace battery card...

  • Page 35: Cleaning And Disinfection

    YH-600A Pro will operate reliably with good care and regular maintenance. Cleaning instruction: Clean YH-600A Pro Main Device ① Turn off YH-600A Pro and take battery out of YH-600A Pro main device. ② Scrub YH-600A Pro main device gently with a damp gauze pad.
  • Page 36 YH-600A Pro User Manual V3.0 ① Detach the pulse oximeter sensor from YH-600A Pro main device. ② Saturate a clean, dry gauze pad with the cleaning solution. Wipe all surfaces of the pulse oximeter sensor with this gauze pad. ③ Saturate another clean, dry gauze pad with potable water.

  • Page 37: Disinfection

    Disinfect the Pulse Oximeter Sensor The pulse oximeter sensor may be surface cleaned by wiping it ® with CaviCide solution. ① Detach the pulse oximeter sensor from YH-600A Pro main device. ® ② Saturate a clean, dry gauze pad with the CaviCide solution.
  • Page 38 YH-600A Pro User Manual V3.0 ③ Saturate another clean, dry gauze pad with potable water. Wipe all surfaces of the pulse oximeter sensor with this gauze pad. ④ Discard the used potable water. Always use fresh volumes of water for each wipe. Do not reuse the water for wipe or any other purpose.

  • Page 39: Disposal

    YH-600A Pro User Manual V3.0 Disinfect the Wrist Belt ① Detach the wrist belt from the main device. ® ② Immerse the wrist belt completely in CaviCide solution for a minimum of 5 minutes at 20° C (68˚F) or higher to destroy all pathogenic microorganisms.

  • Page 40: Emc Requirements

    YH-600A Pro User Manual V3.0 14. EMC Requirements Guidance and Manufacturer’s Declaration - Electromagnetic Emissions This device is intended for use in the electromagnetic environment specified below. The user of the device should assure that it is used in such an environment.
  • Page 41 YH-600A Pro User Manual V3.0 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity This device is intended for use in the electromagnetic environment specified below. The user of the device should assure that it is used in such an environment. Electromagnetic...
  • Page 42 YH-600A Pro User Manual V3.0 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity This device is intended for use in the electromagnetic environment specified below. The user of the device should assure that it is used in such an environment. Immunity...
  • Page 43 YH-600A Pro User Manual V3.0 Note 1: At 80 ~ 800 MHz, the higher frequency range applies. Note 2: These guidelines may apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Field strength from fixed transmitters such as base stations for...
  • Page 44 YH-600A Pro User Manual V3.0 Recommended Separation Distance Between Portable and Mobile RF Communication Equipment and the Device. The device is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The user of the device...

  • Page 45: Chapter 2: Analysis Software For Sleep Screener

    After the installation, a shortcut icon will appear on the desktop of the computer. Double-click the icon to run the BMC Polypro S1 data analysis software. 2. Co-use of the Software with Sleep Diagnostic Device 2.1 Run the Software...

  • Page 46: Data Management Application

    YH-600A Pro User Manual V3.0 Screener to start the Analysis Software for Sleep Screener. The main panel of the software is shown in Fig. 2-1. Fig. 2-1 2.2 Data Management Application 2.2.1 Data Unfolding (1) In the pop-up dialog box of “Case library”, the file unfolding analysis can be selected.
  • Page 47 YH-600A Pro User Manual V3.0 Fig. 2-2 Fig. 2-3 Fig. 2-4 (2) Click the “drop-down” icon to pop up more settings, as shown in Fig. 2-5. Settings of patient data such as “Import”, “Export”, “Backup”, “Restore” and “Delete” can be conducted.
  • Page 48 YH-600A Pro User Manual V3.0 Fig. 2-5 Fig. 2-6 (a) Click “Import” icon to pop up the interface as shown in Fig. 2-7. In this interface, the data can be migrated to the software for management. Fig. 2-7 (b) The “Export” function is to transfer downloaded data to other locations for easy archiving and file transferring of users.
  • Page 49 YH-600A Pro User Manual V3.0 Fig. 2-8 (c) The “Backup” function is to save the downloaded and analyzed data to the desired location by “Compress”, “Encrypt” and “Remove old files”, so as to facilitate the storage and transmission of data, as shown in Fig. 2-9.
  • Page 50 YH-600A Pro User Manual V3.0 (d) The “Restore” function is to restore the backup data to the same software to facilitate the collaborative analysis by users and doctors, as shown in Fig. 2-10.The password is the password that is encrypted during data backup.
  • Page 51 YH-600A Pro User Manual V3.0 (4) Click the “New” button , to pop up the “New Analysis” interface, as shown in Fig. 2-12. Fig. 2-12 (5) After input the name of the new analysis, click “OK”, to pop up the interface as shown in Fig. 2-13. The interface can display the waveforms or values of all recorded signals.

  • Page 52: Data Download

    YH-600A Pro User Manual V3.0 2.2.2 Data Download 2.2.2.1 Poly Watch (1) Click the “Download” icon on the main interface of “Data Management”, to pop up the interface as shown in Fig. 2-14. From the “Select Device” drop-down menu, select “Poly Watch”, and then select the “USB”...
  • Page 53 YH-600A Pro User Manual V3.0 in Fig. 2-16 will pop up. Fig. 2-15 Fig.2-16 (3) Repeat step 1, then double click the communication mode “USB”, click “Connect” button to pop up the interface of “Select Record” as shown in Fig. 2-17.
  • Page 54 YH-600A Pro User Manual V3.0 Fig. 2-17 (4) Select a record and click “OK”, to pop up the “Patient Information” interface, as shown in Fig. 2-18. Fig. 2-18 (5) In the “Patient Information” dialog box, the user can manually enter the patient information, or click “Find” to find the patient...
  • Page 55 YH-600A Pro User Manual V3.0 information in the pop-up “Find Patient” dialog box Fig. 2-19 and enter the patient information automatically; After patient information input, click “OK” to download data. After data downloading, a message prompt box as shown in Fig. 2-20 will pop up.

  • Page 56: Tf Card Data Transmission

    YH-600A Pro User Manual V3.0 Fig. 2-19 Fig. 2-20 2.2.2.2 TF Card Data Transmission (1) Remove the TF card from the device when it is turned off. Insert the TF card to a card reader, and connect it to a computer for data analysis.

  • Page 57: Bluetooth Data Transmission

    YH-600A Pro User Manual V3.0 select “Poly watch TF card”. Click the “Select Path” icon select the local storage path of undownloaded TF card data, as shown in Fig. 2-21. Fig. 2-21 (3) Click “OK”, to pop up the interface of “Select Record” as shown in Fig.
  • Page 58 YH-600A Pro User Manual V3.0 to select the “Tools” icon (Fig. 2-22). Button Fig. 2-22 (b) After the “Tools” interface is accessed, the first option “Transfer Data (BT)” turns green. Press the On-Off / OK Button directly to enter the “Transfer Data (BT)” interface as shown in Fig.
  • Page 59 YH-600A Pro User Manual V3.0 (2) Bluetooth pairing (a) Insert the Bluetooth adapter into the USB port of the computer. (b) Double-click the Bluetooth shortcut to enter the classic Bluetooth interface (Fig. 2-24) (If it is not the classic Bluetooth...
  • Page 60 YH-600A Pro User Manual V3.0 Fig. 2-25 (d) Double-click the BF10 icon to highlight the serial port icon on the top of the classic interface, as shown in Fig. 2-26 below. Fig. 2-26 56 / 87...
  • Page 61 YH-600A Pro User Manual V3.0 (e) Double-click the serial port icon . If connection succeeds, the serial port icon and Bluetooth device icon will turn green, as shown in Fig. 2-27. At the same time, a virtual COM port will be created in the computer.
  • Page 62 YH-600A Pro User Manual V3.0 Fig. 2-28 (3) Data transmission Data transmission via Bluetooth is basically the same as that via a USB data cable, except that the user must select the virtual COM port for Bluetooth pairing in “Serial Port” (Fig. 2-29).

  • Page 63: Data Import

    YH-600A Pro User Manual V3.0 Note: The Bluetooth download in this manual is based on Windows XP system, which is only for reference. The operation steps of Bluetooth download vary with different computer operating systems. 2.2.3 Data Import Click “Import” icon to pop up the interface as shown in Fig.

  • Page 64: Analysis Application

    YH-600A Pro User Manual V3.0 2.4 Analysis Application Select the file in the dialog box of new analysis case database (see section 2.2.1 for details) and enter the interface of the analysis module. As shown in Fig. 2-31 the “Analysis” module...

  • Page 65: Patient

    YH-600A Pro User Manual V3.0 EDF Data Export.  Open: See 2.2.1 data opening for details.  Download: See 2.2.2 data download for details.  Import: See 2.2.3 data import for details.  Export: See 2.2.1 data export for details.

  • Page 66: Read Only

    YH-600A Pro User Manual V3.0 Fig. 2-33 2.4.1.3 Read Only Click to lock the data. In the locked state, the data cannot be changed or marked, such as adding and deleting events and adding labels, the data can only be viewed. Click...

  • Page 67: Print

    YH-600A Pro User Manual V3.0 and select report template, click ‘Create’ to generate “WORD” report; Click to generate the PDF report directly. 2.4.1.5 Print Print includes “print” and “Preview” It is able to print and preview the waveform of the current screen.
  • Page 68 YH-600A Pro User Manual V3.0 Fig. 2-34 Based on this function, the software can also realize the function of multi-screen marking sleep staging. Right click a certain section of the sleep staging navigation bar, to pop up a dialog box. In this dialog box, the user can set the “Start Epoch”, “End Epoch”...

  • Page 69: Skip

    YH-600A Pro User Manual V3.0 2.4.2.2 Skip The user can easily locate to any time period by clicking the button in the skip bar and observe the record waveform and parameters of this period. Click “First”, “Previous”, “Next” and “Last” to reach the corresponding epoch, or input the epoch to directly locate it, as shown in Fig.

  • Page 70: Auto Play

    YH-600A Pro User Manual V3.0 Fig. 2-38 2.4.2.5 Auto Play The Auto Play includes “Auto Scroll” and “Auto Flip” Click the “Auto Scroll” above , make analysis interface automatically scroll forward or backward at the speed of ×1 per second, to continuously display waveforms from the beginning of the recorded data.

  • Page 71: Tool

    YH-600A Pro User Manual V3.0 Click the “Auto Flip” below , make analysis interface automatically flip forward or backward at the speed of ×1 per second, to continuously display waveforms from the beginning of the recorded data. When the first or last epoch be reached, or click the arrow again, the screen will stop flipping forward or backward.

  • Page 72: Default Event

    YH-600A Pro User Manual V3.0 Auto-scale: When the “Auto-scale” function in the waveform  properties window is on, click icon to display the waveform to the best.  Restore: Click to restore the waveform after using the “Auto-scale” function. ...

  • Page 73: Analysis

    YH-600A Pro User Manual V3.0 Fig. 2-42 2.4.3 Analysis 2.4.3.1 analysis rules Click the icon to pop up the interface as shown in Fig. 2-43. Fig. 2-43 69 / 87...
  • Page 74 YH-600A Pro User Manual V3.0 Analysis rules include display settings and analysis settings. (1) Display Settings Display Settings include sleep staging, event, label.  Sleep stage includes sleep, wake, uncertainty, click the color drop-down menu to change label color as shown in Fig. 2-44.
  • Page 75 YH-600A Pro User Manual V3.0 Fig. 2-45  Label includes Technician Notes, click the drop-down menu to change the label color as shown in Fig. 2-46. 71 / 87...
  • Page 76 YH-600A Pro User Manual V3.0 Fig. 2-46 (2) Analysis Settings Analysis Settings include Input and Parameter Settings.  Input includes airflow SPO Snore, as shown in Fig. 2-47. 72 / 87...
  • Page 77 YH-600A Pro User Manual V3.0 Fig.2-47  Airflow includes “Pressure Airflow Sensor” and “Chest Effort Movement”.  includes “SpO ”. Snore includes “Snore”.  For the selection of the above signals, if there is no signal in the corresponding channel in the waveform, the channel shall be selected as empty at this time to avoid bad signals which may disturb the analysis results.
  • Page 78 YH-600A Pro User Manual V3.0 Fig. 2-48  Analysis range input is yes, default entire file (light on to light off). As the input is no, users can manually input the strat frame and end frame. The automatic analysis range is from...

  • Page 79: Automatic Analysis

    YH-600A Pro User Manual V3.0 desaturation events, which are not in the setting range and will be marked as artifact.  Snoring Event includes the ‘Sensitivity’ setting which will affect the determination of snoring events.  Sleep Staging includes “Setting value” that can be manually set to a fixed value for the entire analysis results”.

  • Page 80: Window

    YH-600A Pro User Manual V3.0 Fig. 2-50 2.4.5 Window 2.4.5.1 View After opening a patient data, under “View” bar, click the checkbox to display “Event Window”, “Properties Window”, “Tendency Window”, “Technician Notes Window”, “Epoch Summary”, “Impedance Window”, etc., as shown in Fig. 2-51. To hide these windows, uncheck the relevant checkboxes.
  • Page 81 YH-600A Pro User Manual V3.0 (1) Event Window Tick the checkbox of the event window to display the event window on the left of the interface, as shown in Fig. 2-52. Fig. 2-52 The event window can display all types of events, or choose to display one or several types of events.
  • Page 82 YH-600A Pro User Manual V3.0 Fig. 2-53 The property window is used to set the display properties of the waveform, change the name and label of the channel, view data type, scaling, change curve color, reserve the curve, turn on the voltmeter, auto-scale, wave cutting.
  • Page 83 YH-600A Pro User Manual V3.0 Fig. 2-54 Fig. 2-55 (4) Technician Notes Window Tick the checkbox of “Technician Notes Window” to display the technician notes on the left of the interface, as shown in Fig. 2-56.The technician notes window displays biological calibration, technician notes, customization and other labels.
  • Page 84 YH-600A Pro User Manual V3.0 Fig. 2-56 (5) Epoch Summary Tick the checkbox of the “Epoch Summary” to display the epoch summary window on the right of the interface, as shown in Fig. 2-57. The epoch summary interface displays the current epoch number, the maximum, minimum and average value of pulse oxygen saturation, pulse rate and the current body position.

  • Page 85: Help

    YH-600A Pro User Manual V3.0 2.4.5.2 Help The data help function is the same as 2.3 help. 2.5 Data Manual Analysis 2.5.1 Technician Annotation Place the cursor at the time point to be marked, and pop up the annotated menu by right-clicking. Annotation types include Technician Notes Window, Customize, Analysis.

  • Page 86: Add, Delete, And Move Channels

    YH-600A Pro User Manual V3.0 Fig. 2-59 2.5.2 Add, Delete, and Move Channels  Add Channels: (1) Right click the channel title bar on the left of the waveform display interface, click “Add”, pop up the “Add Channel” dialog box, as shown in Fig. 2-60.

  • Page 87: Add And Delete Events

    YH-600A Pro User Manual V3.0 Fig. 2-60 (2) Select the channel to be added under the “input” bar and click “OK” to add the channel. The newly added channel will be displayed above the channel title bar.  Delete Channels: Right click the corresponding channel name in the channel title bar, click “Delete”, or left click the channel...
  • Page 88 YH-600A Pro User Manual V3.0 Fig. 2-61  Change Events: Select the event and right-click to select the appropriate event, as shown in the Fig. 2-62. Fig. 2-62  Delete Events: Select the event, right click it and select “Delete”.

  • Page 89: Exit Program

    YH-600A Pro User Manual V3.0 3. Exit Program Click in the upper right corner of each application program window to exit the current application program. 4. Software Uninstall Click in the Windows desktop, select , and then enter , find...

  • Page 90: Chapter 3: Service

    (1) year for main unit and three (3) months for all accessories from the date of sale by BMC Medical Co., Ltd. to the dealer. During the warranty period, BMC Medical Co., Ltd. will correct any defects in material or workmanship to conform to specifications, free of charge.
  • Page 91 YH-600A Pro User Manual V3.0 MANUFACTURER: BMC Medical Co., Ltd. Room 110 Tower A Fengyu Building, No. 115 Fucheng Road, Haidian, 100036 Beijing, PEOPLE’S REPUBLIC OF CHINA URL: en.bmc-medical.com E-mail: intl@bmc-medical.com Tel: +86-10-51663880 Fax: +86-10-51663880 Ext. 810 EU AUTHORISED REPRESENTATIVE: Shanghai International Holding Corp.
  • Page 92 390322...
