- 1 Assembly Rating
- 2 Assembly & Care Advice
- 3 Parts List and Hardware List (Table Top and Legs)
- 4 Assembly Instructions for Table Top and Legs
- 5 Parts List and Hardware List (Chair Components)
- 6 Assembly Instructions for Chair Seat and Back
- 7 Assembly Instructions for Front Legs and Stretchers
- 8 Final Assembly and Completion
- Download this manual
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3314PT-5K
Summary of Contents for Furniture of America CM3314PT-5K

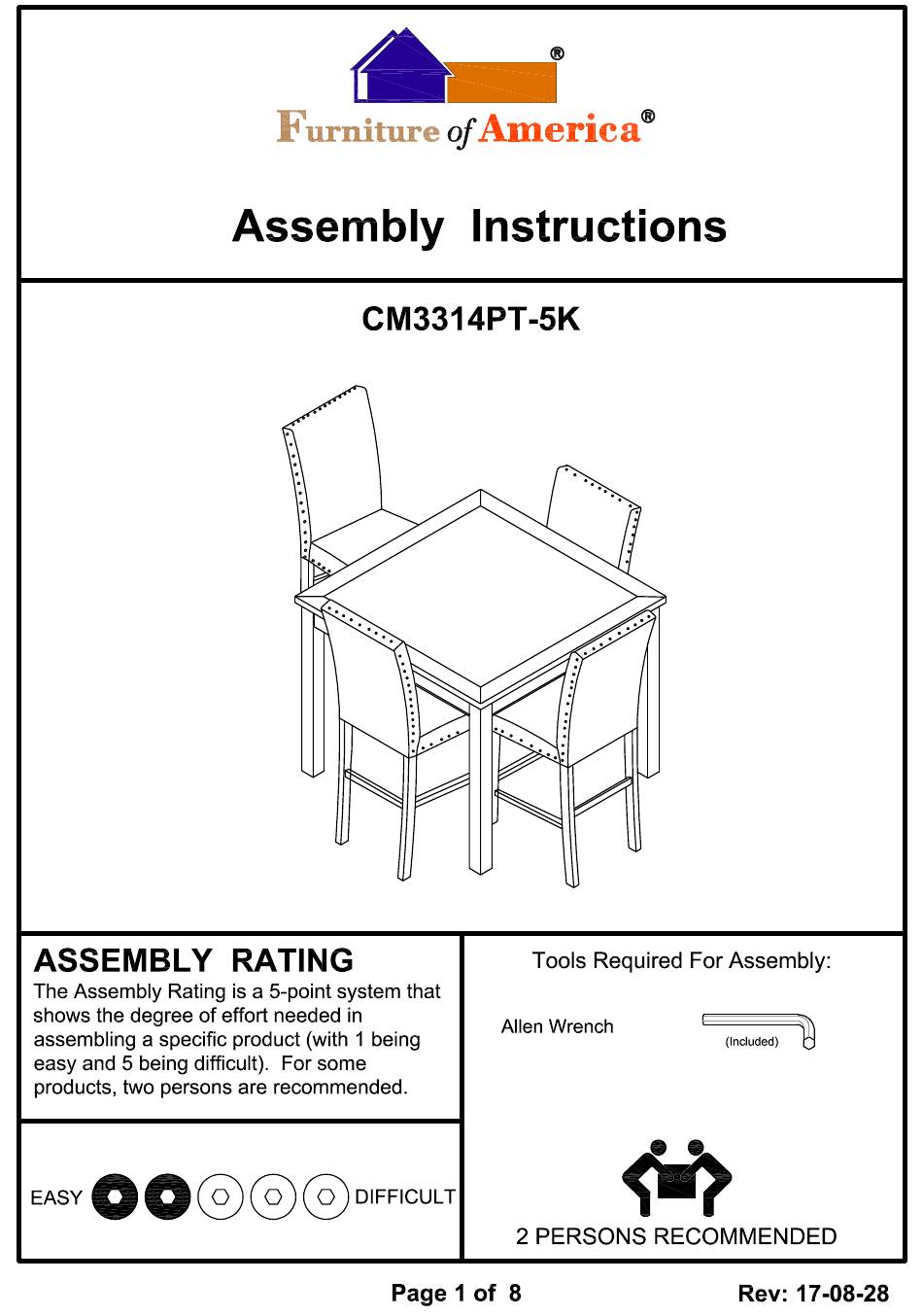

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Prepare 8 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B). Align table legs (#2) to the holes of the table top (#1). Secure by using bolts (#B). ASSEMBLY COMPLETED...
- Page 6 Prepare 4 bolts assembly by inserting lock washer (#E), then flat washer (#F) onto bolts (#D). Align seat (#2) to the holes of the chair back (#1). Secure middle two holes of the seat (#2) by using bolts (#D). Do not full tighten bolts (#D). Prepare 4 bolts assembly by inserting lock washer (#E), then flat washer (#F) onto bolts (#B).
- Page 7 1) Align front legs (#3R/L) to the holes of the seat (#2) 2) Align stretchers (#4,5R/L) to the gaps on the legs of the chair. Prepare 4 bolts assembly by inserting lock washer (#E), then flat washer (#F) onto bolts (#C). Secure front legs (#3R/L) by using bolts (#C).
- Page 8 Secure all stretchers to the chair legs by using screws (#G). ASSEMBLY COMPLETED...
