VERSION # 20-07-22
1 / 7
MODEL #
CM3319L-SC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Bellagio CM3319L-SC-2PK
Summary of Contents for Furniture of America Bellagio CM3319L-SC-2PK

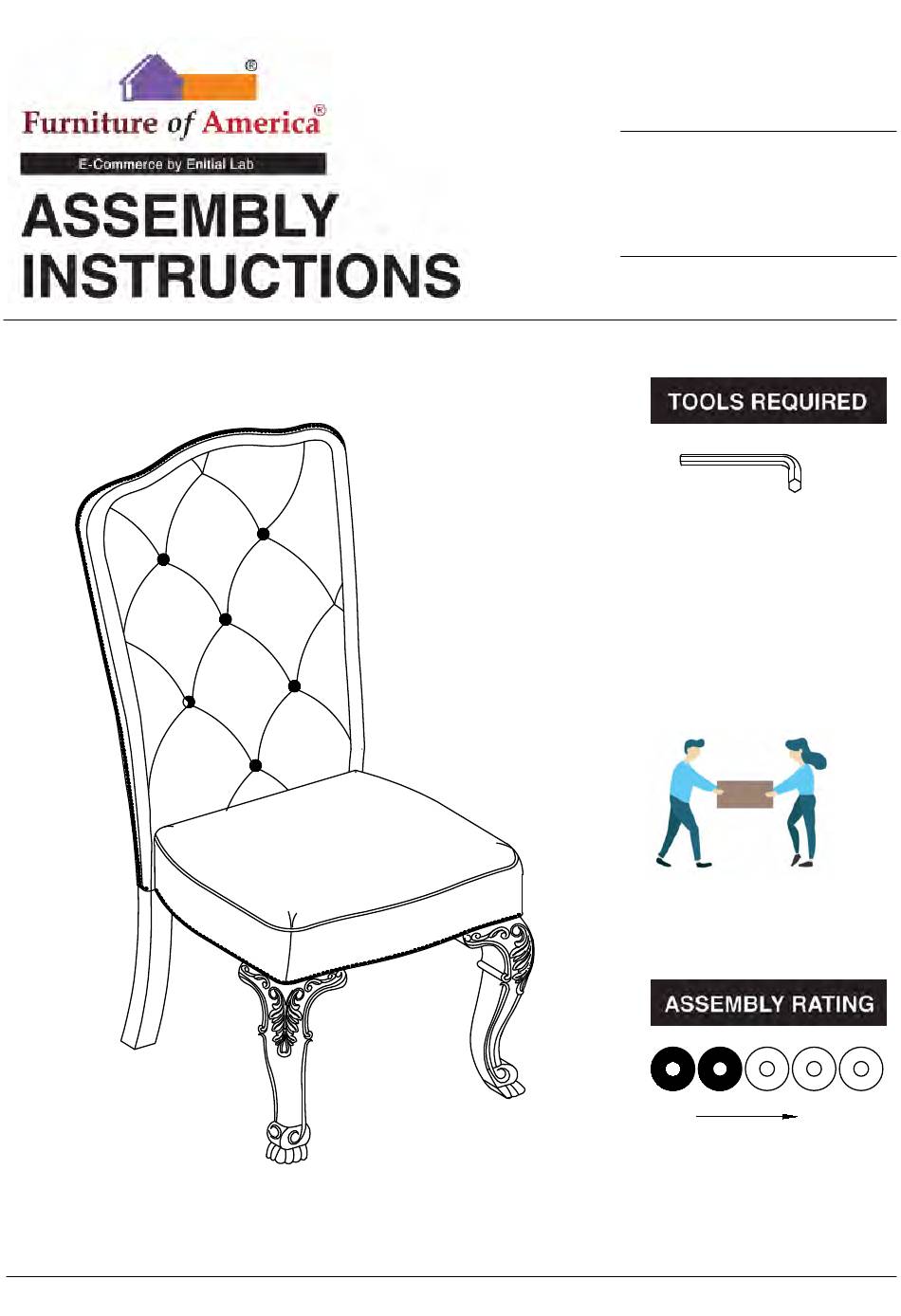

- Page 1 MODEL # CM3319L-SC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-07-22 1 / 7...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 SIDE CHAIR CM3319L-SC-2PK #1 2pcs #2 2pcs #3 4pcs Backrest W/Legs Seat Front leg #D 18pcs #A 8pcs #B 8pcs #C 2pcs Lock washer Bolt Ø5/16"x2-3/8" Bolt Ø5/16"x1-3/8" Bolt Ø5/16"x3" Ø5/16" #E 18pcs #F 1pc Flat washer Allen wrench M4 Ø5/16"...
- Page 6 ASSEMBLY INSTRUCTIONS Align seat (#2) to chair back (#1), then secure corner holes of the seat to chair back by using bolts (#A) with washers (#D,E) Part #1 x2pcs Part #2 x2pcs Hardware #A x8pcs Hardware #D x8pcs Hardware #E x8pcs Hardware #C x2pcs Hardware #D x2pcs Secure middle hole of the seat to chair back by using...
- Page 7 ASSEMBLY INSTRUCTIONS Align front legs (#3) to the seat, then secure by using bolts (#B) with washers (#D,E). Part #3 x4pcs Hardware #B x8pcs Hardware #D x8pcs Hardware #E x8pcs 7 / 7...
