Summary of Contents for Furniture of America HFW-1781C4

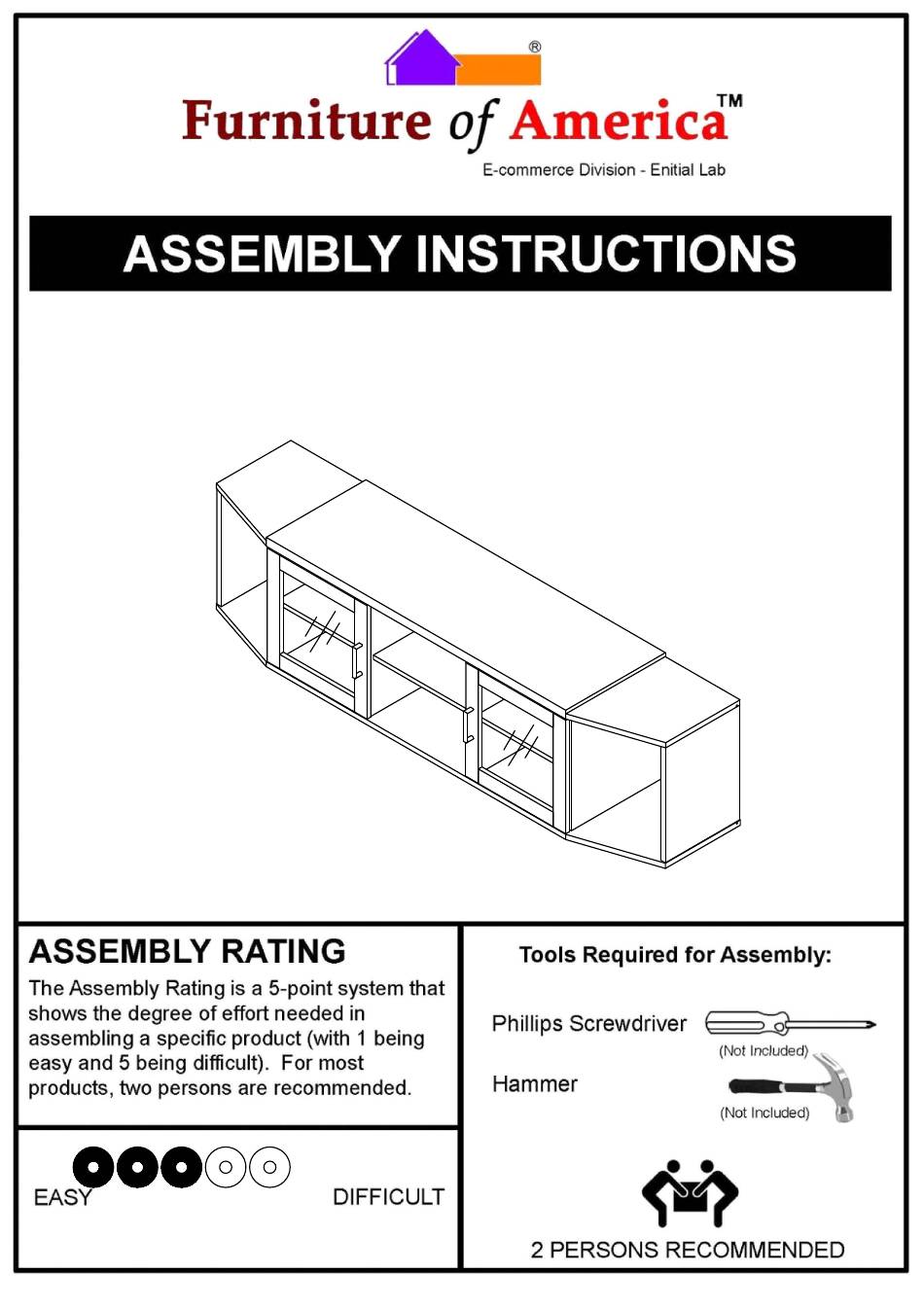

- Page 1 HFW-1781C4 HFW-1781C13 Page 1 of 11 REV.17-06-06...
- Page 2 Page 2 of 11...
- Page 3 Page 3 of 11...
- Page 4 Page 4 of 11...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Page 5 of 11...
-
Page 6: Parts List
TV STAND HFW-1781C4 ASSEMBLY INSTRUCTIONS MODEL # HFW-1781C13 please keep for future reference PARTS LIST DIMENSIONS : 70.8"(W)*15.7"(D)*19.7"(H) 2PCS 3PCS 2PCS 2PCS HARDWARE LIST 1 24PCS 2 24PCS 3 26PCS 4 1PC 5 16PCS 6 2SETS 2.2" 7 2SETS 8 2SETS... - Page 7 ASSEMBLY INSTRUCTIONS STEP : 1 Hardware 1 x 24 pcs Hardware 3 x 12 pcs Hardware 6 x 2 sets Use a small dab of glue into the dowel holes before inserting dowels (#3). Page 7 of 11...
- Page 8 ASSEMBLY INSTRUCTIONS STEP : 2 Hardware 3 x 14 pcs STEP : 3 Hardware 2 x 4 pcs Hardware 5 x 4 pcs finish finish Refer to page 5 on how to fasten cam locks. Page 8 of 11...
- Page 9 ASSEMBLY INSTRUCTIONS STEP : 4 finish STEP : 5 Hardware 5 x 12 pcs Page 9 of 11...
- Page 10 ASSEMBLY INSTRUCTIONS Dowel hole STEP : 6 Hardware 2 x 6 pcs Hardware 10 x 8 pcs finish finish 10 10 STEP : 7 Hardware 2 x 2 pcs Hardware 7 x 2 sets Hardware 8 x 2 sets Hardware 11 x 2 sets Telescopic Page 10 of 11...
- Page 11 ASSEMBLY INSTRUCTIONS STEP : 8 Hardware 2 x 12 pcs Hardware 8 x 2 sets STEP : 9 Hardware 9 x 12 pcs Make sure the unit is rested on a flat surface and does not feel loose or wobbly. If it does, double check all bolts/screws are secured and properly ASSEMBLY IS COMPLETED tightened.
