Summary of Contents for Furniture of America CM-BK611

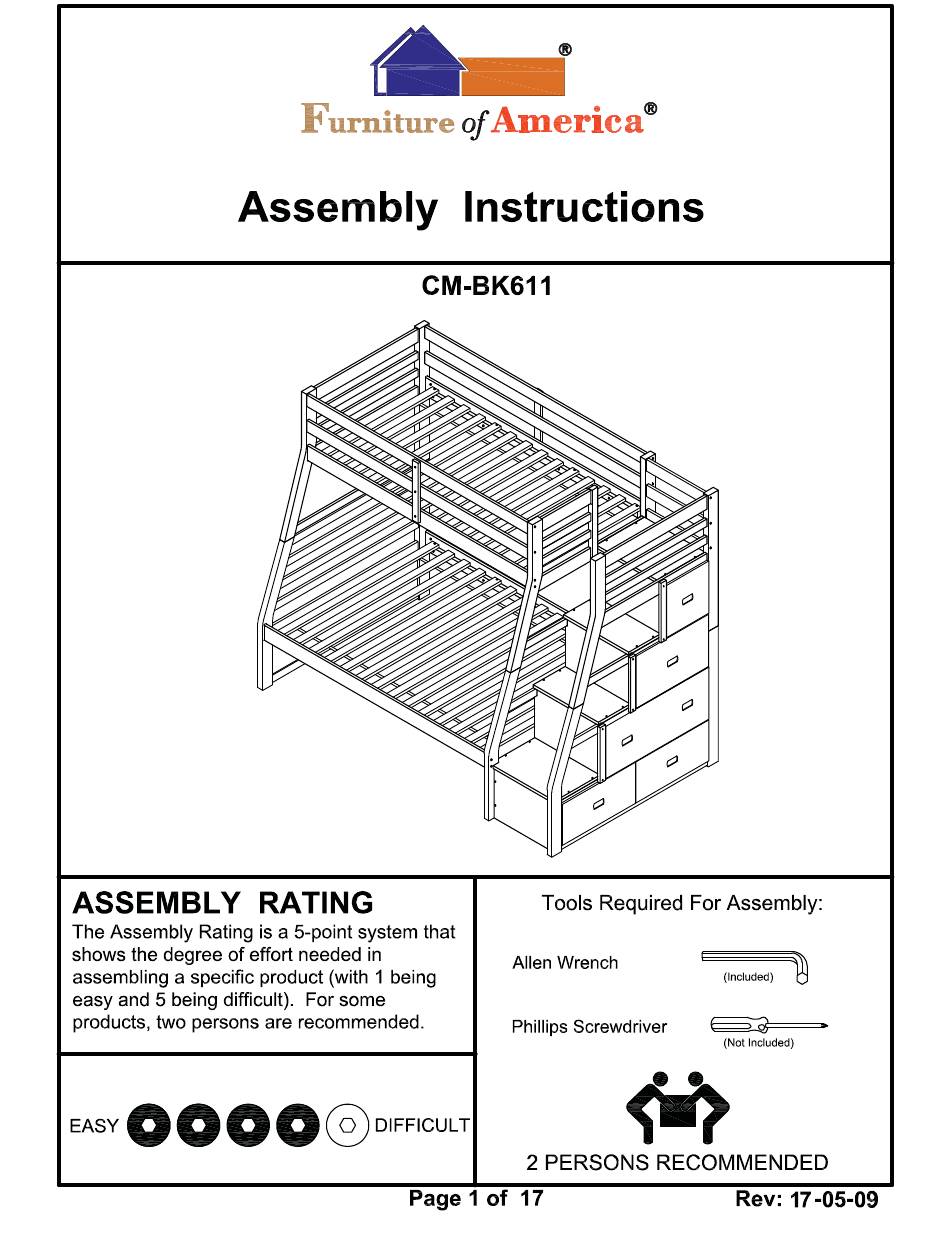

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 6 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #M x 1pc #G x 40pcs Allen Wrench Screw 3/16" x 1" #H x 41pcs #N x 5pcs Screw 1/8"...
- Page 8 1. Align the side rails (#7) to the holes along the lower end guardrails (#1,3), then insert 2 barrel nuts (#C) into the holes along the sides of the side rails (#7). 2. Face the holes on the barrel nut (#C) towards the hole, then insert 2 bolts (#A) into the holes...
- Page 9 Align the guardrail support (#12) to the center holes along the side rails (#7) and guardrails (#8), then insert 3 screws (#F) into each. Secure using a Phillips screwdriver. Insert the metal dowels (#J) into the holes along the top of the bottom bed, then carefully place the top bed onto those metal dowels.
- Page 10 2. Insert bolts (#D) into the holes along the sides of (#16,17). Secure using the Allen wrench (#M). 1. Align the foot plates as displayed. 3. Insert bolts (#E) into the holes along the side of (#13). Secure using the Allen wrench (#M). 1.
- Page 11 1. Insert a wood dowel (#K) into the bottom holes along the ends of the back guard- rails (#9), then insert those ends into the holes along the side of the end guardrails (#4). Insert the screws (#B) into each end. Secure using the Allen wrench. 2.
- Page 12 Place the scroll bars (#O), then insert a screw (#P) into each end. Secure using a Phillips screwdriver. #F x 5pcs #O x 5pcs #P x 5pcs #H x 10pcs #R x 5pcs Place iron basin (#R) to the back of each scroll bar (#O). Secure with screws (#H).
- Page 13 Align (#27,28,39,34) to the back of the drawers, then insert the screw (#G) into each hole. Secure using a screwdriver. Place the scroll bars (#N) onto the bottom of the drawers and align the holes. Insert the screw (#H) into the front hole and 2 screws (#I) into the rear holes.
- Page 14 Align (#37,38,39,40), then insert the screws (#H) into the holes. Secure using a screwdriver.
- Page 15 Align the wood connection (#35) to the top step and wood connections (#36) to the other two. Insert 2 bolts (#E) into each. Secure using the Allen wrench (#M). Insert the drawers accordingly.
- Page 16 Place the twin slat kit (#11) onto the top bunk. Insert the screws (#F) into each hole and secure using a Phillips screwdriver Place the full slat kit (#10) onto the bottom bunk. Insert the screws (#F) into each hole and secure using a Phillips screwdriver...
