ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY
Assembly Instructions
DIFFICULT

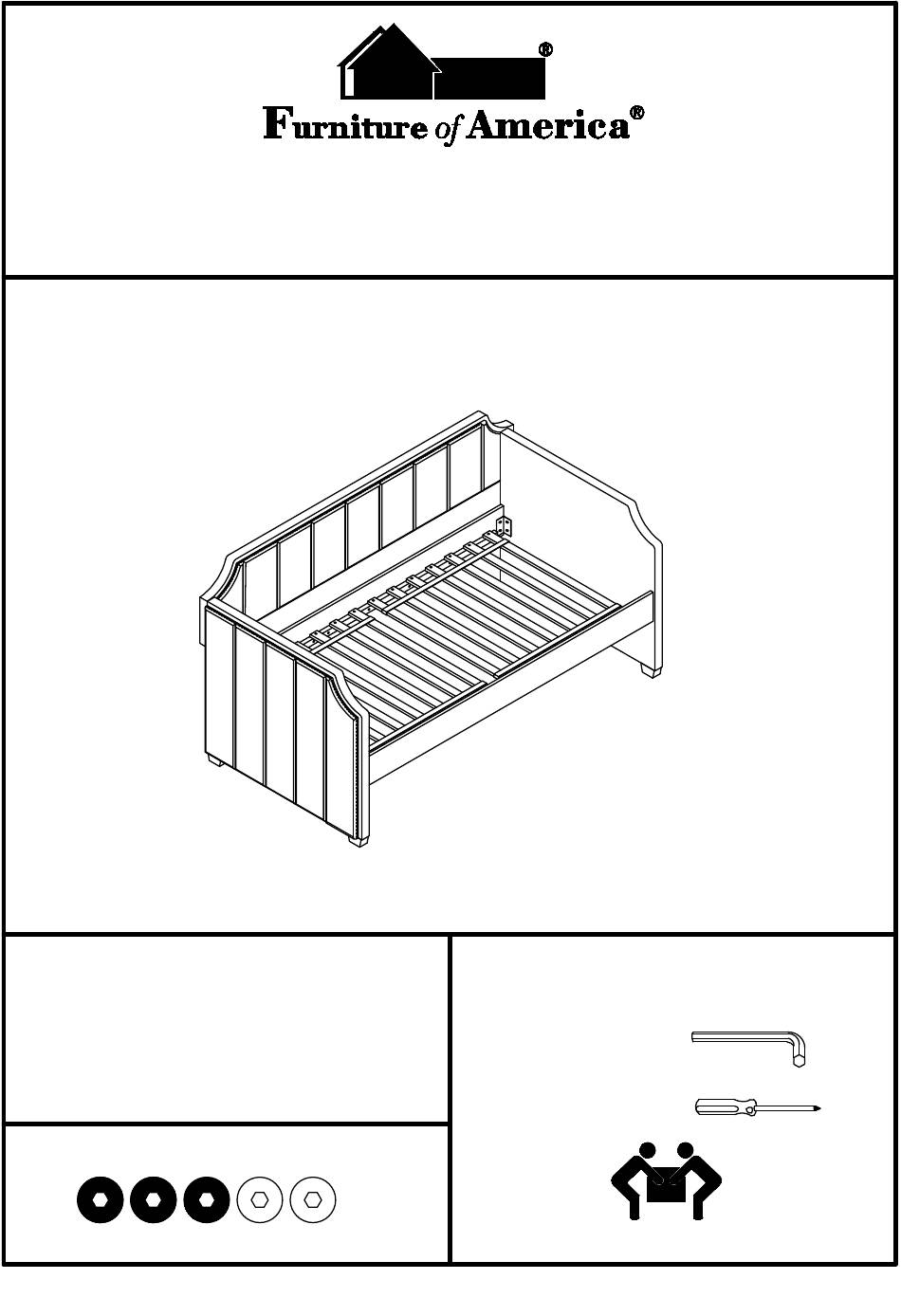

CM1960
Tools Required For Assembly:
Allen Wrench
Phillips Screwdriver
2 PERSONS RECOMMENDED
Page 1 of 6
(Included)
(Not Included)
Rev: 18-07-26
Advertisement
Table of Contents
Related Manuals for Furniture of America CM1960
Summary of Contents for Furniture of America CM1960
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM1960 ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in assembling a specific product (with 1 being Allen Wrench (Included) easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 6...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 2pcs #A x 8pcs Daybed Arm (L&R) Bolt Ø5/16" x 3/4" #2 x 1pc #B x 8pcs Daybed frame Bolt Ø5/16"...
- Page 4 Exploded View Align angle irons (#F) to the rails (#3), then secure by using bolts (#A) with washers (#D,E). #A x 4pcs #D x 4pcs #E x 4pcs #F x 2pcs Page 4 of 6...
- Page 5 #I x 4pcs #J x 4pcs #K x 4pcs Align legs (#5) to the daybed arms (#1R/L), then secure by using bolts (#I) with washers (#J) and screws (#K). Align rails (#3) to the arms (#1R/L), then secure by using bolts (#B) with washers (#D,E). #B #D #B x 8pcs #D x 8pcs...
- Page 6 #C x 4pcs #D x 4pcs #E x 4pcs Align back frame (#2) to the arms (#1R/L), then secure by using bolts (#C) with washers (#D,E). Align slats (#4) to the rails of daybed, then secure by using screws (#H). #H x 28pcs Page 6 of 6...
