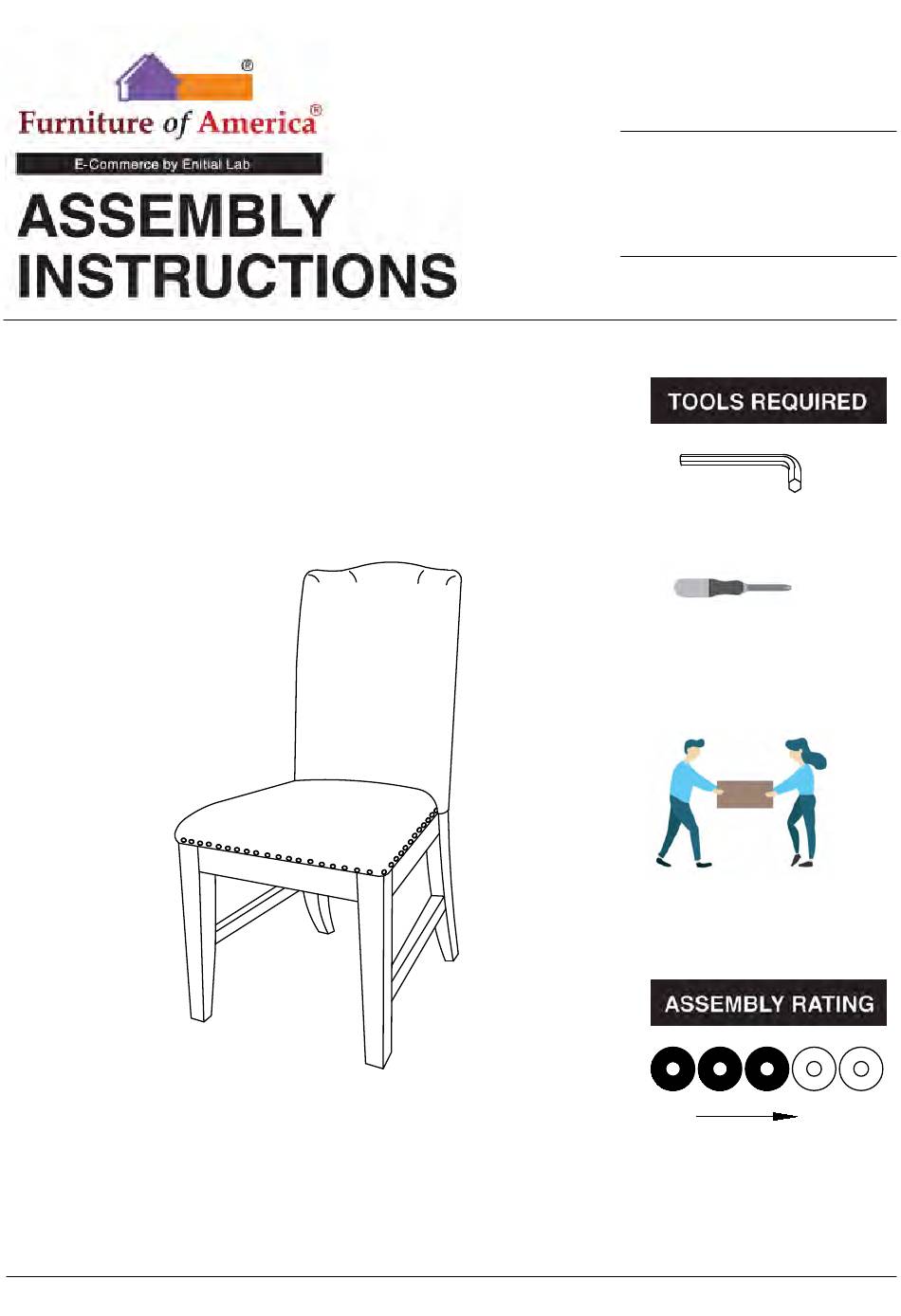

VERSION # 20-0 6 - 0 9
1 / 7
MODEL #
CM3310SC -2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Table of Contents
Related Manuals for Furniture of America Faulk CM3310SC-2PK
Summary of Contents for Furniture of America Faulk CM3310SC-2PK
- Page 1 MODEL # CM3310SC -2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 SIDE CHAIR CM3310SC -2PK #1 1pc x 2 #2 1pc x 2 #3 2pcs x 2 #4 2pcs x 2 Front Leg (L&R) Cushion Seat Chair Back Side Stretcher #D 4pcs x 2 #A 4pcs x 2 #B 4pcs x 2 #C 1pc x 2 Screw #8x50mm Bolt Ø5/16"...
- Page 6 ASSEMBLY INSTRUCTIONS Align seat (#1) to chair back (#2), then secure by using bolts (#C) with washers (#E,F). Part #1 x1pc Part #2 x1pc Hardware #C x1pc Hardware #E x1pc Hardware #F x1pc Secure corner holes of the seat (#1) to chair back (#2) by using bolts (#A) with washers (#E,F).
- Page 7 ASSEMBLY INSTRUCTIONS Align stretchers (#4) to the holes of chair back and front legs (#3R/L). Secure front legs (#3R/L) to seat by using bolts (#B) with washers (#E,F). Part #3 x2pcs Part #4 x2pcs Hardware #B x4pcs Hardware #E x4pcs Hardware #F x4pcs Secure stretchers (#4) to legs by using screws (#D).
