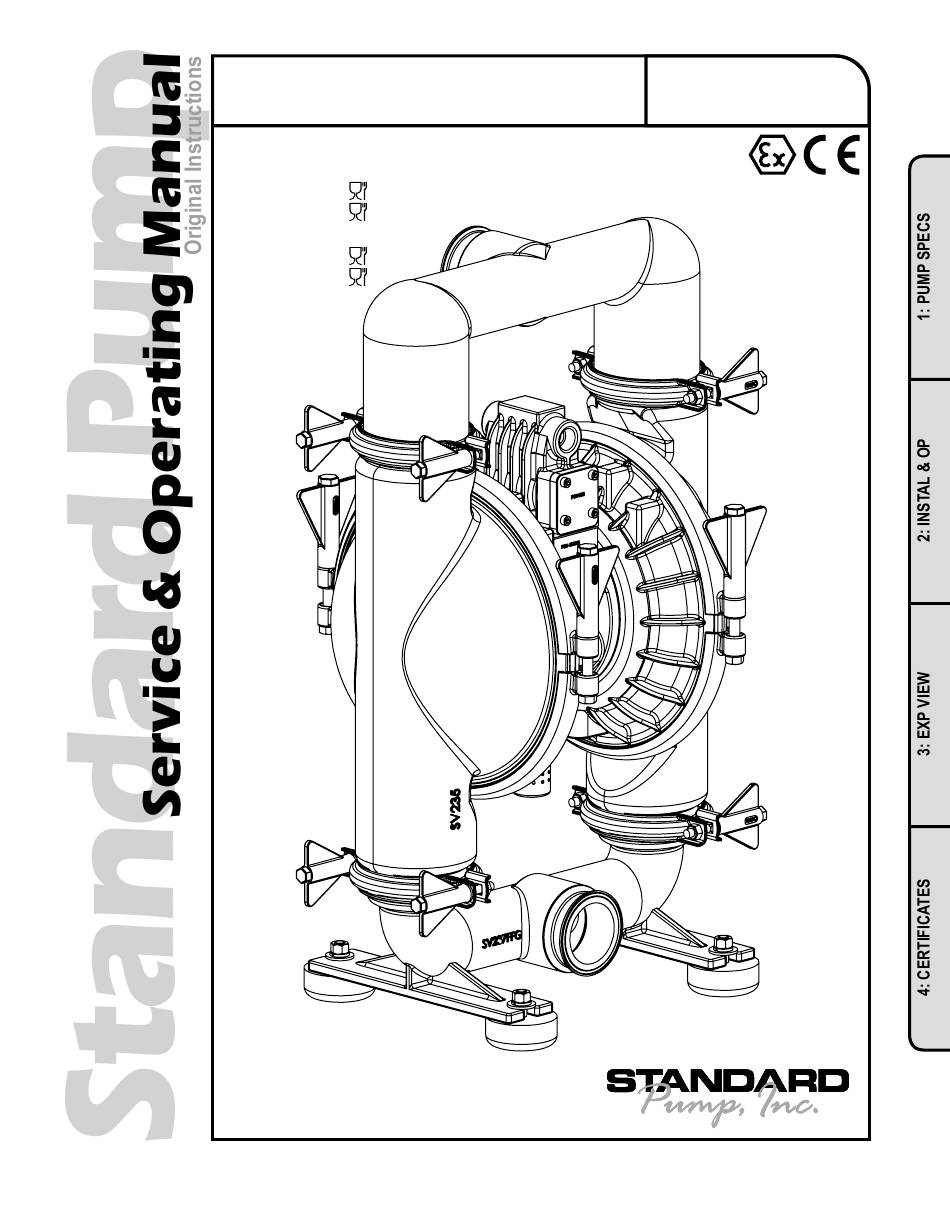

- Page 1 SPFP20 2" Food Processing with Metallic Center Section SPFP20 Models • SPFP20NPT • SPFP20NPS • SPFP20SSS • SPFP20SST • SPFP20NPP • SPFP20SSP STANDARD PUMP, INC ® 1610 Satellite Blvd Suite D. Duluth, Ga. 30097 • Phone: (770) 307-1003 • www.standardpump.com...
- Page 2 Safety Information IMPORTANT WARNING When used for toxic or aggressive fluids, the pump should Read the safety warnings and instructions in this manual always be flushed clean prior to disassembly. before pump installation and start-up. Failure to comply with the recommendations stated in this manual could damage the pump and void factory warranty.
- Page 3 Table of Contents SECTION 1: PUMP SPECIFICATIONS ....1 • Performance • Materials • Dimensional Drawings SECTION 2: INSTALLATION & OPERATION ..4 • Principle of Pump Operation • Typical Installation Guide • Troubleshooting SECTION 3: EXPLODED VIEW ......7 • Composite Drawings •...
- Page 4 Capacity in Liters Per Minute NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient conditions. The use of other materials and varying hydraulic conditions may result in deviations in excess of 5%. standardpump • Model SPFP20 Food Processing spfp20sm-rev0516...
- Page 5 Stainless Steel: Equal to or exceeding ASTM specification A743 CF-8M for corrosion resistant iron chromium, iron chromium nickel and nickel based alloy castings for general applicaitons. Commonly referred to as 316 Stainless Steel in the pump industry. Model SPFP20 Food Processing • standardpump spfp20sm-rev0516...
- Page 6 627.86 493.34 9.39 1" NPT 238.48 AIR EXHAUST 9.53 1.72 1.00 43.64 3.03 25.40 76.96 RUBBER FOOT O.D. TRI-CLAMP SUCTION PORT 10.00 254.00 2.50 63.50 RUBBER FOOT 11.50 9.00 292.10 228.60 12.50 317.50 standardpump • Model SPFP20 Food Processing spfp20sm-rev0516...
- Page 7 (flooded suction condition), pipe the exhaust higher than the product source to prevent siphoning spills. 1" DIAMETER AIR EXHAUST PIPING LIQUID LEVEL SUCTION LINE Model SPFP20 Food Processing • standardpump spfp20sm-rev0516...
- Page 8 To start the pump, slightly open the air shut-off valve. After the pump primes, the air valve can be opened to increase air flow as desired. If opening the valve increases cycling rate, but does not increase the rate of flow, cavitation has occurred. The valve should be closed slightly to obtain the most efficient air flow to pump flow ratio. standardpump • Model SPFP20 Food Processing spfp20sm-rev0516...
- Page 9 Check valve and/or seat is worn or needs adjusting. Inspect check valves and seats for wear and proper setting. Replace if necessary. Entrained air or vapor lock in chamber(s). Purge chambers through tapped chamber vent plugs. Model SPFP20 Food Processing • standardpump spfp20sm-rev0516...
- Page 10 THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE WITHOUT THE EXPRESS WRITTEN PERMISSION OF WARREN RUPP INC. E2 FOOD PRO HYTREL FITTED DESCRIPTION PUMP DRAWING NUMBER E2SJxxxx9C-FP-ATEX REV OE TO REV C REVISION DATE DATE standardpump • Model SPFP20 Food Processing spfp20sm-rev0516...
- Page 11 Small Clamp Half 200-362 Bolt 200-363 Wing Nut 200-270 Parts Not Shown For Rubber Mounting Feet Qty. Description Part Number Foot, Mounting 200-212 Capscrew, Hex Head 200-209 Nut, Hex 200-219 Lockwasher 200-243 Flatwasher 200-244 Model SPFP20 Food Processing • standardpump spfp20sm-rev0516...
- Page 12 60 in-lbs (6.78 N-m) METAL SEAT ASSEMBLY FUSION DIAPHRAGM ASSEMBLY Torque Setting: Torque Setting: 480 in-lbs.(54.2 N-m) 275 in-lbs. 600 in-lbs (67.8 N-m) (31.1 N-m) For XL Material ONLY Torque to: 275 in-lbs standardpump • Model SPFP20 Food Processing spfp20sm-rev0516...
- Page 13 Parts Not Shown For Rubber Mounting Feet Qty. Description Part Number Foot, Mounting 200-212 Capscrew, Hex Head 200-209 Nut, Hex 200-219 Lockwasher 200-243 Flatwasher 200-244 Notes: 1.) In addition to this seat, (4) 200-425 o-rings are needed. Model SPFP20 Food Processing • standardpump spfp20sm-rev0516...
- Page 14 Dir produkt voldoet aan de volgende EG-richtlijnen: Denna produkt överensstämmer med följande EU direktiv: Standard Pump, Inc., erklærer herved som fabrikant, at ovennævnte produkt er i overensstemmelse med bestemmelserne i Direkktive: Tämä tuote täyttää seuraavien EC Direktiivien vaatimukstet: Dette produkt oppfyller kravene til følgende EC Direktiver: Este produto está...
- Page 15 Potentially Explosive Atmospheres-Part 5 Protection by Constructional Safety Equipment: SPFP20, SPFP30, SPSN20, SPFP15, SPSN15 We hereby certify that the above apparatuses described above conforms with the protection requirements of Council Directive 94/9/EC of 23 March 1994 Annex VIII on the approximation of the laws of the Member States Concerning Equipment and Protective Systems Intended for use...
- Page 16 Declaration of Conformity Manufacturer: Standard Pump, Inc. 1610 Satellite Blvd., Suite D, Duluth, GA 30097, USA certifies that Air-Operated Double Diaphragm Food Processing and Sanitary Pump Models comply with the European Community Regulation 1935/2004/EC for Food Contact Materials. Food Processing Pump Models:...
