Standard Pump SP-410EX Operating Instructions And Parts Manual

Standard Pump Operating Instructions and Parts Manual (OIPM-IND-MTRS-0713)
Standard Pump

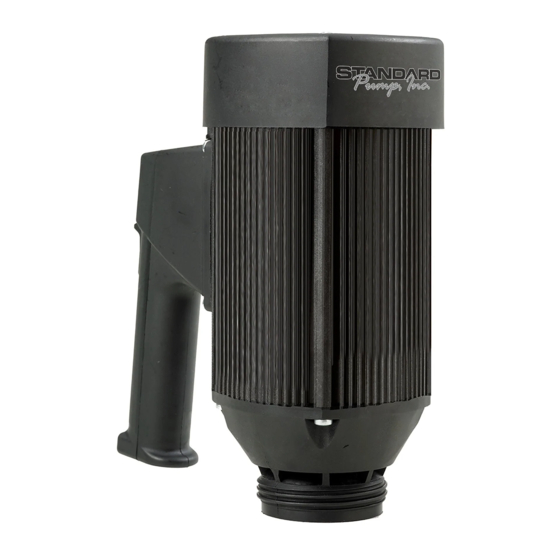

Centrifugal Drum Pump Motor Models:
SP-410EX, SP-420EX, SP-280P, SP-ENC, SP-A1 & SP-A2
Description
Standard's Drum Pumps are designed to
transfer a variety of materials from 55 gallon
drums and tanks. Standard Pump offers
several different pumps, each designed
for specific applications. Before operating,
please confirm that the pump's materials of
construction are suitable for the application.
Unpacking
Cartons should be handled with care to avoid
damage from dropping, etc. After unpacking,
inspect carefully for any damage that may
have occurred during transit. Check for loose,
damaged or missing parts.
General Safety Information
The responsibility for safe assembly,
installation, and operation ultimately rests
with the operator. Read and understand ALL
safety precautions and operating instructions
before operation. Careless pump operation
can result in serious injury.
Before operating the pump, read and
1.
understand these operating instructions.
The operator should wear suitable
2.
protective clothing including the
following: face mask, safety shield or
goggles, gloves, apron, and safety
shoes.
Before operating, verify the materials
3.
being pumped are compatible with the
pump's "wetted components."
All Federal, State, and local safety codes
4.
should be followed.
Electric Drum Pump Motor Specifications
Model Voltage
SP-410EX 115V
SP-420EX
230V
SP-280P 110V
SP-280P-V 110V
SP-280P-2
220V
SP-280P-2-V 220V
SP-ENC 110V
SP-ENC-V
110V
SP-ENC-2 220V
SP-ENC-2-V 220V
5. Verify that the motor voltage
corresponds to proper electrical supply.
Before plugging motor into power
6.
supply, make sure the motor switch is in
the OFF position. For Air Motors ensure
inlet valve is closed before attaching air
line.
Before operation, confirm all pump
7.
connections are properly tightened.
8. First pump clean water in order to
familiarize yourself with the pump's
operation, flow rate, discharge pressure
and motor speed.
Before starting the pump, confirm the
9.
discharge hose is securely fastened to
the receiving vessel in order to prevent
splashing.
Never leave pump unattended during
10.
operation.
Do not submerge the motor in any liquid.
11.
When finished using the pump, flush
12.
the pump by pumping water or an
appropriate cleaning solution. Do not
use flammable or combustible cleaning
solutions.
Never carry the motor by the power
13.
cord.
Never store pump in container. Always
14.
rinse pump thoroughly and hang on wall
bracket or ensure pump tube is stored in
an upright and vertical position.
Amps Watts HP Phase
2 230 0.30 1
2.6 600 0.80 1
8.5 825 1 1
8.5 825 1 1
5 825 1 1
5 825 1 1
8.5 825 1 1
8.5 825 1 1
5 825 1 1
5 825 1 1
Hz Enclosure
50-60 Hazardous Duty
50-60 EXP (IP54)
50-60 ODP (IP44)
50-60 ODP (IP44)
50-60 ODP (IP44)
50-60 ODP (IP44)
50-60 TEFC (IP54)
50-60 TEFC (IP54)
50-60 TEFC (IP54)
50-60 TEFC (IP54)
1
Assembly
1. Remove the pump and motor from
packaging.
Inspect all contents for damage.
2.

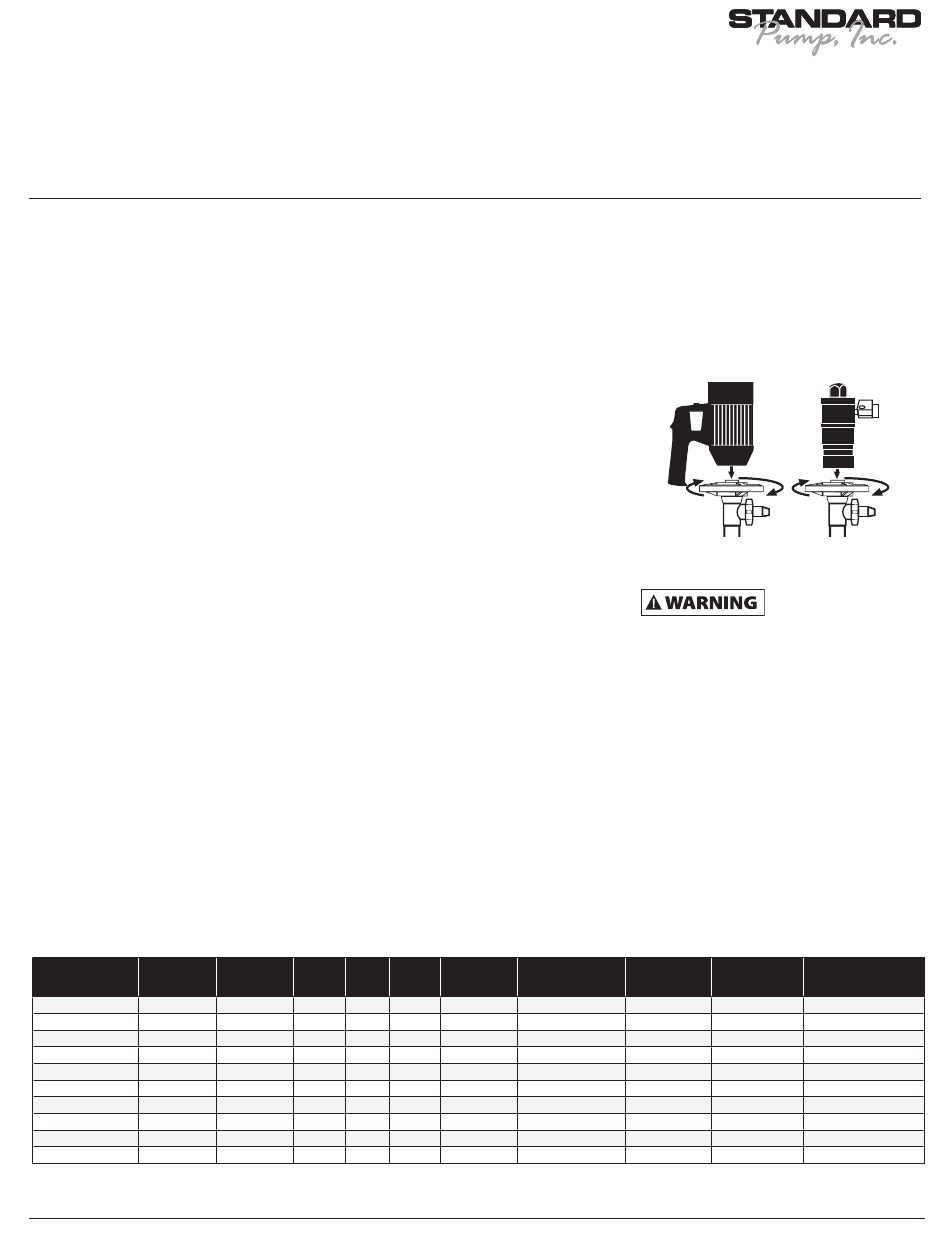

Couple the motor to the pump tube by
3.
using the Hand Wheel. (See figure 1).
Figure 1
The speed control
switch should not be
used as the main ON/OFF switch. Using
the speed control switch in this manner
causes excessive wear to the
potentiometer and may result in
premature failure. The use of the speed
control switch does not cut power to the
motor and inadvertent activation could
result in injury or death if the motor is
activated when not properly attended
and secured. (Only applies to SP-280P
and SP-ENC Series)
Variable Hazardous
Speed Duty
N Y
N AtEx
N N
Y N
N N
Y N
N N
Y N
N N
Y N
Shipping Wt
lbs (kg)
17 (7,7)
17 (7,7)
9.0 (4,0)
9.0 (4,0)
9.0 (4,0)
9.0 (4,0)
12.7 (5,7)
12.7 (5,7)
12.7 (5,7)
12.7 (5,7)
