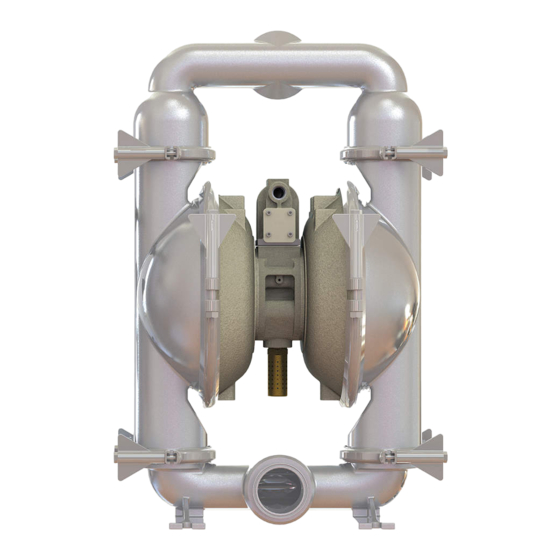

- Page 1 SPFP30 3" Food Processing SPFP30 Models • SPFP30NPT • SPFP30NPS • SPFP30SSS • SPFP30SST STANDARD PUMP, INC ® 1610 Satellite Blvd Suite D. Duluth, Ga. 30097 • Phone: (770) 307-1003 • www.standardpump.com...
- Page 2 Safety Information IMPORTANT WARNING When used for toxic or aggressive fluids, the pump should Read the safety warnings and instructions in this manual always be flushed clean prior to disassembly. before pump installation and start-up. Failure to comply with the recommendations stated in this manual could damage the pump and void factory warranty.
- Page 3 Table of Contents SECTION 1: PUMP SPECIFICATIONS ....1 • Performance • Materials • Dimensional Drawings SECTION 2: INSTALLATION & OPERATION ..4 • Principle of Pump Operation • Typical Installation Guide • Troubleshooting SECTION 3: EXPLODED VIEW ......7 • Composite Drawings •...
- Page 4 NOTE: Performance based on the following: PTFE fitted pump, flooded suction, water at ambient conditions. The use of other materials and varying hydraulic conditions may result in deviations in excess of 5% . Model SPFP30NPT & SPFP30SST 3" Clamped - Food Processing Capacity Per Stroke, 0.92 Gal. (3.5 L)
- Page 5 Materials Material Profile: Operating Temperatures: CAUTION! Operating temperature limitations are as follows: Max. Min. Santoprene®: Injection molded thermoplastic elastomer with 275°F -40°F no fabric layer. Long mechanical flex life. Excellent abrasion 135°C -40°C resistance. Virgin PTFE: (PFA/TFE) Chemically inert, virtually impervious. 220°F -35°F Very few chemicals are known to chemically react with PTFE;...
- Page 6 Dimensional Drawings Model SPFP30 Food Processing Dimensions in inches (metric dimensions in brackets). Dimensional Tolerance .125" (3mm). 21.54 16.96 547.00 430.66 3.57 O.D. TRI- 3.46 CLAMP DISCHARGE 87.96 FLANGE 1/2" NPT AIR INLET 29.76 755.90 21.41 543.79 32.01 813.05 11.38 1"...
- Page 7 Principle of Pump Operation Air-Operated Double Diaphragm (AODD) pumps are powered by compressed air or nitrogen. The main directional (air) control valve distributes ① compressed air to an air chamber, exerting uniform pressure over the inner surface of the diaphragm .
- Page 8 Recommended Installation Guide Available Accessories: 1. Surge Suppressor Unregulated Air Supply to Surge 2. Filter/Regulator Surge Suppressor Suppressor 3. Air Dryer Pressure Gauge Shut-Off Valve Pipe Connection Note: Surge Suppressor and (Style Optional) Piping must be supported after Flexible Connector Discharge the flexible connection.
- Page 9 Troubleshooting Guide Symptom: Potential Cause(s): Recommendation(s): Pump Cycles Once Deadhead (system pressure meets or exceeds air Increase the inlet air pressure to the pump. Pump is designed for 1:1 pressure ratio at zero flow. supply pressure). (Does not apply to high pressure 2:1 units). Air valve or intermediate gaskets installed incorrectly.
- Page 10 Composite Repair Parts Drawing - FDA Santoprene Fitted Torque to: 60 in-lbs Torque to: 275 in-lbs Torque to: 300 in-lbs WARREN RUPP INC. THIS IS A PROPRIETARY DOCUMENT. DO NOT REPRODUCE OR DISCLOSE WITHOUT THE EXPRESS WRITTEN PERMISSION OF WARREN RUPP INC. DESCRIPTION E3 FP RUBBER FITTED PUMP DRAWING NUMBER...
- Page 11 Composite Repair Parts List - FDA Santoprene Fitted Air Valve Assembly Part Number Item # Qty. Description Nickle Plated Stainless Steel Valve Body (includes items 2-11) 200-460 200-429 Valve Body 200-206 200-431 Valve Body Gasket 200-277 Valve Sleeve 200-235 O-ring 200-224 Valve Spool Assembly (Includes items 7) 200-238...
- Page 12 Composite Repair Parts Drawing - PTFE Fitted Torque to: 480 in-lbs Torque to: 480 in-lbs Torque to: 60 in-lbs BONDED DIAPHRAGM ASSEMBLEY BONDED DIAPHRAGM ASSEMBLEY Torque to: 480 in-lbs Torque to: 480 in-lbs Torque to: 275 in-lbs Torque to: 275 in-lbs WARREN RUPP INC.
- Page 13 Composite Repair Parts List - PTFE Fitted Air Valve Assembly Part Number Item # Qty. Description Nickle Plated Stainless Steel Valve Body (Includes items 2-11) 200-460 200-429 Valve Body 200-206 200-431 Valve Body Gasket 200-277 Valve Sleeve 200-235 O-ring 200-224 Valve Spool Assembly (Includes items 7) 200-238 Glyde Ring Assembly...
- Page 14 Dir produkt voldoet aan de volgende EG-richtlijnen: Denna produkt överensstämmer med följande EU direktiv: Standard Pump, Inc., erklærer herved som fabrikant, at ovennævnte produkt er i overensstemmelse med bestemmelserne i Direkktive: Tämä tuote täyttää seuraavien EC Direktiivien vaatimukstet: Dette produkt oppfyller kravene til følgende EC Direktiver: Este produto está...
- Page 15 Double Diaphragm Pumps for Use In Potentially Explosive Atmospheres Hazardous Location Applied: II 2 G c T5 II 2 D c T100°C T5 fluids up to 95° C Manufacturer: Standard Pump, Inc. 1610 Satellite Blvd., Suite D Duluth, GA 30097 On File With: DEKRA Certification B.V. (0344) Meander 1051 6825 MJ Arnhem...
- Page 16 Declaration of Conformity Manufacturer: Standard Pump, Inc. 1610 Satellite Blvd., Suite D, Duluth, GA 30097, USA certifies that Air-Operated Double Diaphragm Food Processing and Sanitary Pump Models comply with the European Community Regulation 1935/2004/EC for Food Contact Materials. Food Processing Pump Models:...
