Installing SoundPoint
This section provides basic installation
instructions and information for obtaining
the best performance with the SoundPoint
IP 500 SIP telephone. If you require addi-
tional information or assistance with your
new telephone, please contact your System
Administrator.

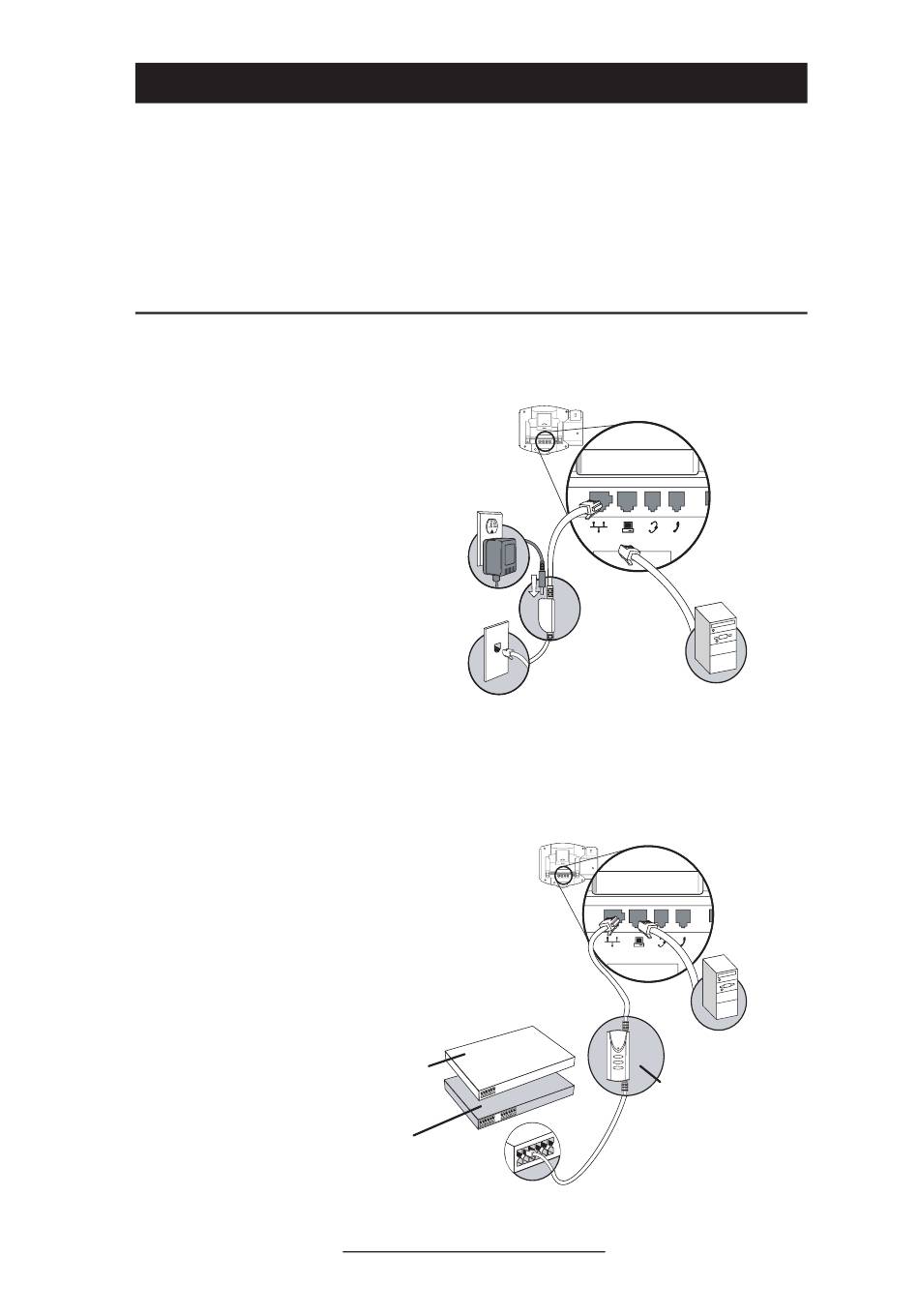

Connecting Network and Power Source

AC Power Option
Connect the keyed end of the sup-
plied Network Cable to the LAN
jack on the telephone, and connect
the shorter end to the network
(LAN) port. Connect the DC plug
of the AC wall adapter into the sup-
plied LAN cable as shown.
In-Line Power Option
If the telephone is connected to a compat-
ible ethernet switch that can provide in-line
power, the telephone will use that power
option. Simply plug the keyed end of the In-
Line Power Cable (optional accessory) into
the LAN jack on the telephone and connect
the shorter end of this cable to an available
power and data port on the In-Line Power
switch. The AC wall adapter is not required
when using In-Line power.
Cisco™Catalyst™ In-Line
Power Switch
IP 500 SIP
®
The SoundPoint IP 500 SIP User Guide
includes regulatory compliance infor-
mation that your System Administrator
should review and can also be found at
http://www.polycom.com.
Wall network or switch port.
IEEE 802.3af compliant
In-Line Power switch
2
LAN LAN PC PC HEADSET HANDSET HEADSET HANDSET
(Optional)
LAN PC HEADSET HANDSET
Cisco™ In-Line Power Cable
(Part No.2457-11014-001)
OR
IEEE 802.3af In-Line
Power Cable
(Part. No 2457-11077-001)
