Repair

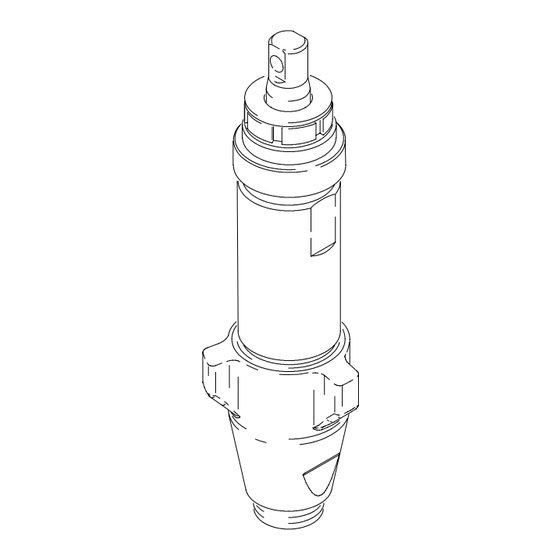

Displacement Pump
- For portable spray application of architectural paints and coatings
or replacement pump for Graco GMax
3300 psi (228 bar, 22.8 MPa) Maximum Working Pressure
Model 287512, Series A
GMax II 3900 Sprayer,
Rental Pro 360G
Model 287513, Series A
GMax II 5900 Sprayer,
UltraMax II 1095/1595 with ProConnect
Model 287579, Series A
GMax II 5900HD Sprayer
Model 249122, Series A
GMax II 7900 Sprayer,
Ultra Max II 1895
Model 287928, Series A
Mark Vt International
Model 287929, Series A
Mark V North America
Model 289590, Series A
TexSpray 7900HD,
Mark X, 230V, Domestic
Important Safety Instructions
Read all warnings and instructions in this manual
and in your sprayer manual. Save these
instructions.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
http://gracomanual.com
II sprayers -
t
ti6177a
310894G
