Instructions - - Parts List
Air- -Driven Agitators
100 psi (0.7MPa, 7 bar) Maximum Working Pressure
Important Safety Information
Read all warnings and instructions in this manual.
Save these instructions.
See page 2 for Table of Contents.

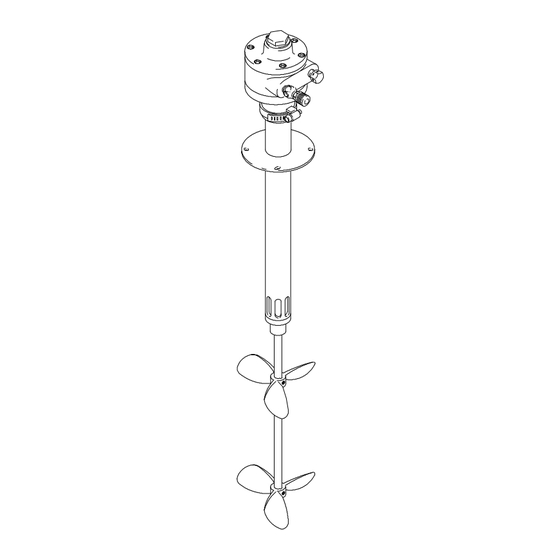

Model 206760, Series A
5455B
Carbon Steel Agitator
For 60-gallon mix tanks,
1 1/2 HP motor
Model 206758, Series A
Carbon Steel Agitator
For 30-gallon mix tanks
and 55-gallon drums,
3/4 HP motor
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441
Copyright 1992, Graco Inc. is registered to I.S. EN ISO 9001
5456B
Model 207953, Series A
Carbon Steel Agitator
For 15-gallon mix tanks,
3/4 HP motor
5457A
Model 222698, Series A
Stainless Steel Agitator
For 30-gallon mix tanks
and 55-gallon drums,
3/4 HP motor
II 1/2 G T6
2575
ITS03ATEX11226
306840P
EN
5458B
Advertisement
Table of Contents
Related Manuals for Graco A Series
Summary of Contents for Graco A Series
- Page 1 3/4 HP motor Carbon Steel Agitator For 30-gallon mix tanks and 55-gallon drums, 3/4 HP motor II 1/2 G T6 2575 GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441 ITS03ATEX11226 Copyright 1992, Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. -
Page 3: Warnings
WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames, or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 5. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately. -
Page 4: Installation
Installation Install an air line filter to remove harmful dirt and WARNING moisture from the air supply. To order a 3/8 in. npt (20-micron element, 5 oz. bowl, without gauge) air line FIRE AND EXPLOSION HAZARD filter, order Part No. 106148. Always maintain a minimum of 1 in. -
Page 5: Grounding
Installation Grounding For a ground wire and clamp, order Part No. 237569. Proper grounding is an essential part of maintaining a safe system. To reduce the risk of static sparking, the mounting cov- er and all electrically conductive objects or devices in the spray area must be properly grounded. -
Page 6: Operation
Operation Finding the Proper Agitator Speed Operating the Agitator WARNING CAUTION MOVING PARTS HAZARD Do not operate the agitator at a high speed for a long To reduce the risk of serious injury, period of time. Excessive agitator speed can cause including cuts, amputation of fingers, the paint to foam and increase the wear on the agita- and splashing in the eyes or on the skin,... -
Page 7: Service
D If the unit requires more than installation of a ser- vice kit, it is usually quickest and easiest to send FIRE AND EXPLOSION HAZARD the unit to the Graco distributor for repair or re- Do not use kerosene or other flam- placement. -
Page 8: Parts Model 206758
Parts for Model 206758 Series A, Carbon steel agitator for Apply anaerobic pipe sealant to 30-gallon mix tanks and 55-gallon drums threads Apply anaero- Ref. bic pipe sealant Part No.. Description Qty. to threads See DETAIL A 206264 NEEDLE VALVE ASSEMBLY; Includes items 1a to 1f 165722 SHOUSING, air valve... - Page 9 Parts for Model 206760 Series A, Carbon steel agitator for Apply anaerobic pipe sealant to 60-gallon mix tanks threads Ref. Apply anaero- bic pipe sealant Part No. Description Qty. to threads 206264 NEEDLE VALVE ASSEMBLY; See DETAIL A Includes items 1a--1f 165722 SHOUSING, air valve 166531...
- Page 10 Parts for Model 207953 Series A, Carbon steel agitator for Apply anaerobic pipe sealant to 15-gallon mix tanks threads Ref. Part No. Description Qty. See DETAIL A 206264 NEEDLE VALVE ASSEMBLY; Includes items 1a to 1f 165722 SHOUSING, air valve Apply anaerobic 166531 SWASHER, friction...
- Page 11 Parts for Model 222698 Series A, Stainless steel agitator for Apply anaerobic pipe sealant to 30-gallon mix tanks and 55-gallon drums threads Ref. Apply anaero- bic pipe sealant Part No. Description Qty. to threads 206264 NEEDLE VALVE ASSEMBLY; See DETAIL A Includes items 1a to 1f 165722 SHOUSING, air valve...
-
Page 12: Model 206760
Dimensions Mounting Hole Layout 8 in. (203 mm) approximately Use 190192 gasket (not supplied with agitator) Model 206758: 31.25 in. (793.8 mm) Model 206760: 33.25 in. (844.6 mm) Four 9/32 in. (7mm) holes on Model 207953: 29 in. (711 mm) 4.12 in. -
Page 13: Technical Data
Technical Data Performance Charts 3/4 HORSEPOWER MOTOR Maximum working pressure ..100 psi (7 bar) Motor power rating: Models 206758, 207953, and 222698 ....3/4 HP (550 W) Model 206760 . -
Page 14: Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
