Pytes E-BOX SERIES LFP Battery User Manual

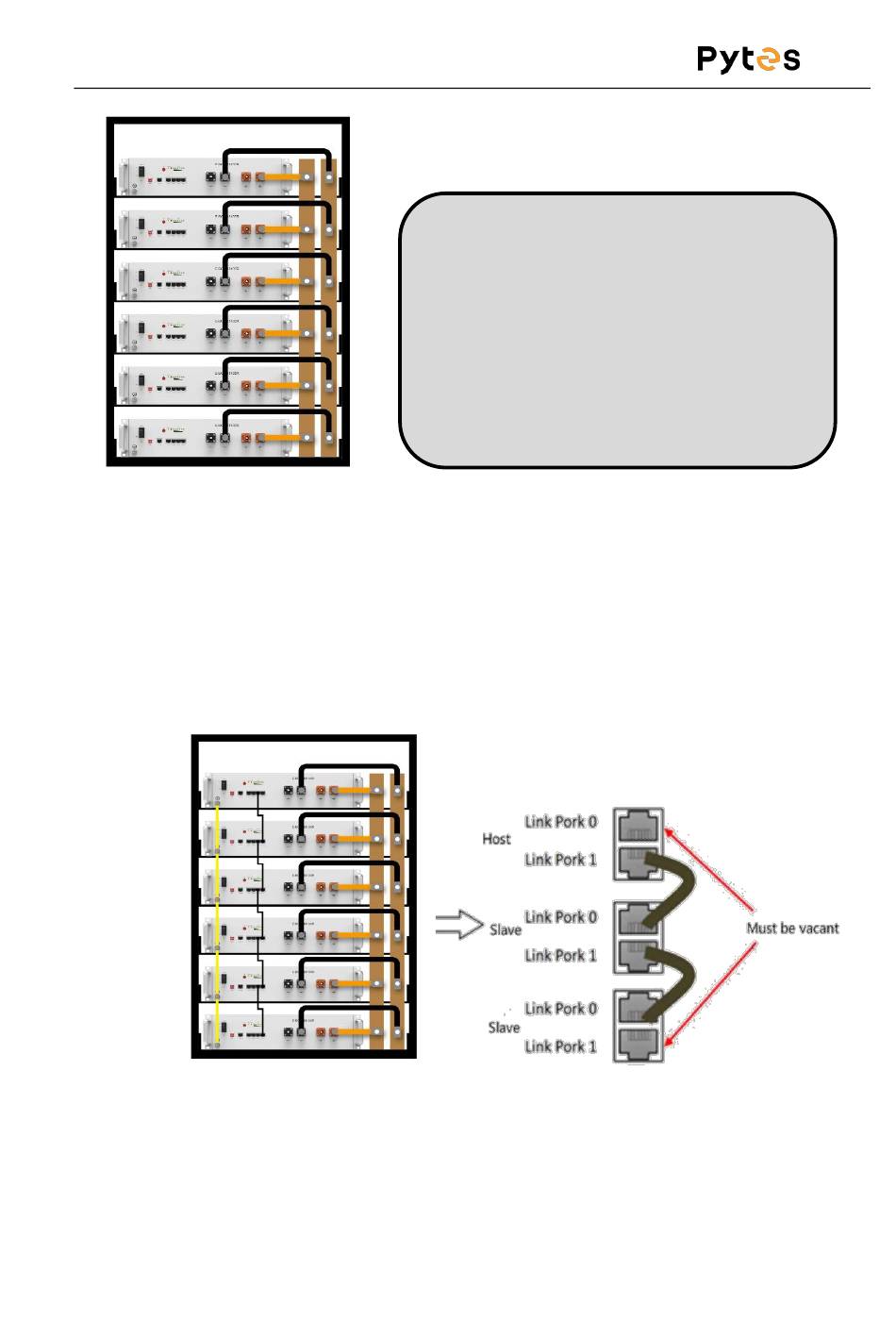

Figure 5-1 Schematic diagram of battery connection
5.4.4 Connecting communication cables
Single battery: Choose port to be inserted according to the
communication protocol (RS485/CAN/RS232) between the battery and
ESS inverter, then insert the communication cables to the port;
Multiple batteries: The host and the slave communicate in cascade
mode: one is the host and the rest are the slaves. Please refer to the
following picture for the cascade connection. User needs to insert
communication cables to relevant link ports between batteries and be
aware that:
Note: The battery must be placed
in a locked cabinet or room, and a
5cm cooling gap is reserved when
installing the battery, and the
battery cabinet should have a load
capacity of more than 100kg
