(800) 866-4682
• www.iotaengineering.com
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
CAUTION – The TCTS Test Button Component serves as the unit connector. The ILBHI CP HE SD will initi-
1.
ate once both the TCTS until installation is complete and A.C. power is supplied to the unit.
2.
CAUTION – This fixture provides more than one power supply output source. To reduce the risk of electrical
shock, disconnect both normal and emergency sources by turning off the A.C. branch circuit and by discon-
necting the TCTS Test Button Component before servicing.
3.
CAUTION – This equipment provides reduced current levels when higher voltage loads are connected. Load
calibration is required to ensure proper operation (see page 4).
CAUTION – This is a sealed unit. Components are not replaceable. Replace the entire unit when necessary.
4.
5.
CAUTION – Installation and servicing should be performed by qualified personnel only. De-energize before
opening.
CAUTION – High voltage input. The ILBHI CP HE SD must be connected to an unswitched AC power
6.
source of 347 to 480 Vac.
7.
The ILBHI CP HE SD is for use with grounded LED luminaires listed to UL standards. Not for use in heated air
outlets or hazardous locations.
The ILBHI CP HE SD and A.C. driver must be on the same branch circuit.
8.
9.
Do not mount near gas or electric heaters.
The ILBHI CP HE SD should be mounted in locations and at heights where it will not readily be subjected to
10.
tampering by unauthorized personnel.
11.
Product output voltage varies according to wattage. Refer to Illustration 1 for output voltage per model.
The ILBHI CP HE SD is certified in the CA Title 20 Modernized Appliance Efficiency Database System (MAED-
12.
BS) as a small battery charger.
13.
Suitable for use in damp locations.
14.
Suitable for luminaires, recessed Type IC (intended for insulation contact).
15.
For use in 0° C minimum, 55° C maximum ambient temperatures.
16.
The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition, void
warranty, and result in non-compliance with UL specifications.
17.
Do not use this equipment for other than intended use.
18.
Install in accordance with the National Electrical Code and local regulations.
19.
Lighting fixture manufacturers, electricians, and end-users need to ensure product system compatibility before
final installation. See addendum for compatibility and covered luminaire requirements.
LED CLASS 2
INSTRUCTION MANUAL
SAVE THESE INSTRUCTIONS
HIGH EFFICIENCY PERFORMANCE
MEETS CA T20 BATTERY CHARGER
EFFICIENCY STANDARDS

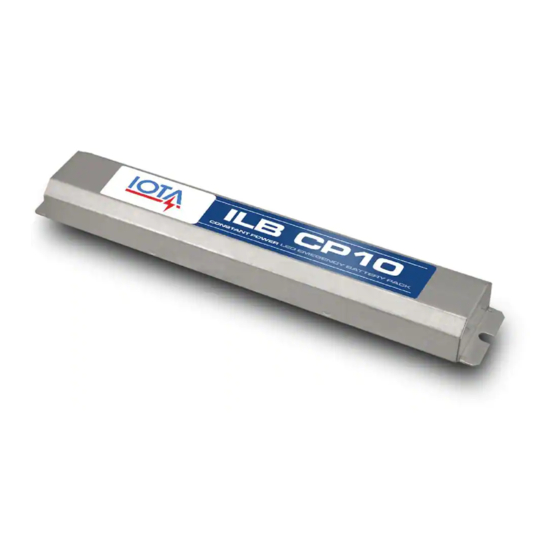

ILBHI CP HE SD
"S" MOUNTING STYLE
CONSTANT POWER
EMERGENCY LIGHTING EQUIPMENT
FOR LED
Advertisement
Table of Contents
Related Manuals for IOTA ILBHI CP HE SD
Summary of Contents for IOTA ILBHI CP HE SD
- Page 1 CAUTION – High voltage input. The ILBHI CP HE SD must be connected to an unswitched AC power source of 347 to 480 Vac. The ILBHI CP HE SD is for use with grounded LED luminaires listed to UL standards. Not for use in heated air outlets or hazardous locations.
-
Page 2: Installation Instructions
Refer to the appropriate wiring diagram below. Make sure all connections are in accordance with NEC and any other local requirements. The ILBHI CP HE SD is designed to interface with Class 2 LED Loads. See Illustration 1 for output voltage ratings per ILBHI model. -
Page 3: Completing Installation
OPERATION Normal Mode A.C. power is present. The A.C. Driver operates the LED Module as intended. The ILBHI CP HE SD is in the standby charg- ilbcp_tspl_input ing mode. The TCTS will be lit providing a visual indication that the battery is being charged. -
Page 4: Testing And Maintenance
Load Calibration To ensure proper operation, Load Calibration is required whenever the LED load connected to the ILBHI CP HE SD is changed. Note: Load Calibration happens automatically 48 hours after the ILBHI CP HE SD is first installed. If after installation, the con- nected LED load is changed, Load Calibration will need to be performed. -
Page 5: Manuel D'instructions
Le pilote ILBHI CP HE SD et c.a. doit être sur le même circuit de dérivation. Ne pas installer à proximité d’appareils de chauffage au gaz ou électriques. L’ILBHI CP HE SD doit être installé à des endroits et à des hauteurs où il ne sera pas facilement altéré par du personnel non autorisé. -
Page 6: Instructions D'installation
Reportez-vous au diagramme de câblage approprié ci-dessous. Assurez-vous que toutes les connexions sont faites conformément aux exigences du NEC et aux exigences locales. L’ILBHI CP HE SD est conçu pour s’interfacer avec des charges LED (classe 2). Voir l’illustration 1 pour les tensions nominales de sortie par modèle ILBHI. -
Page 7: Terminer L'installation
L’alimentation secteur tombe en panne. L’ILBHI CP HE SD détecte la panne de courant et bascule automatiquement en mode d’urgence. Le module DEL s’allume, donnant un éclairage réduit, pendant un minimum de 90 minutes. Lorsque l’alimentation secteur se rétablit, l’ILBHI CP HE SD bascule de nouveau en mode normal et le chargement de la batterie reprend. -
Page 8: Entretien
TCTS (voir Tableau A). Entretien Lorsque vous effectuez un entretien sur le ILBHI CP HE SD ou le luminaire d’urgence, le circuit de batterie ILBHI CP HE SD doit être complètement mis hors tension en suivant les étapes suivantes: 1) Débranchez l’alimentation c.a.
