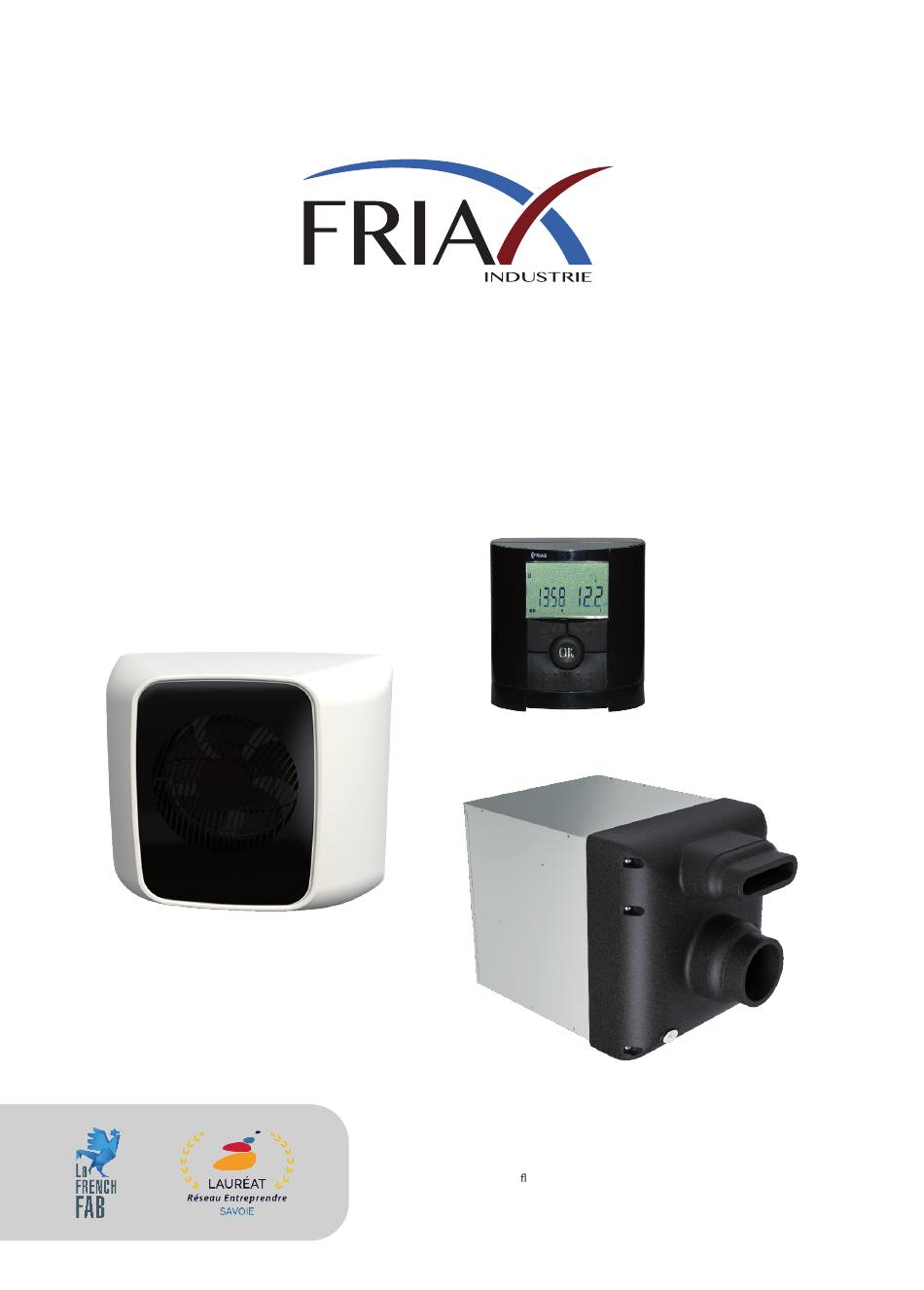

- Page 1 Installation manual SPC EVX2-WEVX2 Genesis & Vintage "FRIAX industrie", in a constant endeavour to improve its products reserves the right to change any information contained in this lea et without prior warning. EN-NT-EVX2-1121...
- Page 2 Avertissement EVX2 Warning Genesis-Vintage Ce symbole indique que le manuel d’installation doit être lu attentivement. This symbol indicates that the installation manual should be read carefully. Ce symbole indique qu’un technicien de service doit manipuler cet équipement en se référant au manuel d’installation.
- Page 3 Genesis-Vintage THANK YOU for trusting Friax Industrie for the conservation of your wines. Our air conditioners are designed for the comfort of wine above all , but do not forget the user. Once installed in the cellar, you will forget it … It is much later, while tasting a good bottle, that you will appreciate the perfect mastery of the aging conditions that allowed your wine to fully express itself.
- Page 4 Power informations Genesis-Vintage In order to select the right power for the Friax wine cellar air conditionner, it is essential to take into account the heat balance of the room to be air conditioned to avoid the undersi- zing of the device and the air conditioning of a cellar which will consume energy.
- Page 5 Technical data EVX2 Genesis-Vintage R134A T cave= +12°C - Text= 32°C SPC EVX2 Unité extérieur SPC… Cooling capacity 1100 Voltage 50Hz 230 V/1+T 230 V1+T Heating capacity Air flow m3/h Power absorbed in cooling Absorbed intensity of the AIR / 3.3 / 2.4...
- Page 6 Refrigeration connection Genesis-Vintage Prendre soin de bien lire ceci avant d’installer votre matériel FRIAX si le groupe extérieur est au-dessus de l’évaporateur Take care of reading this before installing your FRIAX-s equipment if the condensing unit is over the evapo- rator.
- Page 7 EVX2 Refrigeration connection Genesis-Vintage E ectuer le raccordement à la Make the connection to the pipe Die Verbindung im Rohrnetz tuyauterie (raccords are). tting ( are connections). ausführen (Schnittstellen are). Après avoir raccordé, tirer au vide la Nach dem Anschluss, ziehen Sie den After connecting, pull the vacuum tuyauterie et l'évaporateur par l'inter-...
- Page 8 EVX2 Air group installation (GCG) Genesis-Vintage .01 Setting up Group only With ducted facade ( KFG-GCG) .01A Wall xation Depending on the layout constraints below select your fastening system. Clearance of air without obstacle A minimum 2500 Implantation A : Implantation B : Plug &...
- Page 9 EVX2 Air group installation (GCG) Genesis-Vintage .01B Fastening system Plug & Lock .01C Ductable with KFG-GCG and KGR160-KR kits (See List of accessories on pages 11 to 12)
- Page 10 EVX2 Installation of the water condensation unit Genesis-Vintage .02 Setting up A installer hors-gel To set in frost-protection The water groups are made for installation in a room above 0°C. L’appareil est fourni avec un gabarit mural sous forme d’emballage. Ce Water connections 15/21 gabarit a pour objectif de vous aider à...
- Page 11 EVX2 Accessories Genesis-Vintage duct kits KFG-GCG / KGR160-KR / KGR180-KR Sélection of ducts Using the tables below, select the type of sheath to be used for sheathing SPC groups 30 and 48. The color at the point of intersection between the elbow number and the total sheath length allows you to determine type of...
- Page 12 EVX2 Accessories Genesis-Vintage Low noise BNS kits for Air group 30-48 REF:BNS 30-48 See assembly instructions supplied with the kit low noise level BNS water group kits 30 to 230 REF:BNS 82-122 galvanized angle mousse (B) mousse (C) See assembly instructions supplied with the kit...

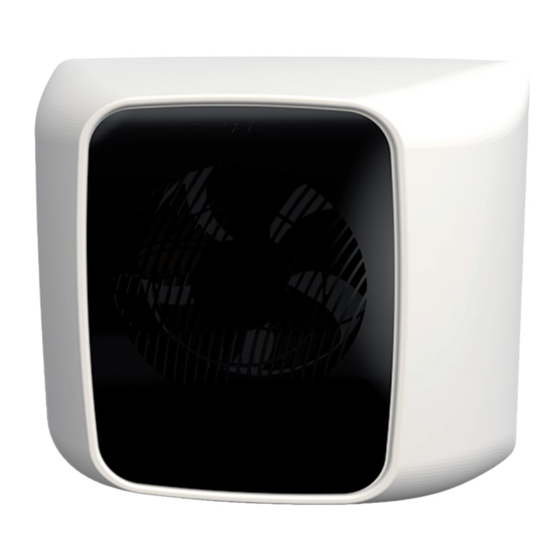

- Page 13 Cellar evaporator installation Genesis-Vintage .01 Locacation of the evaporator Your evaporator EVX2 uses its periphery along the wall to extract air. Leave a minimum of 25 cm of space around the device so as not to obstruct the air flow and obtain an optimal flow rate.
- Page 14 EVX2 Cellar evaporator installation Genesis-Vintage .03 Gabarit de fixation Level For connection from the rear : The two refrigeration connections and the two electrical connections must pass through Ø70mm this ori ce. The partition will have to be drilled. Rear connection hole 2x Ø35mm fridge connections...
- Page 15 Power supply Condensor probe Connection passage back cellar Evaporator refrigeration connections Cellar side connection hole KLED-XJ power supply Friax control box KPR-XJ power supply KLED-XJ Backlight Solenoid valve water supply HGR% Heating resistance Condensate recovery tray Lift pump KIT KPR-XJ...
- Page 16 EVX2 Cellar evaporator installation Genesis-Vintage Accessories (Sold separately) Secure connection kit for humidifier (KLPWSECU-XJ) For VINTAGE units, it is recommended to install this kit to protect against leaks and excessive water flow to the humidification system. Water inlet Max 10 bars à 21°C For more details, refer to the kit instructions.
- Page 17 Chill’ loop EVX2 Cellar evaporator installation Vintage Genesis-Vintage Vintage LED backlight kit (KLED-XJ) Connection KIT KLED-XJ. Support transfo KIT KLED-XJ. To switch ON/OFF : On the remote control, push for 5 seconds the...
- Page 18 EVX2 Connections Connectors Genesis-Vintage 3 connectors are delivered to you in a bag in the evaporator box, for be connected to your cables following the assembly below.. 1. Stripping length = 30 mm (2 poles), 37 mm (3 poles), 45 mm (4 and 5 poles) 2.
- Page 19 Chill’Loop EVX2 30-48 Connections Connectors GENESIS Genesis Connector (F) lift pump connector (F) LED RJ 12 POWER SHGR SUPPLY 4 3 2 T 1 4 3 2 T 1 3g1.5² 2x0.5² 5g1.5² Not provided Not provided Not provided Power supply...
- Page 20 Chill’Loop EVX2 30-48 Connections Connectors VINTAGE Vintage Connector (F) lift pump connector (F) LED RJ 12 POWER SHGR SUPPLY 4 3 2 T 1 4 3 2 T 1 3g1.5² 5g1.5² 2x0.5² Not provided Not provided Not provided Power supply...
- Page 21 - Fit the bodywork and tighten the wing nuts by hand without forcing. - Put the colored magnetic front in place (Friax logo facing up). - During commissioning, you can remove this body to check that your hydraulic connections are watertight.
- Page 22 EVX2 Maintenance Genesis-Vintage The following maintenance operations, repeated every 6 months, will help maintain the optimal performance of your device and thus maintain the ideal environment for the storage and aging of your bottles. Warning Before any maintenance operation, stop the device using the remote control then cut off the power supply on the main circuit breaker to avoid any risk of electrocution.
- Page 23 January, 4th 2020 Managing Director Eric JACQUOT FRIAX INDUSTRIE - RCS CHAMBERY 477 811 517 ZAC de la Prairie – F73420 VOGLANS Tel : +33 (4) 79 34 91 84 – Fax : +33 (4) 79 34 91 85 – info@friax.fr...
- Page 24 Expert Français du vin www.friax.fr Découvrez notre gamme de rangement pour la cave ! www.visiorack.com...
