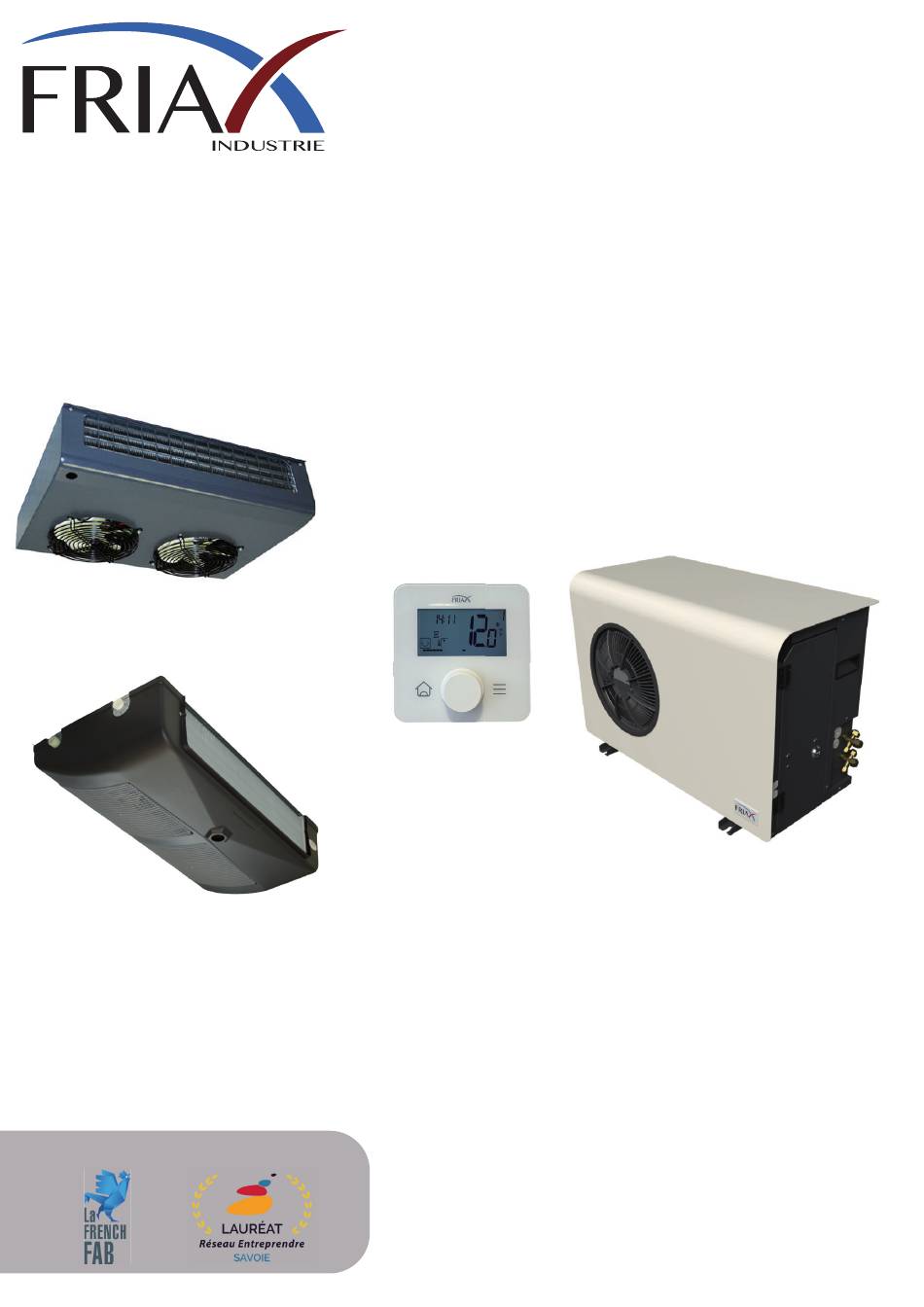

- Page 1 Technical installation manual SPC-HEVPL Vintage GCH air condensing unit The characteristics given in this technical sheet may change without prior notice, with the improvements that «FRIAX Industrie» always in- tends to make to its production. EN-NT-SPC-HEVPL-VTX-0125...
- Page 2 Warning Read the manual carrefully before using the device and keep it for futur reference. This symbol indicates that the installation manual should be read carrefully. This symbol indicates that a technician must handle this equipment in referring to the installation manual. This symbol indicates that information are available, such as the manual operating instructions or installation manual.
-
Page 3: Table Of Contents
Summary Presentation ................................. 4 Receipt of the package ............................... 4 Technical data ..............................5 Electrical connections ............................6 Schematic diagram ..............................6 Indoor unit ................................7 Dimensions ................................... 7 ............................8 Drain connection ................................. 8 Wall installation kit KPM82-122122 ..........................8 Outdoor unit GCH air group .......................... -
Page 4: Presentation
Presentation Thank you for choosing a Friax cellar system to control the aging of your wines. Take the time to read this user manual. It will allow you to understand and master the operations to install and adjust your device. -
Page 5: Technical Data
Technical data +32°C EXT Fluid R513A R513A R513A R513A R513A R513A Cooling capacity 1130 1470 2370 2750 3440 Heating capacity 1000 1600 2000 Absorbed power in cold 1176 1381 1581 Absorbed power in hot 1088 1726 2164 Max Cold/Hot Intensity Amax 5.58/3.77 5.92/4.01... -
Page 6: Electrical Connections
Electrical connections Models SPC GCH 30-48-82-122 Voltage/Frequency 230V / 50Hz 230V / 50Hz Protection Power supply to control Box 3g1.5² (2P+T) 3g2.5² Indoor Unit ==> Control box 1x (5g1.5²) 1x (6g2.5²) Max length 6 meters Cellar probe ==> Control box Câble RJ12 6m provided Câble RJ12 6m provided Outdoor Unit ==>... -
Page 7: Indoor Unit
Indoor unit Dimensions EVPL evaporators are ceiling evaporators, accessories (screws, plugs, washers) necessary for installing the evaporator are not provided. SPC 30 Vintage ø9 Ø 20 SPC 48 Vintage ø9 Ø 20 SPC 82-122 Vintage Ø 8 Ø 1" G... -
Page 8: Drain Connection
Electro-Valves connection (20/27 mm) In case of water pressure greater than 2.5 bars, the use of a pressure limiter kit is es- sential Drain connection Condensate outlet EVPL 30-48 tube Ø 20. Condensate outlet EVPL 82-122-270-230 thread Ø32mm Ø20 Wall installation kit KPM82-122122 ØF ØH MODEL... -
Page 9: Outdoor Unit Gch Air Group
Outdoor unit GCH air group Dimensions GCH 30-48 Groups 4 x Ø11 Baton safety ~116°... -
Page 10: Dimensions Gch 82-122 Groups
Dimensions GCH 82-122 Groups 4 x Ø11 Baton safety ~116°... -
Page 11: Dimensions Gch 170-230 Groups
Dimensions GCH 170-230 Groups 4 x Ø11 Baton safety... -
Page 12: Fixing Gch Groups 30 To 230
Advice: -Raise the unit to avoid leaves and snow. -Favour open areas, out of the sun -Check the solidity of the supports. -Beware of noise for neighbours. Installation with KS2M kit (list of accessories) 133 mm 100 mm 100 mm minimum minimum... -
Page 13: Cover Removal
Cover removal... -
Page 14: Refrigeration Connection
Refrigeration connection Be sure to read this carefully before installing your FRIAX equipment if the outdoor unit is above the evaporator. hauteur maxi... -
Page 15: Shaping Refrigeration Pipes
pipe in Compliant Improper copper 90° (Fig1, 2). Fig.1 Fig.2 3-Remove the “FLARE” nuts attached to the device pipe in copper Flaring Tool slip them onto the pipes after removing all burrs. Reamer Burrs additional Model with Model to wing nut Pipe Cutting crank Fig.3... -
Page 16: Using The Vacuum Pump
Using the vacuum pump 1-Remove the charging port caps (Schrader) from the service valves of the gas lines and liquid lines of the outdoor unit (Fig8). 2-Connect the charging pipes to the schraders of the gas (Blue) and liquid (Red) side service ports. 3-Connect the charging hose (yellow) to the vacuum pump nozzle. -
Page 17: Handling Of Valves
Handling of valves Once the vacuum is complete, 1- Fully open the control rods by turning them outwards but do not try to open them beyond the stop. (Start with the liquid side then the gas side). 2-Start the air conditioner and wait for a while, check the gas charge, the liquid indicator should not be bub- bling. -
Page 18: Electrical Connection
Electrical connection 4 x Ø6.2 1 2N 3L 4 5 7 8 9 1N1L 2L4L A B C N L PEPE PEPE Cellar T° probe COND=Condenser probe 1=Casing resistance 3L= EV Pump Down SPC170-230 1N=Neutral indoor unit 1L=HGR power supply 2N=Neutral EXT group 5=Compressor supply spc170-230 2L= Resistance power supply... -
Page 19: Probe Placement And Connection
Probe placement and connection The remote control box comes with: - a remote control and its support - 2 LR03 batteries - A probe installed in its support supplied with: - screws and their plugs (wall mounting) The class 6 RJ straight cable with a length of 6 m is supplied with the regulation box Connecteur sonde RJ45... -
Page 20: Spc Air Group 30-48-82-122-Hevpl Vintage
SPC Air Group 30-48-82-122-HEVPL Vintage Control box COND/ AMB RJ12 cable Switch Hygo-temperature probe 1 2N 3L 4 5 7 8 9 1N1L 2L4L A B C PEPE PEPE N L 3G1,5² Power Supply 20A 230V+T 5 G 1,5² 3x1² 2 x 0.5²... -
Page 21: Spc 170-230-Hevpl Vintage Air Group
SPC 170-230-HEVPL Vintage Air Group Control box COND/ AMB RJ12 cable Switch Hygo-temperature probe 1 2N 3L 4 5 7 8 9 1N1L 2L4L A B C PEPE PEPE N L 3G2,5² Power Supply 20A 230V+T 5 G 2,5² 3x1² 2 x 0.5²... -
Page 22: Lighting Function
The card is equipped with an auxiliary contact COM-NO-NC 2 functions can be associated with the auxiliary contact: 16 A max - ECL lighting function - Alarm reporting function The card is basically programmed for lighting function. Lighting function: To turn on the lighting, refer to the RSF2 Commissioning & Use instructions, ==>Summary==>Menu architecture==>Menu 3 FUNC Lig ON/OFF command. -
Page 23: Maintaining Your Cellar Air Conditioner
The following maintenance operations, repeated every 6 months, will ensure that your air conditioner re- tains its optimum performance and lasts as long as you and your wine. Warning! Before any maintenance operations, turn off the device using the remote control then cut off the power sup- ply at the main circuit breaker to avoid any risk of electrocution. - Page 24 231/233 Rue de la Prairie F-73420 Voglans Site web : www.friax.fr info @friax.fr Boite mail : Découvrez notre gamme de rangement pour la cave ! VisioRack ® L'agencement du vin www.visiorack.com...
