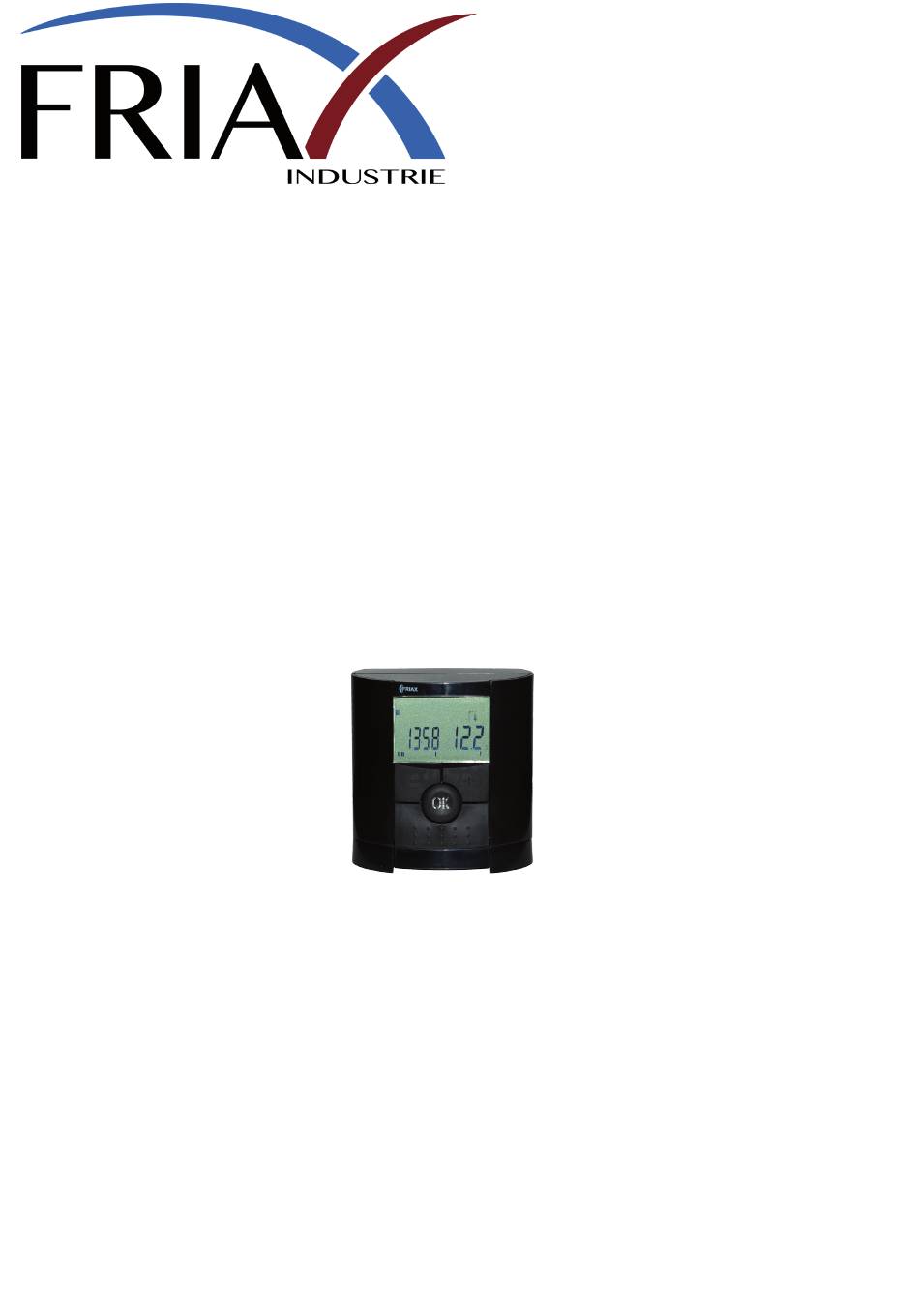

- Page 1 Commissioning and using manual SPC - EVX, EVX2, EVPL, EVG, EVI, EVA,EVA2 Genesis, Céos, Vintage "FRIAX industrie", in a constant endeavour to improve its products reserves the right to change EN-NT-SPCRSF-0223 any information contained in this leaflet without prior warning...
-
Page 2: Read Carefully
(see page 9). In this case, the regu- lation of your Friax remains on standby and will activate the hea- ting of the compressor if necessary. -
Page 3: Remote Control
Remote control Genesis-Céos-Vintage Power: 2 x 1.5V (AAA) provided The remote control can be installed in another room than the cellar. Its maximum range is 100m in free field. This distance can be reduced by the thickness of the walls and the location of the cellar. - Page 4 Display Genesis-Céos-Vintage 7 8 9 Navigation key Navigation key Validation key Start key Menu key -Red : heating mode Stand by -Green : cooling mode Return Stop -Flashing red : Alarm Radio frequency signal Configuration type Key lock indicator Temperature or humidity indicator (option)
- Page 5 Step I Genesis-Céos-Vintage First Start Be careful before this step Make sure that all the electrical elements, wires, probes etc ... are well connected. Without this, the functions of the probes and motors would not be taken into account. Step 1a Pairing the regulation with the remote control Manipula�ons...
- Page 6 Step II & III Genesis-Céos-Vintage Step II - Star�ng Func�ons Manipula�ons Displays Remarks The unit starts. Start the unit with the Press If the icons remote control for 2 seconds are flashing the unit is in xed or ashing standby mode.
- Page 7 Step IV Genesis-Céos-Vintage Step IV - Set the cellar fans speed Remarks Access to Screens Manipulations Parameters menu Even if the screen is blank Press Login with Se�ng the See below the value Change the value with for 6 seconds...
- Page 8 Step IV Genesis-Céos-Vintage * For EVG and EVI, the factory set speeds are adapted to obtain the nominal flow rate for air pressure drops up to 20 Pa. If the pressure drop is higher (up to 100 Pa) you can increase the speed increasing this speed with the remote control.
- Page 9 Basic Func�ons Genesis-Céos-Vintage func�ons Handling Views Remarks The display alternately Display the tempera- shows the value of the Press ture or humidity of the temperature and humidity cellar (Only available on Vintage model) The fan switches to low Put the fan in the cellar...
- Page 10 User Menu Genesis-Céos-Vintage Remarks Access to Parameters Screens Manipulations menu Login with Change the value with Switches from 12 h Se�ng the �me AM / PM display on display. 12 or 24 hours confirm with Login with Even if the screen...
- Page 11 User Menu Genesis-Céos-Vintage Remarks Access to Parameters Screens Manipulations menu This parameter is Login with set to 0 at the factory. It may be modified only in Change the value with the case where Calibra�ng the there would be a temperature difference...
- Page 12 Once the problem is solved, press the Sync button on the unit or on Description Alarm code Error source Type of error type 2 Genesis temperature signal lost A SL type 1 Lower threshold wine cellar temperature Cellar T° sensor A SH...
-
Page 13: Troubleshooting
According to the number of bottles stored, the air conditioning could needs several days to reach the set temperature. The installation works but Air conditioner Friax is designed to works in an environment without doesn’t cool enough ventilation. check the insulation of door frames, check there is no natural air inlet there. - Page 14 Reset Genesis-Céos-Vintage How to reset to factory configura�on of the remote Remove one of the battery and reset it. First message displayed inform you of the remote control version Reset version 2.1 & 3.2 Enter the code 2013 with Press...
-
Page 15: Maintenance
Maintenance Genesis-Céos-Vintage Maintenance of your air condi�oner The following maintenance opera�ons repeated every 6 months will allow your SPC air condi�oner to maintain its performance in op�mal ways to ensure its longevity and that of your wines. WARNING Before all maintenance opera�ons, cut off the electrical supply to the circuit breaker main. - Page 16 Genesis & Vintage 231/233 Rue de la Prairie F-73420 Voglans Website : www.friax.fr Mailbox : info@friax.fr Discover our range of storage for the cellar! ® VisioRack L'agencement du vin www.visiorack.com...
